Nissan Sentra. Manual - part 41
AV-156
< ECU DIAGNOSIS INFORMATION >

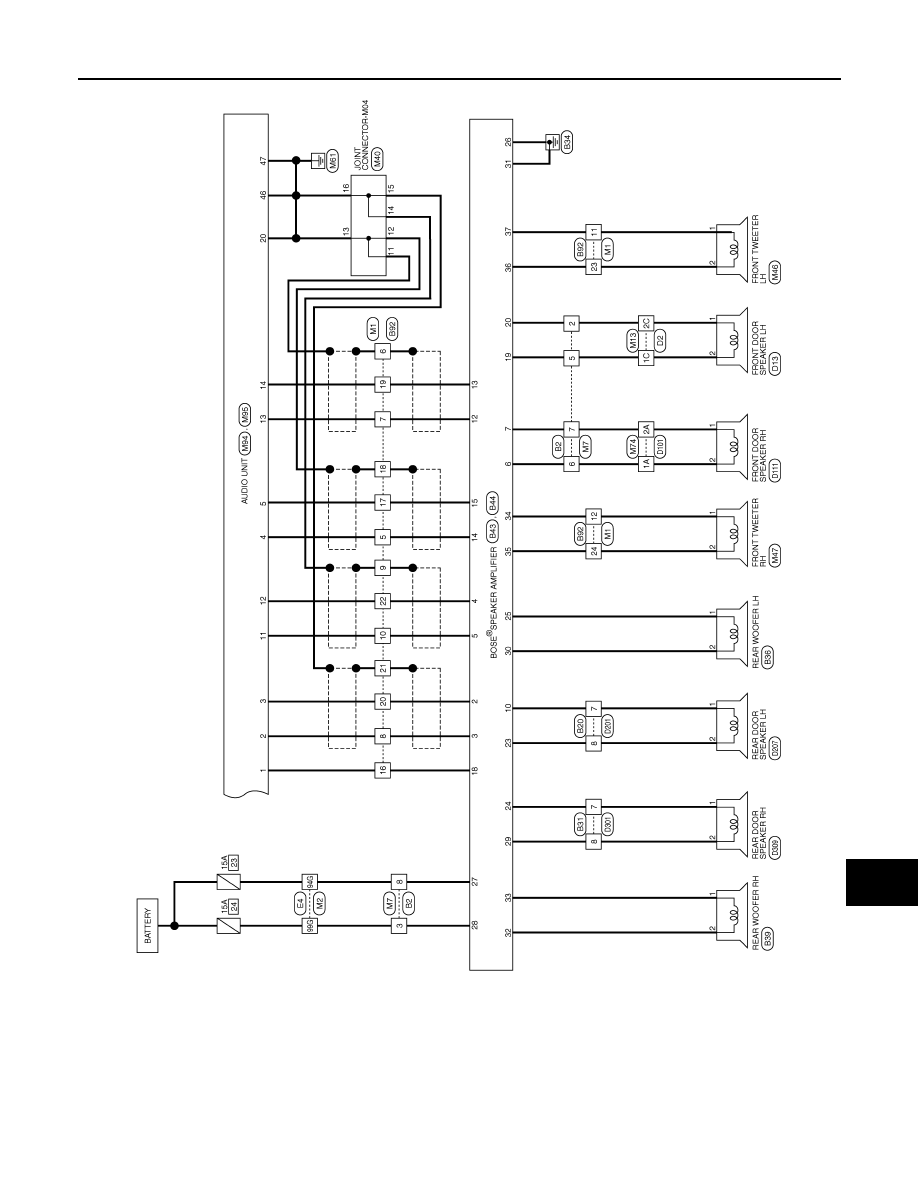

[DISPLAY AUDIO WITH BOSE]

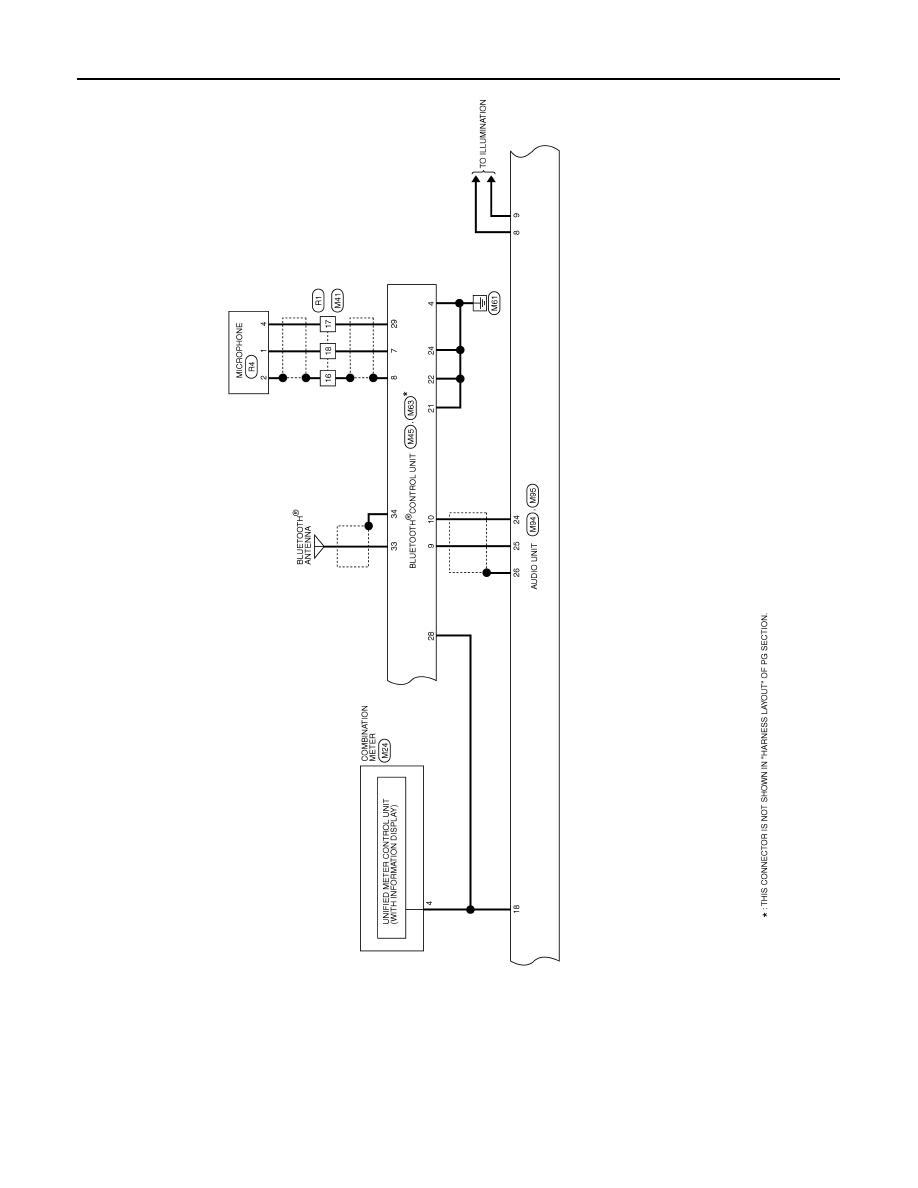

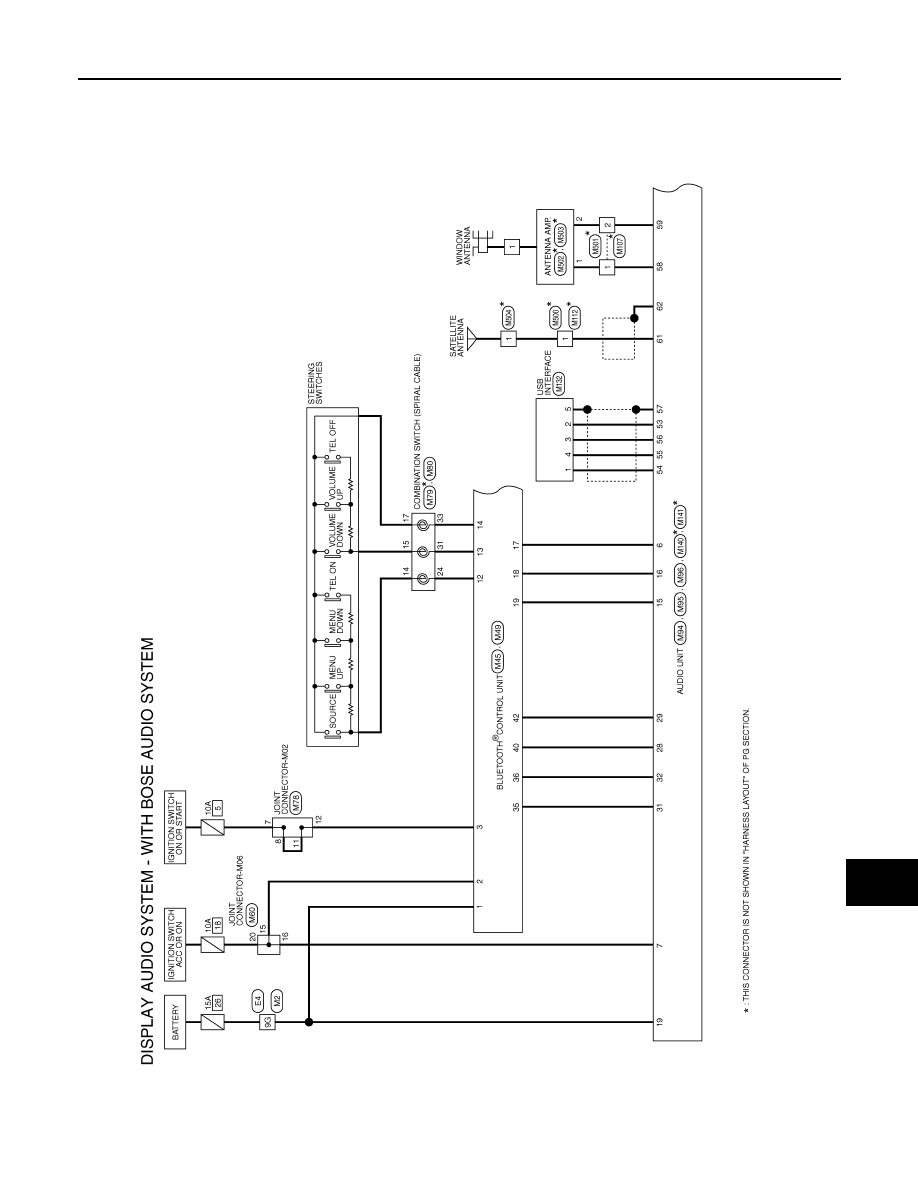

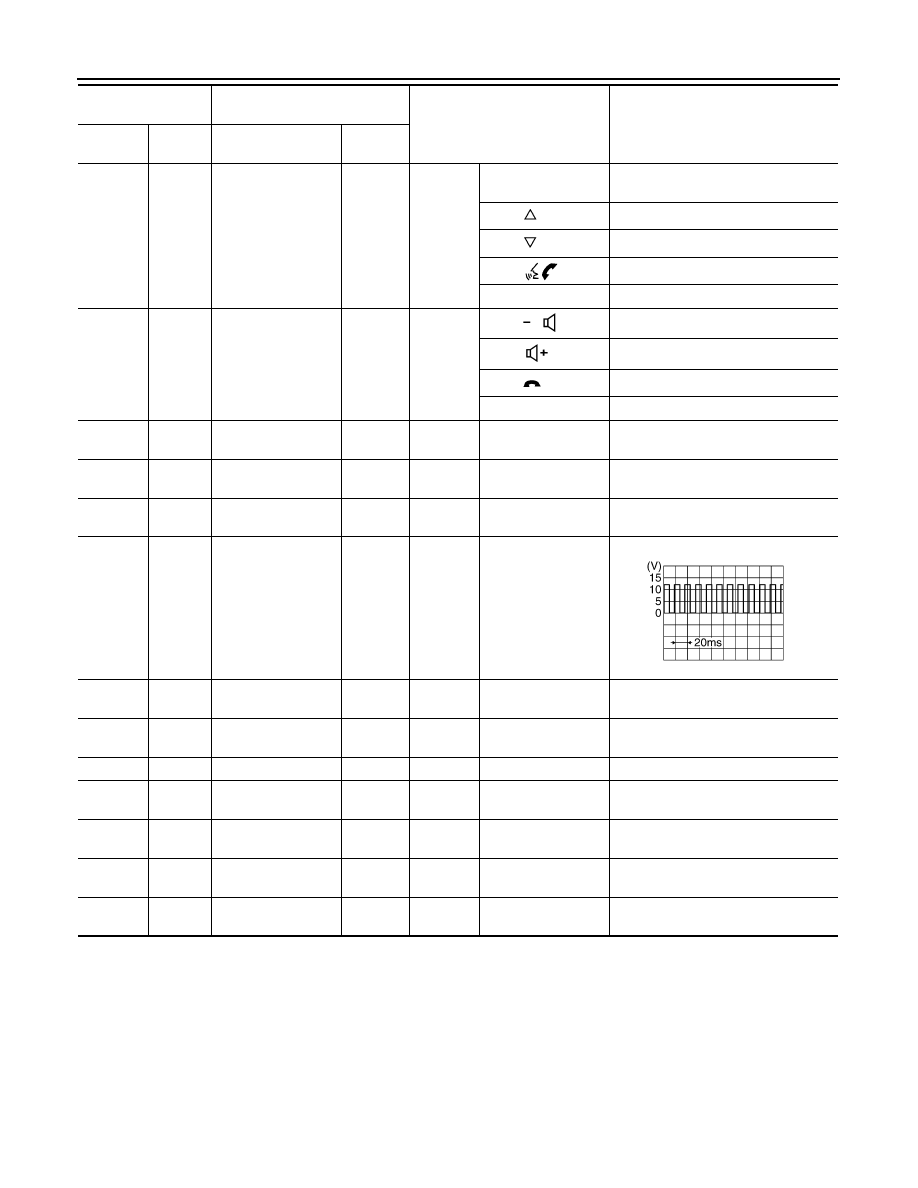

BLUETOOTH® CONTROL UNIT
17
(G)
19
(P)
LAD OUT 1
Output
Ignition
switch ON
Press SOURCE
switch
0V
Press
switch
1.0V
Press
switch
2.0V
Press
switch
3.0V
Except above
5.0V
18
(LG)
19
(P)
LAD OUT 2
Output
Ignition
switch ON
Press
switch
0V
Press
switch
1.0V
Press
switch
2.0V
Except above
5.0V
21
(B)
Ground
CONT2 Ground
–
Ignition
switch ON
–
0V
22
(B)
Ground
CONT3 Ground
–
Ignition
switch ON
–
0V
24
(B)
Ground
CONT5 Ground
–
Ignition
switch ON
–
0V
28
(Y)
Ground
Vehicle speed signal
(8-pulse)
Input
Ignition
switch ON
When vehicle speed
is approx. 40 km/h
(25 MPH)
29
(R)
Ground
Microphone power
Output
Ignition
switch ON
–
5V
33
(B)
–
Bluetooth
®
antenna
–
–
–
—
34 –
Shield
–
–
–
—
35
(SB)
–
M CAN1-H
–
–
–
—
36
(LG)
–
M CAN1-L
–
–
–
—
40
(B)
–
M CAN2-H
–
–
–
—
42
(R)
–
M CAN2-L
–
–
–
—
Terminal
(wire color)
Description
Condition
Reference value
(Approx.)
+
–
Signal name
Input/out-
put
PKIA1935E
