USB CONNECTOR

USB CONNECTOR

Removal and Installation

INFOID:0000000009758873

Removal

1. Remove the center console rear finisher cover. Refer to

IP-23, "Exploded View"

.

2. Release the pawls and remove the USB connector (1) from the

center console rear finisher cover.

: Pawl

: Front

Installation

Installation is in the reverse order of removal.

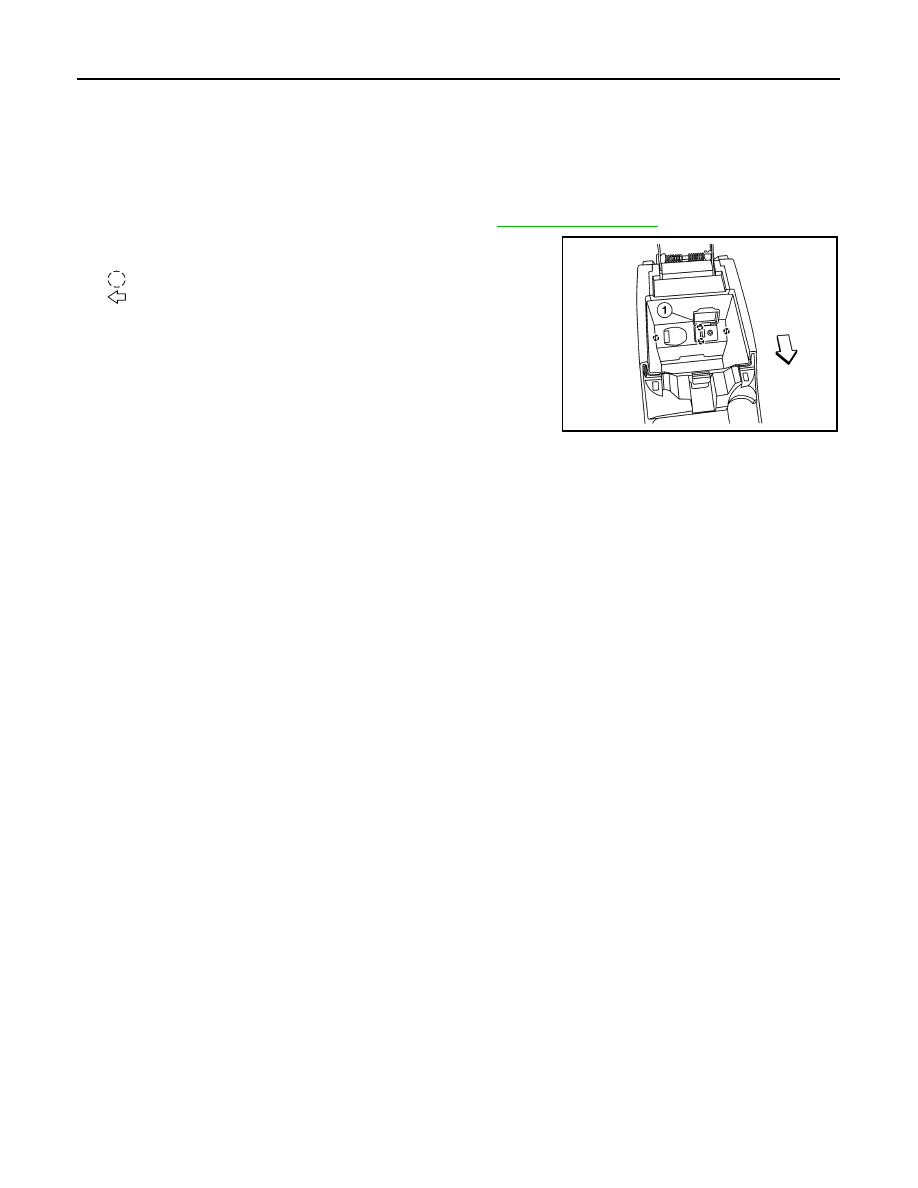

ALNIA1411ZZ

AV

SATELLITE RADIO ANTENNA

AV-133

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009758874

REMOVAL

1. Lower the headlining at the rear. Refer to

INT-38, "Exploded View"

.

2. Remove the satellite radio antenna nut (A).
3. Disconnect the harness connector (B) from the satellite radio

antenna (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

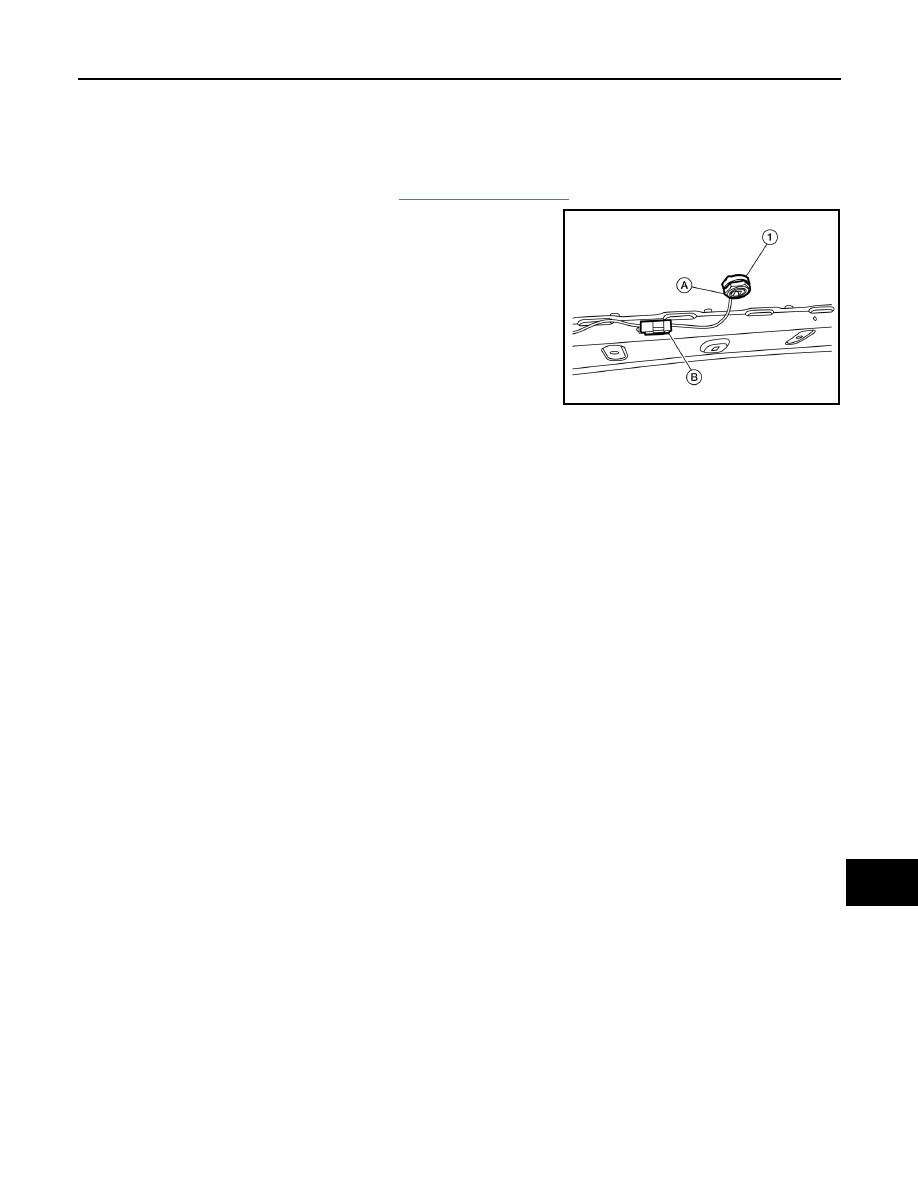

ALNIA1412ZZ

AV-134

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT BOSE]

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000009758875

REMOVAL

1. Remove the glove box assembly. Refer to

IP-22, "Removal and Installation"

.

2. Remove the Bluetooth control unit screws (A) and position aside

the Bluetooth control unit assembly (1).

3. Disconnect the Bluetooth control unit connectors (C) and

release the harness retainer (B) from the Bluetooth control unit

bracket.

4. Release the harness clip (D) from the Bluetooth control unit

bracket and remove the Bluetooth control unit (1).

5. Remove the Bluetooth control unit bracket screws (A), then

remove the Bluetooth control unit (2) from the Bluetooth control

unit bracket (1).

INSTALLATION

Installation is in the reverse order of removal.

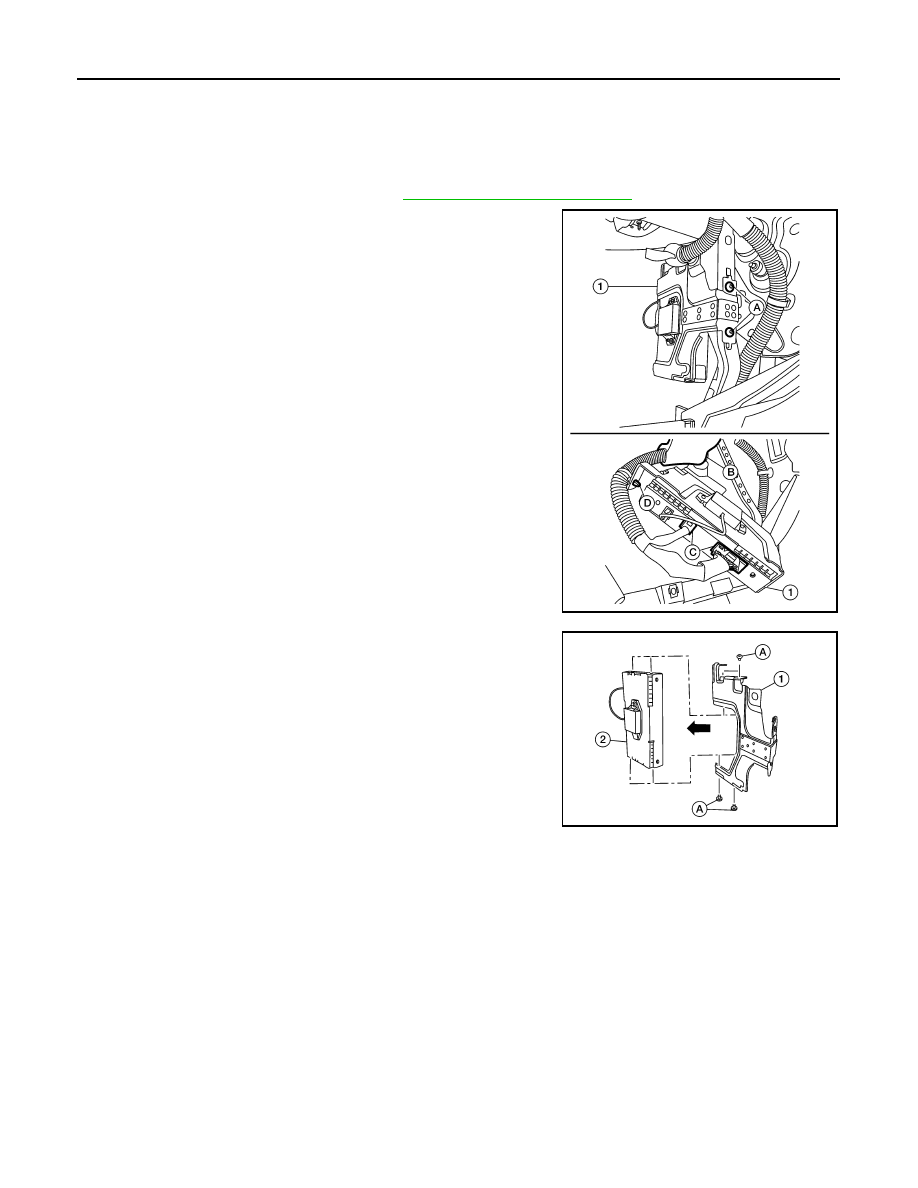

ALNIA1417ZZ

ALNIA1418ZZ

AV

MICROPHONE

AV-135

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009758876

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

2. Disconnect the microphone connector (A) from the front room/

map lamp assembly (2).

3. Release the microphone pawls, then remove the microphone

(1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

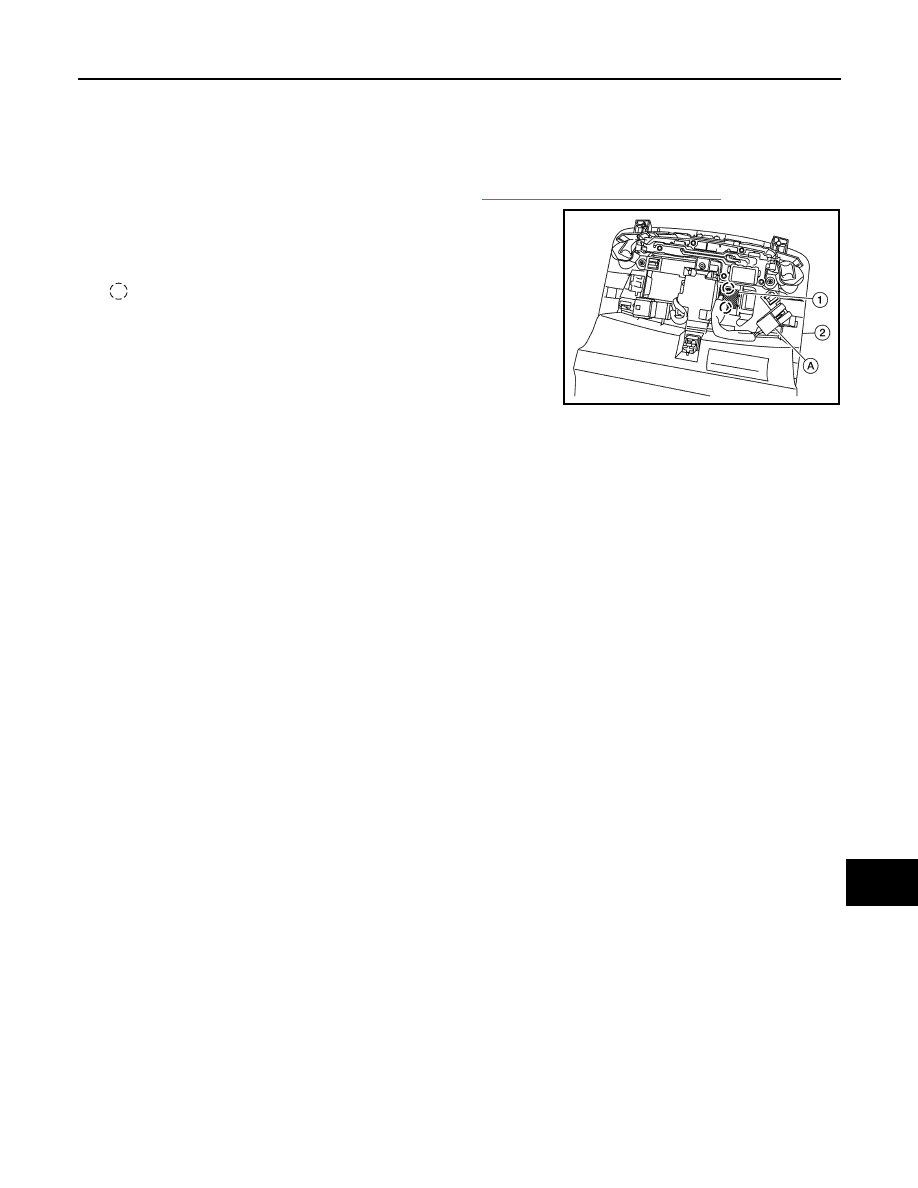

ALNIA1366ZZ
