Nissan Sentra. Manual - part 26

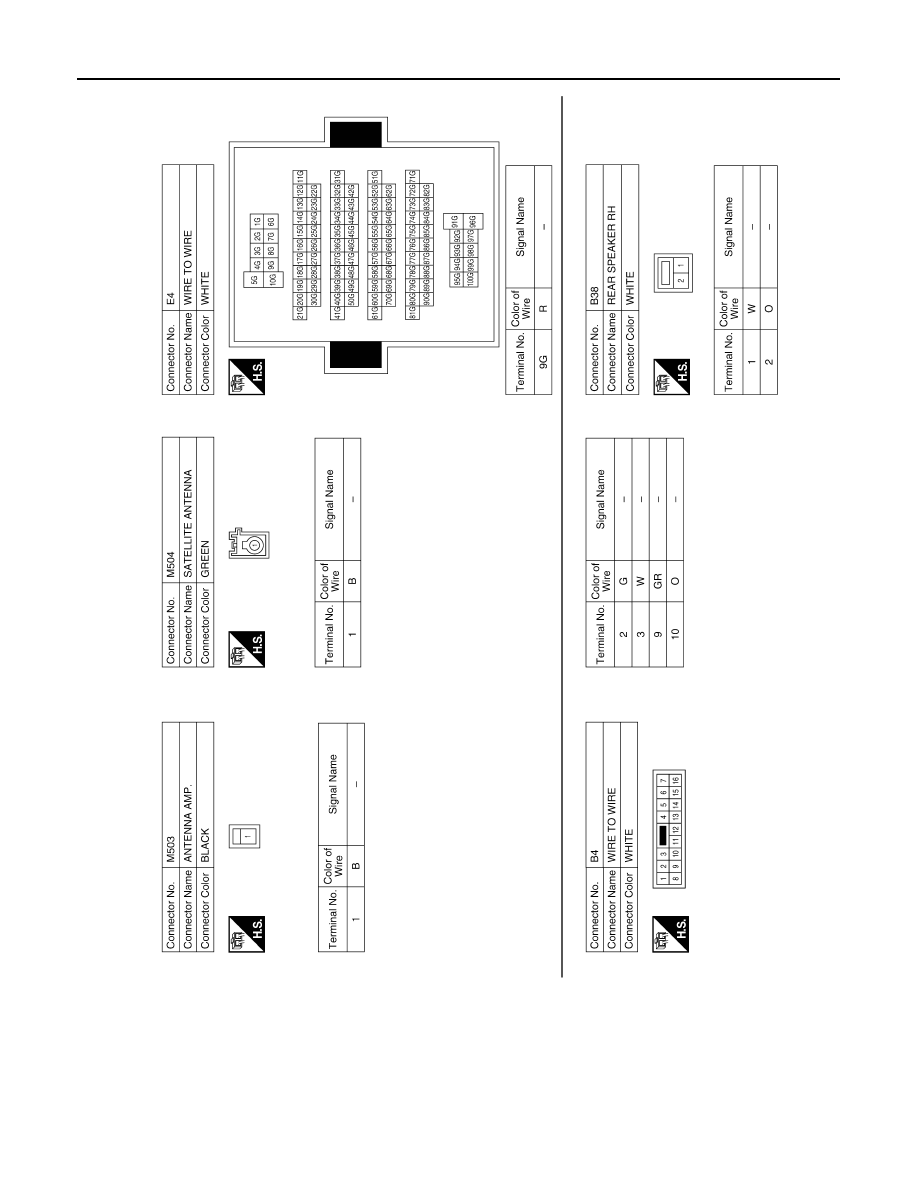

AV-96

< WIRING DIAGRAM >

[DISPLAY AUDIO WITHOUT BOSE]

DISPLAY AUDIO WITHOUT BOSE

AANIA1369GB

AV

DISPLAY AUDIO WITHOUT BOSE

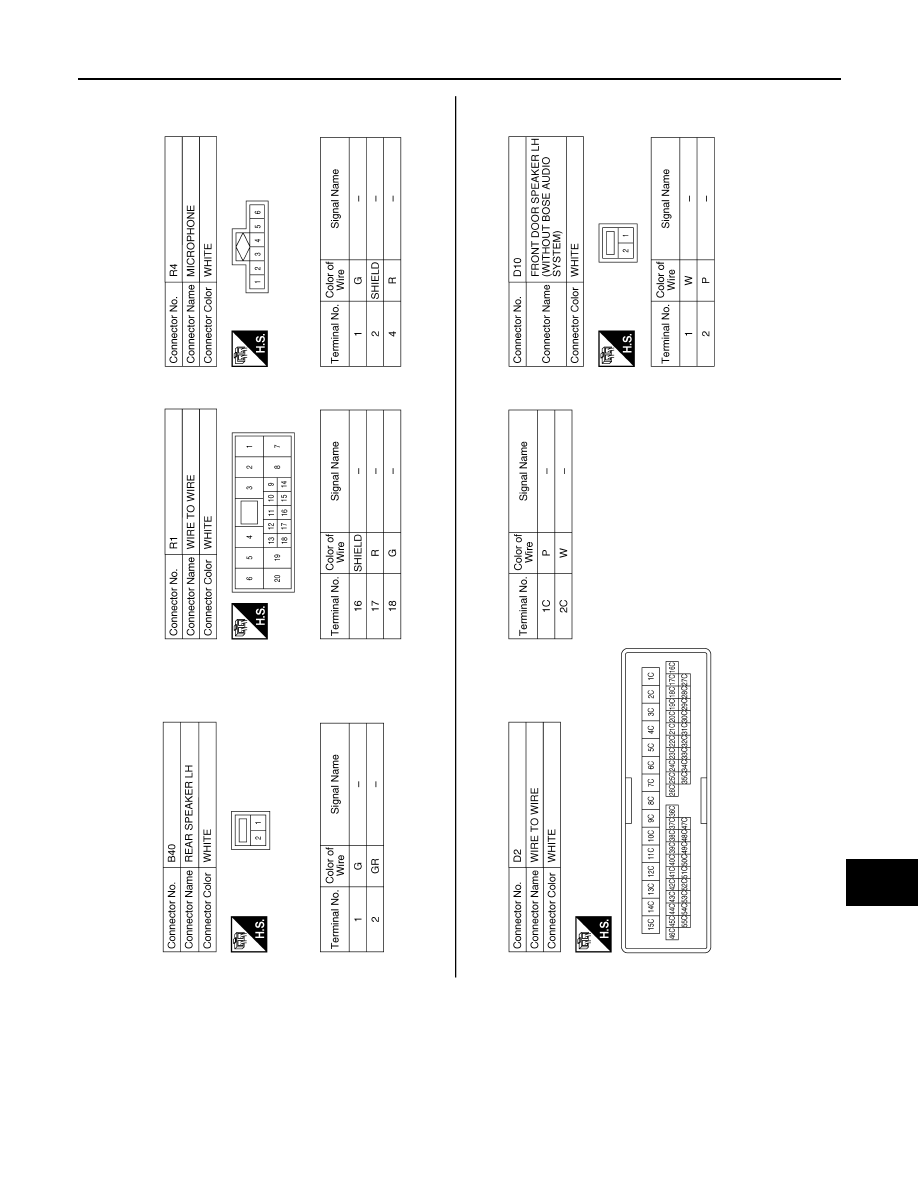

AV-97

< WIRING DIAGRAM >

[DISPLAY AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5797GB

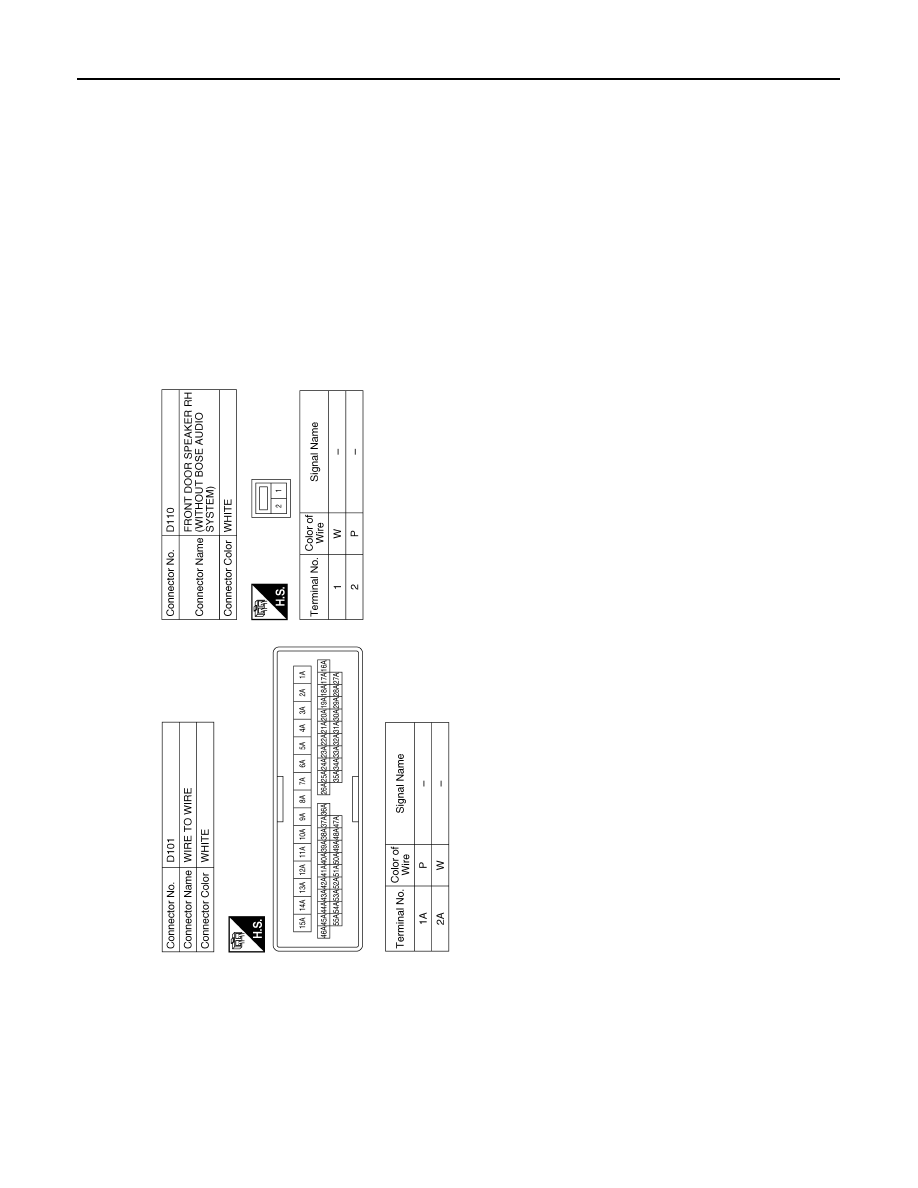

AV-98

< WIRING DIAGRAM >

[DISPLAY AUDIO WITHOUT BOSE]

DISPLAY AUDIO WITHOUT BOSE

ABNIA5798GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-99

< BASIC INSPECTION >

[DISPLAY AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

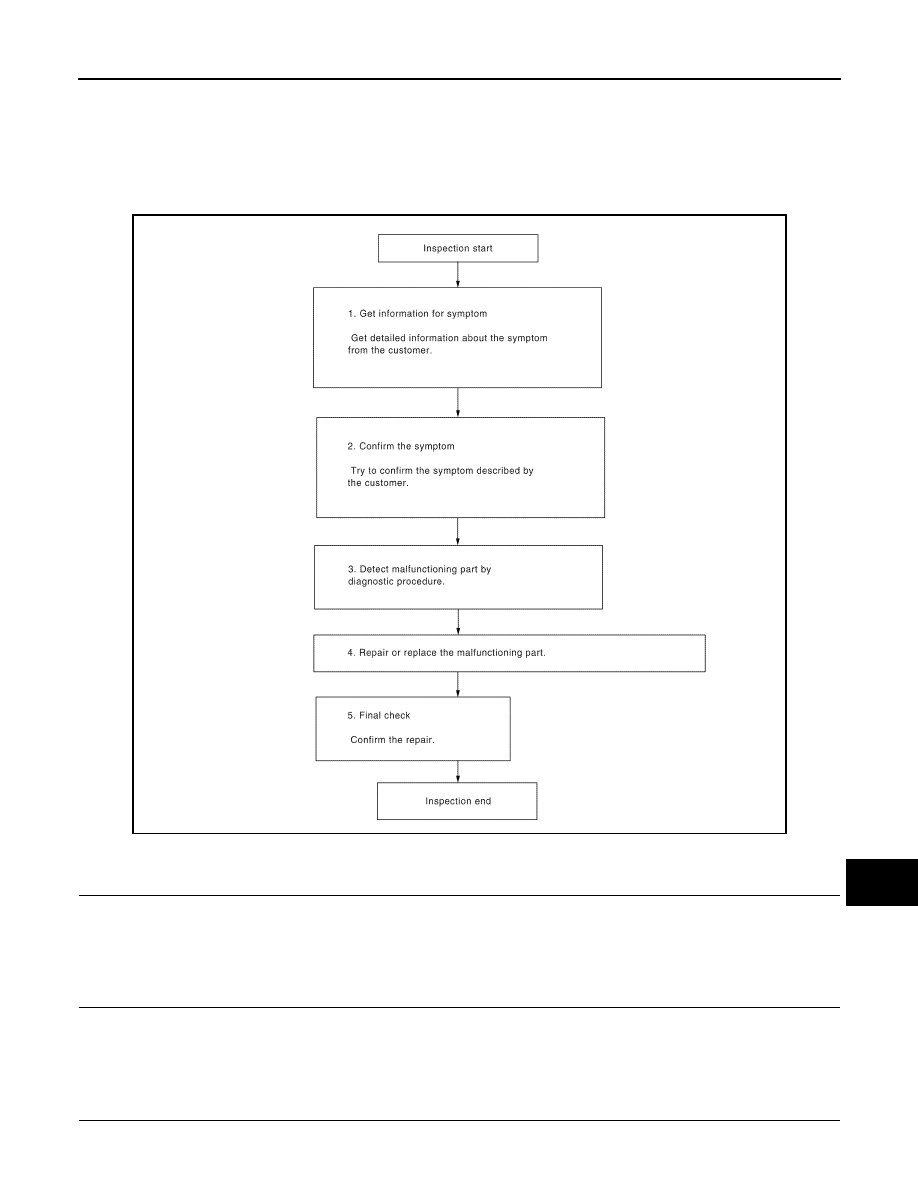

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009758850

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB
