Nissan Sentra. Manual - part 1





ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010287580

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

ACCELERATOR CONTROL SYSTEM

ACC-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

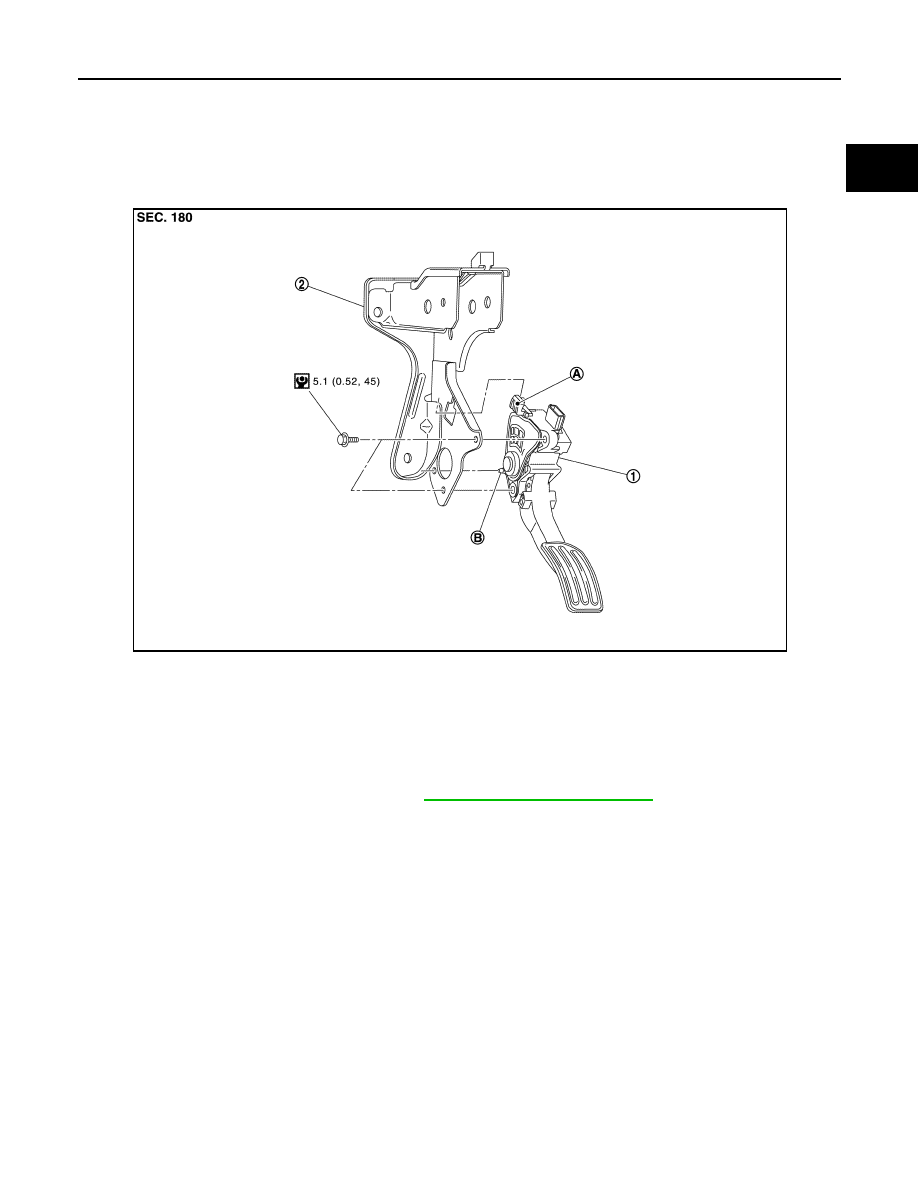

Exploded View

INFOID:0000000009758117

Removal and Installation

INFOID:0000000009758118

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Disconnect the harness connector From the accelerator pedal assembly.
3. Loosen bolts and remove accelerator pedal assembly.

CAUTION:

• Do not disassemble accelerator pedal assembly.

• Do not remove accelerator pedal position sensor from accelerator pedal assembly.

• Do not drop or impact the accelerator pedal assembly.

• Do not expose the accelerator pedal assembly to water.

INSTALLATION

Installation is in the reverse order of removal.

• Insert the locating hook and pin into the brake pedal bracket.

CAUTION:

Do not squeeze the locating hook into the brake pedal bracket when inserting the locating pin into the

hole on the brake pedal bracket side.

Inspection

INFOID:0000000009758119

INSPECTION AFTER INSTALLATION

1.

Accelerator pedal assembly

2.

Brake pedal bracket

A. Locating hook

B. Locating pin

JPBIA5259GB

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

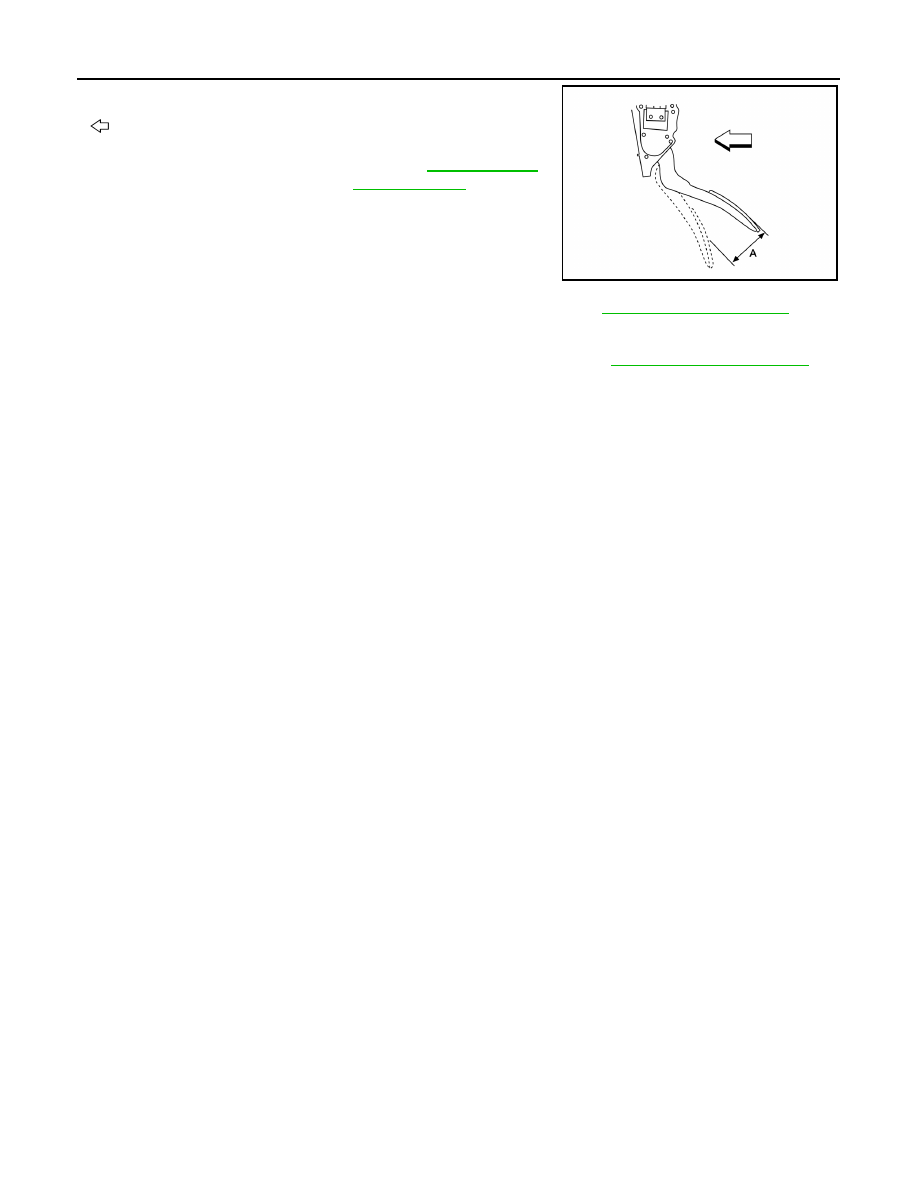

• Check that the accelerator pedal moves smoothly within the speci-

fied range.

: Front

• For the electrical inspection of accelerator pedal position sensor. Refer to

EC-138, "Work Procedure"

.

CAUTION:

• Whenever the harness connector of accelerator pedal position sensor is disconnected, perform

“ACCELERATOR PEDAL RELEASED POSITION LEARNING”. Refer to

EC-138, "Work Procedure"

.

• The accelerator pedal should return smoothly to the fully raised position.

Accelerator pedal stroke (A) : Refer to

ACC-5, "Accel-

erator Control"

ALBIA0798ZZ
