UPPER METER

Exploded View

INFOID:0000000010122447

REMOVAL

Refer to

IP-16, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000010122448

REMOVAL

1. Remove the cluster lid finisher. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws and connector, and then remove upper meter.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010122449

DISASSEMBLY

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

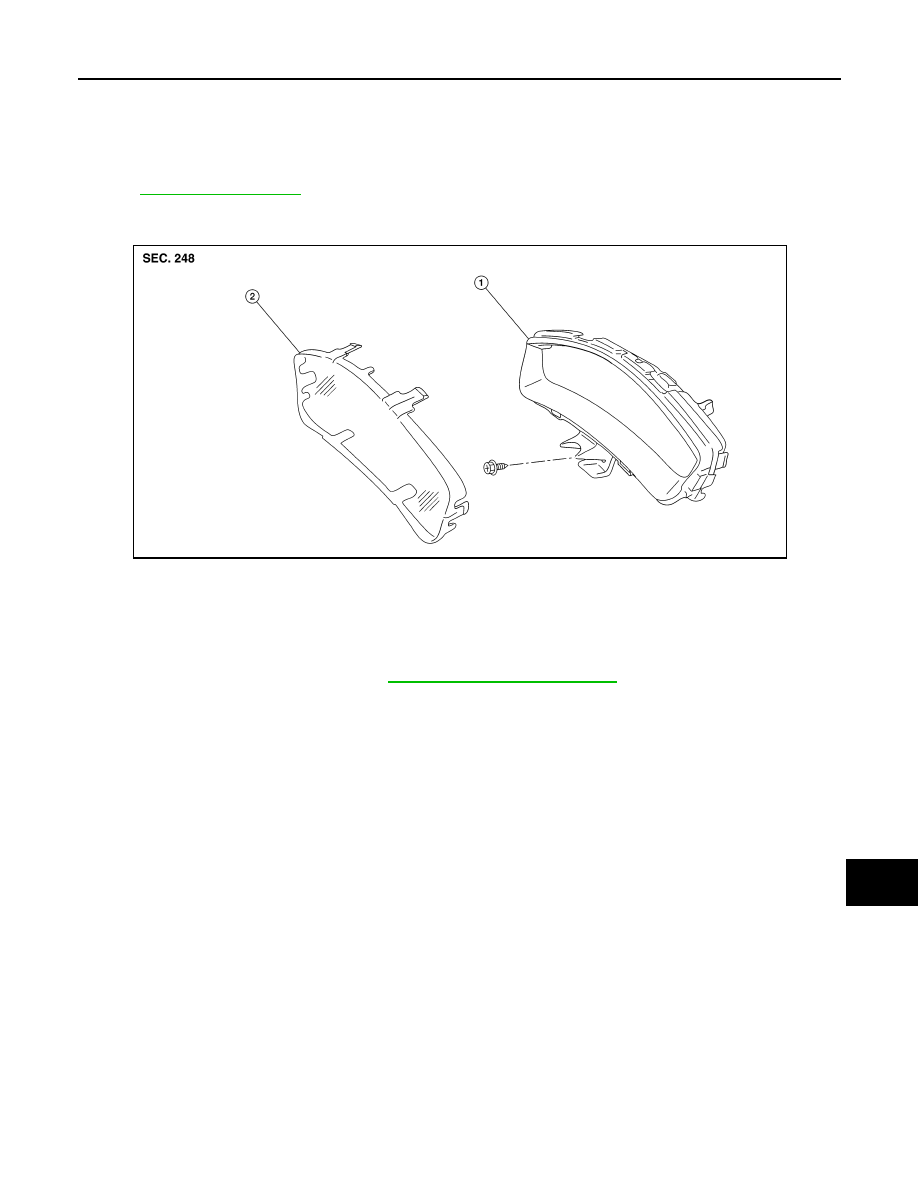

1.

Upper meter

2.

Front cover

AWNIA3000ZZ

MWI-104

< REMOVAL AND INSTALLATION >

METER CONTROL SWITCH

METER CONTROL SWITCH

Exploded View

INFOID:0000000010122450

REMOVAL

Refer to

IP-16, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000010122451

REMOVAL

1. Remove side ventilator grille LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove connector.
3. Remove screws, and then remove meter control switch.

INSTALLATION

Install in the reverse order of removal.

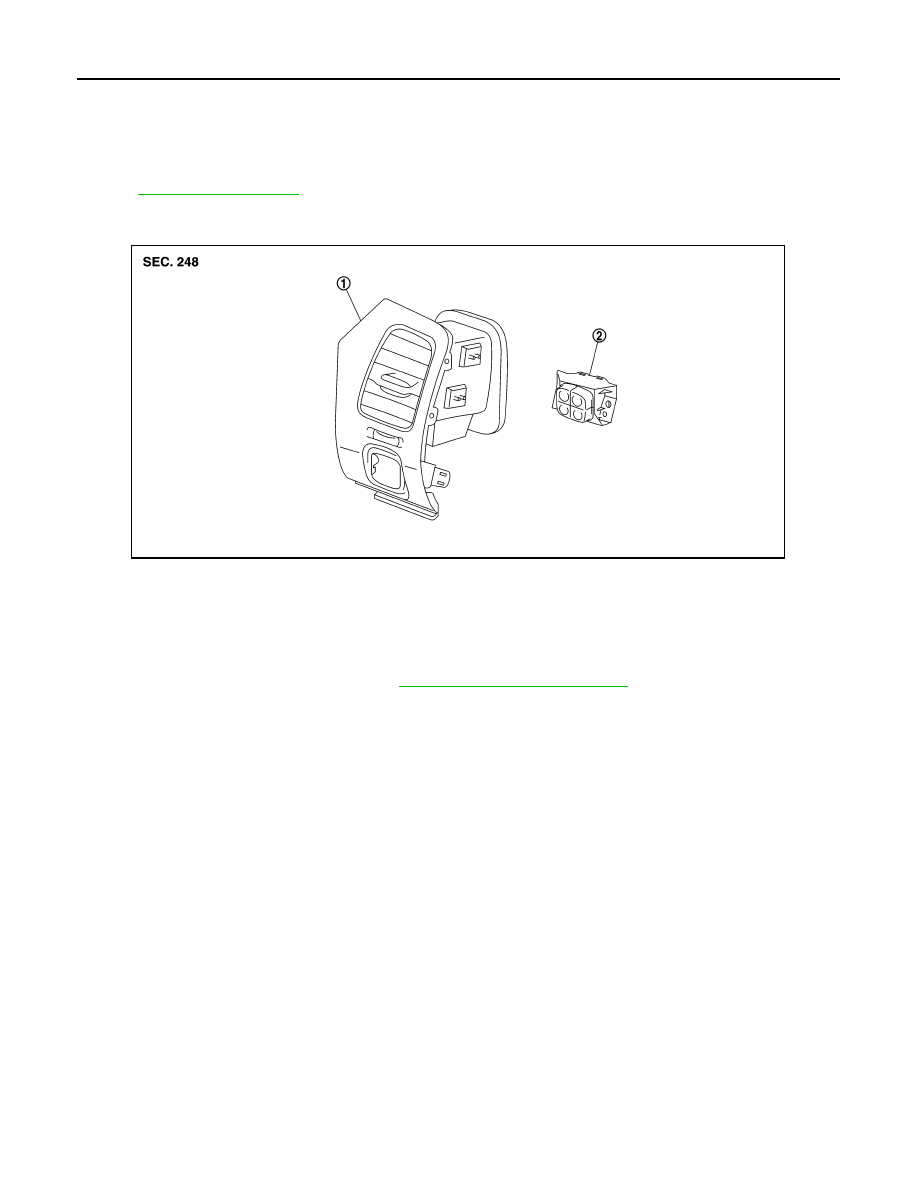

1.

Side ventilator grille LH

2.

Meter control switch

JSNIA3761ZZ
