Nissan Leaf. Manual - part 955

MWI

SYSTEM

MWI-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CHANGE

LI-ION BATTERY AVAILABLE CHARGE GAUGE

JSNIA4496GB

MWI-24

< SYSTEM DESCRIPTION >

SYSTEM

LI-ION BATTERY AVAILABLE CHARGE GAUGE : System Description

INFOID:0000000010122394

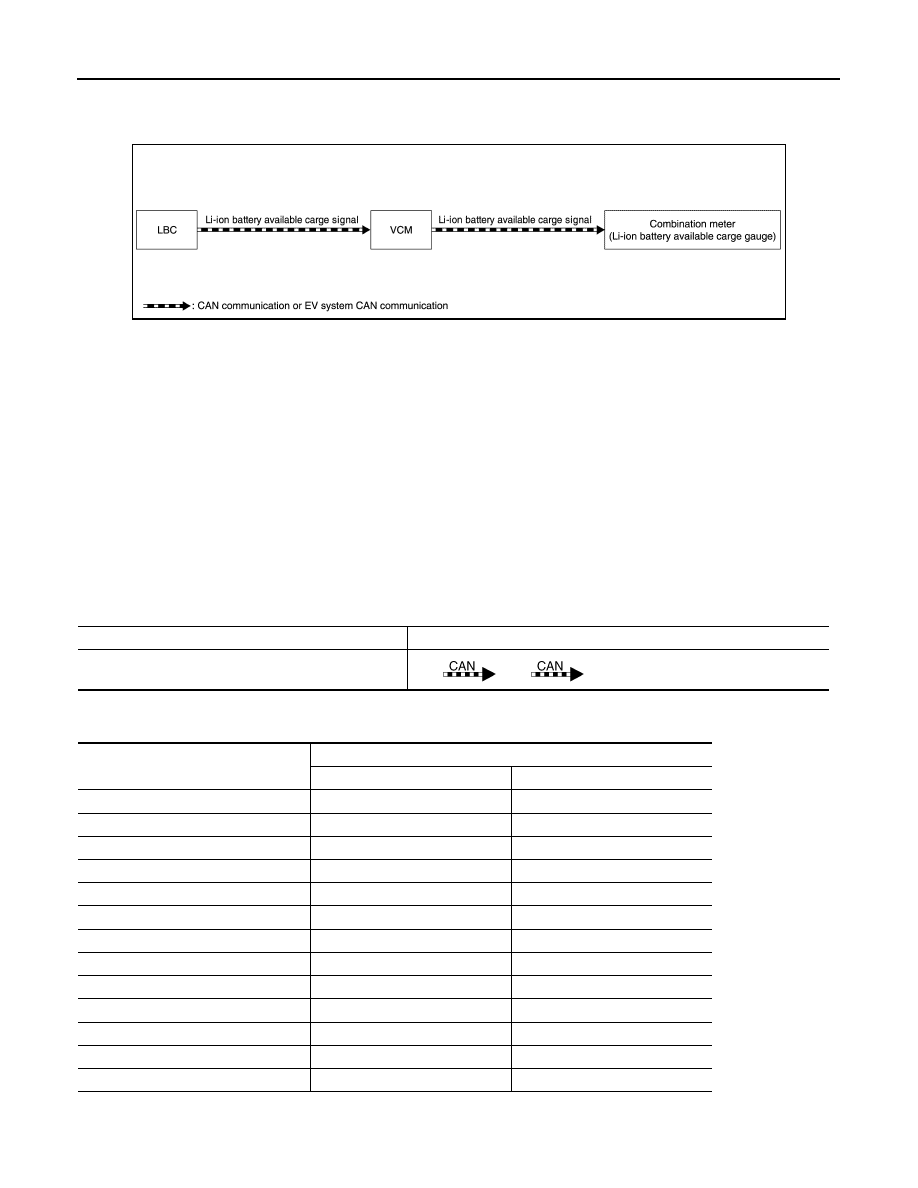

SYSTEM DIAGRAM

DESCRIPTION

• LBC transmits a Li-ion battery available charge signal to VCM via EV system CAN communication.

• VCM transmits a Li-ion battery available charge signal to the combination meter via CAN communication.

• The combination meter indicates the Li-ion battery available charge to the Li-ion battery available charge

gauge according to the Li-ion battery available charge signal received via CAN communication.

NOTE:

• Li-ion battery available charge signal is a signal which requests the number of lighting segments of the Li-ion

battery available charge gauge. The number of lighting segments is judged by LBC, according to Li-ion bat-

tery available charge level. When receiving a Li-ion battery available charge signal, the combination meter

shows the number of lighting segments requested via Li-ion battery available charge signal on the Li-ion bat-

tery available charge gauge.

• Li-ion battery available charge level is displayed by the ratio to the full capacity.

• Since Li-ion battery capacity changes with Li-ion battery temperature, the indication of Li-ion battery avail-

able charge gauge may change.

SIGNAL PATH

LI-ION BATTERY AVAILABLE CHARGE GAUGE PARAMETER

NOTE:

JSNIA4490GB

Signal name

Signal path

Li-ion battery available charge signal

LBC

 VCM

 Combination meter

The number of lighting segments of Li-

ion battery available charge gauge

Li-ion battery available charge level (%)

When driving

When charging

12

More than 92

96 or more

11

More than 84 and 92 or less

88 or more and less than 96

10

More than 76 and 84 or less

80 or more and less than 88

9

More than 68 and 76 or less

72 or more and less than 80

8

More than 60 and 68 or less

64 or more and less than 72

7

More than 52 and 60 or less

56 or more and less than 64

6

More than 44 and 52 or less

48 or more and less than 56

5

More than 36 and 44 or less

40 or more and less than 48

4

More than 28 and 36 or less

32 or more and less than 40

3

More than 20 and 28 or less

24 or more and less than 32

2

More than 12 and 20 or less

16 or more and less than 24

1

More than 4 and 12 or less

8 or more and less than 16

0

4 or less

Less than 8

MWI

SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Since the indication method of available charge level is different between Li-ion battery available charge

gauge and quick charger, the above Li-ion battery available charge level (%) does not agree with levels dis-

played on quick charger.

RELATIONSHIPS OF LI-ION BATTERY CAPACITY LEVEL GAUGE AND LI-ION BATTERY AVAIL-
ABLE CHARGE GAUGE

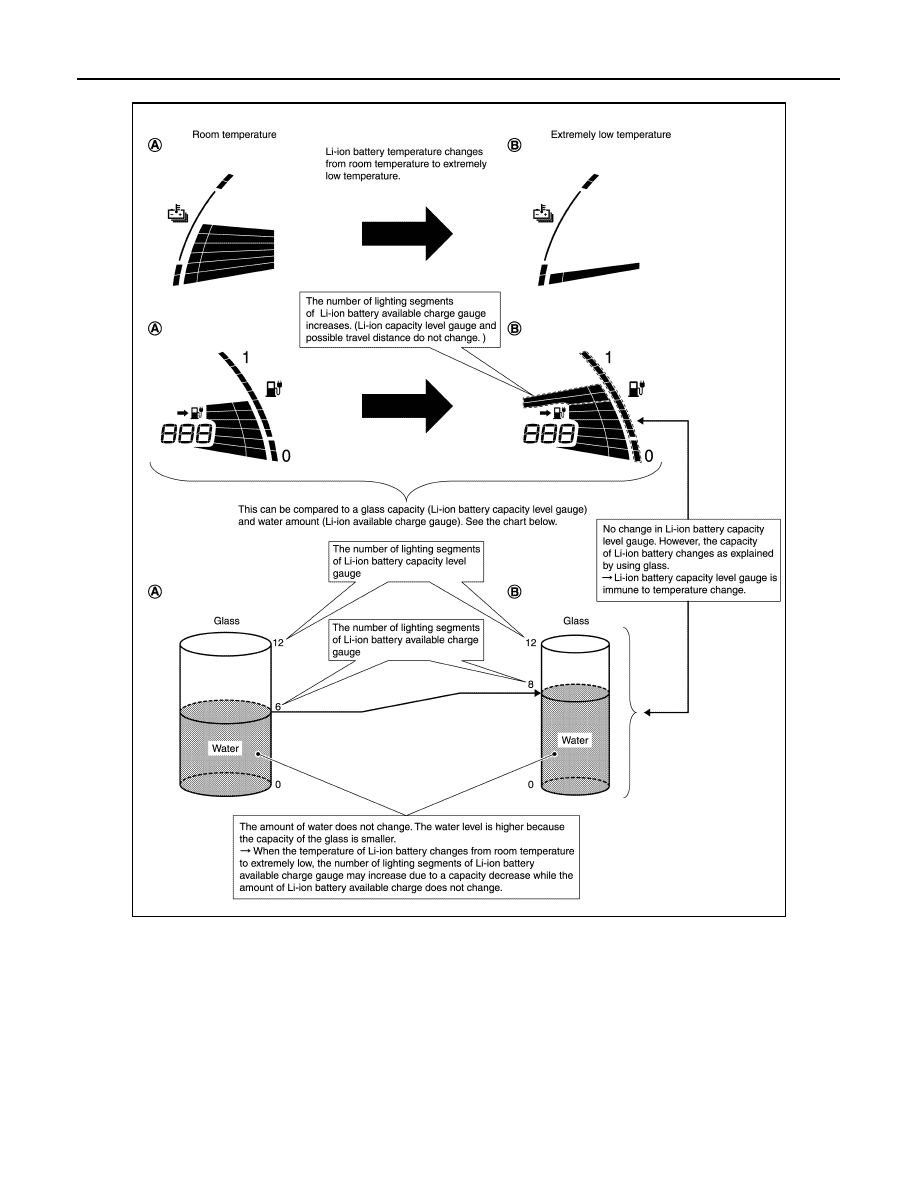

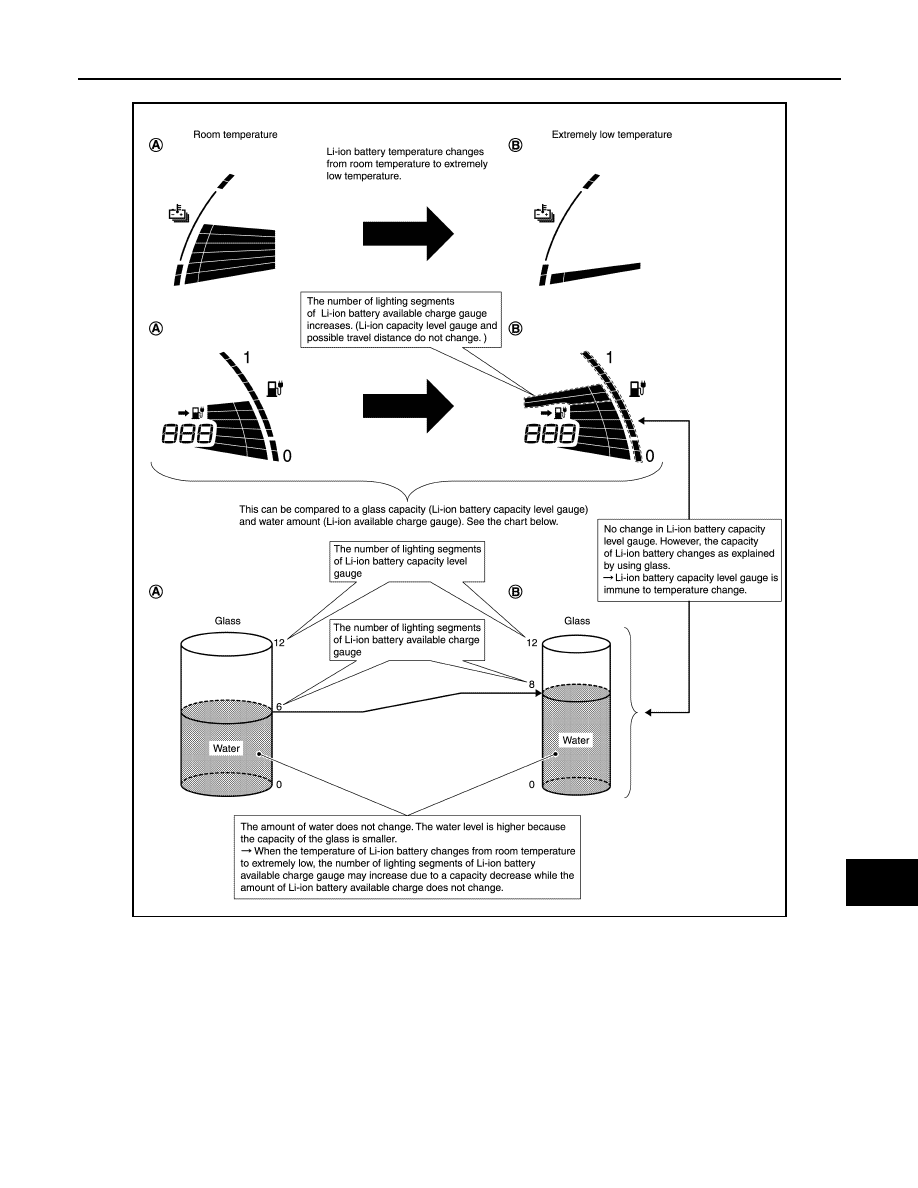

LI-ION BATTERY AVAILABLE CHARGE GAUGE INDICATION CHANGE CAUSED BY TEMPERA-

JSNIA4494GB

MWI-26

< SYSTEM DESCRIPTION >

SYSTEM

TURE CHANGE

ECO INDICATOR

JSNIA4496GB
