LAN-6

< HOW TO USE THIS MANUAL >

[CAN FUNDAMENTAL]

HOW TO USE THIS SECTION

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Information

INFOID:0000000010120345

• “CAN FUNDAMENTAL” of LAN Section describes the basic knowledge of the CAN communication system

and the method of trouble diagnosis.

• For information peculiar to a vehicle and inspection procedure, refer to “CAN”.

LAN

PRECAUTIONS

LAN-7

< PRECAUTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precautions for Trouble Diagnosis

INFOID:0000000010120346

CAUTION:

Follow the instructions listed below. Failure to do this may cause damage to parts:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the power switch OFF and disconnect the 12V battery cable from the negative terminal when

checking the harness. Refer to

LAN-26, "Precautions for Removing Battery Terminal"

.

Precautions for Harness Repair

INFOID:0000000010120347

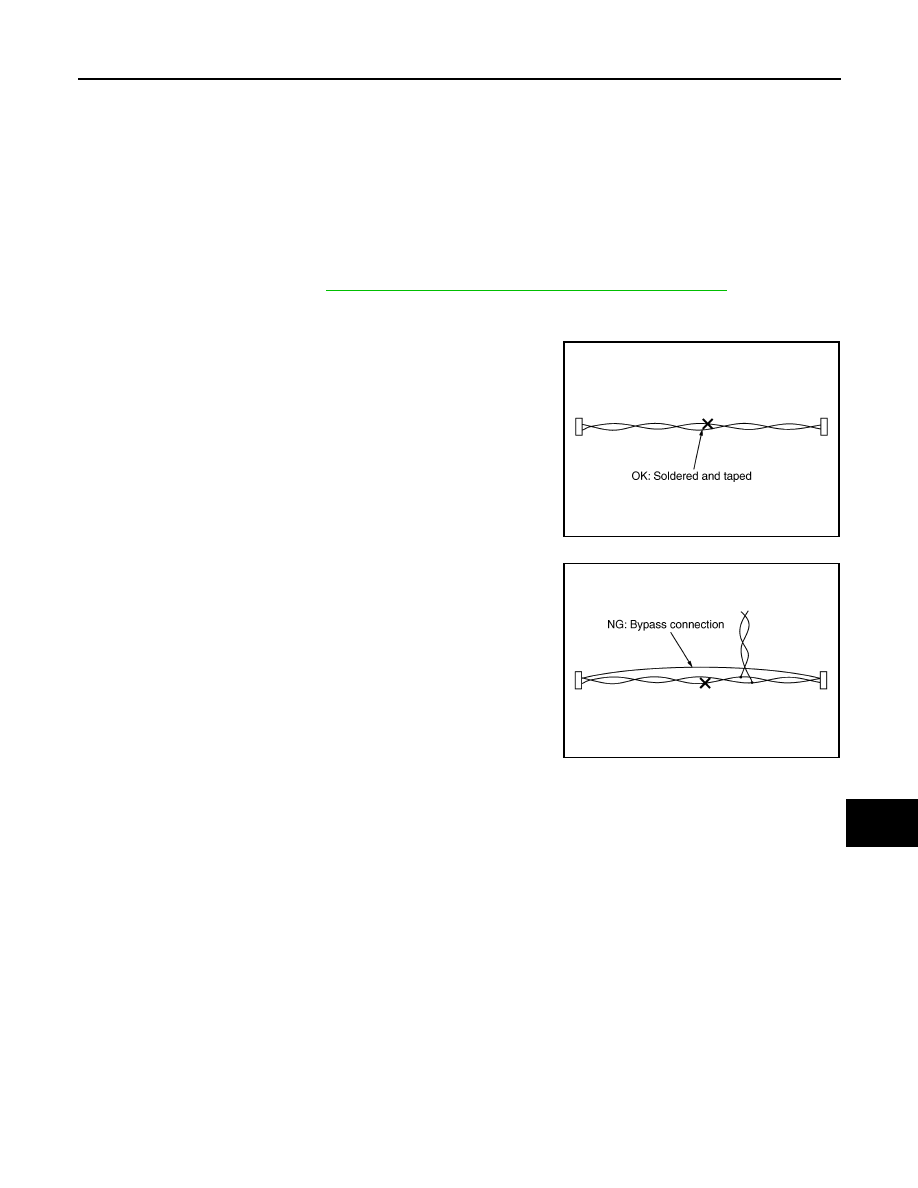

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

LAN-8

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

SYSTEM

SYSTEM DESCRIPTION

SYSTEM

CAN COMMUNICATION SYSTEM
CAN COMMUNICATION SYSTEM : System Description

INFOID:0000000010120348

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Many elec-

tronic control units are equipped onto a vehicle, and each control unit shares information and links with other

control units during operation (not independent). In CAN communication, control units are connected with 2

communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.

Each control unit transmits/receives data but selectively reads required data only.

DIAG ON CAN
DIAG ON CAN : System Description

INFOID:0000000010120349

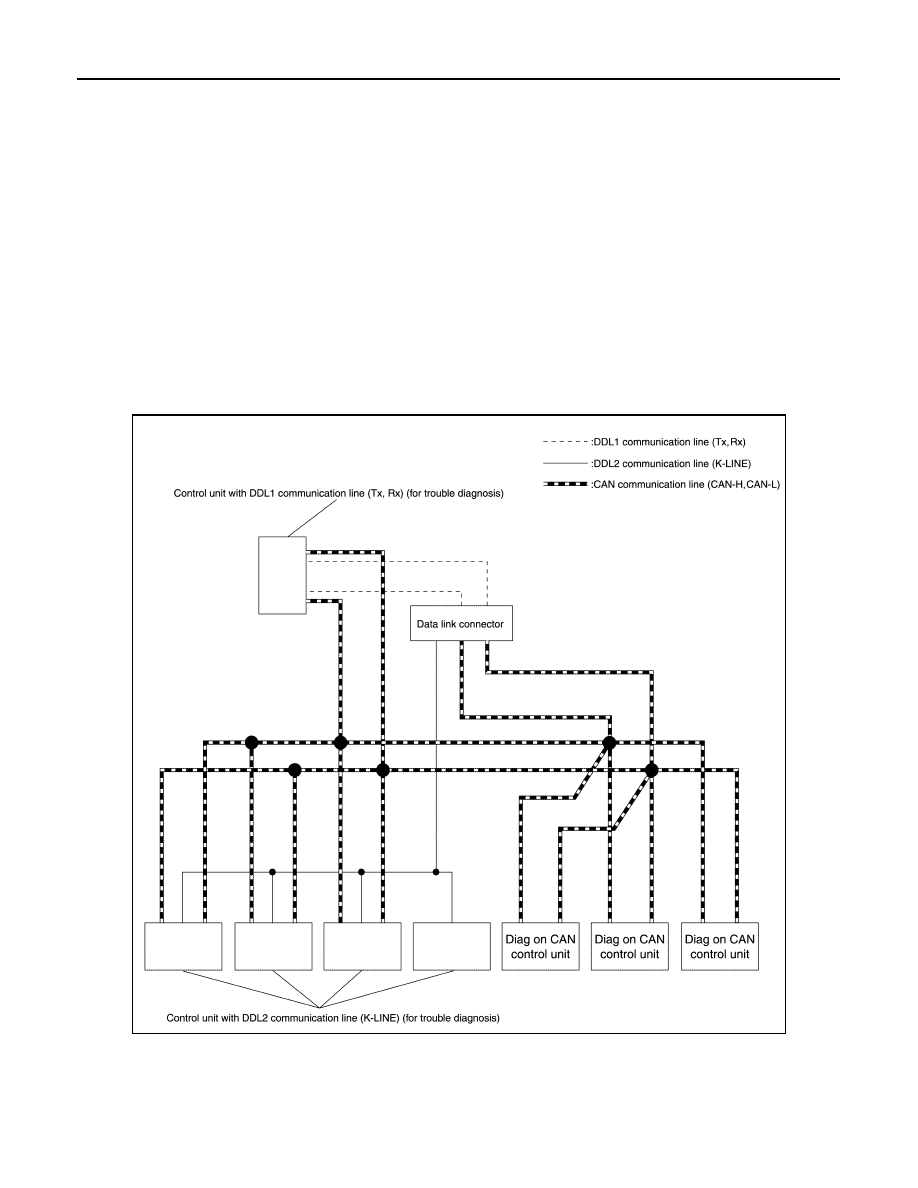

SYSTEM DIAGRAM

JSMIA0526GB

LAN

SYSTEM

LAN-9

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DESCRIPTION

“Diag on CAN” is a diagnosis method which uses the CAN communication line for the communication between

the control unit and the diagnostic tool.

Name

Harness

Description

DDL1

Tx
Rx

For communications with the diagnostic tool. (CAN-H and CAN-L are used for control-
ling)

DDL2

K-LINE

For communications with the diagnostic tool. (CAN-H and CAN-L are used for control-
ling)

Diag on CAN

CAN-H
CAN-L

For communications with the diagnostic tool. (CAN-H and CAN-L are also used for con-
trol and diagnoses.)
