DIAGNOSIS AND REPAIR WORKFLOW

INL-41

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010122271

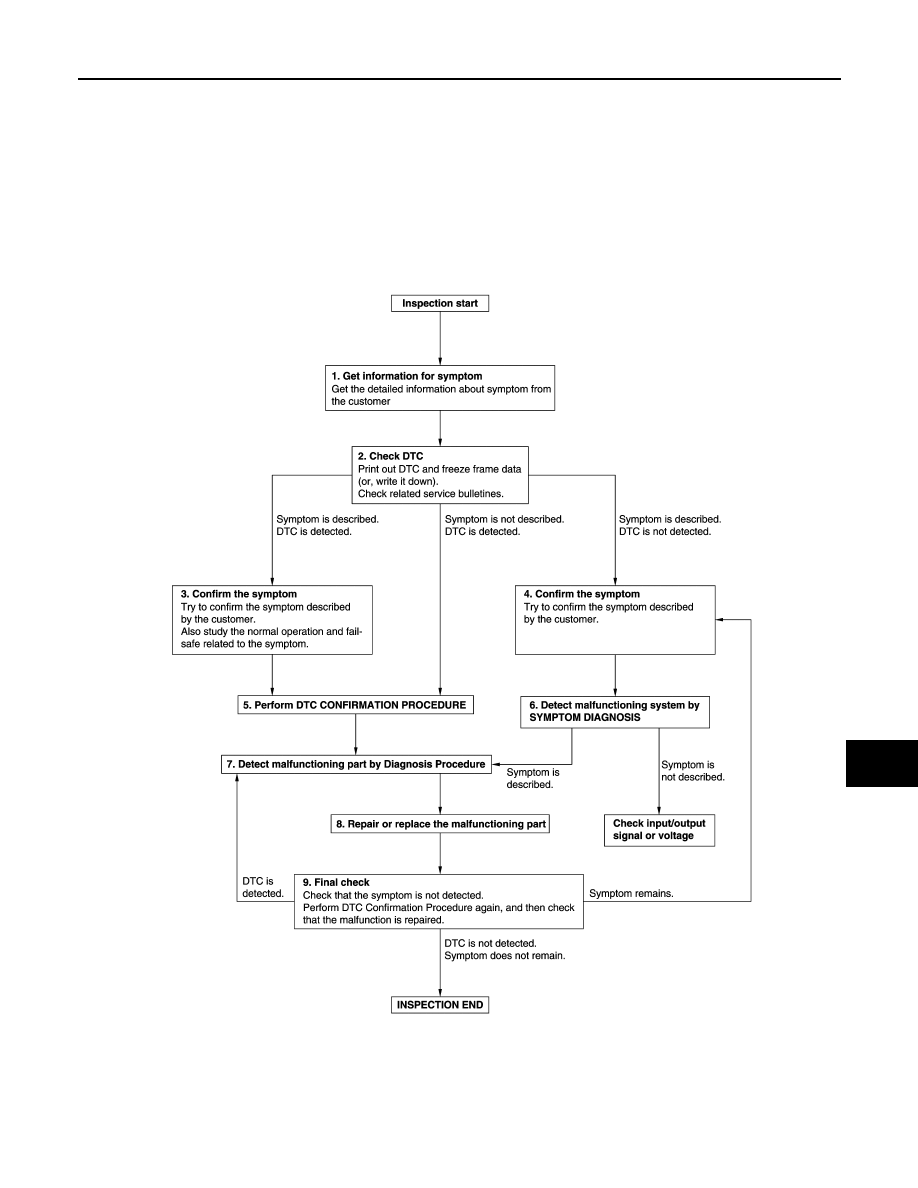

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

INL-42

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

1.

GET INFORMATION FOR SYMPTOM

1. Get detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurs).

2. Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected:

-

Record DTC and freeze frame data (Print them out using CONSULT.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected

again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.

If two or more DTCs are detected, refer to

BCS-47, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during

this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-

MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-53, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step

4, and determine the trouble diagnosis order based on possible causes and symptom.
Is the symptom described?

YES

>> GO TO 7.

NO

>> Monitor input data from related sensors or check voltage of related module terminals using CON-

SULT.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

DIAGNOSIS AND REPAIR WORKFLOW

INL-43

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Inspect according to Diagnostic Procedure of the system.
Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-53, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is detected, erase it.

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the

malfunction is repaired securely.

When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the

symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.

YES-2 >> Symptom remains: GO TO 4.

NO

>> Before returning the vehicle to the customer, always erase DTC.

INL-44

< DTC/CIRCUIT DIAGNOSIS >

INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT

DTC/CIRCUIT DIAGNOSIS

INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT

Description

INFOID:0000000010122272

Provides the interior room lamp power supply. Also cuts the power supply when the interior room lamp battery

saver is activating.

Component Function Check

INFOID:0000000010122273

1.

CHECK INTERIOR ROOM LAMP POWER SUPPLY FUNCTION

CONSULT ACTIVE TEST

1. Turn power switch ON.

2. Turn each interior room lamp ON:

-

Map lamp

-

Room lamp

-

Luggage room lamp

3. Select “BATTERY SAVER” in “Active Test” of “BCM”.

4.  While operating the test items, check that each interior room lamp turns ON/OFF.

Does each interior room lamp turn ON/OFF?

YES

>> Interior room lamp power supply circuit is normal.

NO

>> Refer to

INL-44, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010122274

Regarding Wiring Diagram information. Refer to

INL-17, "Wiring Diagram"

.

1.

CHECK INTERIOR ROOM LAMP POWER SUPPLY OUTPUT

CONSULT ACTIVE TEST

1. Turn power switch OFF.

2. Disconnect the following connectors:

-

Map lamp

-

Room lamp

-

Luggage room lamp

3. Turn power switch ON.

4. Select “BATTERY SAVER” in “Active Test” of “BCM”.

5. While operating the test item, check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK INTERIOR ROOM LAMP POWER SUPPLY OPEN CIRCUIT

1. Turn power switch OFF.

2. Disconnect the BCM connector.

Off

: Interior room lamp OFF

On

: Interior room lamp ON

BCM

(–)

Test item

Voltage

(Approx.)

(+)

Connector

Terminal

M25

56

Ground

BATTERY SAVER

Off

0 V

On

Battery voltage
