SERVICE INFORMATION FOR ELECTRICAL INCIDENT

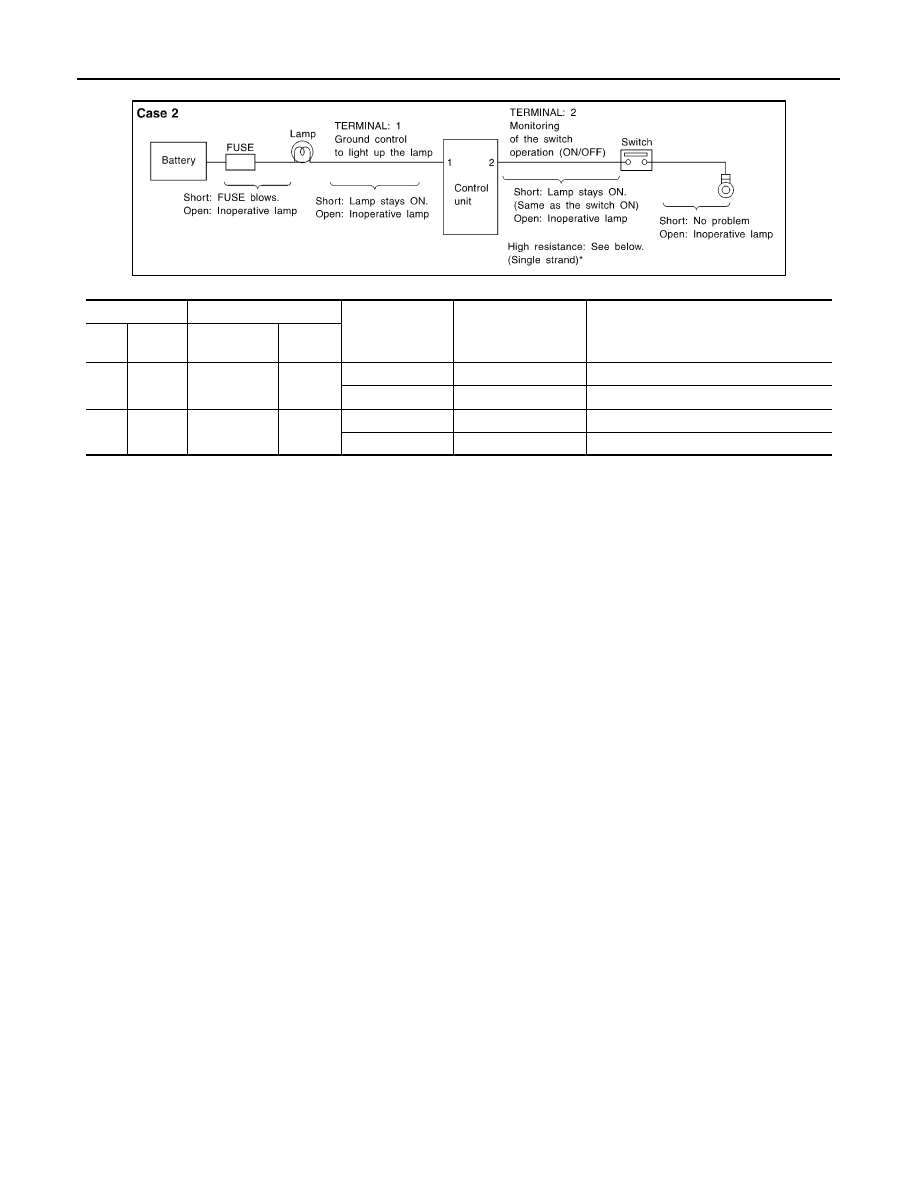

CASE 2

INPUT-OUTPUT VOLTAGE CHART

• The voltage value is based on the body ground.
• *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 2 does not detect approx. 0 V. Control unit

does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not control ground to light up the
lamp.

Terminal No.

Description

Condition

Value (Approx.)

In case of high resistance such as single
strand (V) *

+

−

Signal name

Input/

Output

1

Body
ground

Lamp

Output

Switch ON

0 V

Battery voltage (Inoperative lamp)

Switch OFF

Battery voltage

Battery voltage

2

Body
ground

Switch

Input

Switch ON

0 V

Higher than 0 Approx. 4 (Example)

Switch OFF

5 V

Approx. 5

MGI035A

CONSULT/GST CHECKING SYSTEM

GI-61

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

CONSULT/GST CHECKING SYSTEM

Description

INFOID:0000000010122934

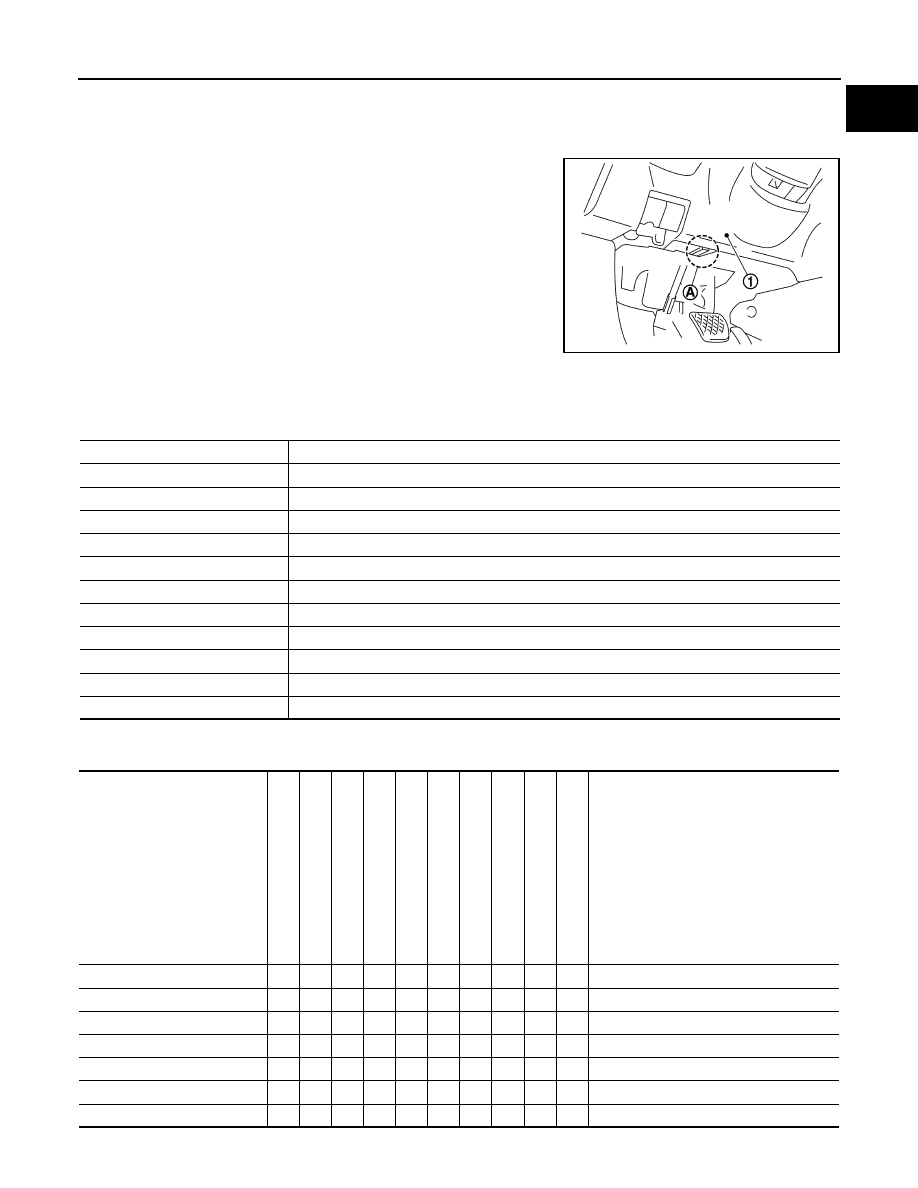

• When CONSULT/GST is connected with a data link connector (A)

equipped on the vehicle side, it will communicate with the control

unit equipped in the vehicle and then enable various kinds of diag-

nostic tests.

• Refer to CONSULT Software Operation Manual for more informa-

tion.

CONSULT Function and System Application*1

INFOID:0000000010122935

FUNCTION

SYSTEM APPLICATION

*1

1

: Instrument lower panel LH

JSAIA1464ZZ

Mode

Function

All DTC Reading

Display all DTCs or diagnostic items that all ECUs are recording and judging.

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Self Diagnostic Results

Retrieve DTC from ECU and display diagnostic items.

Data Monitor

Monitor the input/output signal of the control unit in real time.

CAN Diagnosis

This mode displays a network diagnosis result about CAN by diagram.

CAN Diagnosis Support Monitor

It monitors the status of CAN communication.

Active Test

Send the drive signal from CONSULT to the actuator.The operation check can be performed.

DTC & SRT confirmation

The status of system monitoring tests and the self-diagnosis status/result can be confirmed.

ECU Identification

Display the ECU identification number (part number etc.) of the selected system.

Configuration

Function to READ/WRITE vehicle configuration.

Other

Other results or histories, etc. that are recorded in ECU are displayed.

System

All DTC

 Reading

W

o

rk

 su

pp

ort

Self

 Dia

gn

os

tic

 Res

u

lt

Dat

a

 M

on

ito

r

CAN D

iagnosis

CAN Di

ag

no

si

s Su

pp

ort

 Mo

ni

to

r

Act

ive T

est

DTC & SR

T confirmation

ECU Id

en

tif

icati

on

Co

nf

ig

ura

tio

n

Othe

r

AIR BAG

x

-

x

x

x

x

-

-

x

-

• TROUBLE DIAG RECORD

METER / M&A

x

x

x

x

x

x

-

-

-

x

• WARNING HISTORY

BCM

x

x

x

x

x

x

x

-

x

x

—

IPDM  E/R

x

-

x

x

x

x

x

-

x

-

—

EPS/DAST 3

x

-

x

x

x

x

-

-

x

-

—

MULTI  AV

-

x

x

x

x

x

-

-

x

x

—

HVAC

-

x

x

x

x

x

x

-

x

x

—

GI-62

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

x: Applicable
*1 : If GST application is equipped, functions in accordance with SAE J1979 and ISO 15031-5 can be used.
*2 : If equipped.

CONSULT/GST Data Link Connector (DLC) Circuit

INFOID:0000000010122936

INSPECTION PROCEDURE

If the CONSULT/GST cannot diagnose the system properly, check the following items.

NOTE:

The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A

short in a DDL circuit connected to a control unit in one system may affect CONSULT access to other systems.

If the GST cannot operate properly, check the circuit based on the information of SAE J1962 and ISO 15031-

3.

ABS

x

x

x

x

x

x

x

-

x

-

—

TELEMATICS

*2

x

x

x

x

x

x

-

-

x

-

—

HV  BATTERY

x

x

x

x

x

x

x

-

x

-

—

EV/HEV

x

x

x

x

x

x

x

-

x

-

—

CHARGER/PD MODULE

x

x

x

x

x

x

x

-

x

-

—

MOTOR CONTROL

x

x

x

x

x

x

-

-

x

-

—

SHIFT

x

x

x

x

x

x

-

-

x

-

—

BRAKE

x

x

x

x

x

x

-

-

x

-

—

VSP

x

-

x

x

-

x

x

-

x

-

—

AVM

x

x

x

x

x

x

-

-

x

x

—

OCCUPANT  DETECTION

-

x

-

-

-

-

-

-

-

-

—

System

A

ll DTC Reading

W

o

rk su

pp

ort

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a M

on

ito

r

CA

N D

iag

no

si

s

CAN Diagnosis Su

ppo

rt M

o

nit

or

Ac

tive

 T

est

DTC & S

R

T confirmation

ECU I

de

nti

ficati

on

Co

nfi

gu

rati

on

Othe

r

Symptom

Check item

CONSULT/GST cannot access
any system.

• CONSULT/GST DLC power supply circuit (Terminal 8 and 16) and ground circuit (Terminal 4 and 5)

CONSULT cannot access indi-
vidual system. (Other systems
can be accessed.)

• Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit between the system and CONSULT DLC (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit CAN communication line. Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

CONSULT/GST CHECKING SYSTEM

GI-63

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

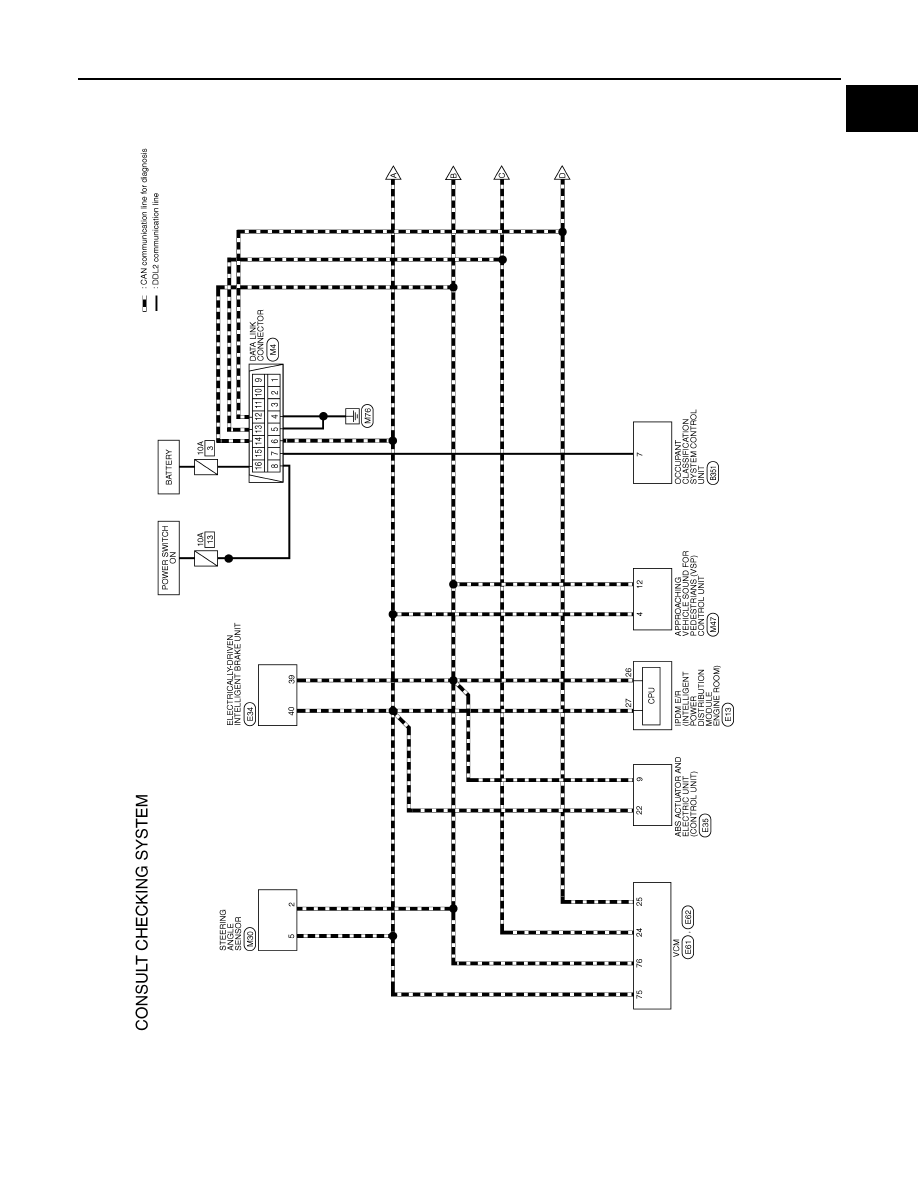

Wiring Diagram - CONSULT/GST CHECKING SYSTEM -

INFOID:0000000010122937

AAAWA0083GB
