QUICK REFERENCE CHART: LEAF

QUICK REFERENCE CHART: LEAF

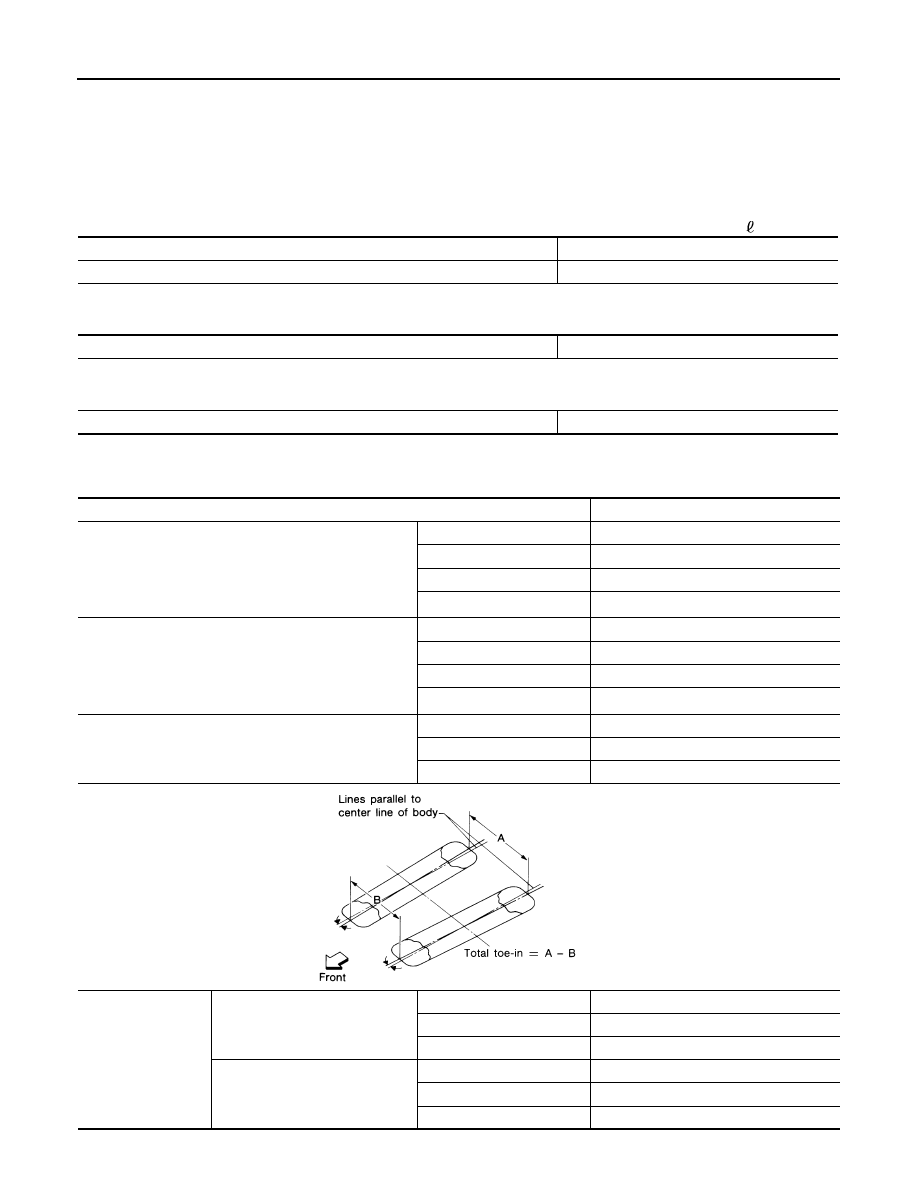

Periodical Maintenance Specification

INFOID:0000000010591903

COOLANT CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

RESERVOIR TANK CAP

Unit: kPa (kg/cm

2

, psi)

RADIATOR

Unit: kPa (kg/cm

2

, psi)

Front Wheel Alignment

INFOID:0000000010591902

Coolant capacity (With reservoir tank at “MAX” level)

5.3 (5-5/8, 4-5/8)

Reservoir tank coolant capacity (At “MAX” level)

0.5 (4/8, 4/8)

Cap relief pressure

24 - 36 (0.2 - 0.3, 3.5 - 5.2)

Leakage testing pressure

32 ( 0.3, 5)

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

–1

° 10′ (–1.17°)

Nominal

–0

° 25′ (–0.42°)

Maximum

0

° 20′ (0.33°)

LH and RH difference*

1

–0

° 45′ (–0.75°) - 0° 45′ (0.75°)

Caster
Degree minute (Decimal degree)

Minimum

4

° 05′ (4.08°)

Nominal

4

° 50′ (4.83°)

Maximum

5

° 35′ (5.58°)

LH and RH difference*

1

–0

° 45′ (–0.75°) - 0° 45′ (0.75°)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

11

° 10′ (11.17°)

Nominal

11

° 55′ (11.92°)

Maximum

12

° 40′ (12.67°)

Total toe-in

Distance (A - B)

Minimum

0 mm (0 in)

Nominal

In 2 mm (In 0.08 in)

Maximum

In 4 mm (In 0.15 in)

Angle (LH and RH)
Degree minute (Decimal degree)

Minimum

0

° 00′ (0.00°)

Nominal

In 0

° 10′ 48″ (In 0.18°)

Maximum

In 0

° 21′ 36″ (In 0.36°)

SFA234AC

QUICK REFERENCE CHART: LEAF

2014

Measure value under unladen*

2

 conditions.

*1: A difference when assuming the LH a standard.
*2: Fluids and lubricants are full. Tire repair kit and mats are in designated positions.

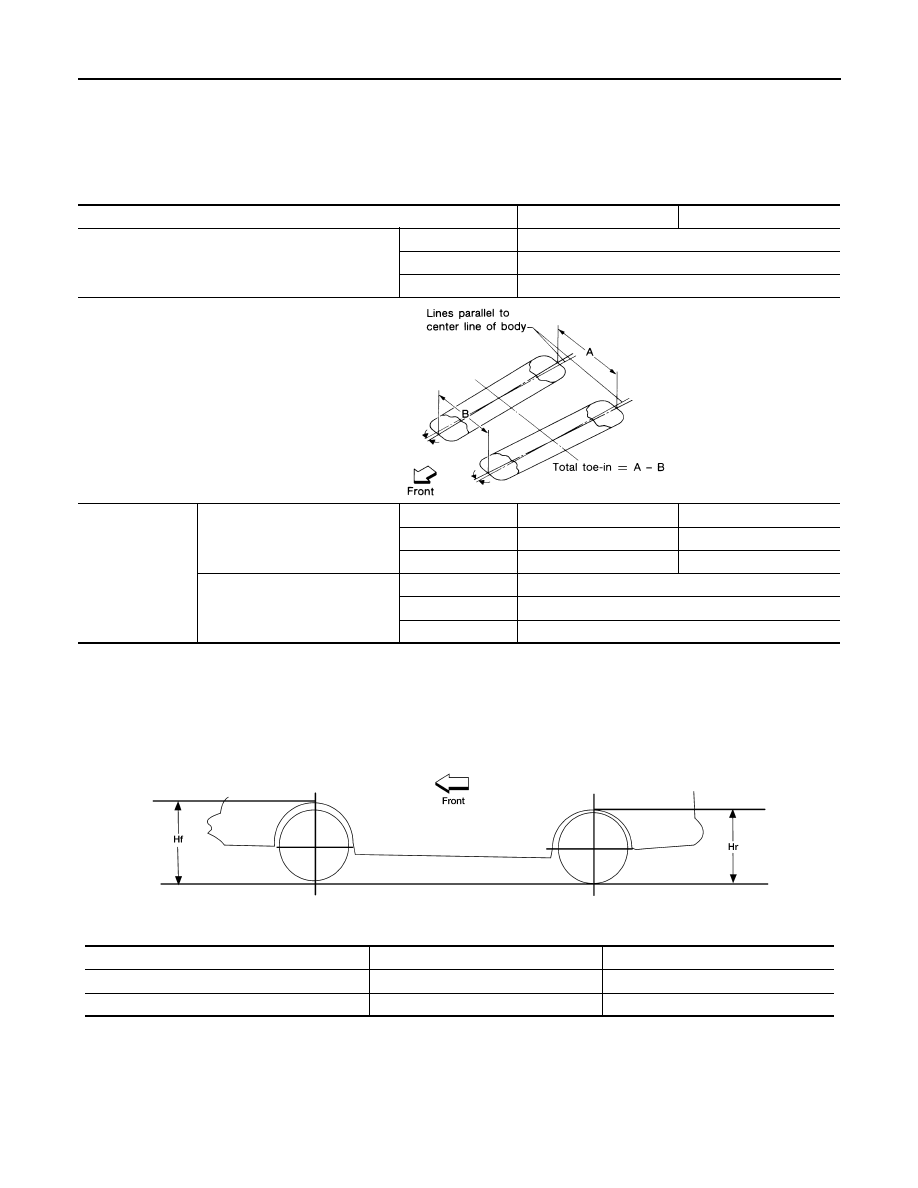

Rear Wheel Alignment

INFOID:0000000010591901

Measure value under unladen

*

 conditions.

*: Fluids and lubricants are full. Tire repair kit and mats are in designated positions.

Wheelarch Height

INFOID:0000000010591900

UNITED STATES

Measure value under unladen* conditions.
*:Fluids and lubricants are full. Tire repair kit and mats are in designated positions.

Tire size

205/55R16

215/50R17

Camber
Degree minute (Decimal degree)

Minimum

0

° 59′ (0.98°)

Nominal

1

° 29′ (1.48°)

Maximum

1

° 59′ (1.98°)

Toe-in

Distance (A - B)

Minimum

Out 1.5 mm (Out 0.059 in) Out 1.6 mm (Out 0.063 in)

Nominal

In 3.3 mm (In 0.130 in)

In 3.4 mm (In 0.134 in)

Maximum

In 8.1 mm (In 0.319 in)

In 8.4 mm (In 0.331 in)

Angle (LH and RH)
Degree minute (Decimal degree)

Minimum

Out 0

° 09′ (Out 0.15°)

Nominal

In 0

° 19′ (In 0.32°)

Maximum

In 0

° 47′ (In 0.78°)

SFA234AC

LEIA0085E

Tire size

205/55R16

215/50R17

Front (Hf)

706 mm (27.80 in)

714 mm (28.11 in)

Rear (Hr)

708 mm (27.87 in)

714 mm (28.11 in)

2014

QUICK REFERENCE CHART: LEAF

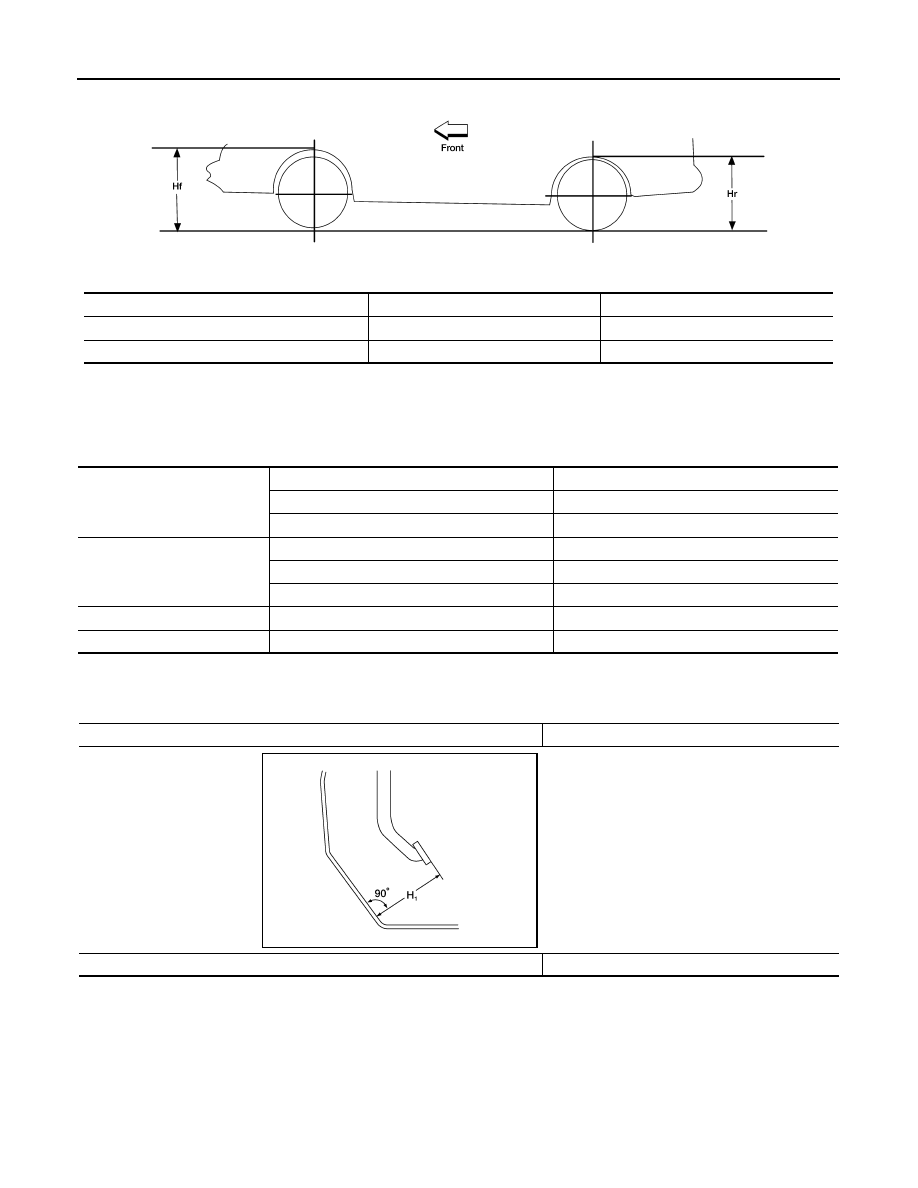

CANADA

Measure value under unladen* conditions.
*:Fluids and lubricants are full. Tire repair kit and mats are in designated positions.

Brake Specifications

INFOID:0000000010591899

Unit: mm (in)

Brake Pedal

INFOID:0000000010591898

Unit: mm (in)

LEIA0085E

Tire size

205/55R16

215/50R17

Front (Hf)

706 mm (27.80 in)

714 mm (28.11 in)

Rear (Hr)

709 mm (27.91 in)

715 mm (28.15 in)

Front brake

Cylinder bore diameter

57.2 (2.252)

Pad length

× width × thickness

140.0

× 48.0 × 9.5 (5.51 × 1.890 × 0.374)

Rotor outer diameter

× thickness

296

× 26.0 (11.65 × 1.024)

Rear brake

Cylinder bore diameter

38.1 (1.500)

Pad length

× width × thickness

83.0

× 31.9 × 8.5 (3.268 × 1.265 × 0.355)

Rotor outer diameter

× thickness

292

× 16.0 (11.50 × 0.630)

Master cylinder

Cylinder bore diameter

25.4 (1)

Control valve

Valve type

Electric brake force distribution

Item

Standard

Brake pedal height (H

1

)

159.9 – 169.9 (6.30 – 6.69)

AWFIA1046ZZ

QUICK REFERENCE CHART: LEAF

2014

Front Disc Brake

INFOID:0000000010591897

Unit: mm (in)

Rear Disc Brake

INFOID:0000000010591896

Unit: mm (in)

Fluids and Lubricants

INFOID:0000000010591895

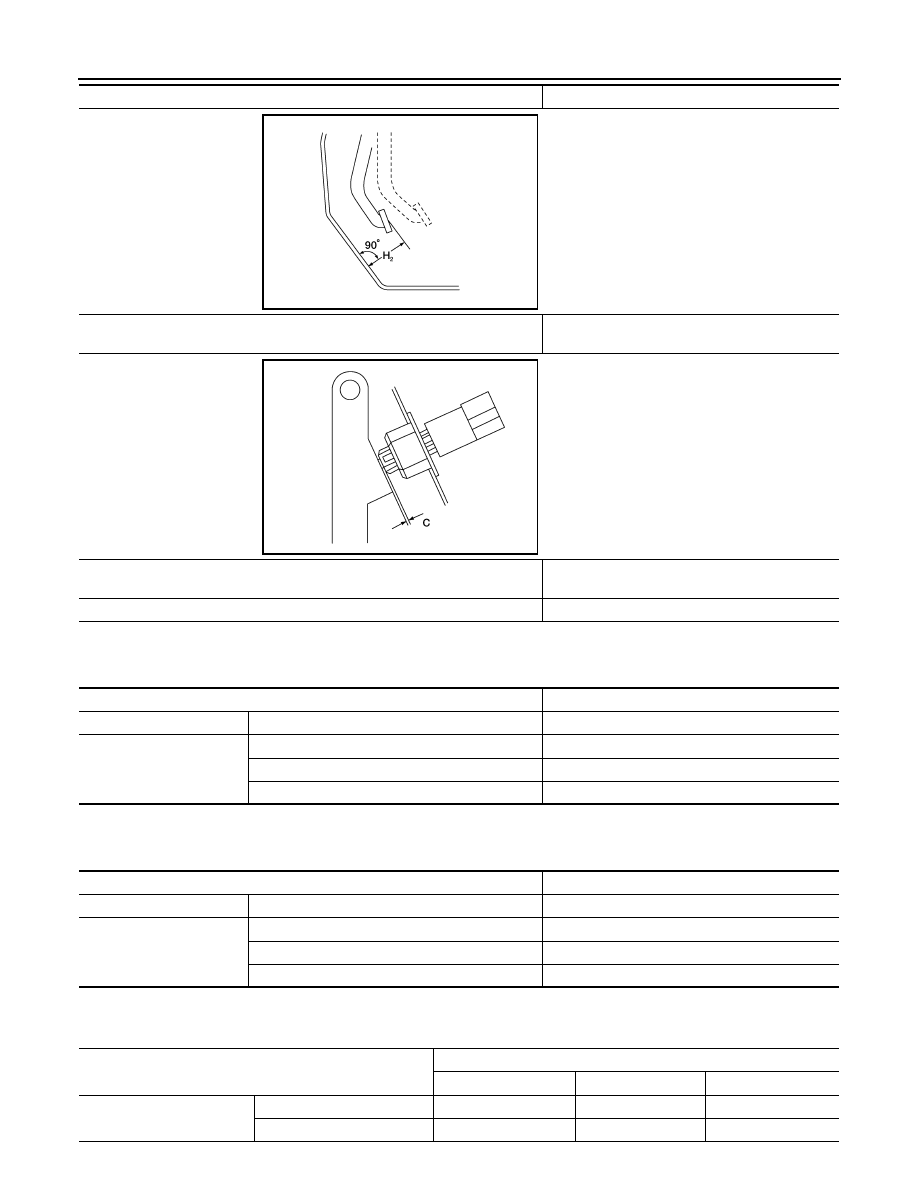

Depressed brake pedal height (H

2

)

Depressing [196 N (20 kg, 44 lb) while set the vehicle to READY]

93.0 (3.661) or more

Clearance (C) between stop lamp switch and brake pedal position switch (if
equipped) threaded end and the brake pedal lever

0.74 – 1.96 (0.0291 – 0.0772)

Brake pedal play

3 – 11 (0.12 – 0.43)

Item

Standard

AWFIA1048ZZ

AWFIA1049ZZ

Item

Limit

Brake pad

Wear limit thickness

2.0 (0.079)

Disc rotor

Wear limit thickness

24.0 (0.945)

Thickness variation (measured at 8 positions)

0.015 (0.0006)

Runout (with it attached to the vehicle)

0.035 (0.0014)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

14.0 (0.051)

Thickness variation (measured at 8 positions)

0.015 (0.0006)

Runout (with it attached to the vehicle)

0.1 (0.0039)

Capacity (Approximate)

US measure

Imp measure

Liter

Cooling system

With reservoir tank

5-5/8 qt

4-5/8 qt

5.3

Reservoir tank

4/8 qt

4/8 qt

0.5
