PRECAUTIONS

FSU-5

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

Indicate "HIGH VOLTAGE. DO NOT TOUCH" on the vehicle under repair/inspection to call attention to other

workers.

Precaution for Removing 12V Battery

INFOID:0000000010119422

1. Check that EVSE is not connected.

NOTE:

If EVSE is connected, the air conditioning system may be automatically activated by the timer A/C func-

tion.

2. Turn the power switch OFF

→ ON → OFF. Get out of the vehicle. Close all doors (including back door).

JSAIA1600GB

FSU-6

< PRECAUTION >

PRECAUTIONS

3. Check that the charge status indicator lamp does not blink and wait for 5 minutes or more.

NOTE:

 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

Precautions for Suspension

INFOID:0000000010119423

• When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires

on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fluids and lubricants are full. Tire repair kit and mats are in designated posi-

tions.

• After servicing suspension parts, be sure to check wheel alignment.

• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled,

tighten as they are.

• The tightening surface must be kept free from oil/grease.

• When jacking up the vehicle with a floor jack, never hang the jack on the torque rod.

PREPARATION

FSU-7

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

PREPARATION

PREPARATION

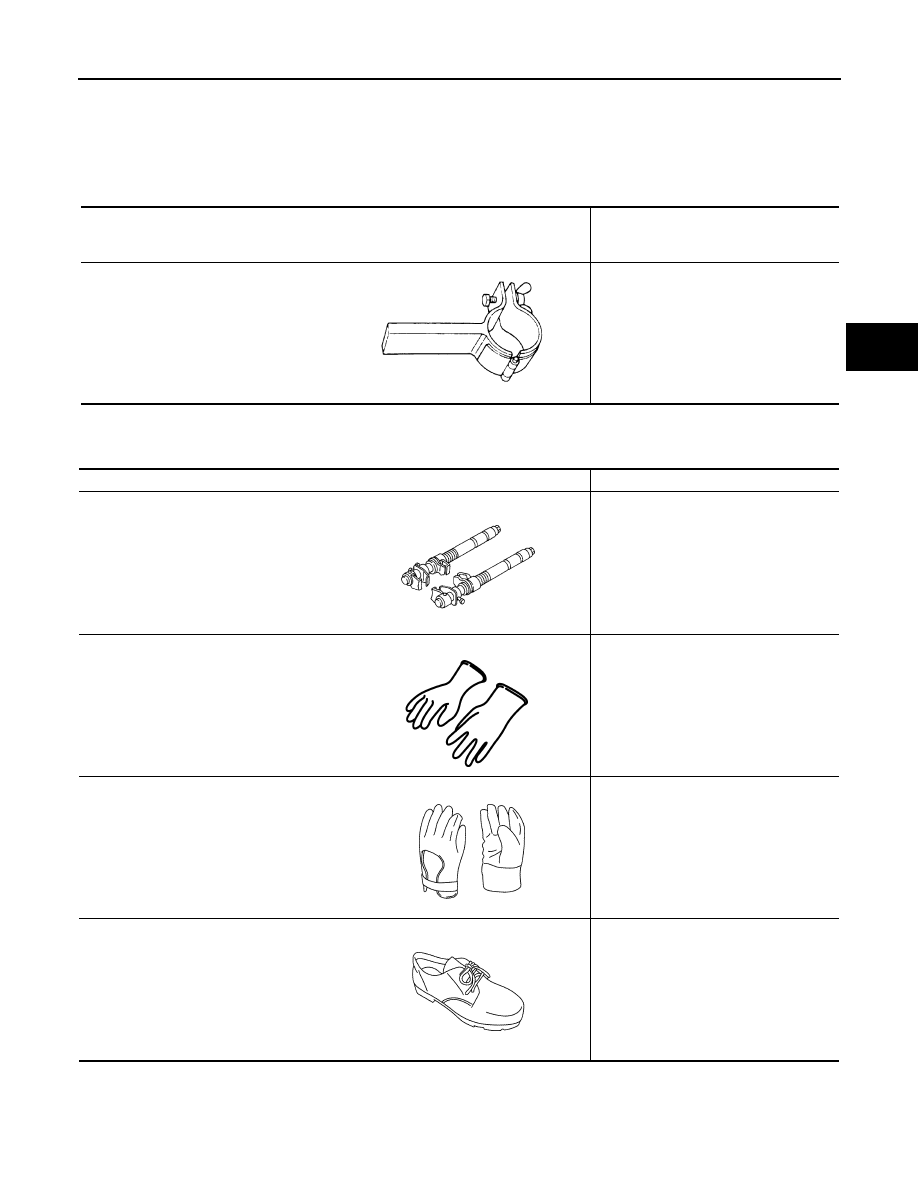

Special Service Tools

INFOID:0000000010119424

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010119425

Tool number
(TechMate No.)
Tool name

Description

ST35652000
( — )
Strut attachment

Disassembling and assembling strut

ZZA0807D

Tool name

Description

Spring compressor

Removing and installing coil spring

Insulated gloves
[Guaranteed insulation performance for
1000V/300A]

Removing and installing high voltage com-
ponents

Leather gloves
[Use leather gloves that can fasten the wrist
tight]

• Removing and installing high voltage

components

• Protect insulated gloves

Insulated safety shoes

Removing and installing high voltage com-
ponents

S-NT717

JMCIA0149ZZ

JPCIA0066ZZ

JPCIA0011ZZ

FSU-8

< PREPARATION >

PREPARATION

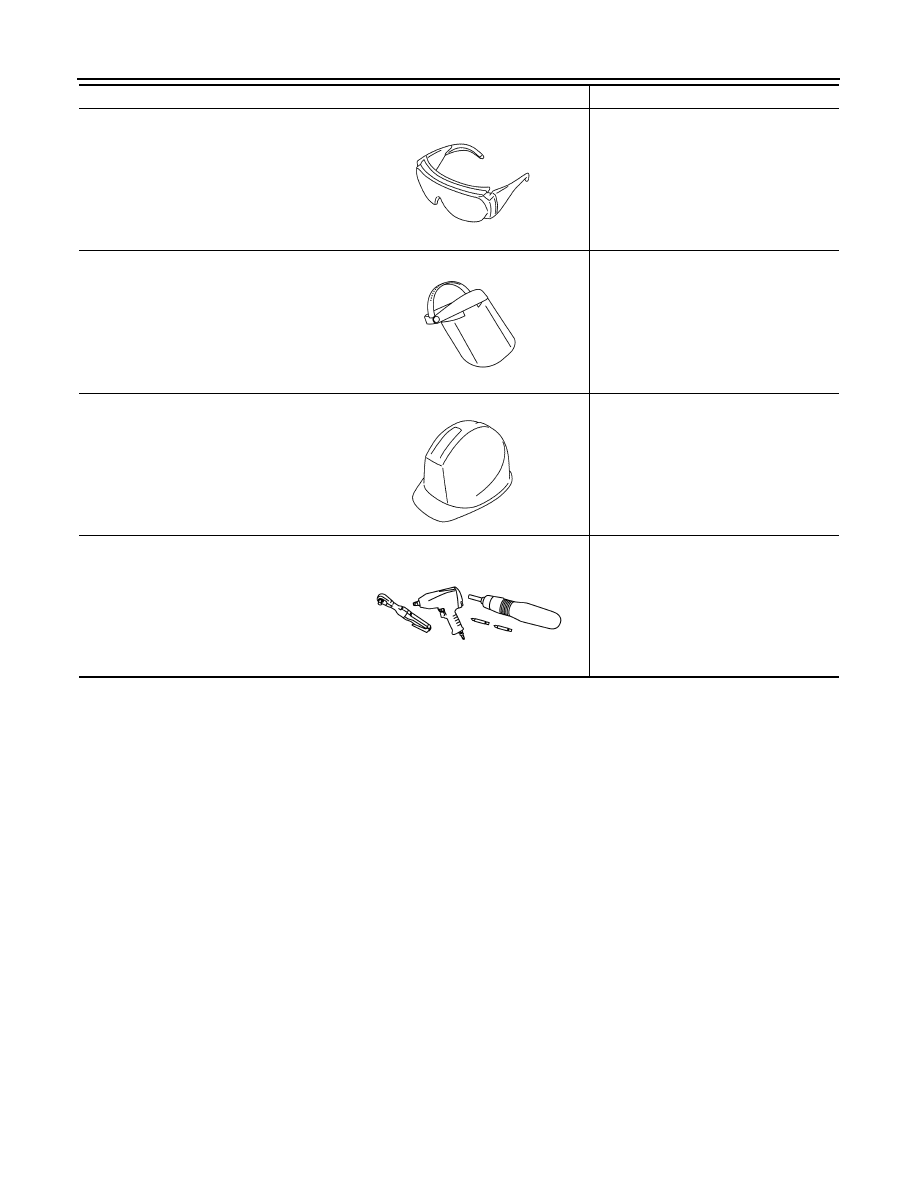

Safety glasses
[ANSI Z87.1]

• Removing and installing high voltage

components

• To protect eye from the spatter on the

work to electric line

Face shield

• Removing and installing high voltage

components

• To protect face from the spatter on the

work to electric line

Insulated helmet

Removing and installing high voltage com-
ponents

Power tool

Loosening nuts, screws and bolts

Tool name

Description

JPCIA0012ZZ

JPCIA0167ZZ

JPCIA0013ZZ

PIIB1407E
