PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-205

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

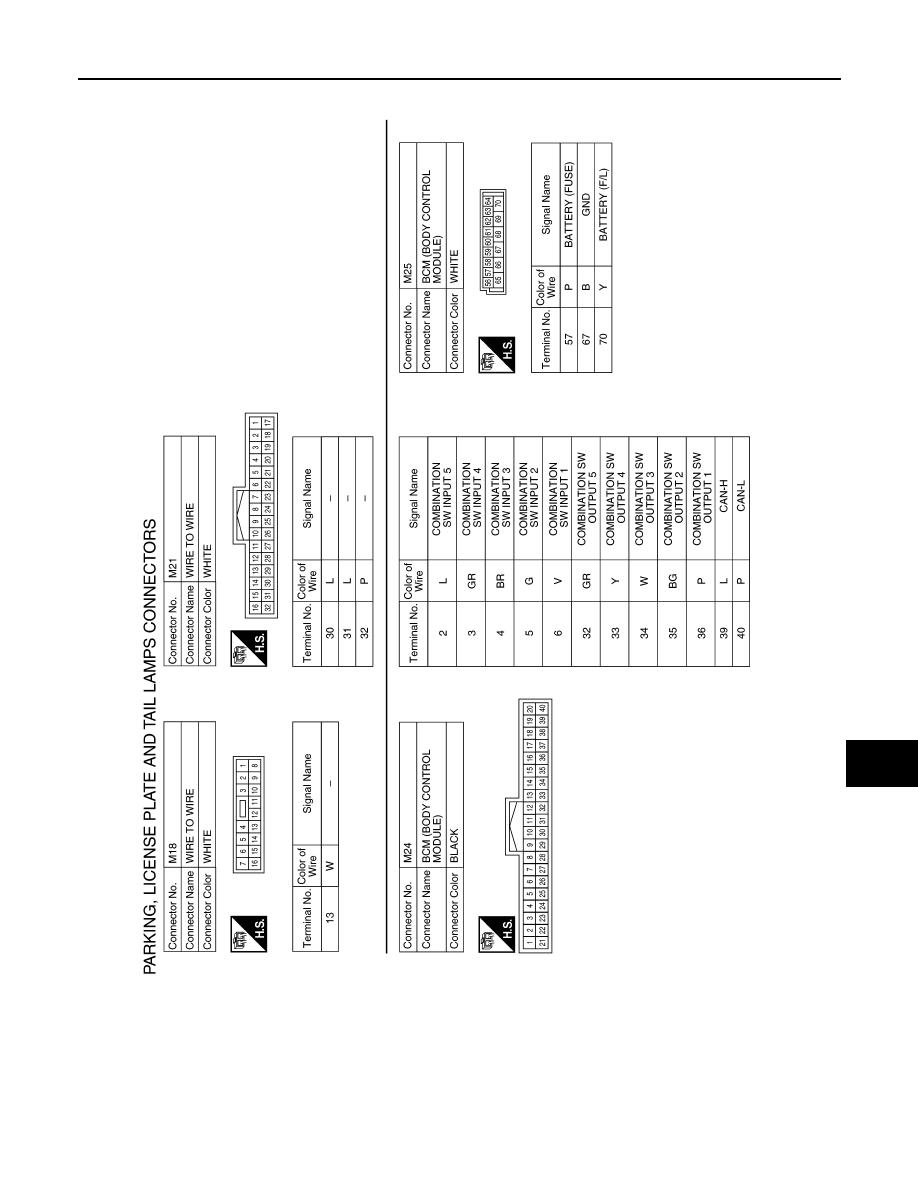

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

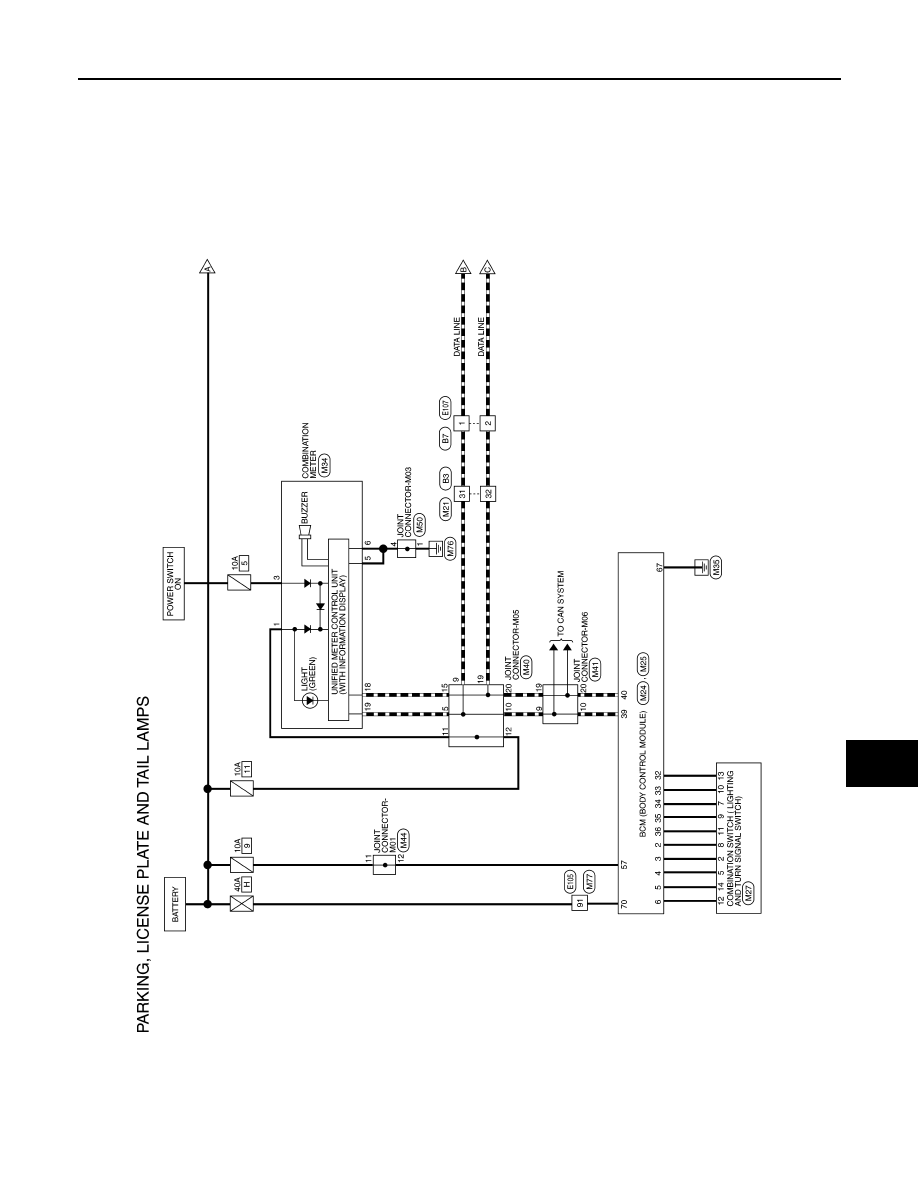

Wiring Diagram

INFOID:0000000010546200

AALWA0861GB

EXL-206

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

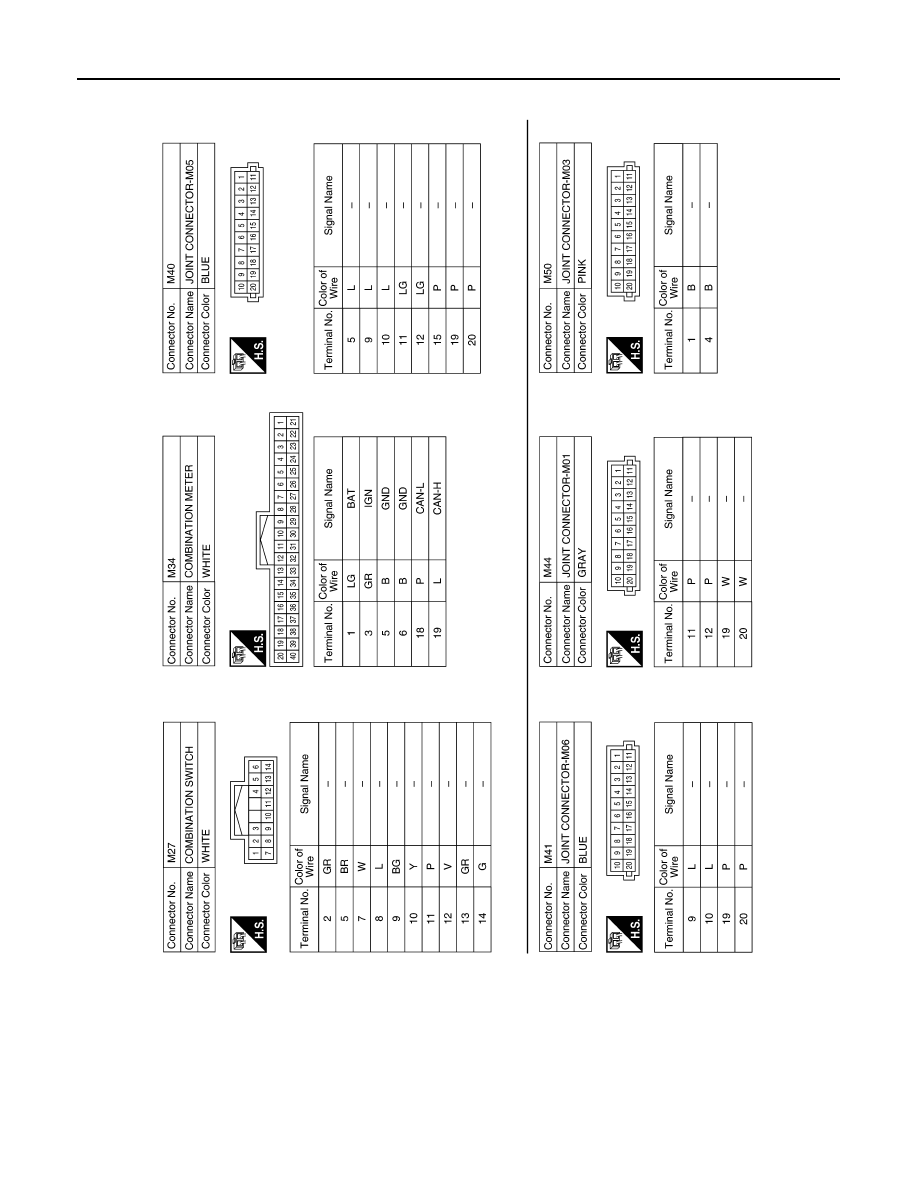

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

AALWA0862GB

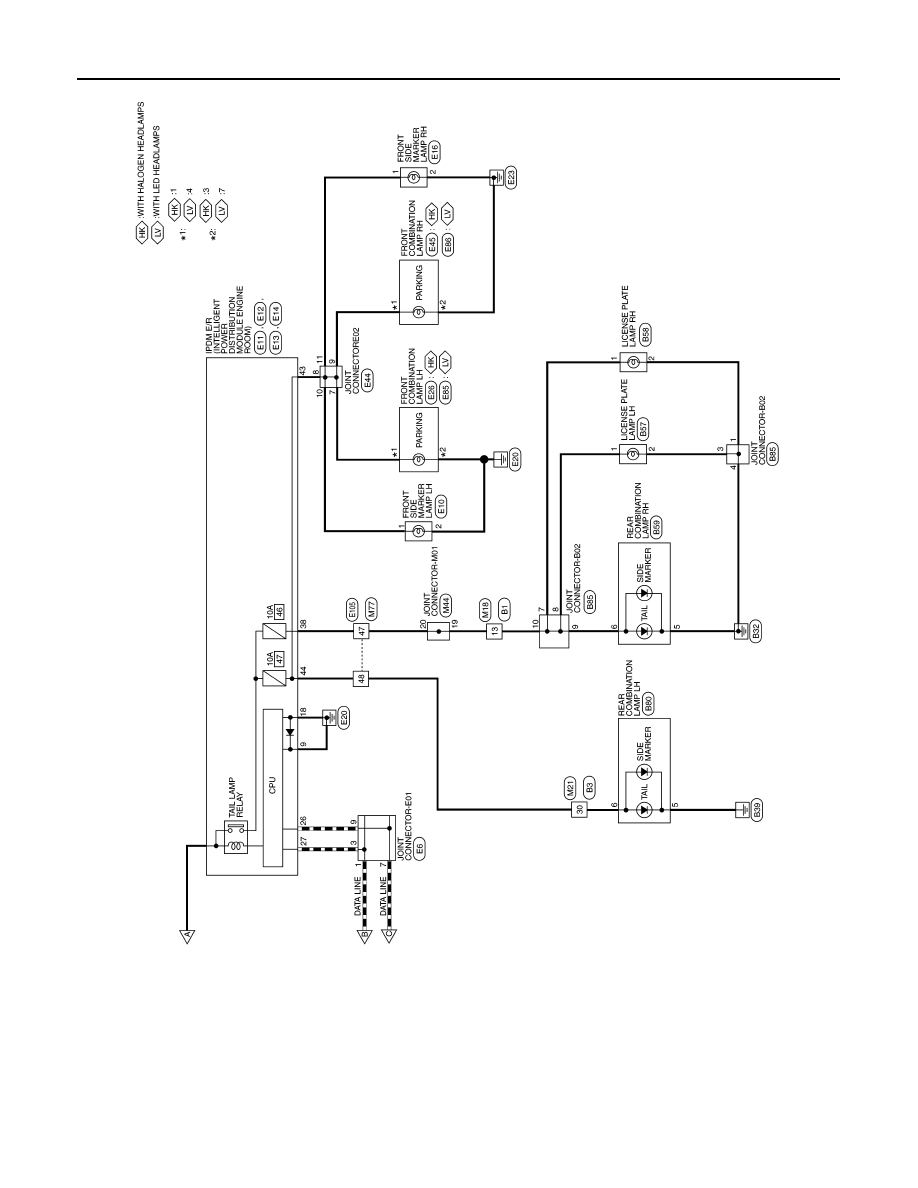

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-207

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2506GB

EXL-208

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

AALIA2507GB
