AUTO LIGHT SYSTEM

EXL-189

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2479GB

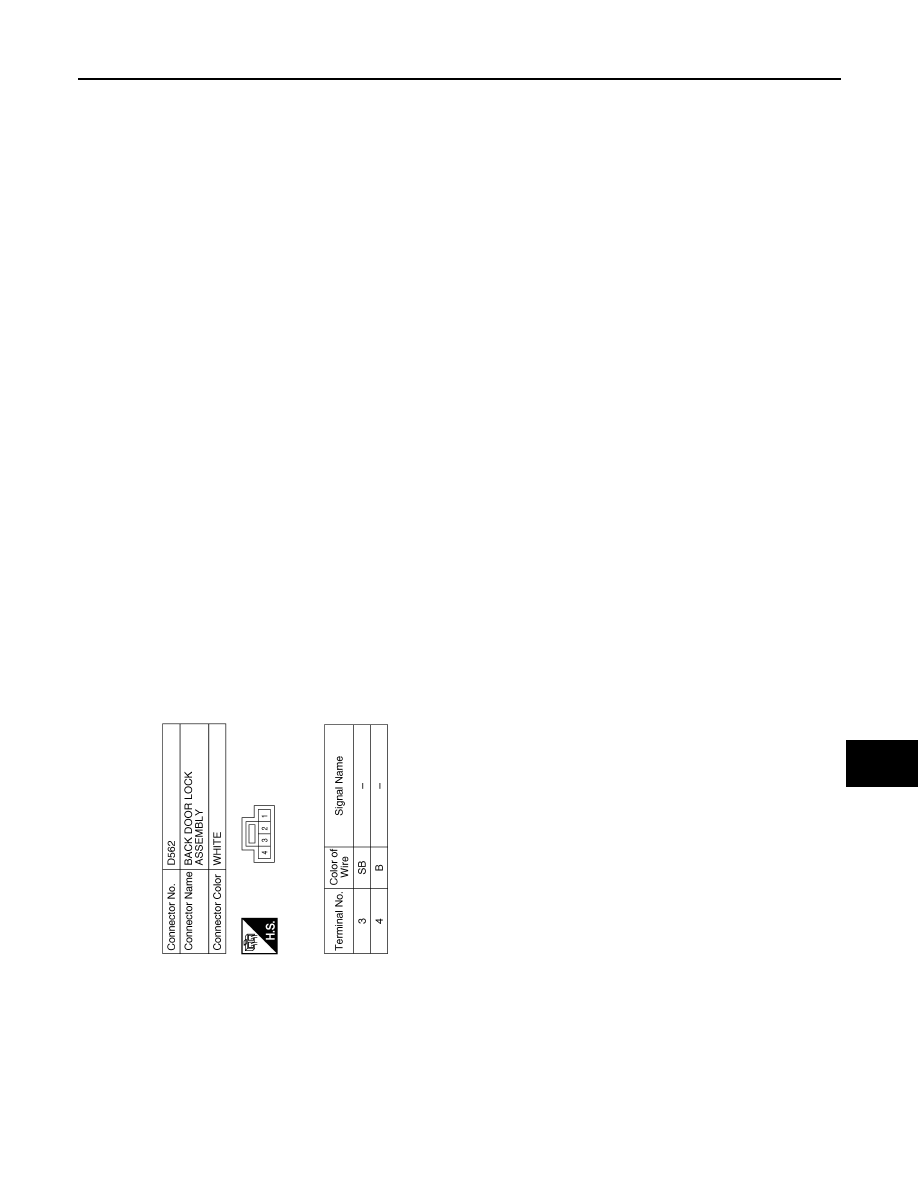

EXL-190

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

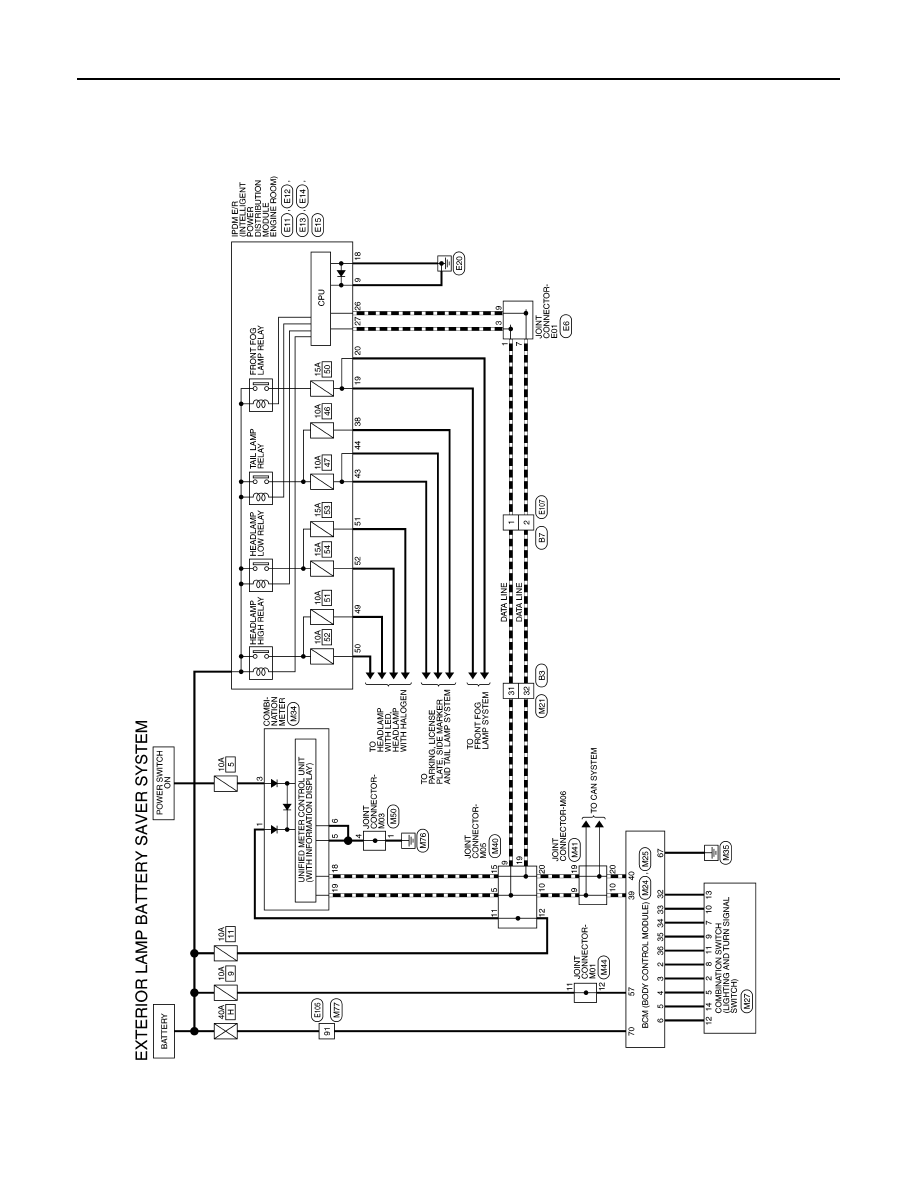

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXTERIOR LAMP BATTERY SAVER SYSTEM

Wiring Diagram

INFOID:0000000010546197

AALWA0857GB

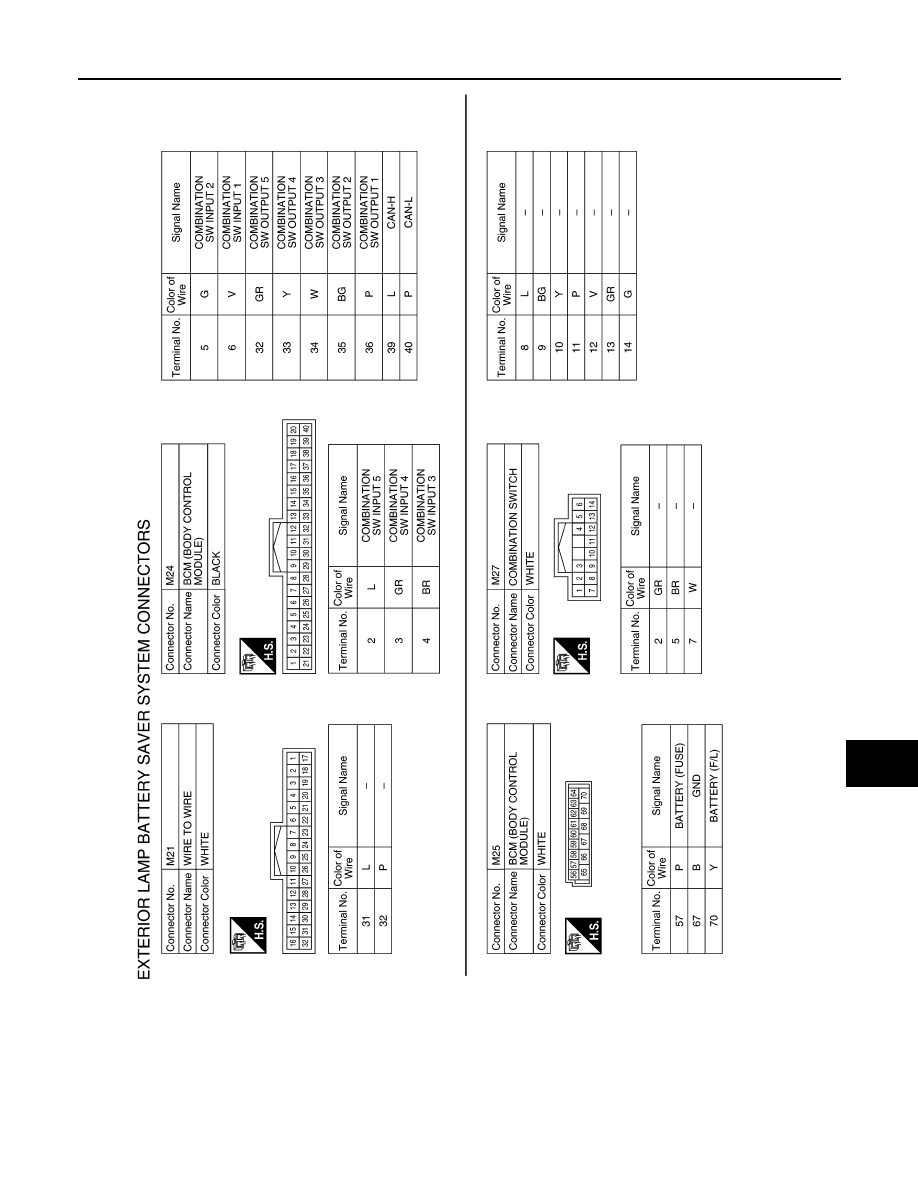

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXL-191

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2490GB

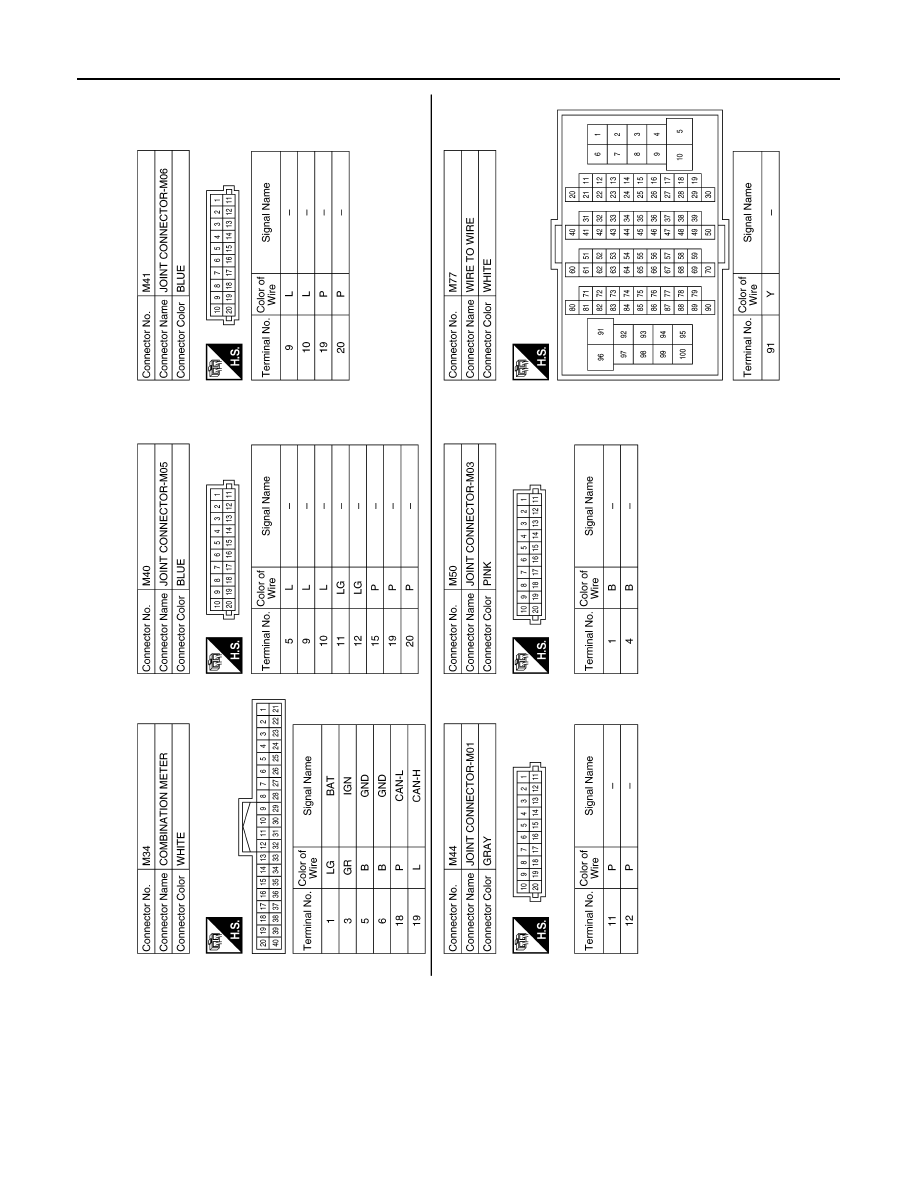

EXL-192

< WIRING DIAGRAM >

[HALOGEN HEADLAMP]

EXTERIOR LAMP BATTERY SAVER SYSTEM

AALIA2491GB
