DIAGNOSIS SYSTEM (IPDM E/R)
EXL-169
< SYSTEM DESCRIPTION >

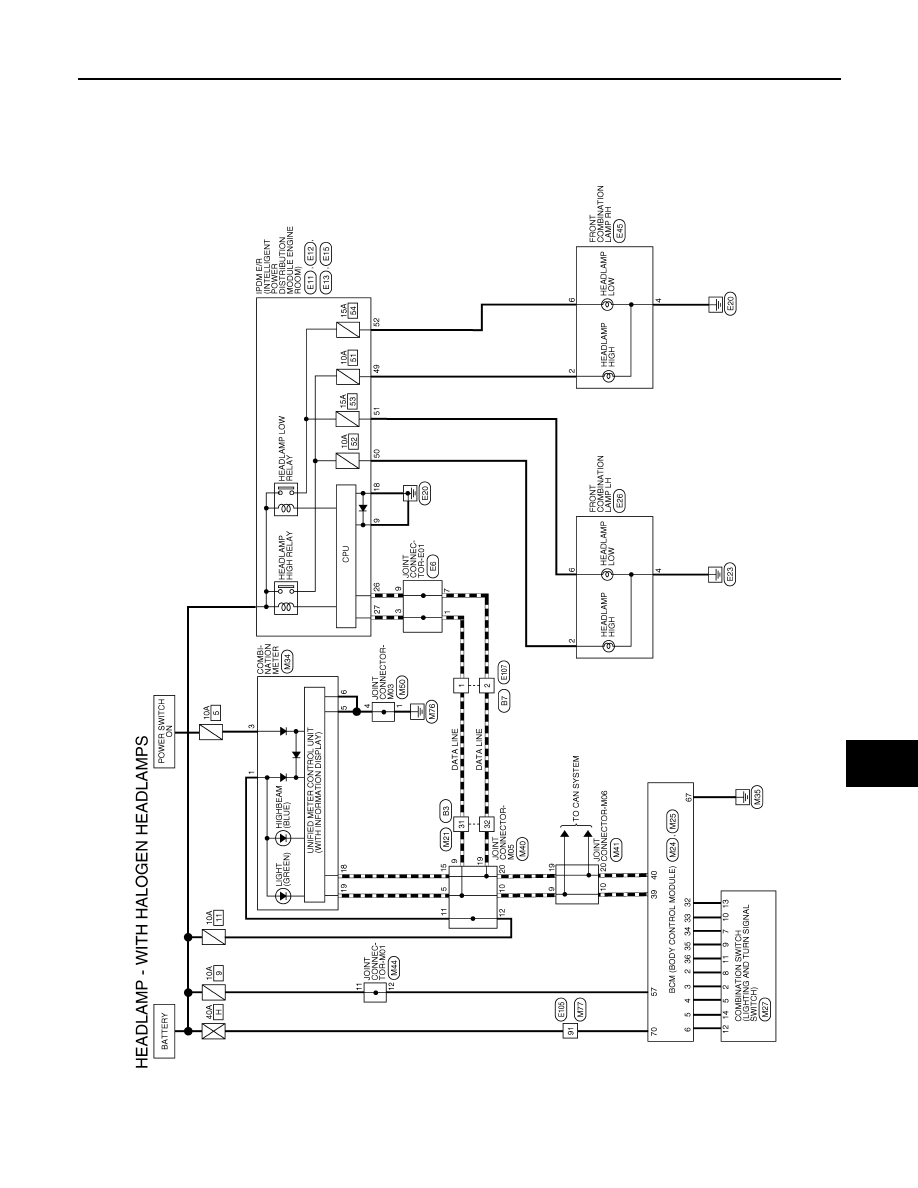

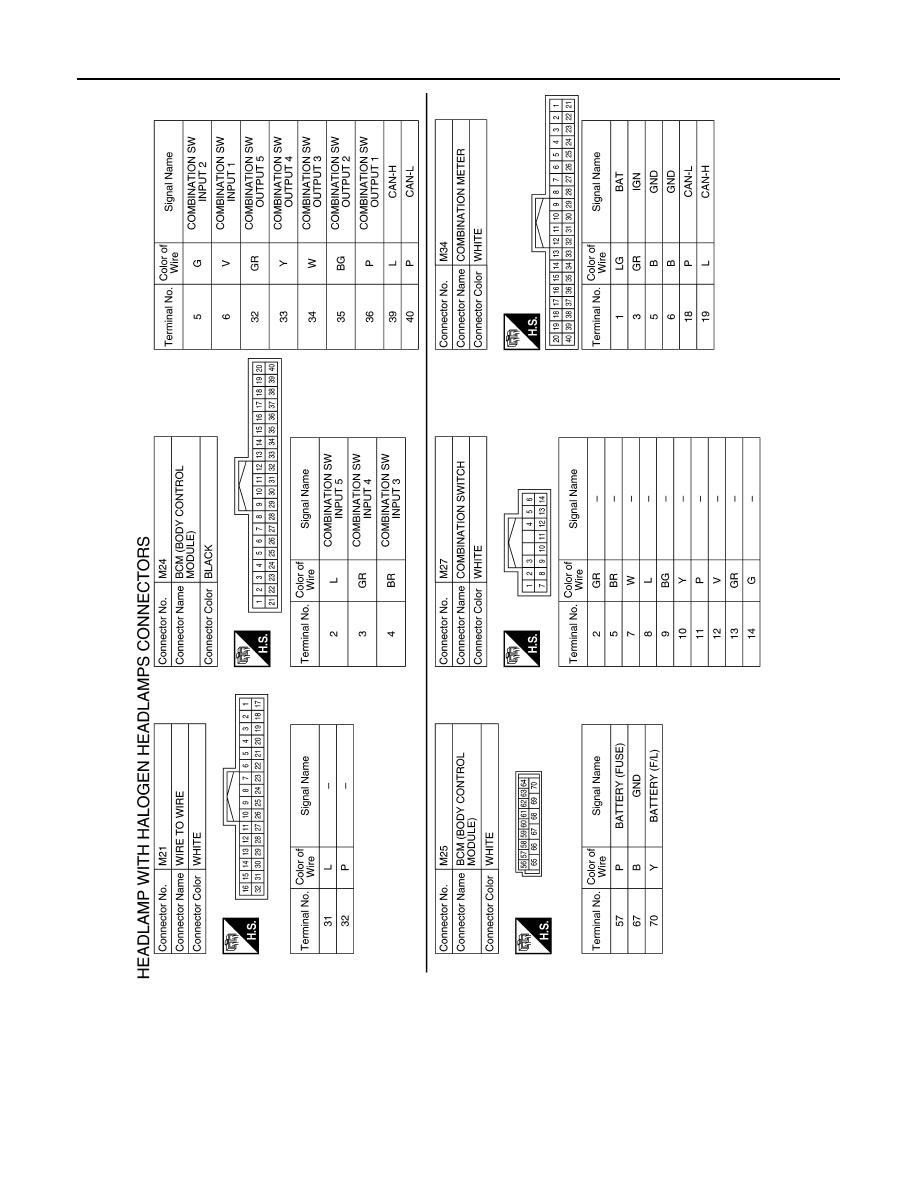

[HALOGEN HEADLAMP]
C
D
E
F
G
H
I
J
K
M
A
B
EXL
N
O
P
ACTIVE TEST
CAN DIAG SUPPORT MNTR
LAN-14, "CAN Diagnostic Support Monitor"
.
Monitor Item [Unit]
Main
Signals
Description
TAIL&CLR REQ [On/Off]
×
Indicates position light request signal received from BCM on CAN communica-
tion line
HL LO REQ [On/Off]
×
Indicates low beam request signal received from BCM on CAN communication
line
HL HI REQ [On/Off]
×
Indicates high beam request signal received from BCM on CAN communication
line
FR FOG REQ [On/Off]
×
Indicates front fog light request signal received from BCM on CAN communica-
tion line
FR WIP REQ [Stop/1LOW/Low/Hi]
×
Indicates front wiper request signal received from BCM on CAN communication
line
WIP AUTO STOP [STOP P/ACT P]
×
Indicates condition of front wiper auto stop signal
WIP PROT [Off/BLOCK]
×
Indicates condition of front wiper fail-safe operation
IGN RLY1 -REQ [On/Off]
Indicates power switch ON signal received from BCM on CAN communication
line
IGN RLY [On/Off]
×
Indicates condition of ignition relay-1
PUSH SW [On/Off]
Indicates condition of power switch
DETENT SW [On/Off]
Indicates condition of shift position (park position switch)
DTRL REQ [Off]
Indicates daytime light request signal received from BCM on CAN communica-
tion line
HOOD SW [On/Off]
Indicates condition of hood switch
THFT HRN REQ [On/Off]
Indicates theft warning horn request signal received from BCM on CAN commu-
nication line
HORN CHIRP [On/Off]
Indicates horn reminder signal received from BCM on CAN communication line
Test item
Description
HORN
This test is able to check horn operation [On].
REAR DEFOGGER
This test is able to check rear window defogger operation [On/Off].
FRONT WIPER
This test is able to check wiper motor operation [Hi/Lo/Off].
EXTERNAL LAMPS
This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].
