Nissan Leaf. Manual - part 525





EVC-124

< WIRING DIAGRAM >

VCM

AACIA0162GB

DIAGNOSIS AND REPAIR WORK FLOW

EVC-125

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

BASIC INSPECTION

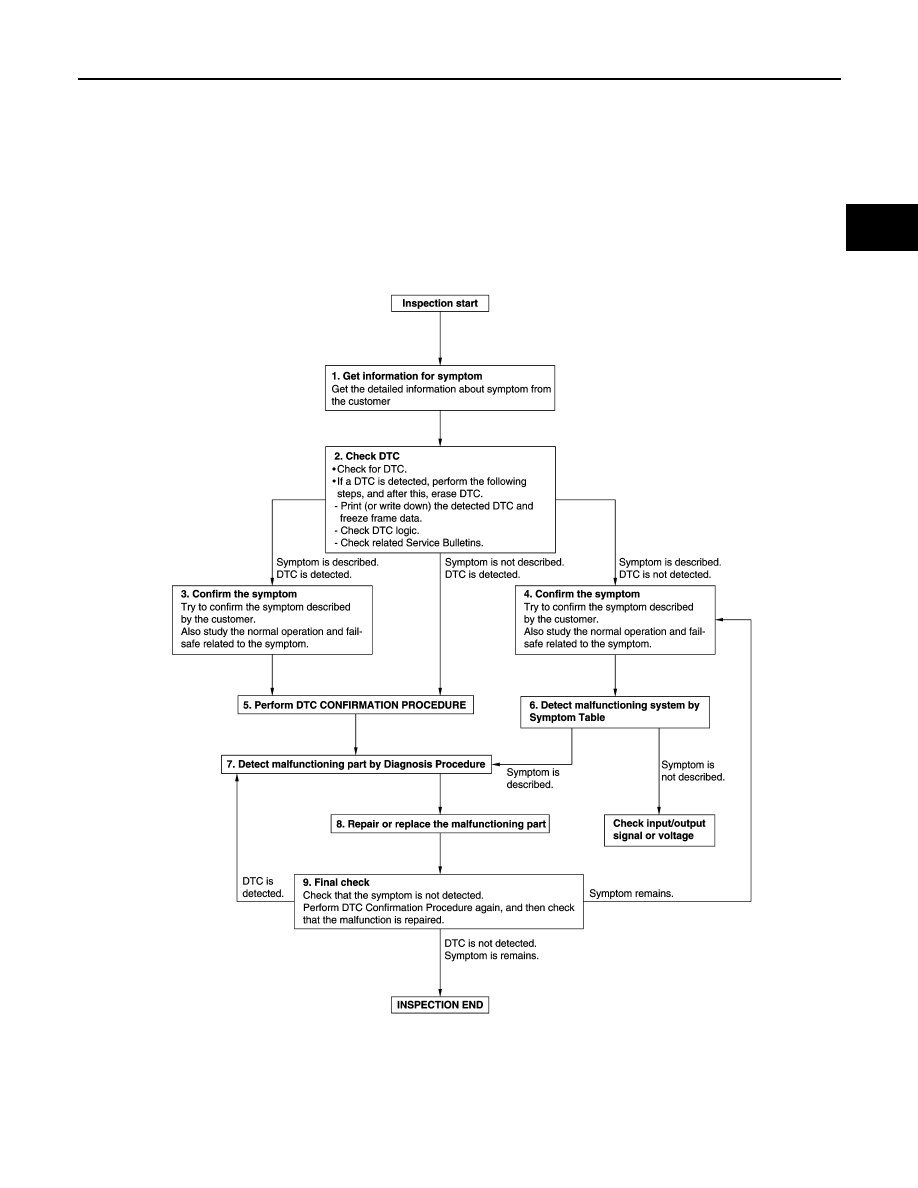

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010120587

OVERALL SEQUENCE

DETAILED FLOW

JSCIA0443GB

EVC-126

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to

EVC-128, "Diagnostic Work

Sheet"

.)

>> GO TO 2.

2.

CHECK DTC

1. Check DTC.

2. If a DTC is detected, perform the following steps, and after this, erase DTC.

-

Print (or write down) the detected DTC and freeze frame data.

-

Check DTC logic. Refer to

EVC-102, "DTC Index"

.

-

Check related Service Bulletins.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

(Symptom Diagnosis is useful. Refer to

EVC-409, "Symptom Index"

.)

Are any symptoms described and any DTCs detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom. Refer to

EVC-409, "Symptom Index"

and

EVC-97, "Fail-Safe"

.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom. Refer to

EVC-409, "Symptom Index"

and

EVC-97, "Fail-Safe"

.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then check that DTC is detected

again.

If two or more DTCs are detected, refer to

EVC-100, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during

this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-

MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-53, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

EVC-409, "Symptom Index"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptoms.

DIAGNOSIS AND REPAIR WORK FLOW

EVC-127

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

Is the symptom described?

YES

>> GO TO 7.

NO

>> Monitor input data from related sensors or check voltage of related VCM terminals using CON-

SULT. Refer to

EVC-84, "Reference Value"

.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.
Is a malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-53, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is displayed, erase it. Refer to

EVC-72, "CONSULT Function"

.

>> GO TO 9.

9.

FINAL CHECK

When DTC was detected in step 3, perform DTC CONFIRMATION PROCEDURE or Component Function

Check again, and then check that the malfunction have been completely repaired.

When symptom was described from the customer, refer to confirmed symptom in step 4 or 5, and check that

the symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.

YES-2 >> Symptom remains: GO TO 4.

NO

>> Before returning the vehicle to the customer, always erase DTC.
