Nissan Leaf. Manual - part 489

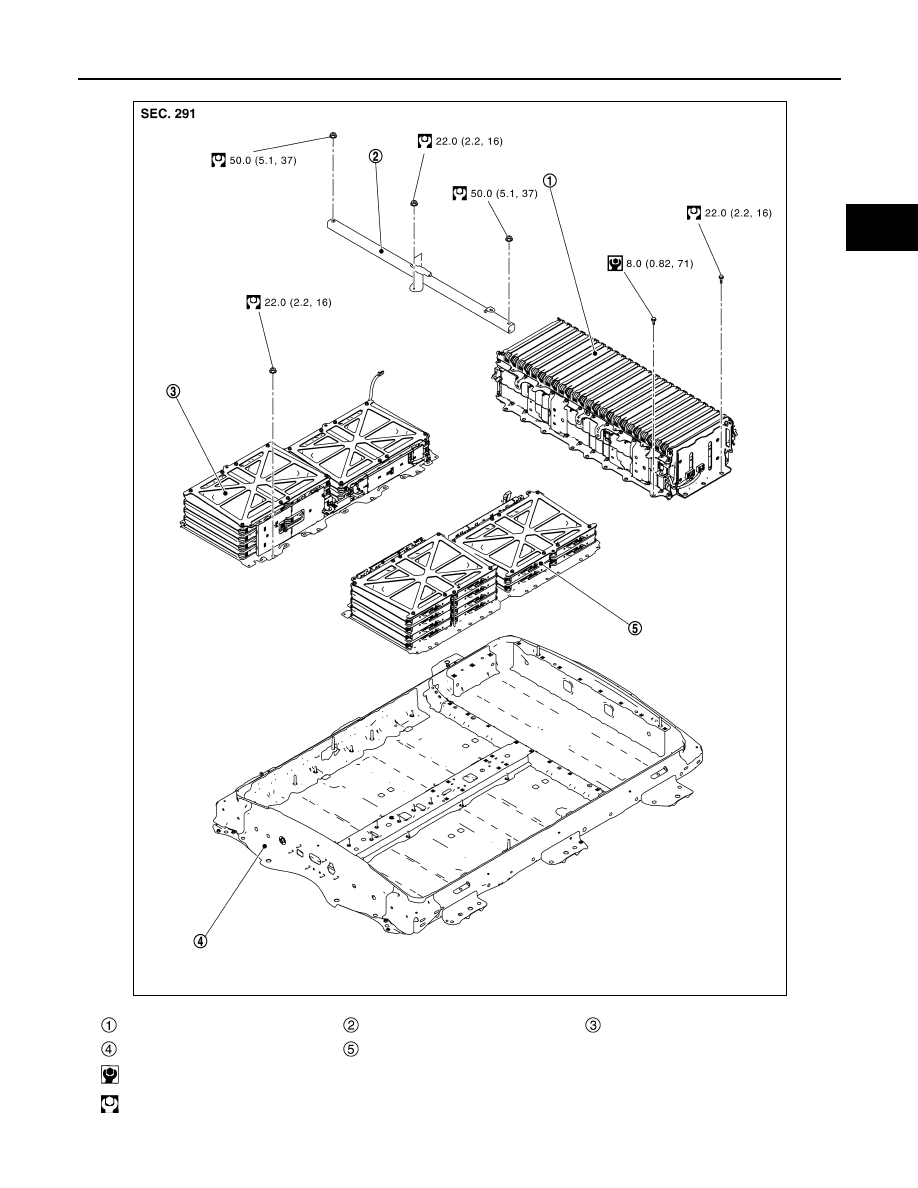

LI-ION BATTERY

EVB-239

< UNIT DISASSEMBLY AND ASSEMBLY >

EVB

Rear module stack

Battery member pipe

Front module stack RH

Battery pack lower case

Front module stack LH

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JSCIA0568GB

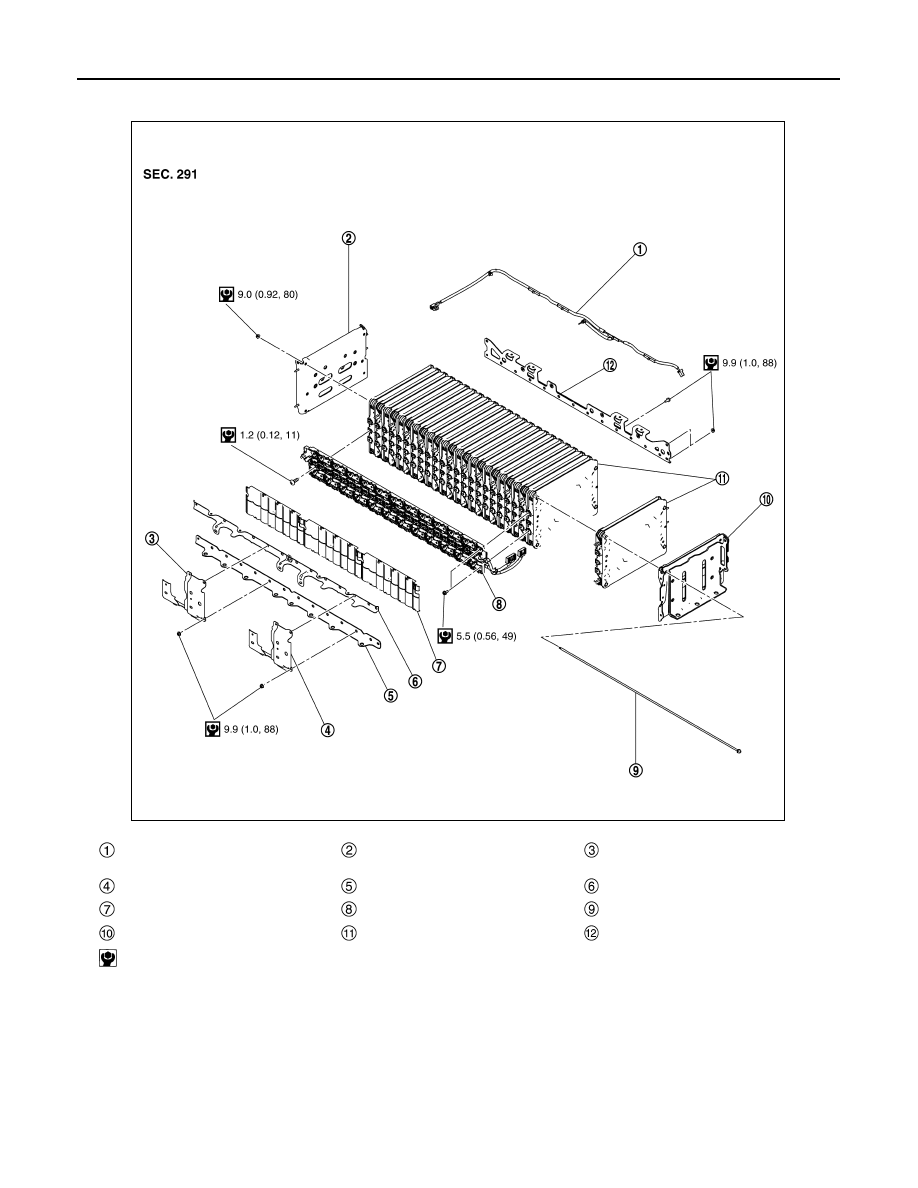

EVB-240

< UNIT DISASSEMBLY AND ASSEMBLY >

LI-ION BATTERY

DISASSEMBLY AND ASSEMBLY

Battery temperature sensor harness
(rear)

Right end plate

Harness bracket

Front stack member

Harness bracket

Bus bar cover

Bus bar module

Through-bolt

Left end plate

Module

Rear stack member

: N·m (kg-m, in-lb)

JSCIA0570GB

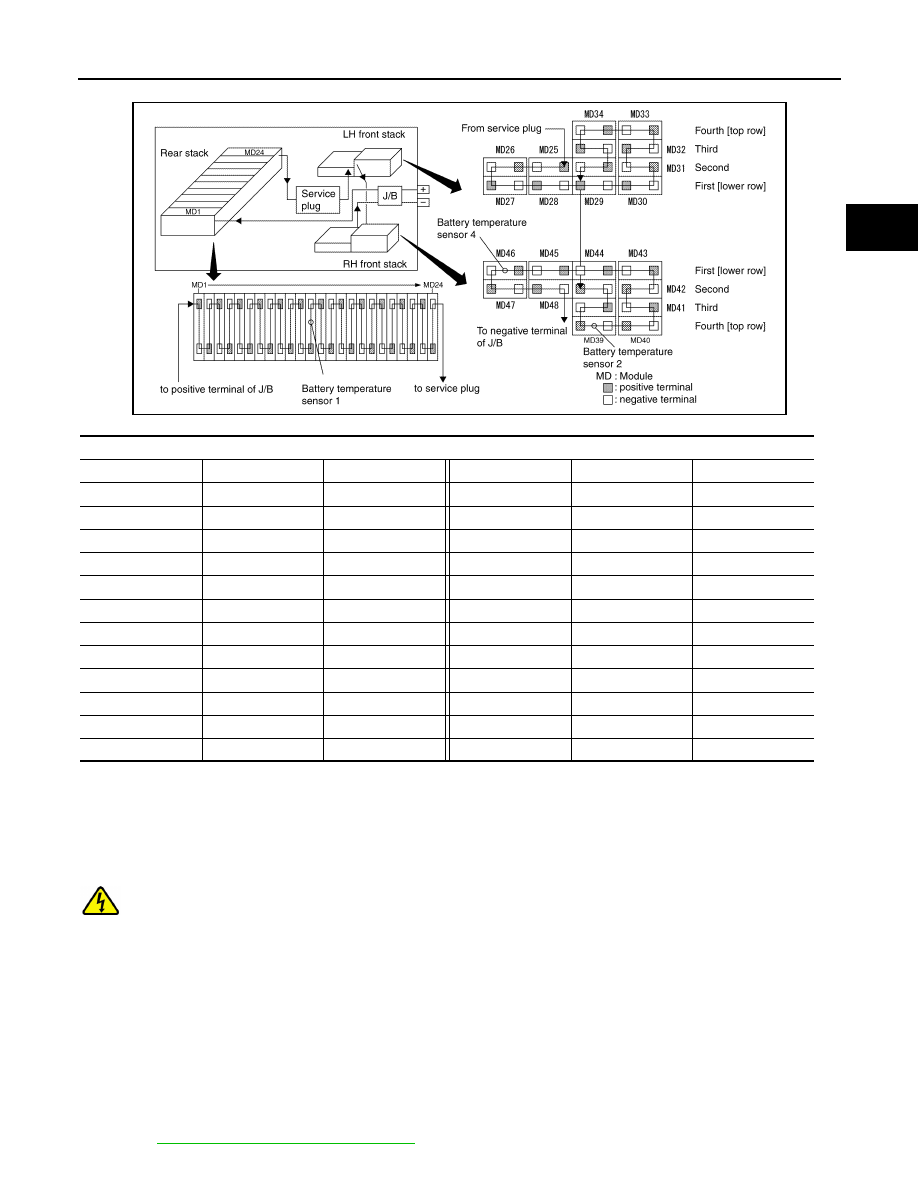

LI-ION BATTERY

EVB-241

< UNIT DISASSEMBLY AND ASSEMBLY >

EVB

Module layout

NOTE:

• Module A: No bracket

• Module B: With bracket

REAR MODULE STACK : Removal and Installation

INFOID:0000000010121188

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to shut off the high voltage circuits before performing

inspection or maintenance of high voltage system harnesses and parts.

• Be sure to put the removed service plug in pocket and carry it or store it in a tool box or other con-

tainer so that another person does not accidentally connect it while work is in progress.

• Be sure to put on insulating protective gear before beginning work on the high voltage system.

• Clearly identify the persons responsible for high voltage work and ensure that other persons do not

touch the vehicle. When not working, cover high voltage components with an anti-static cover sheet

or similar item to prevent contact with other persons.

• Refer to

EVB-7, "High Voltage Precautions"

JSCIA0704GB

Rear module stack

Module No.

Module name

Cell No.

Module No.

Module name

Cell No.

MD1

Module A

1 & 2

MD13

Module A

25 & 26

MD2

Module B

3 & 4

MD14

Module B

27 & 28

MD3

Module A

5 & 6

MD15

Module A

29 & 30

MD4

Module B

7 & 8

MD16

Module B

31 & 32

MD5

Module A

9 & 10

MD17

Module A

33 & 34

MD6

Module B

11 & 12

MD18

Module B

35 & 36

MD7

Module A

13 & 14

MD19

Module A

37 & 38

MD8

Module B

15 & 16

MD20

Module B

39 & 40

MD9

Module A

17 & 18

MD21

Module A

41 & 42

MD10

Module B

19 & 20

MD22

Module B

43 & 44

MD11

Module A

21 & 22

MD23

Module A

45 & 46

MD12

Module B

23 & 24

MD24

Module B

47 & 48

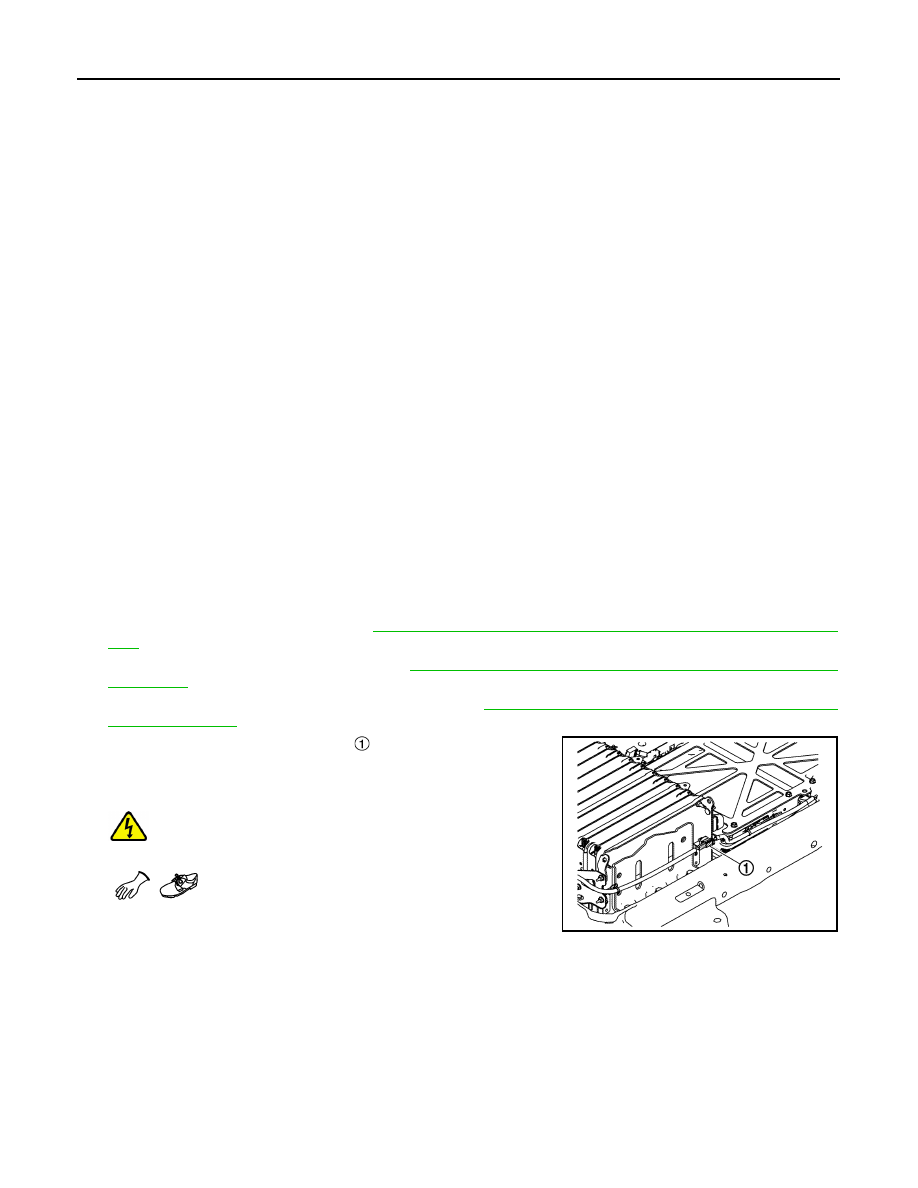

EVB-242

< UNIT DISASSEMBLY AND ASSEMBLY >

LI-ION BATTERY

• If the battery pack is to be disassembled, be sure to remove the Li-ion battery controller for prevent-

ing electric shock, fire, and damage to parts.

CAUTION:

There is the possibility of a malfunction occurring if the vehicle is changed to READY status while the

service plug is removed. Therefore do not change the vehicle to READY status unless instructed to do

so in the Service Manual.

ENVIRONMENT FOR LI-ION BATTERY DISASSEMBLY WORK

1. Must be an indoor environment.

• The environment must utilize a shutter or other means to shut out the outside environment and prevent

rain, snow, dust, or other substances from entering.

• The environment must not cause the intrusion of sweat during work, or cause condensation to occur

due to high temperature or humidity.

2. Metal powder, grease, and other foreign substances must not enter.

• The indoor environment must also prevent metal powder, grease, and other foreign substances from

entering due to maintenance performed on other vehicles and other sources during disassembly work.

• If there is a risk of the above substances entering, take appropriate countermeasures, such as use of a

vinyl curtain or an equivalent to shut out the outside environment.

3. The floor must be dry.

• The floor must not be wet as a result of factors such as vehicle entry during rain or snow.

4. Work space

• The work space must be approximately the size of one entire vehicle.

• Take appropriate countermeasures so that persons other than the operator do not enter the work space,

such as by placing signs indicating that disassembly work is in progress.

5. Standard fire fighting equipment

• Always place a standard fire fighting equipment in the disassembly work area.

• Depending on type of fire (vehicle or battery) use standard fire fighting equipment (water or extin-

guisher).

REMOVAL

1. Remove the battery pack upper case.

EVB-191, "BATTERY PACK UPPER CASE : Removal and Installa-

tion"

2. Remove Li-ion battery controller. Refer to

EVB-201, "LI-ION BATTERY CONTROLLER : Removal and

Installation"

3. Remove Li-ion battery heater RR1 and RR2. Refer to

EVB-215, "LI-ION BATTERY HEATER : Disassem-

bly and Assembly"

4. Disconnect the harness connector between the battery tem-

perature sensor harness (front) and the battery temperature

sensor harness (rear).

WARNING:

To prevent electric shock, wear insulated protective

gear.

JSCIA0658ZZ
