PREPARATION

EVB-11

< PREPARATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

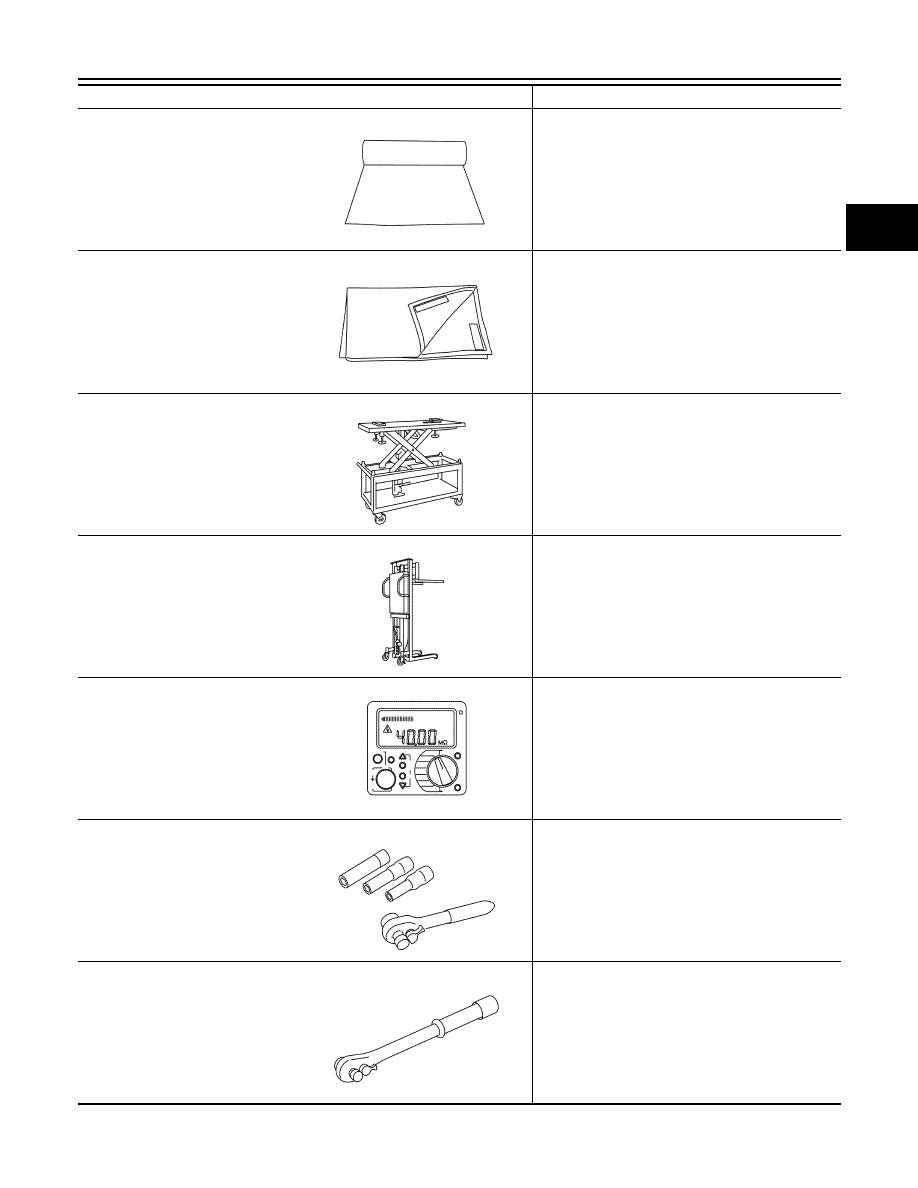

Insulated rubber sheet

Removing and installing high voltage components

Insulated cover sheet

Removing and installing high voltage components

Battery lift table

Removing and installing Li-ion battery

Stacker

Removing and installing Li-ion battery

Insulation resistance tester
(Multi tester)

Measuring insulation resistance, voltage, and re-
sistance

Insulated hand tools

Removing and installing high voltage components

Insulated torque wrench

Removing and installing high voltage components

Tool name

Description

JPCIA0019ZZ

JPCIA0018ZZ

JPCIA0024ZZ

JPCIA0015ZZ

JPCIA0014ZZ

JPCIA0067ZZ

JPCIA0068ZZ

EVB-12

< PREPARATION >

PREPARATION

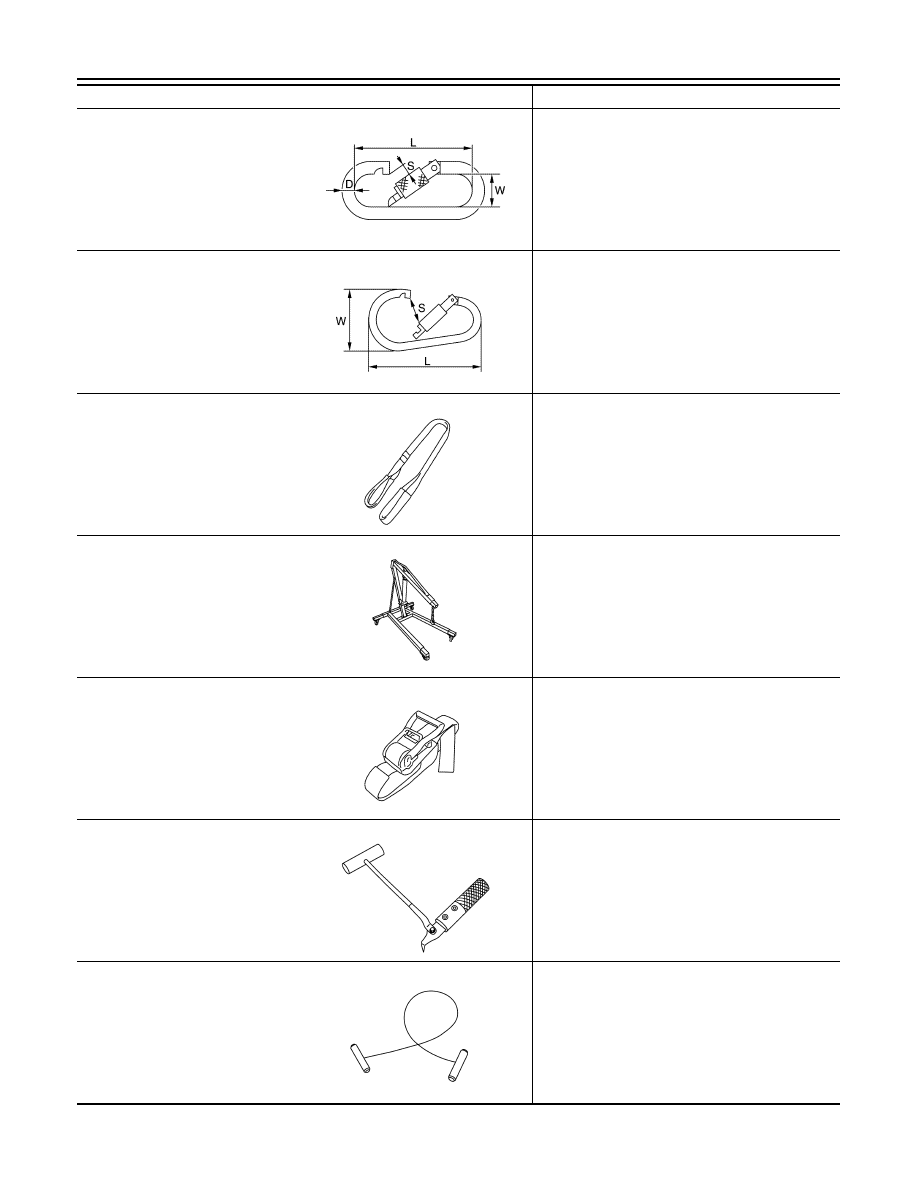

Carabineer [small]

• Removing and installing battery module stack
• Installing battery pack upper case
NOTE:
• D: 8.0 mm (0.31 in)
• L: 74.0 mm (2.91 in)
• S: 10.0 mm (0.39 in)
• W: 22.5 mm (0.89 in)

Carabineer [large]

Removing and installing battery module stack
NOTE:
• D: 14.0 mm (0.55 in)
• L: 204.0 mm (8.03 in)
• S: 47.0 mm (1.85 in)
• W: 105.0 mm (4.13 in)

Belt slinger

Removing and installing battery module stack
NOTE:
Length: 2.0 m (6.562 ft)

Mobile floor crane

Removing and installing battery module stack

Lashing belt

Removing and installing battery rear module stack

Windshield cutter [Gasket cutter]

Removing battery pack upper case
(Cut the adhesive)

Piano wire with handles

Installing battery pack upper case
(Cut the adhesive)
NOTE:
Wire size:

φ 0.5 mm (0.02 in)

Tool name

Description

JPCIA0016ZZ

JPCIA0017ZZ

JPCIA0021ZZ

JPCIA0020ZZ

JPCIA0022ZZ

JSCIA0640ZZ

JSCIA0641ZZ

PREPARATION

EVB-13

< PREPARATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

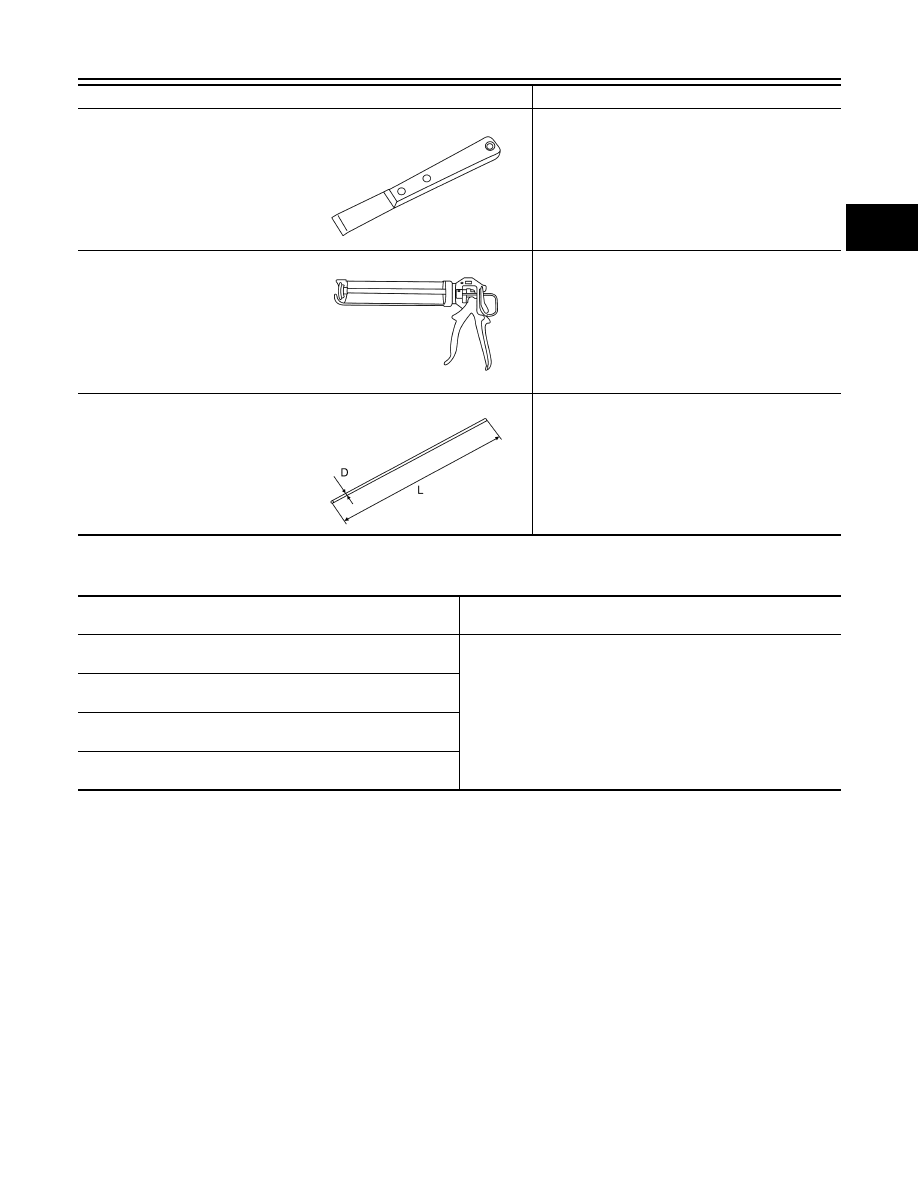

Sealant or/and Lubricant

INFOID:0000000010121027

Scraper

Installing battery pack upper case
(Smooth the adhesive)

Tube presser [Gasket material ap-
plicator]

Installing battery pack upper case
(Apply the adhesive)

Metal bar

Assembling battery module stack
NOTE:
• D:

φ 7 mm (0.28 in)

• L: 1 m (3.28 ft)

Tool name

Description

JSCIA0643ZZ

JSCIA0639ZZ

JSCIA0735ZZ

Tool name

Tool number

Description

Adhesive
999MP-57302NP

Installing battery pack upper case

Dam rubber
KA390-0059U

Primer (Adhesive primer)
999MP-43533PP

Primer sufacer (anti-corrosion praimer)
—

EVB-14

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

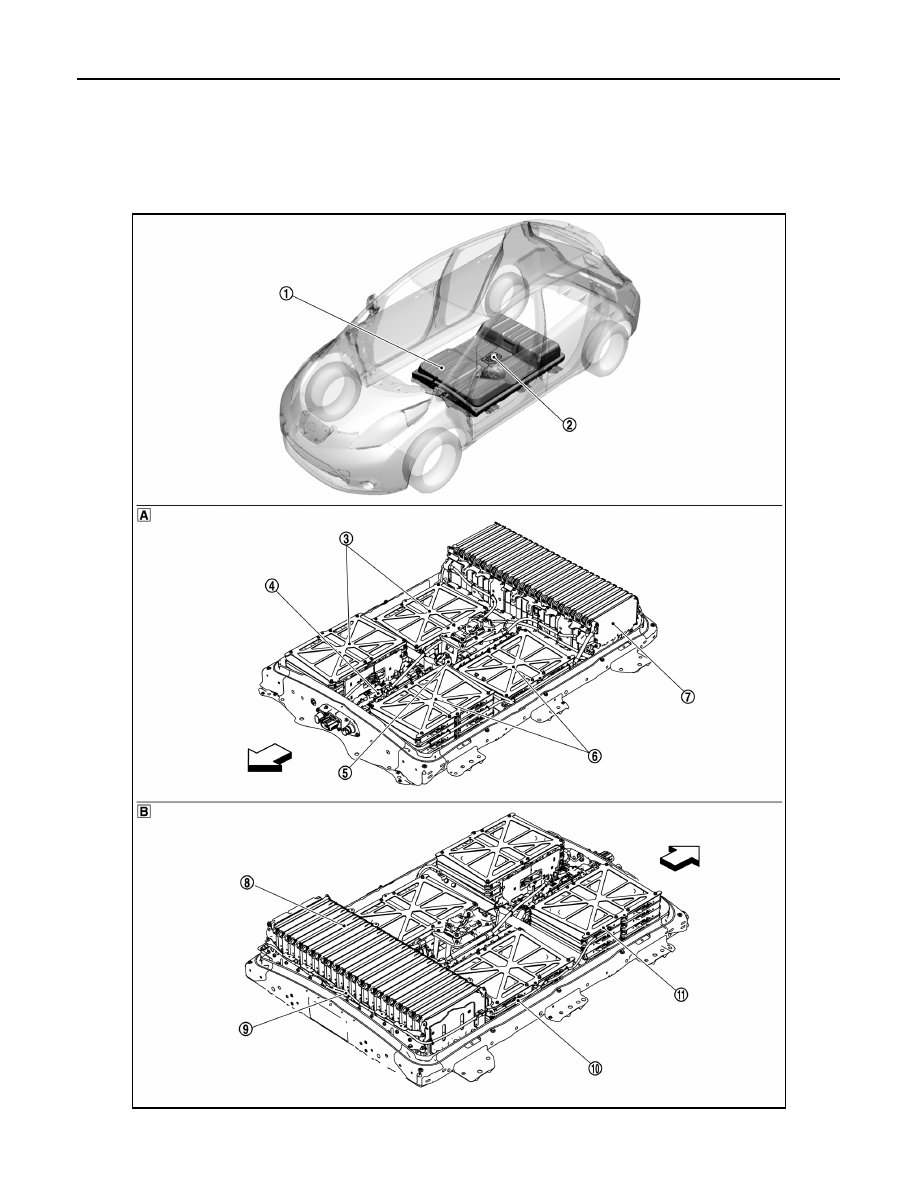

Component Parts Location

INFOID:0000000010121028

JSCIA0505ZZ
