• Check door hinge rotating part for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000010119876

REMOVAL

1. Fully close the rear door window.
2. Remove rear door finisher. Refer to

INT-22, "Removal and Installation"

.

3. Remove the rear door speaker. Refer to

AV-71, "Removal and Installation"

 (DISPLAY AUDIO),

AV-322,

"Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-492, "Removal and Installation"

 (NAV-

IGATION WITH BOSE).

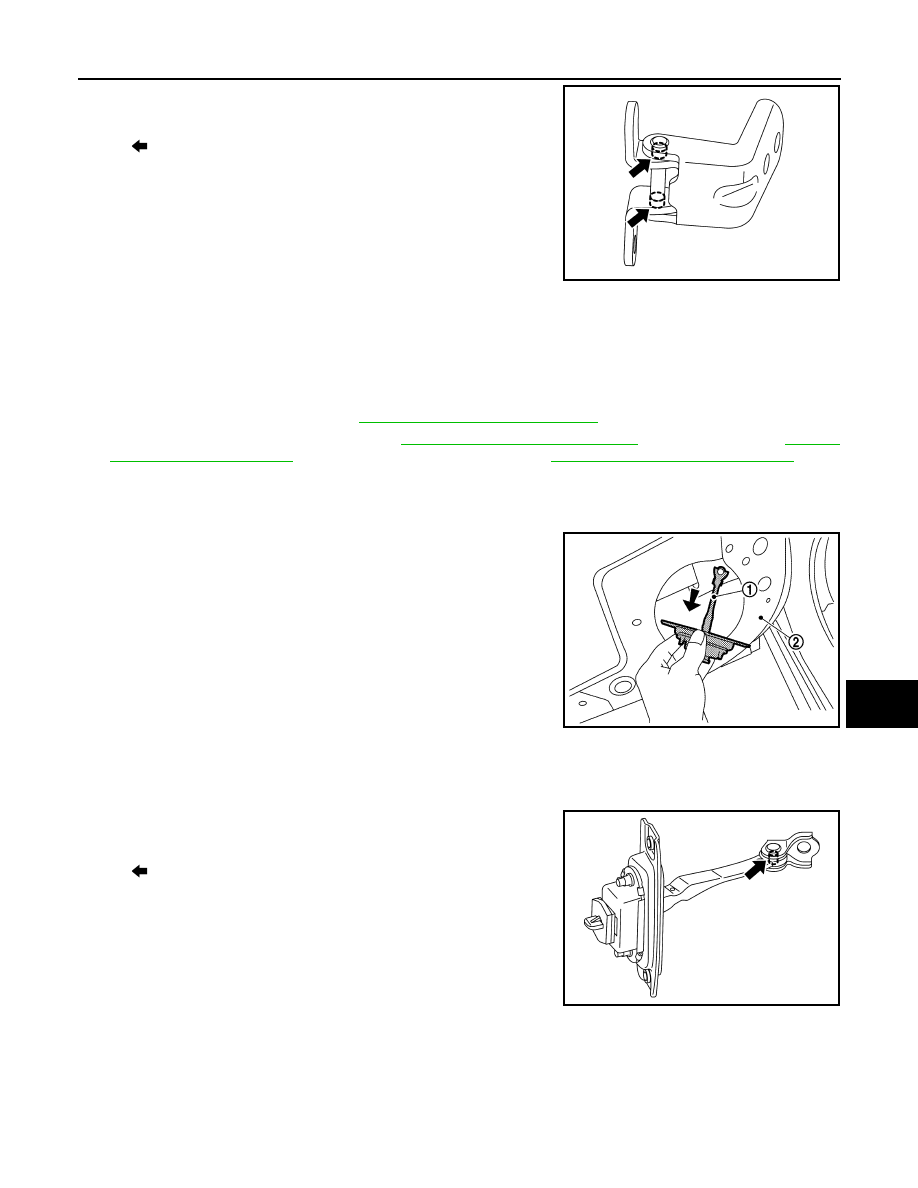

4. Remove the door check link bolt (body side).
5. Remove the door check link bolts (door side).
6. Remove door check link (1) from door panel (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check the rear door open/close and lock/unlock operation.

• Check door check link rotating part for poor lubrication. If

necessary, apply a suitable multi-purpose grease.

: Grease point

JMKIA6553ZZ

JMKIA6420ZZ

: Grease point

JMKIA6554ZZ

DLK-180

< REMOVAL AND INSTALLATION >

BACK DOOR

BACK DOOR

Exploded View

INFOID:0000000010119877

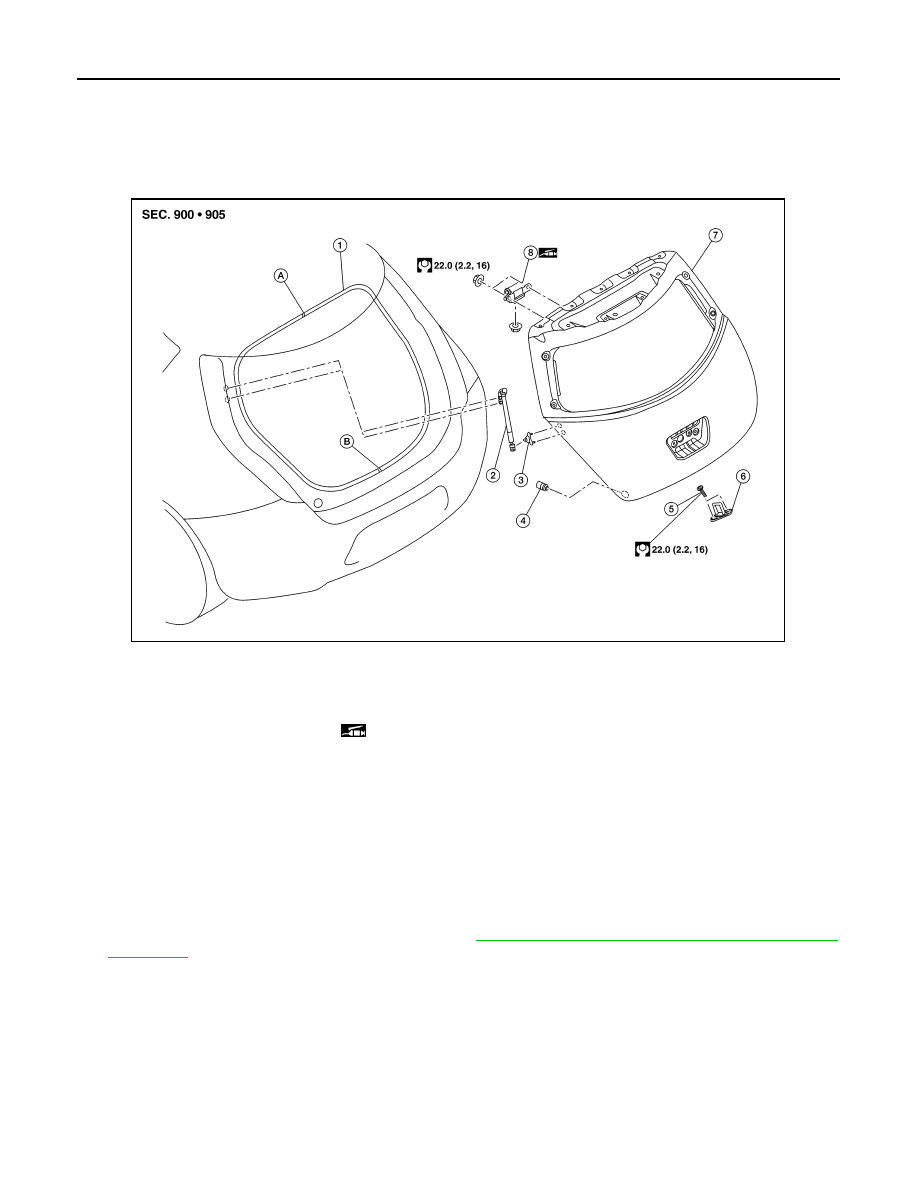

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010119878

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal or installation of

the back door.

REMOVAL

1. Remove the rear pillar finishers (LH/RH). Refer to

INT-31, "REAR PILLAR FINISHER : Removal and

Installation"

.

1.

Back door weather-strip

2.

Back door stay assembly

3.

Back door stay lower bracket

4.

Bumper rubber

5.

Bolt

6.

Back door striker

7.

Back door panel

8.

Back door hinge

A.

Center mark

B.

Seam

Grease

AWKIA2941ZZ

BACK DOOR

DLK-181

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

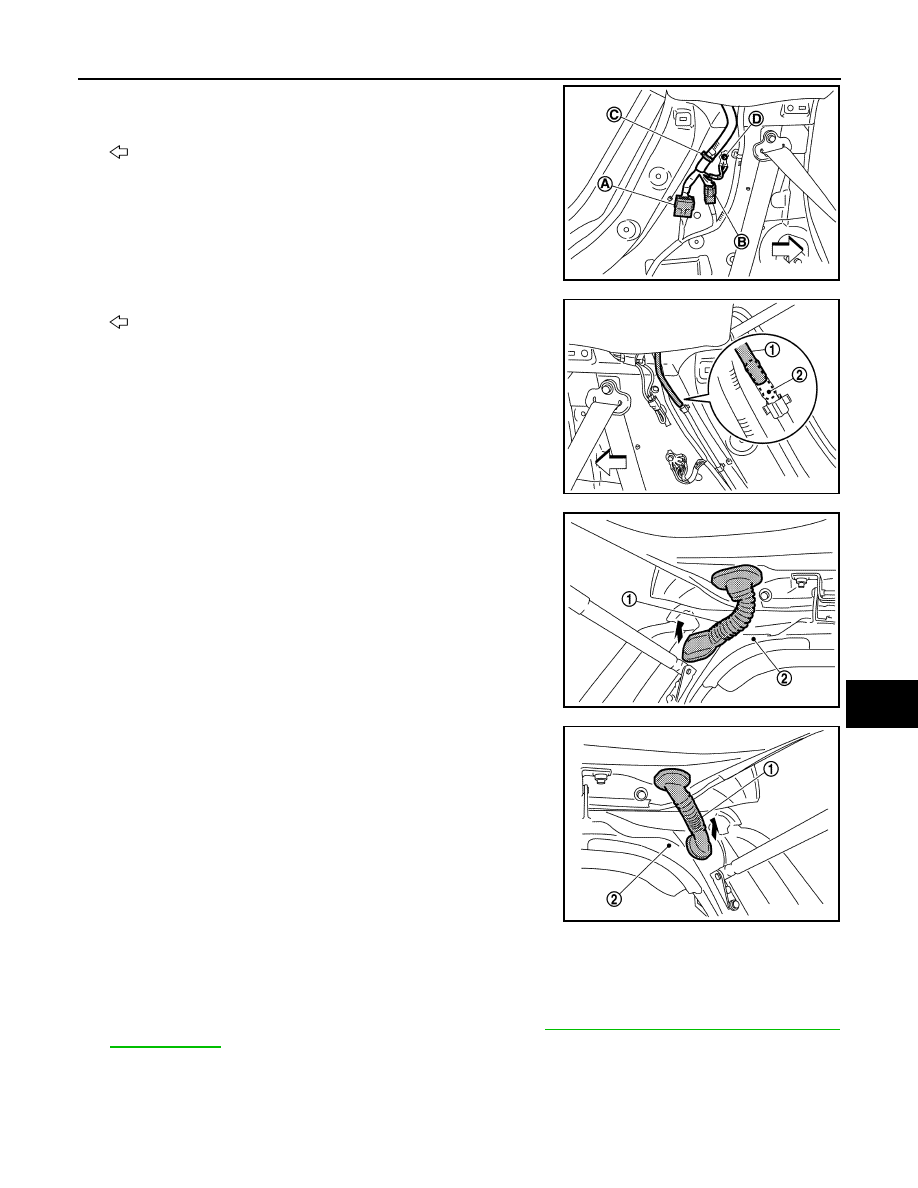

2. Disconnect harness connector (A) and (B).
3. Remove harness clip (C).
4. Remove ground cable mounting bolt (D).

: Front

5. Remove rear washer hose (1) from hose joint (2).

: Front

6. Remove grommet (1), and then pull out harness from rear

fender extension (LH) (2).

7. Remove grommet (1), and then pull out harness from rear

fender extension (RH) (2).

8. Support back door with appropriate material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

9. Remove back door stay assembly (back door side). Refer to

DLK-184, "BACK DOOR STAY : Removal

and Installation"

.

10. Remove back door hinge nuts on back door and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

JMKIA6403ZZ

JMKIA6404ZZ

JMKIA6405ZZ

JMKIA6406ZZ

DLK-182

< REMOVAL AND INSTALLATION >

BACK DOOR

• Check back door hinge rotating part for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After installation, check back door open/close and lock/unlock operation. If necessary, perform the

back door assembly adjustment procedure. Refer to

DLK-182, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010119879

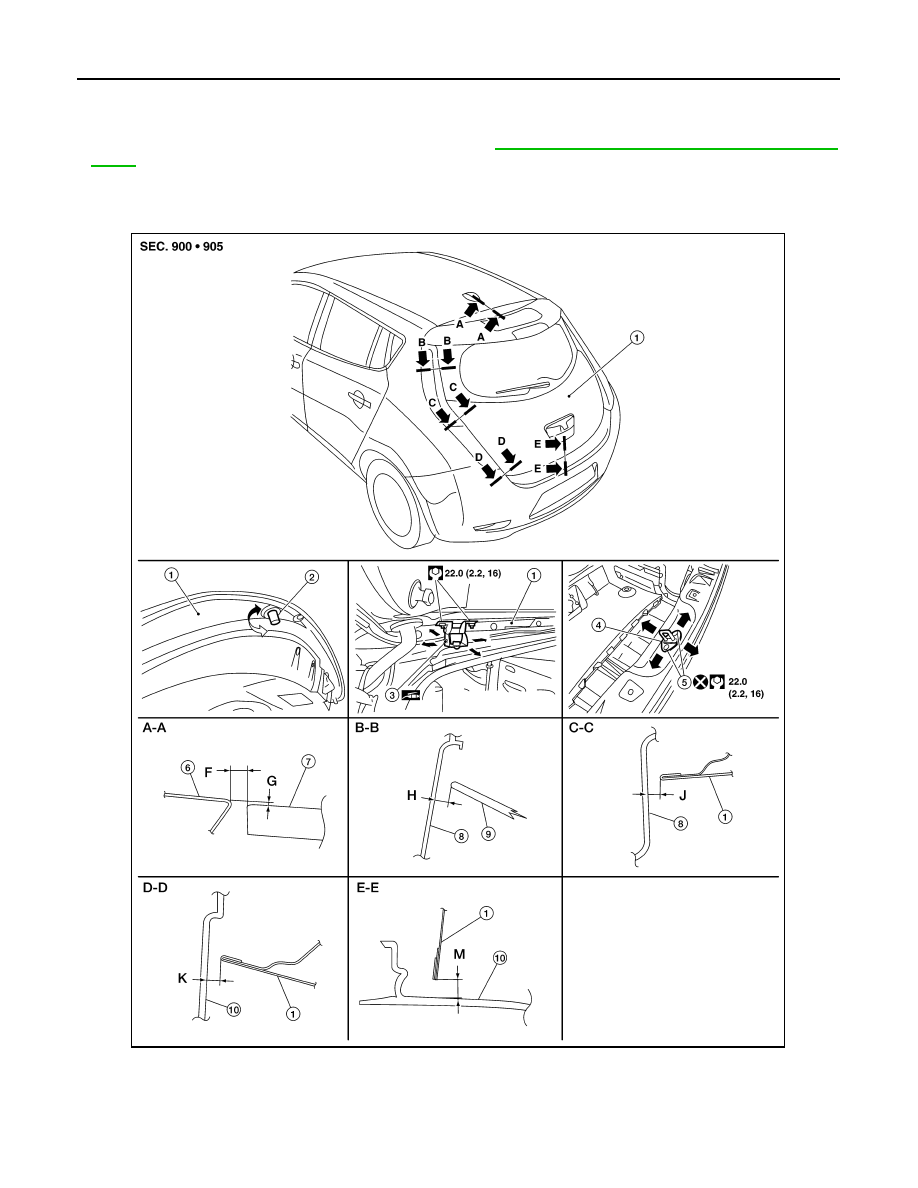

1.

Back door assembly

2.

Bumper rubber

3.

Back door hinge

4.

Back door striker

5.

Bolt

6.

Roof panel

AWKIA2942ZZ
