SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-151

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Loose screws at console attachment points.

SEATS

When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when

the noise is present. These conditions should be duplicated when verifying and isolating the cause of the

noise.

Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-

ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component

or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then

transmitted into the passenger compartment.

Causes of transmitted underhood noise include:
1. Any component installed to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator installation pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best

method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine rpm or

load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or

insulating the component causing the noise.

DLK-152

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

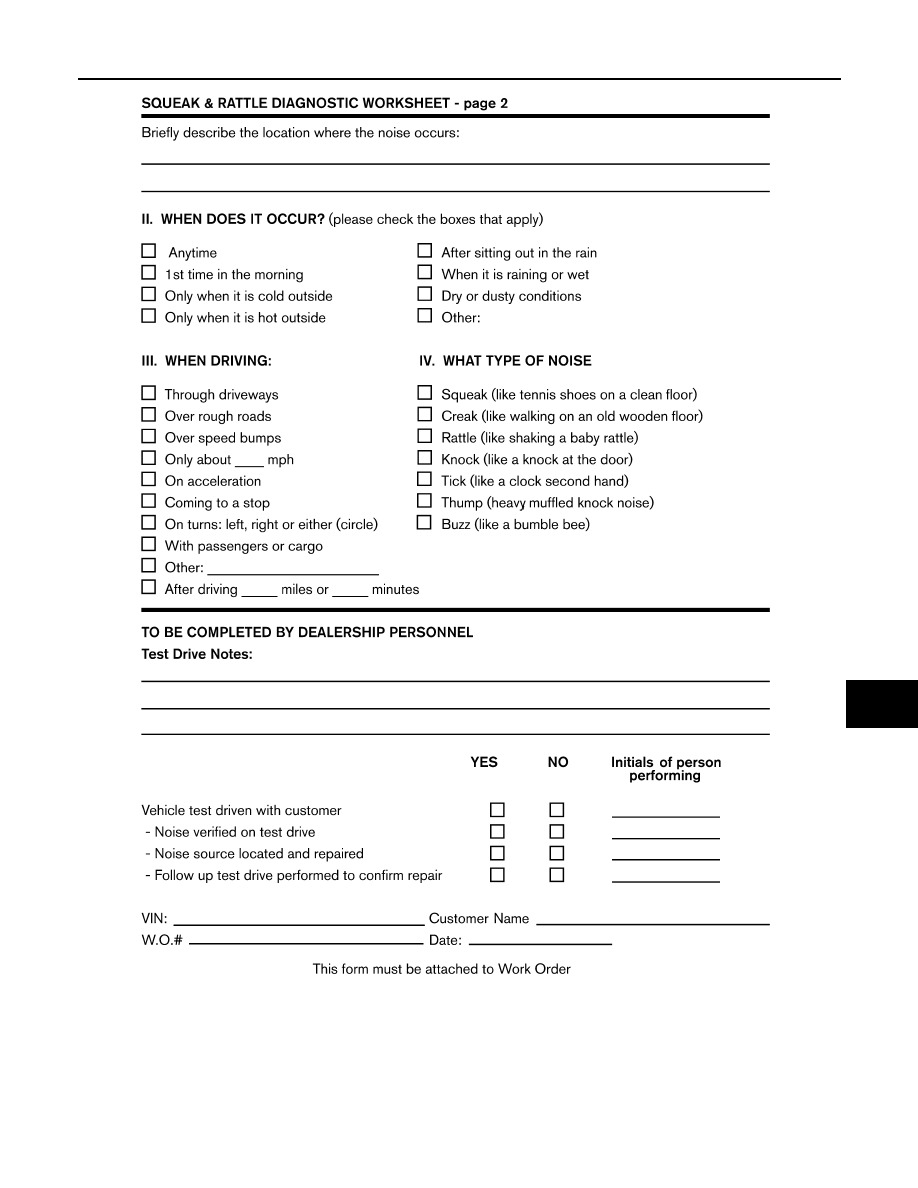

Diagnostic Worksheet

INFOID:0000000010119846

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-153

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LAIA0071E

DLK-154

< REMOVAL AND INSTALLATION >

HOOD

REMOVAL AND INSTALLATION

HOOD

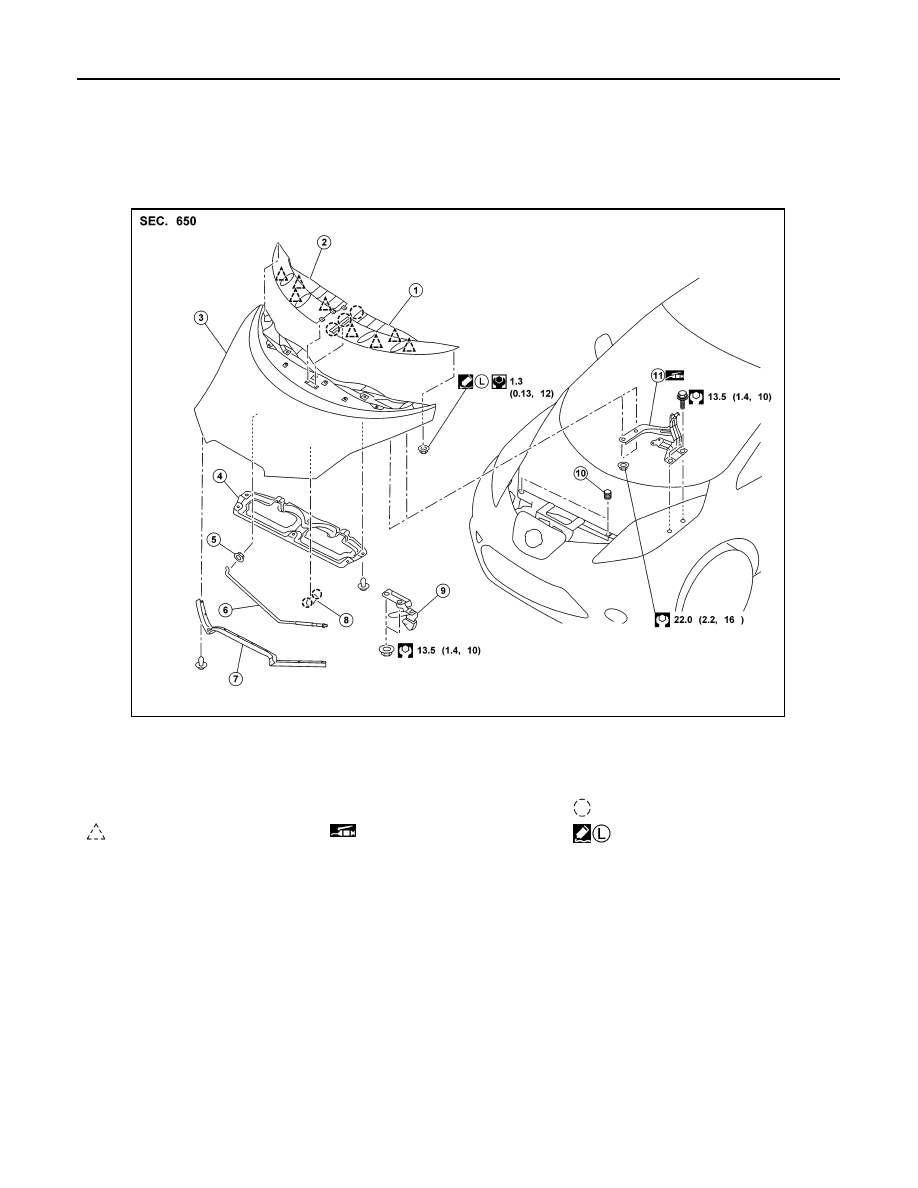

Exploded View

INFOID:0000000010119847

HOOD ASSEMBLY
HOOD ASSEMBLY : Removal and Installation

INFOID:0000000010119848

CAUTION:

• Operate with two workers, because of its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation.

REMOVAL

1. Support the hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

2. Remove hood hinge nuts and hood assembly.

1.

Hood cover (LH)

2.

Hood cover (RH)

3.

Hood assembly

4.

Hood insulator

5.

Grommet

6.

Hood support rod

7.

Hood front seal

8.

Clamp

9.

Hood lock secondary control

10. Hood bumper rubber

11. Hood hinge

Pawl

Clip

Grease

Sealing point with locking sealant

AWKIA2425ZZ
