Nissan Leaf. Manual - part 349





BRM-20

< PREPARATION >

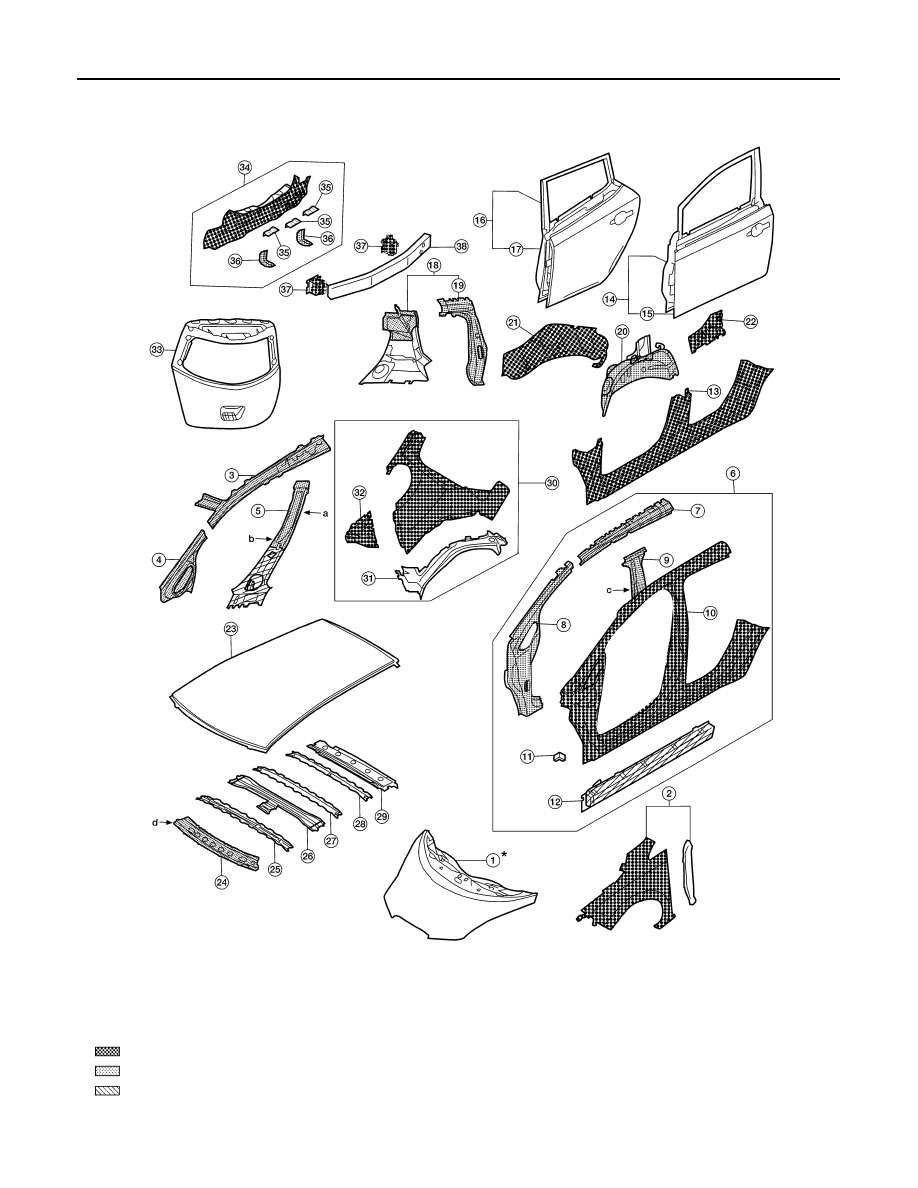

BODY COMPONENT PARTS

Body Component Parts

INFOID:0000000010121689

: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections
: Both sided anti-corrosive steel and HSS sections

*: Aluminum portion

AWKIA2382ZZ

BODY COMPONENT PARTS

BRM-21

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

1.

Hood

×

2.

Front fender (LH/RH)

Under 440

×

3.

Inner side roof rail (LH/RH)

780

4.

Upper inner front pillar (LH/RH)

780

5.

Inner center pillar assembly (LH/RH)

a.

T=1.6 mm
(0.063 in)

980

caution

b.

T=1.4 mm
(0.055 in)

980

caution

6.

Side body assembly (LH/RH)

Refer to No.7

−12

7.

Outer side roof rail reinforcement (LH/RH)

T=1.4 mm
(0.055 in)

980

caution

8.

Front pillar brace (LH/RH)

590

9.

Lower center pillar brace (LH/RH)

c.

T=1.2 mm
(0.047 in)

980

caution

10.

Outer front side body (LH/RH)

Under 440

×

11.

Front fender bracket assembly (LH/RH)

Under 440

×

12.

Outer sill reinforcement (LH/RH)

780

×

13.

Outer sill (LH/RH)

Under 440

×

14.

Front door (LH/RH)

×

15.

Outer front door panel (LH/RH)

×

16.

Rear door (LH/RH)

×

17.

Outer rear door panel (LH/RH)

×

18.

Inner rear pillar (LH/RH)

440

19.

Inner rear pillar reinforcement (LH/RH)

440

20.

Inner rear wheelhouse (LH/RH)

590

×

21.

Outer rear wheelhouse (LH/RH)

Under 440

×

22.

Outer rear wheelhouse extension (LH/RH)

Under 440

×

23.

Roof

Under 440

24.

Front roof rail

d.

T=1.0 mm
(0.039 in)

980

caution

25.

Roof bow No.1

Under 440

26.

Center roof reinforcement

590

27.

Roof bow No.3

Under 440

28.

Roof bow No.4

Under 440

29.

Rear roof rail

Under 440

30.

Rear fender (LH/RH)

Under 440

×

31.

Rear fender extension (LH/RH)

Under 440

32.

Rear fender corner (LH/RH)

Under 440

×

33.

Back door

Under 440

×

34.

Upper rear panel

440

×

35.

Upper rear bumper retainer

Under 440

×

36.

Rear side bumper bracket

Under 440

×

BRM-22

< PREPARATION >

BODY COMPONENT PARTS

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

37.

Rear bumper stay (LH/RH)

Under 440

×

38.

Inner center rear bumper reinforcement

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

REPAIR WORK FLOW

BRM-23

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BASIC INSPECTION

REPAIR WORK FLOW

Repair Judgment Flow

INFOID:0000000010121690

WARNING:

• Because hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of elec-

tric shock, electric leakage, or similar accidents if the high voltage component and vehicle are han-

dled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• To prevent the removed service plug from being connected by mistake during the procedure, always

carry it in your pocket or put it in the tool box.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Clearly identify the persons responsible for high voltage work and ensure that other persons do not

touch the vehicle. When not working, cover high voltage parts with an insulating cover sheet or sim-

ilar item to prevent other persons from contacting them.

• Refer to

GI-34, "High Voltage Precautions"

.

CAUTION:

There is the possibility of a malfunction occurring if the vehicle is changed to READY status while the

service plug is removed. Therefore do not change the vehicle to READY status unless instructed to do

so in the Service Manual.

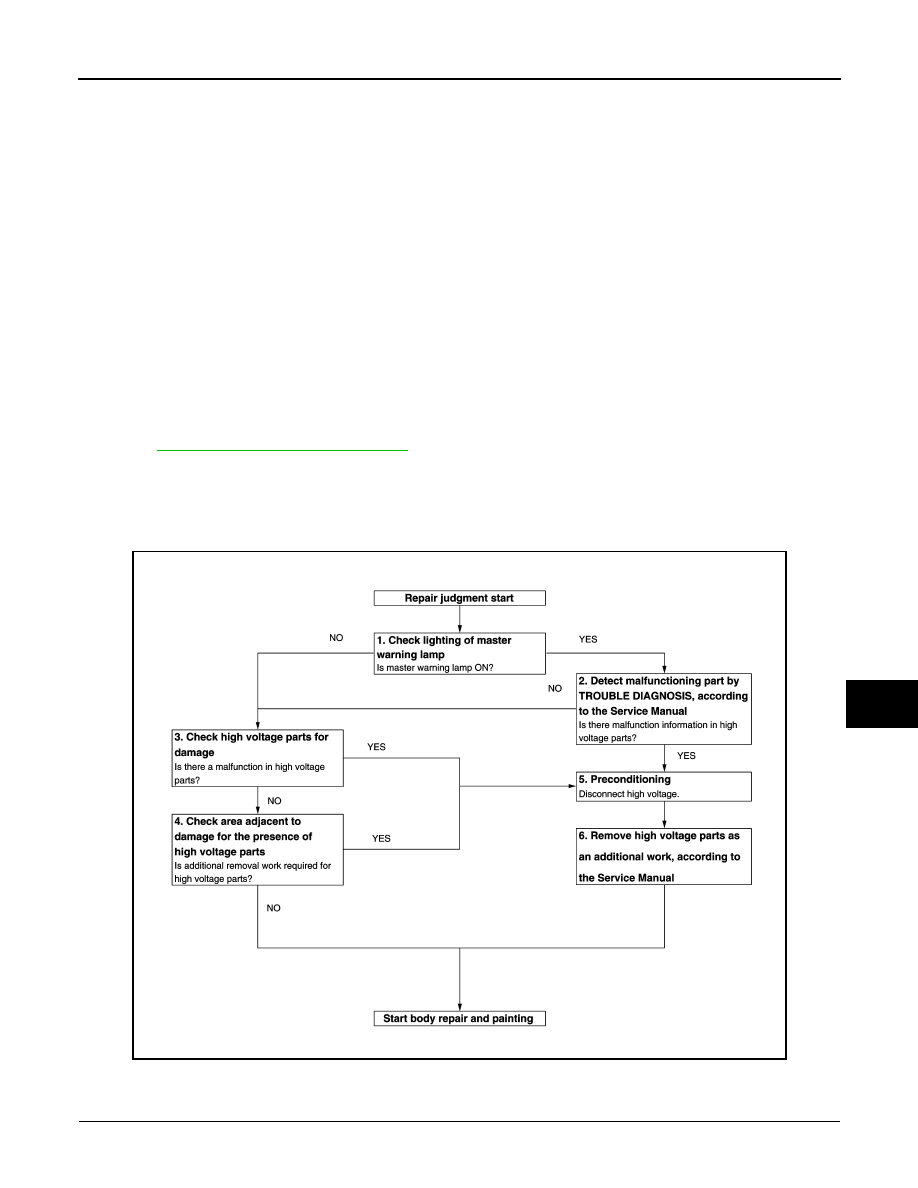

OVERALL SEQUENCE

DETAILED FLOW

1.

CHECK LIGHTING OF MASTER WARNING LAMP

Check that the master warning lamp is ON.

JSKIA2341GB
