PRECAUTION

PRECAUTIONS

Precaution for Technicians Using Medical Electric

INFOID:0000000010122972

OPERATION PROHIBITION

WARNING:

• Parts with strong magnet is used in this vehicle.

• Technicians using a medical electric device such as pacemaker must never perform operation on the

vehicle, as magnetic field can affect the device function by approaching to such parts.

NORMAL CHARGE PRECAUTION

WARNING:

• If a technician uses a medical electric device such as an implantable cardiac pacemaker or an

implantable cardioverter defibrillator, the possible effects on the devices must be checked with the

device manufacturer before starting the charge operation.

• As radiated electromagnetic wave generated by PDM (Power Delivery Module) at normal charge

operation may affect medical electric devices, a technician using a medical electric device such as

implantable cardiac pacemaker or an implantable cardioverter defibrillator must not approach motor

room [PDM (Power Delivery Module)] at the hood-opened condition during normal charge operation.

PRECAUTION AT TELEMATICS SYSTEM OPERATION

WARNING:

• If a technician uses implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD),

avoid the device implanted part from approaching within approximately 220 mm (8.66 in) from inte-

rior/exterior antenna.

• The electromagnetic wave of TCU might affect the function of the implantable cardiac pacemaker or

the implantable cardioverter defibrillator (ICD), when using the service, etc.

• If a technician uses other medical electric devices than implantable cardiac pacemaker or implant-

able cardioverter defibrillator (ICD), the electromagnetic wave of TCU might affect the function of the

device. The possible effects on the devices must be checked with the device manufacturer before

TCU use.

PRECAUTION AT INTELLIGENT KEY SYSTEM OPERATION

WARNING:

• If a technician uses implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD),

avoid the device implanted part from approaching within approximately 220 mm (8.66 in) from inte-

rior/exterior antenna.

• The electromagnetic wave of Intelligent Key might affect the function of the implantable cardiac

pacemaker or the implantable cardioverter defibrillator (ICD), at door operation, at each request

switch operation, or at engine starting.

• If a technician uses other medical electric devices than implantable cardiac pacemaker or implant-

able cardioverter defibrillator (ICD), the electromagnetic wave of Intelligent Key might affect the

function of the device. The possible effects on the devices must be checked with the device manu-

facturer before Intelligent Key use.

Point to Be Checked Before Starting Maintenance Work

INFOID:0000000010122973

The high voltage system may starts automatically. It is required to check that the timer air conditioner

and timer charge (during EVSE connection) are not set before starting maintenance work.

NOTE:

If the timer air conditioner or timer charge (during EVSE connection) is set, the high voltage system starts

automatically even when the power switch is in OFF state.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010122974

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

BR-6

< PRECAUTION >

PRECAUTIONS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Removing 12V Battery

INFOID:0000000010122975

1. Check that EVSE is not connected.

NOTE:

If EVSE is connected, the air conditioning system may be automatically activated by the timer A/C func-

tion.

2. Turn the power switch OFF

→ ON → OFF. Get out of the vehicle. Close all doors (including back door).

3. Check that the charge status indicator lamp does not blink and wait for 5 minutes or more.

NOTE:

 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010122976

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

PIIB3706J

PRECAUTIONS

BR-7

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Precaution for Brake System

INFOID:0000000010122977

WARNING:

Since dust covering the front and rear brakes has an affect on human body, the dust must be removed

with a dust collector. Never splatter the dust with an air blow gun.

• Brake fluid use refer to

MA-16, "FOR USA AND CANADA : Fluids and Lubricants"

 (United States and Can-

ada) or

MA-17, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

• Never reuse drained brake fluid.

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off

immediately and wash with water if it gets on a painted surface. For brake component parts, never wash

them with water.

• Always confirm the specified tightening torque when installing the brake pipes.

• After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, check each

item of brake pedal. Adjust brake pedal if it is outside the standard value.

• Always clean with new brake fluid when cleaning the brake caliper and other components.

• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause

improper operation.

• Always loosen the brake tube flare nut with a flare nut wrench.

• Tighten the brake tube flare nut to the specified torque with a crow-

foot (A) and torque wrench (B).

• Turn the power switch OFF to exit CONSULT, and disconnect

CONSULT from data link connector. Close all doors (including

back door), check that the room lamp is OFF, get out of the vehicle,

and wait for 3 minutes or more with all doors closed. Disconnect

the ABS actuator and electric unit (control unit) harness connector

or the 12V battery negative terminal before performing the work.

Refer to

BR-6, "Precaution for Removing 12V Battery"

.

CAUTION:

Never operate the vehicle while waiting.

• Check that no brake fluid leakage is present after replacing the

parts.

• Burnish the brake contact surfaces after refinishing or replacing rotors, after replacing pads, or if a soft pedal

occurs at very low mileage.

- Front brake pad: Refer to

BR-496, "BRAKE PAD : Inspection and Adjustment"

.

- Front disc rotor: Refer to

BR-496, "DISC ROTOR : Inspection and Adjustment"

.

- Rear brake pad: Refer to

BR-498, "BRAKE PAD : Inspection and Adjustment"

.

- Rear disc rotor: Refer to

BR-498, "DISC ROTOR : Inspection and Adjustment"

.

• When the brake pedal is operated, an operating sound may be heard from the electrically-driven intelligent

brake unit. This occurs when the electrically-driven intelligent brake unit is operating sound and is not a mal-

function.

• When the brake pedal is depressed when the EV system is not started, the brake pedal will feel heavy and

the stroke will be shorter. When the unfamiliar feeling disappears and the brake warning lamp is OFF after

the brake pedal was depressed, then this is not a malfunction. When the brake warning lamp is ON, use

CONSULT and perform the “BRAKE” self diagnosis.

• When there is a malfunction in the power system of the electrically-driven intelligent brake unit (no voltage is

generated), voltage is temporarily supplied to the electrically-driven intelligent brake unit from the brake

power supply backup unit. At the same time, the brake warning lamp (red) and brake system warning lamp

(yellow) turn ON, and the warning buzzer sounds.

• When a malfunction occurs in the electrically-driven intelligent brake unit, the VDC function performs control

(boost operation).

• When a malfunction occurs in the PDM (Power Delivery Module) and 12V battery, the braking force is deter-

mined by the force pressing on the brake pedal (no boost operation). At the same time, the brake warning

lamp (red) and the brake system warning lamp (yellow) turns ON.

• When a malfunction occurs in the electrically-driven intelligent brake and in the VDC function, the braking

force is determined by the force pressing on the brake pedal (no boost operation). At the same time, the

brake warning lamp (red) and brake system warning lamp (yellow) turn ON.

• When a malfunction occurs in the electrically-driven intelligent brake, VDC function, and power system, then

cooperative regenerative brake control is not performed.

• When a malfunction occurs in the brake power supply backup unit, the brake system warning lamp (yellow)

turns ON.

JPFIA0001ZZ

BR-8

< PRECAUTION >

PRECAUTIONS

Precaution for Harness Repair

INFOID:0000000010122978

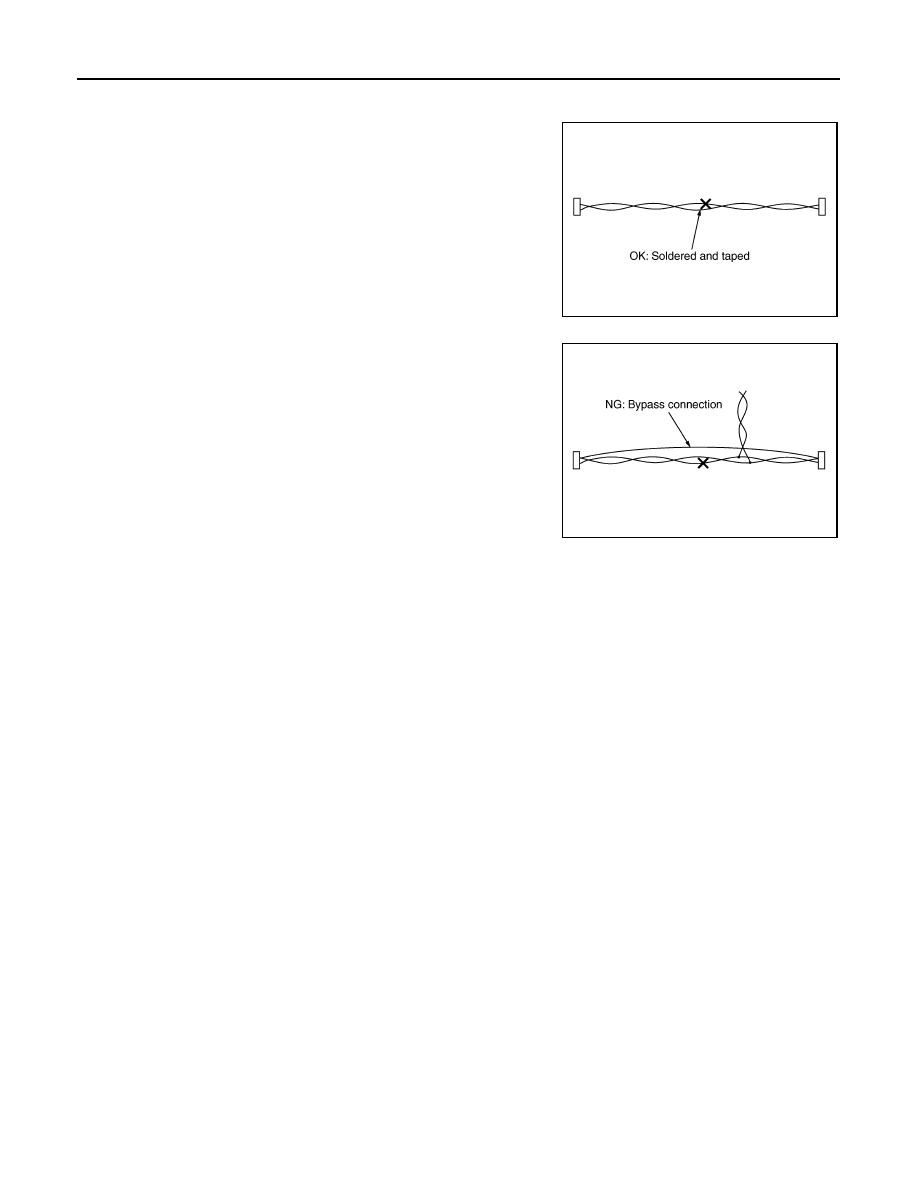

• Solder the repair part, and wrap it with tape. [Twisted wire fray

must be 110 mm (4.33 in) or less.]

• Never bypass the repair point with wire. (If it is bypassed, the turn-

out point cannot be separated and the twisted wire characteristics

are lost.)
