BCS-30
< ECU DIAGNOSIS INFORMATION >

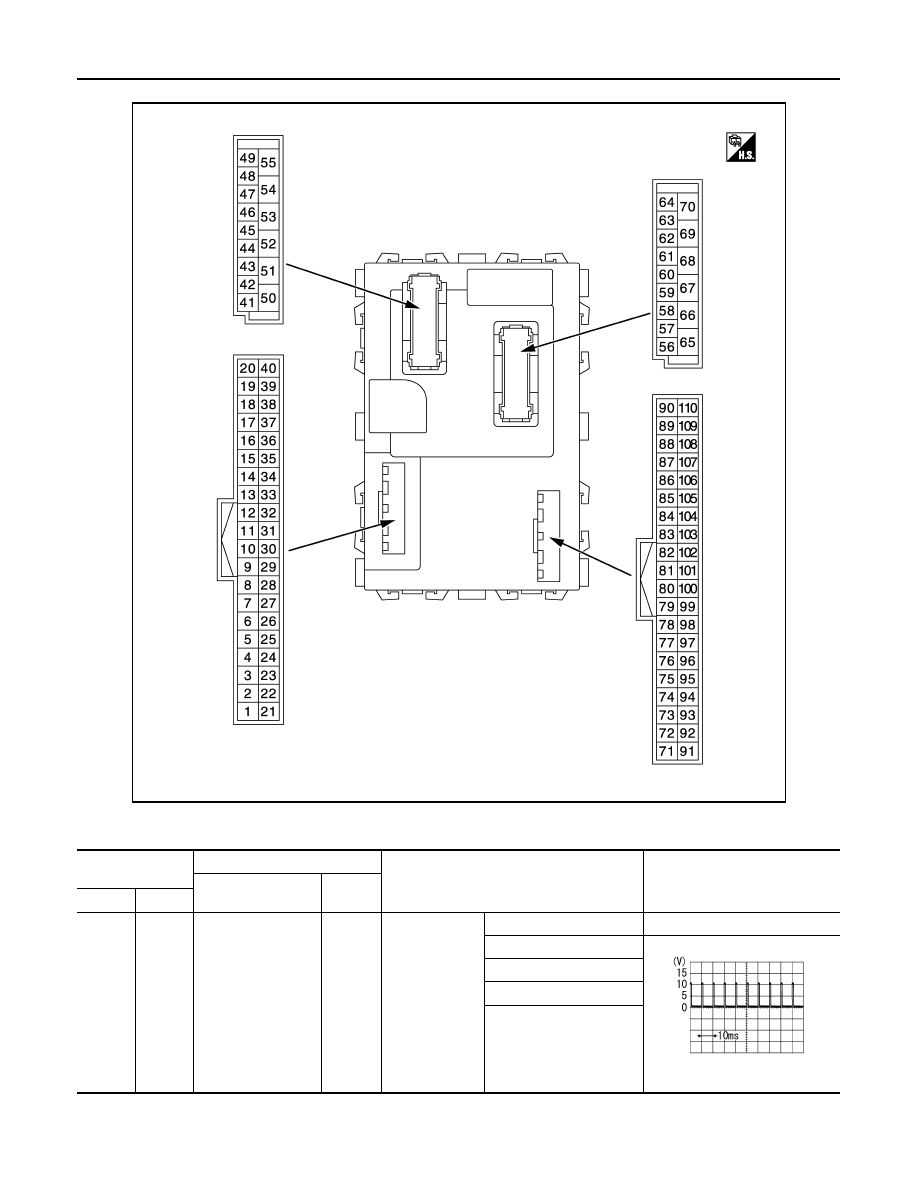

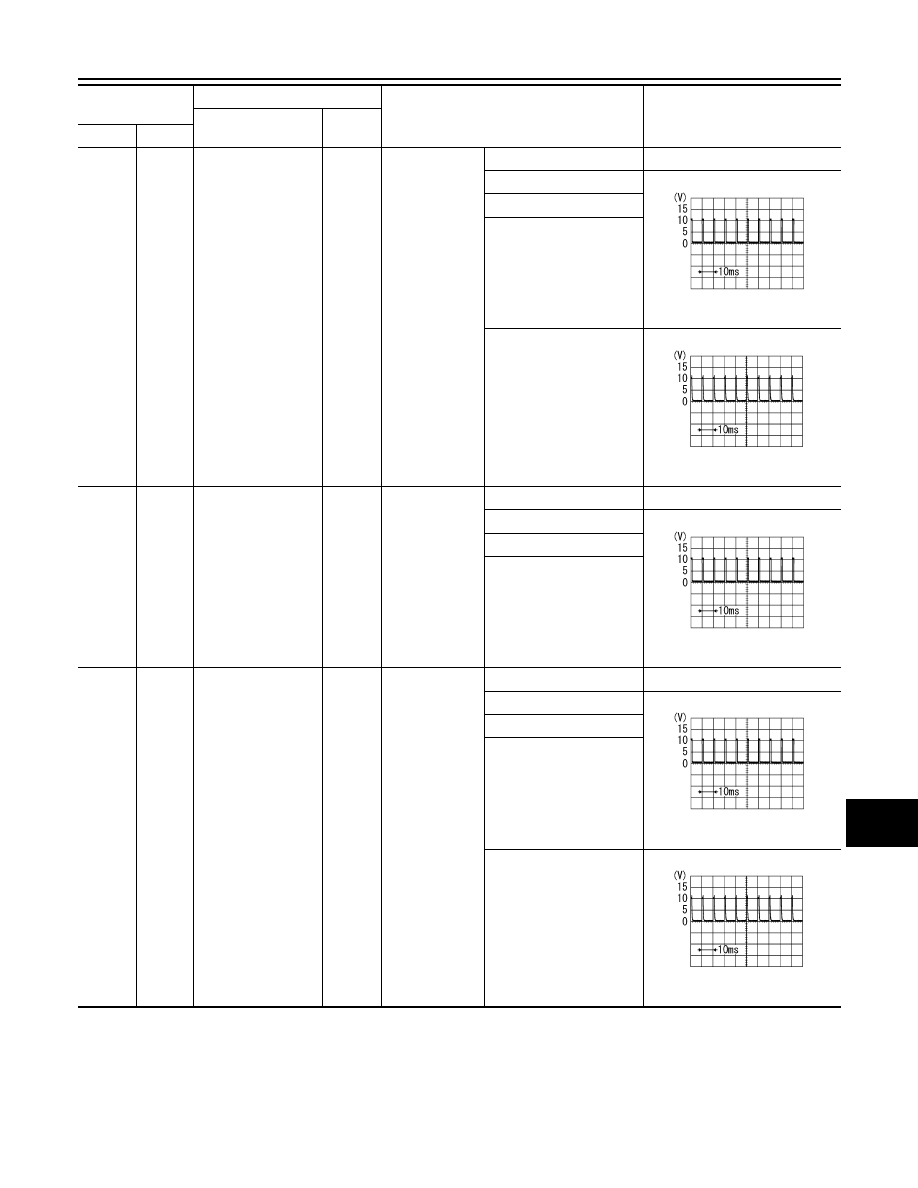

BCM
ID REGST FL1
ID registration of front left tire incomplete
YET
ID registration of front left tire complete
DONE
ID REGST FR1
ID registration of front right tire incomplete
YET
ID registration of front right tire complete
DONE
ID REGST RL1
ID registration of rear left tire incomplete
YET
ID registration of rear left tire complete
DONE
ID REGST RR1
ID registration of rear right tire incomplete
YET
ID registration of rear right tire complete
DONE
IGN RLY1 F/B
Ignition switch OFF or ACC
Off
Ignition switch ON
On
INT VOLUME
Wiper intermittent dial is in a dial position 1 - 7
1 - 7
I-KEY OK FLAG
I-Key OFF
Key OFF
I-Key ON
Key ON
KEY CYL LK-SW
Door key cylinder LOCK position
Off
Door key cylinder other than LOCK position
On
KEY CYL UN-SW
Door key cylinder UNLOCK position
Off
Door key cylinder other than UNLOCK position
On
NOT REGISTERED
Intelligent Key ID registered.
ID OK
Intelligent Key ID not registered.
ID NG
OPTI SEN (DTCT)
Bright outside of the vehicle
Close to 5V
Dark outside of the vehicle
Close to 0V
OPTI SEN (FILT)
Bright outside of the vehicle
Close to 5V
Dark outside of the vehicle
Close to 0V
PASSING SW
Other than lighting switch PASS
Off
Lighting switch PASS
On
PRBT ENG STRT
When the engine start is prohibited
Reset
When the engine start is permitted
Set
PUSH SW
Power switch not pressed
Off
Power switch pressed
On
PUSH SW-IPDM
When engine switch (push switch) is not pressed
Off
When engine switch (push switch) is pressed
On
REAR DEF SW
Rear window defogger switch OFF
Off
Rear window defogger switch ON
On
REQ SW-AS
When passenger door request switch is not pressed
Off
When passenger door request switch is pressed
On
REQ SW -BD/TR
When back door request switch is not pressed
Off
When back door request switch is pressed
On
REQ SW-DR
When driver door request switch is not pressed
Off
When driver door request switch is pressed
On
RKE-LOCK
When LOCK button of Intelligent Key is not pressed
Off
When LOCK button of Intelligent Key is pressed
On
RKE-MODE CHG
When LOCK/UNLOCK button of Intelligent Key is not pressed and
held simultaneously
Off
When LOCK/UNLOCK button of Intelligent Key is pressed and held
simultaneously
On
Monitor Item
Condition
Value/Status
