WW-24

< WIRING DIAGRAM >

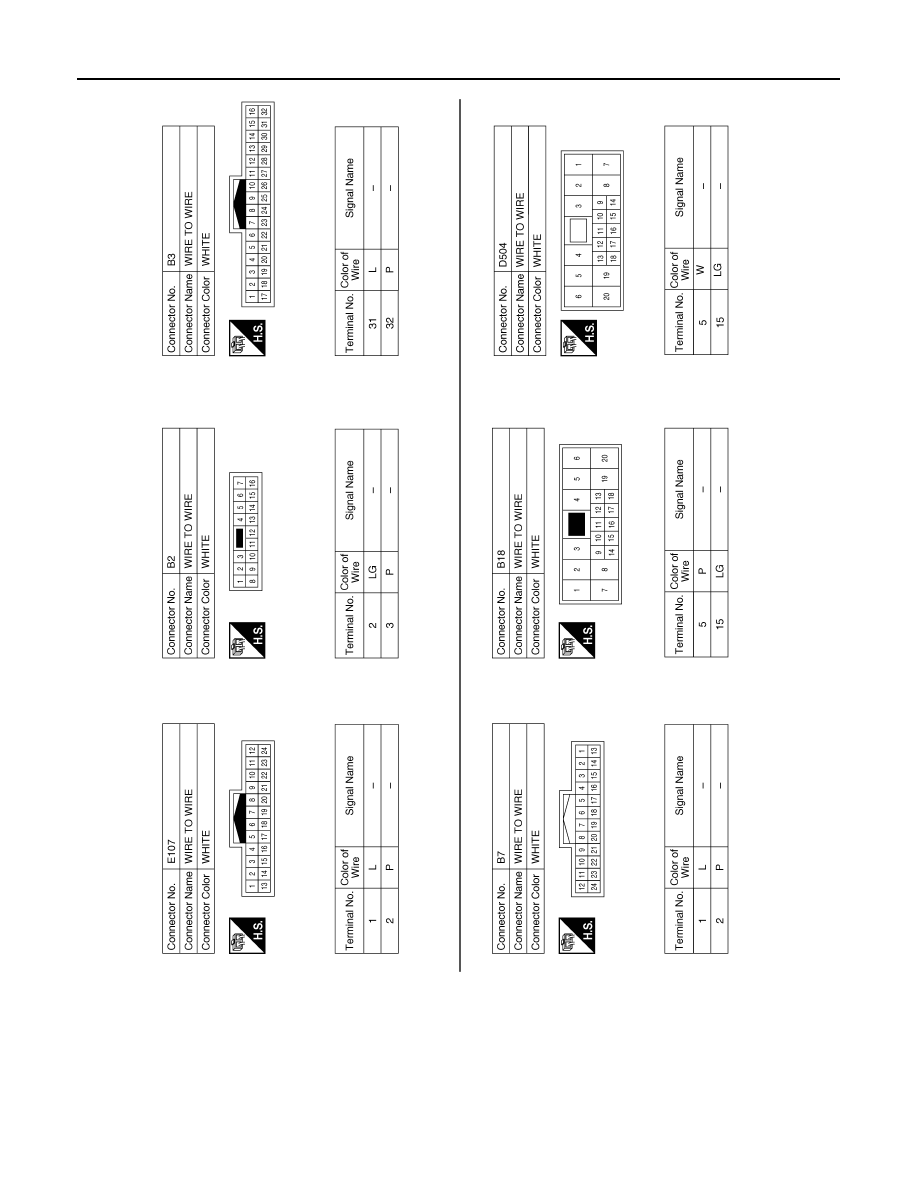

WIPER AND WASHER SYSTEM

AALIA2244GB

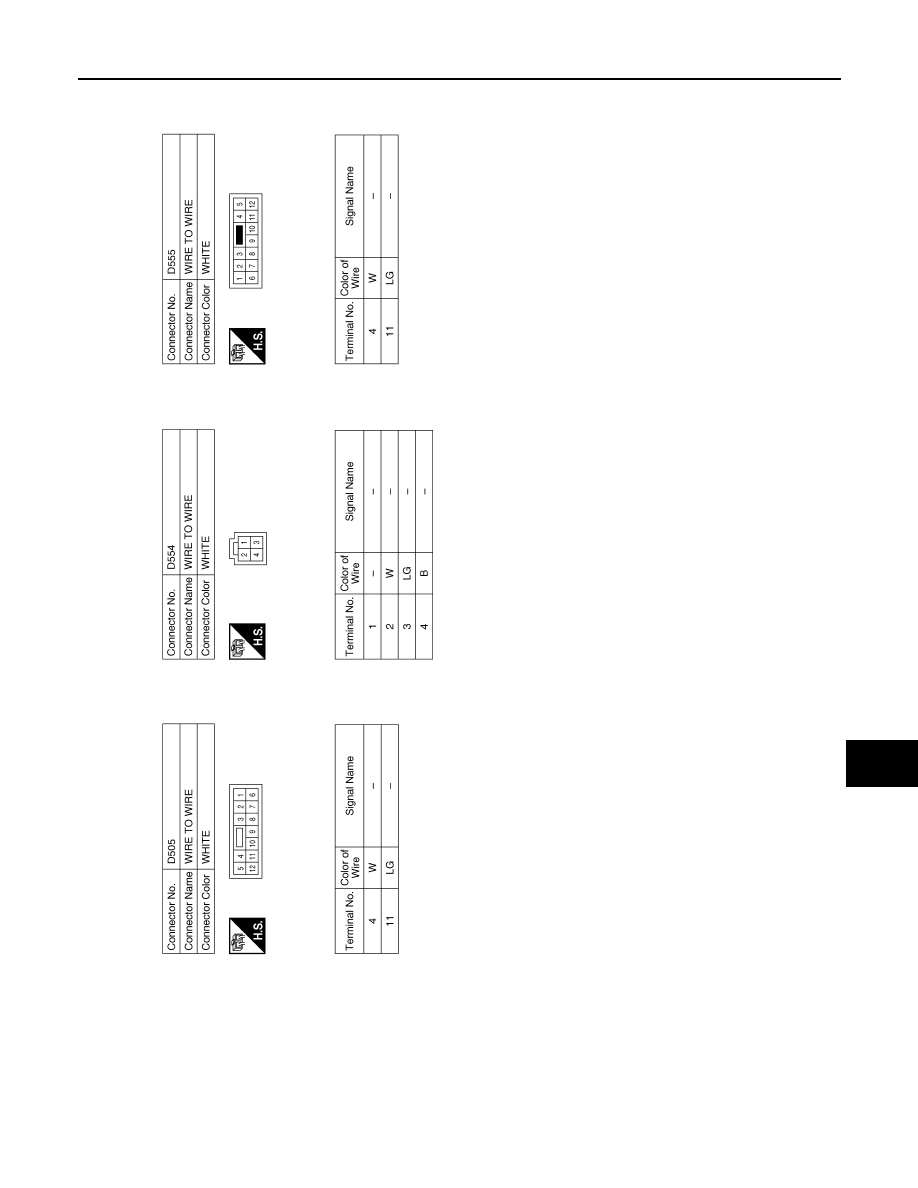

WIPER AND WASHER SYSTEM

WW-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

AALIA2245GB

WW-26

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010122209

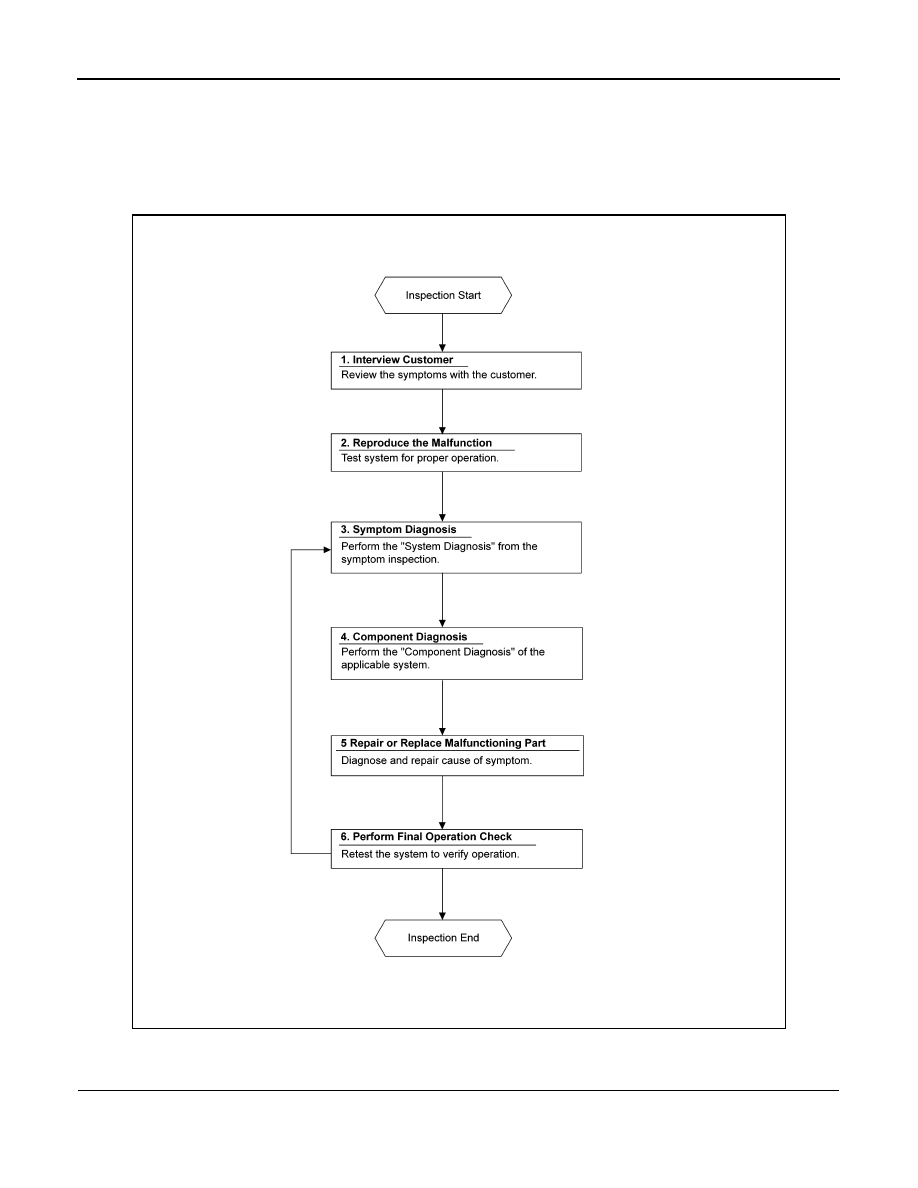

OVERALL SEQUENCE

DETAILED FLOW

1.

 OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

ALKIA1982GB

DIAGNOSIS AND REPAIR WORK FLOW

WW-27

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

>> GO TO 2.

2.

 CONFIRM THE SYMPTOM

Check the malfunction on the vehicle that the customer describes.

Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

 IDENTIFY THE MALFUNCTIONING SYSTEM WITH SYMPTOM DIAGNOSIS

Use Symptom diagnosis from the symptom inspection result in step 2 and then identify where to start perform-

ing the diagnosis based on possible causes and symptoms. Refer to

WW-38, "Symptom Table"

.

>> GO TO 4.

4.

 PERFORM THE COMPONENT DIAGNOSIS OF THE OF THE APPLICABLE SYSTEM

Perform the diagnosis with Component diagnosis of the applicable system.

>> GO TO 5.

5.

 REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6.

6.

 FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 2.
Are the malfunctions corrected?

YES

>> Inspection End.

NO

>> GO TO 3.
