COMBINATION METER

WCS-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

LED LMP L OPEN

Power switch
ON

Front combination lamp LH malfunction

On

Front combination lamp LH normal

Off

CHG CONCT DET

Power switch
ON

Charge connector connected

On

Charge connector not connected

Off

BUZZER

Power switch
ON

Buzzer ON

On

Buzzer OFF

Off

TPMS PRESS L

Power switch
ON

During check tire pressure warning indica-
tion

On

Other than above

Off

ALL PWER MTER
[kW]

Power switch
ON

While driving

Input value of current power signal

ASCD STATUS

Power switch
ON

ASCD and speed limiter system OFF

Off

ASCD system ON

ON

ASCD set vehicle speed

CRUISE

Speed limiter system ON

SL ON

Speed limiter set vehicle speed

SL SET

ASCD SPD BLNK

Power switch
ON

Set vehicle speed indicator blinking

On

Set vehicle speed indicator not blinking

Off

ASCD REQ SPD
[mph, km/h or Off]

Power switch
ON

While driving

Same value as ASCD or speed limiter
set vehicle speed.

BAT REMAIN
[kWh]

Power switch
ON

—

Input value of Li-ion battery available
charge signal

BAT REMAIN LEV

Power switch
ON

1 segment of Li-ion battery available charge
gauge illuminates

LV.1

2 segments of Li-ion battery available
charge gauge illuminate

LV.2

3 segments of Li-ion battery available
charge gauge illuminate

LV.3

4 segments of Li-ion battery available
charge gauge illuminate

LV.4

5 segments of Li-ion battery available
charge gauge illuminate

LV.5

6 segments of Li-ion battery available
charge gauge illuminate

LV.6

7 segments of Li-ion battery available
charge gauge illuminate

LV.7

8 segments of Li-ion battery available
charge gauge illuminate

LV.8

9 segments of Li-ion battery available
charge gauge illuminate

LV.9

10 segments of Li-ion battery available
charge gauge illuminate

LV.10

11 segments of Li-ion battery available
charge gauge illuminate

LV.11

12 segments of Li-ion battery available
charge gauge illuminate

LV.12

Monitor item

Condition

Value/Status

WCS-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

BAT CHG CAP LEV

Power switch
ON

1 segment of Li-ion battery capacity level
gauge illuminates

LV.1

2 segments of Li-ion battery capacity level
gauge illuminate

LV.2

3 segments of Li-ion battery capacity level
gauge illuminate

LV.3

4 segments of Li-ion battery capacity level
gauge illuminate

LV.4

5 segments of Li-ion battery capacity level
gauge illuminate

LV.5

6 segments of Li-ion battery capacity level
gauge illuminate

LV.6

7 segments of Li-ion battery capacity level
gauge illuminate

LV.7

8 segments of Li-ion battery capacity level
gauge illuminate

LV.8

9 segments of Li-ion battery capacity level
gauge illuminate

LV.9

10 segments of Li-ion battery capacity level
gauge illuminate

LV.10

11 segments of Li-ion battery capacity level
gauge illuminate

LV.11

12 segments of Li-ion battery capacity level
gauge illuminate

LV.12

BAT TEMP
[

°F or °C]

Power switch
ON

—

Input value of Li-ion battery tempera-
ture signal

POWER MAX
[kW]

Power switch
ON

While driving

Input value of maximum motor output
power signal

REGENE MAX
[kW]

Power switch
ON

While driving

Input value of maximum regenerable
power signal

Monitor item

Condition

Value/Status

WCS

COMBINATION METER

WCS-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECO IND1

Power switch
ON

1 segment of Instant ECO indicator illumi-
nates

1

2 segments of Instant ECO indicator illumi-
nate

2

3 segments of Instant ECO indicator illumi-
nate

3

4 segments of Instant ECO indicator illumi-
nate

4

5 segments of Instant ECO indicator illumi-
nate

5

6 segments of Instant ECO indicator illumi-
nate

6

7 segments of Instant ECO indicator illumi-
nate

7

8 segments of Instant ECO indicator illumi-
nate

8

9 segments of Instant ECO indicator illumi-
nate

9

10 segments of Instant ECO indicator illumi-
nate

10

11 segments of Instant ECO indicator illumi-
nate

11

12 segments of Instant ECO indicator illumi-
nate

12

13 segments of Instant ECO indicator illumi-
nate

13

14 segments of Instant ECO indicator illumi-
nate

14

15 segments of Instant ECO indicator illumi-
nate

15

Other than the above

0

ECO IND2

Power switch
ON

—

Displays number of ON segments of
ECO tree

*

SFT W/L

Power switch
ON

Electric shift warning lamp ON

On

Electric shift warning lamp OFF

Off

REGENE W/L

Power switch
ON

Brake system warning lamp ON

On

Brake system warning lamp OFF

Off

EV SYSTEM W/L

Power switch
ON

EV system warning lamp ON

On

EV system warning lamp OFF

Off

SFT P W DSP

Power switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored

Off

SFT DSP
Power switch ON

During electric shift warning (“T/M system
malfunction visit dealer”) indication

SFT MALF

During electric shift warning (“check posi-
tion of shift lever”) indication

SFT POSI

Other than the above

Off

PUSH SW W DSP

Power switch
ON

During remove charge connector warning
indication

On

Other than the above

Off

Monitor item

Condition

Value/Status

WCS-26

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

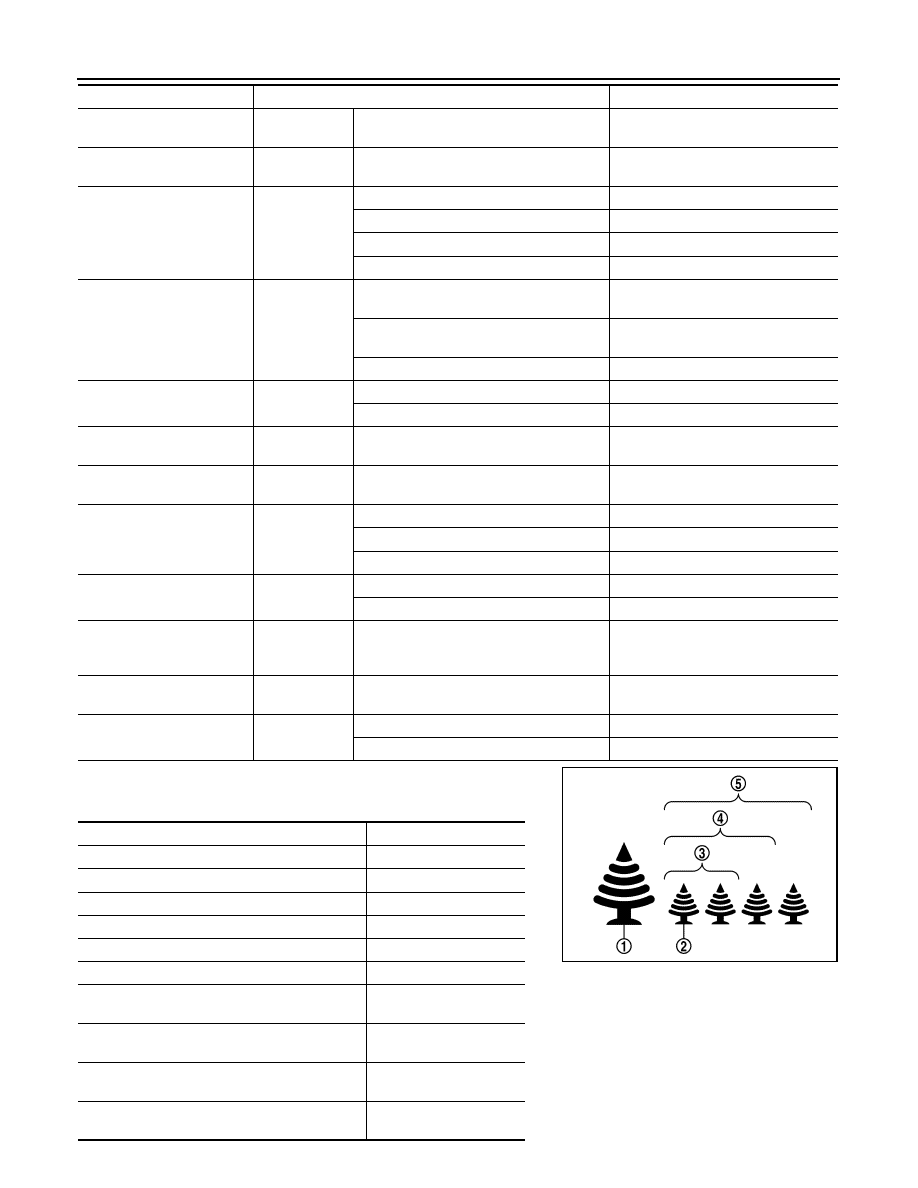

*: “ECO IND2” displays the items in the Status column of the follow-

ing table.

100V CHG TIME

Power switch
ON

—

Displays 100 V charging time.

200V CHG TIME

Power switch
ON

—

Displays 200 V charging time.

CHARGE STATE

Power switch
ON

100 V charging

100 V

200 V charging

200 V

In Quick Charging

QICK CHG

Other than the above

Off

DCDC W DSP

Power switch
ON

During DC/DC converter warning (“stop ve-
hicle”) indication

STOP

During DC/DC converter warning (“apply
parking brake”) indication

CRUISE

Other than the above

Off

SFT W/L

Power switch
ON

Electric shift warning lamp ON

On

Electric shift warning lamp OFF

Off

DTE DIF
[mi or km]

Power switch
ON

—

Input value of driving range difference
signal

DTE INPUT
[mi or km]

Power switch
ON

—

Input value of driving range signal

DTE 2ND W

Power switch
ON

Driving range display “– – –” display

On

Driving range display “– – –” blinking

BLINK

Other than the above

Off

BAT LOW W/L

Power switch
ON

Low battery charge warning lamp ON

On

Low battery charge warning lamp OFF

Off

ELE COMPR OFF
[mi or km]

Power switch
ON

—

Input value of A/C OFF average elec-
tricity consumption for driving range
signal

ELE COMPR ON
[mi or km]

Power switch
ON

—

Input value of A/C ON average electric-
ity consumption for driving range signal

DTE BLINK

Power switch
ON

Driving range display blinking

On

Other than the above

Off

Displays number of ON segments of ECO tree

Status

1 segment of ECO tree (1) illuminates

SEG11

2 segments of ECO tree (1) illuminate

SEG12

3 segments of ECO tree (1) illuminate

SEG13

4 segments of ECO tree (1) illuminate

SEG14

5 segments of ECO tree (1) illuminate

SEG15

ECO tree (2) illuminates

SEG21

• ECO tree (2) illuminates
• 1 segments of ECO tree (1) illuminate

SEG11+SEG21

• ECO tree (2) illuminates
• 2 segments of ECO tree (1) illuminate

SEG12+SEG21

• ECO tree (2) illuminates
• 3 segments of ECO tree (1) illuminate

SEG13+SEG21

• ECO tree (2) illuminates
• 4 segments of ECO tree (1) illuminate

SEG14+SEG21

Monitor item

Condition

Value/Status
