PDM(POWER DELIVERY MODULE)

VC-35

< ECU DIAGNOSIS INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

DTC Sub Type Index

INFOID:0000000010121226

B2840

PDM (POWER DELIVERY MODULE)

ELECTRICAL MALFUNCTION

×

1

VC-76

CMPNENT INTERNAL MLFNCTN

×

1

COMPONENT/SYS OVER TEMP

×

1

B2850

PD MODULE TEMP SEN

SIGNAL STUCK LOW

×

1

VC-80

B2880

F/S CHARGE RELAY

SIGNAL STUCK LOW

×

1

VC-81

SIGNAL STUCK HIGH

×

1

B2890

DC/DC CONVERTER

ELECTRICAL MALFUNCTION

—

1

VC-85

CIRC VOLT BELOW THRESHOLD

—

1

CMPNENT INTERNAL MLFNCTN

—

1

COMPONENT/SYS OVER TEMP

—

1

CIRC VOLT ABOVE THRESHOLD

—

1

B2900

PDM (POWER DELIVERY MODULE)

PROGRAM MEMORY ERROR

×

1

VC-88

DATA MEMORY ERROR

×

1

B2902

PDM (POWER DELIVERY MODULE)

MEMORY ERROR

×

1

VC-88

CMPNENT INTERNAL MLFNCTN

×

1

B2980

QUICK CHARGE PORT TEMP

SIGNAL STUCK HIGH

×

1

VC-89

COMPONENT/SYS OVER TEMP

×

1

B29A0

N/CHG PORT ENGAGEMENT ERROR

SIGNAL STUCK HIGH

×

1

VC-93

SIGNAL INVALID

—

1

B29C1

EVSE

NO SIGNAL

×

1

VC-96

SIGNAL STUCK LOW

×

1

UNEXPECTED OPERATION

× or —

1

SIGNAL STUCK HIGH

×

1

SIGNAL INVALID

× or —

1

DTC

Items

(CONSULT screen terms)

Sub type

(CONSULT screen terms)

EV system

warning lamp

Trip

Reference

page

Items

(CONSULT screen terms)

Description

Remarks

ELECTRICAL MALFUNCTION

Electrical Malfunction

—

SIGNAL STUCK LOW

Signal Stuck Low

—

SIGNAL STUCK HIGH

Signal Stuck High

—

SIGNAL INVALID

Signal Invalid

—

NO SIGNAL

No Signal

—

MEMORY ERROR

General Memory Error

—

DATA MEMORY ERROR

Data Memory Error

—

PROGRAM MEMORY ERROR

Program Memory Error

—

INTERNAL ELECTRIC MALFNCTN

Internal Electronic malfunction

—

INCRRCT COMPNT INSTALLED

Incorrect Component Installed

—

OVER TEMPERATURE

Over Temperature

—

ALIV/CNT INCRCT/NOT UPDAT

Alive / Sequence Counter Incorrect / Not Updated

This sub type is used by the control module
to indicate that a signal was received with-
out the corresponding rolling count value
being properly updates.

VC-36

< ECU DIAGNOSIS INFORMATION >

PDM(POWER DELIVERY MODULE)

SIG PRTCTN CLCLTN INCRCT

Value of Signal Protection Calculation Incorrect

This sub type is used by the control module
to indicate, that a message was processed
with an incorrect protection (checksum) cal-
culation.

MISSING MESSAGE

Missing Message

This sub type is used for malfunctions
where one (or more) expected message(s)
is not received.

ERRATIC

Erratic

This sub type is used for malfunctions
where the serial data, is momentarily im-
plausible or discontinuous.

PARAMETRIC

Parametric malfunction

—

NO OPERATION

No Operation

—

UNEXPECTED OPERATION

Unexpected Operation

—

CMPNENT INTERNAL MLFNCTN

Component Internal malfunction

—

COMPONENT/SYS OVER TEMP

Component or System Over Temperature

—

CIRC VOLT BELOW THRESHOLD

Voltage reduction

—

CIRC VOLT ABOVE THRESHOLD

Overvoltage

—

CIRC CURR ABOVE THRESHOLD

Overcurrent

—

Items

(CONSULT screen terms)

Description

Remarks

VEHICLE CHARGING SYSTEM

VC-37

< WIRING DIAGRAM >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

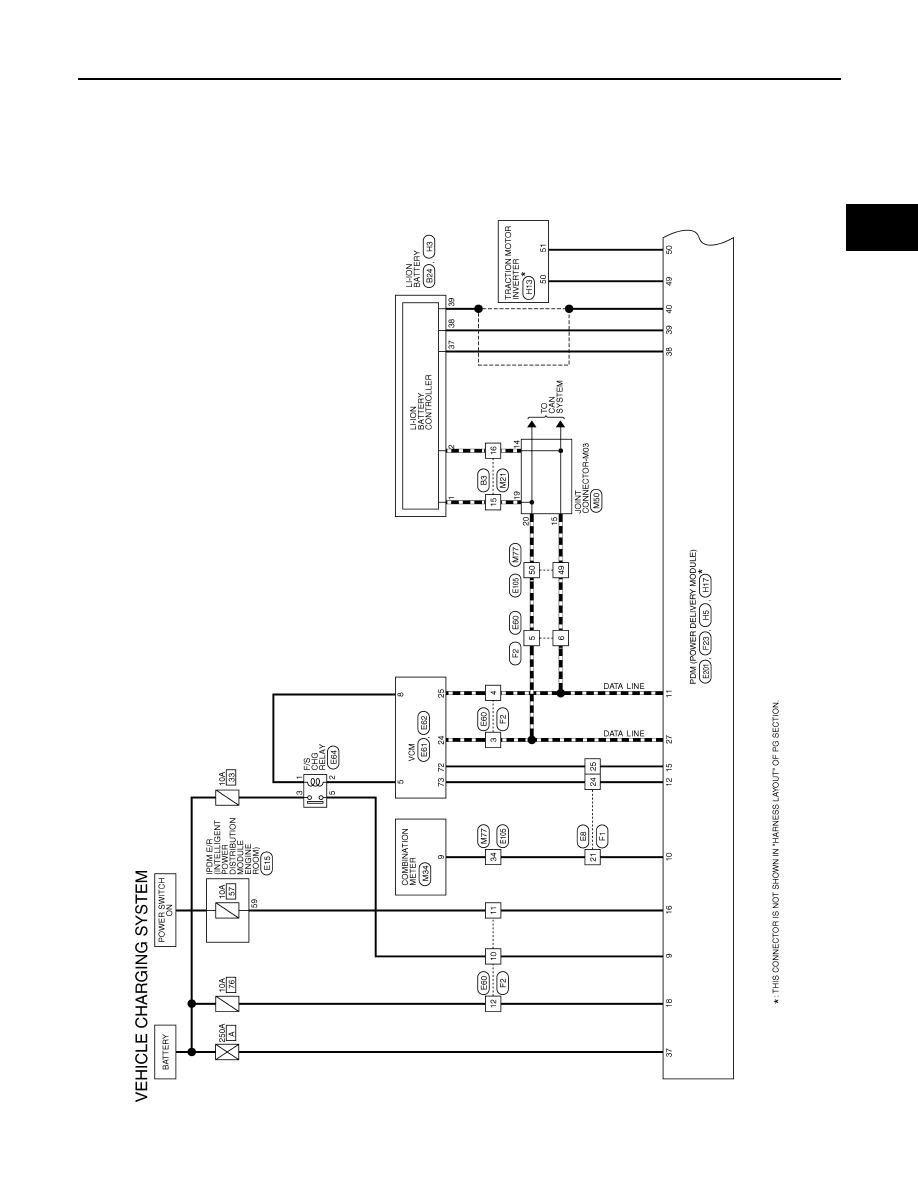

WIRING DIAGRAM

VEHICLE CHARGING SYSTEM

Wiring Diagram

INFOID:0000000010121227

AACWA0040GB

VC-38

< WIRING DIAGRAM >

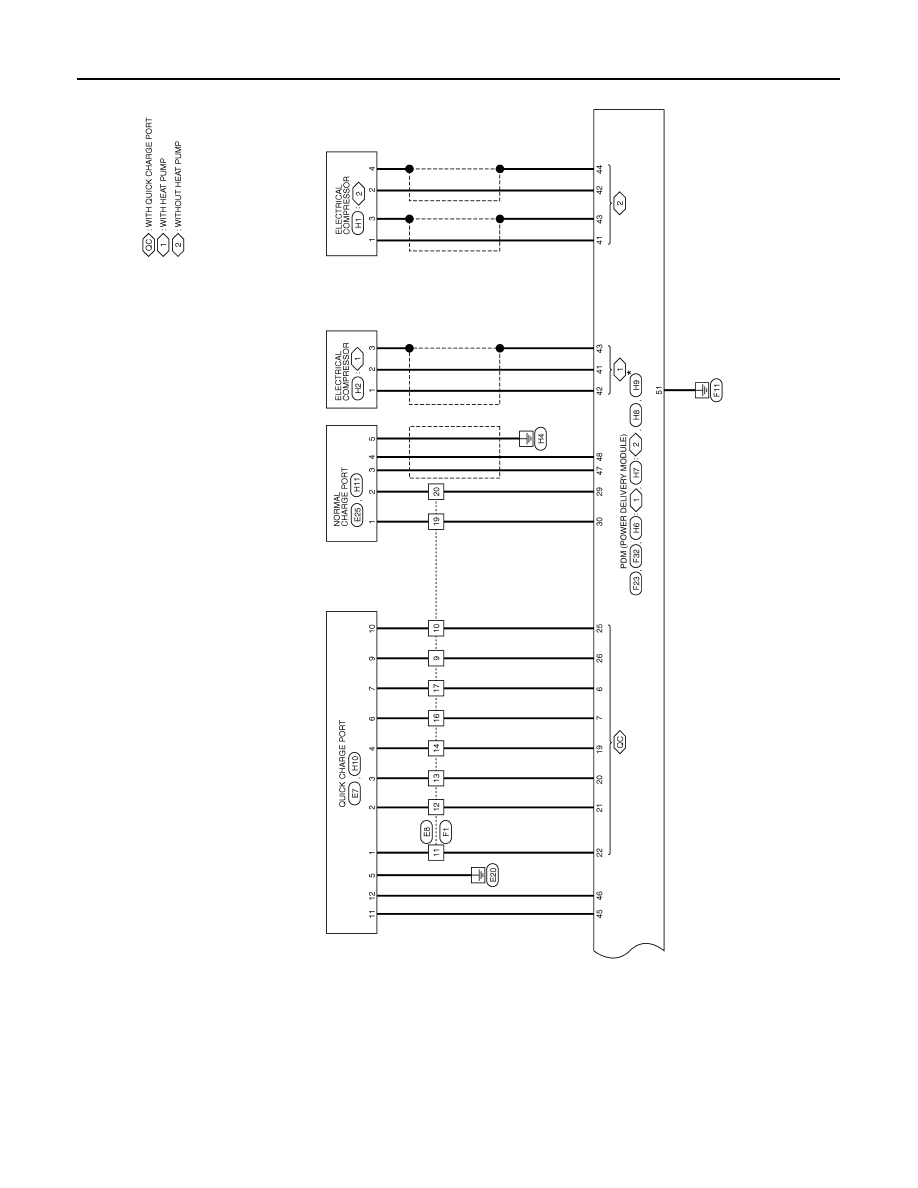

VEHICLE CHARGING SYSTEM

AACWA0041GB
