AV

POWER SUPPLY AND GROUND CIRCUIT

AV-455

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK GROUND CIRCUIT

1. Turn power switch OFF.

2. Check continuity between around view monitor control unit connector M32 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M32

4

Power switch: ON

Battery voltage

2

Power switch: OFF

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M32

1

Yes

AV-456

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Diagnosis Procedure

INFOID:0000000010122689

Regarding Wiring Diagram information, refer to

AV-394, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminals or connectors.

2.

CHECK FRONT DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY

1. Disconnect BOSE speaker amp. connector B20 and suspect front door speaker connector.

2. Check continuity between BOSE speaker amp. connector B20 and suspect front door speaker connector.

3. Check continuity between BOSE speaker amp. connector B20 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK FRONT DOOR SPEAKER SIGNAL

1. Connect BOSE speaker amp. connector B20 and suspect front door speaker connector.

2. Turn power switch to ACC.

3. Push AV control unit POWER switch.

4. Check the signal between the terminals of BOSE speaker amp. connector B20.

BOSE speaker amp.

Front door speaker

Continuity

Connector

Terminal

Connector

Terminal

B20

9

D24 (LH)

1

Yes

17

2

10

D124 (RH)

1

11

2

BOSE speaker amp.

Ground

Continuity

Connector

Terminal

B20

9

No

17

10

11

BOSE speaker amp. connector B20

Condition

Reference value

(+)

(

−)

Terminal

Terminal

AV

FRONT DOOR SPEAKER

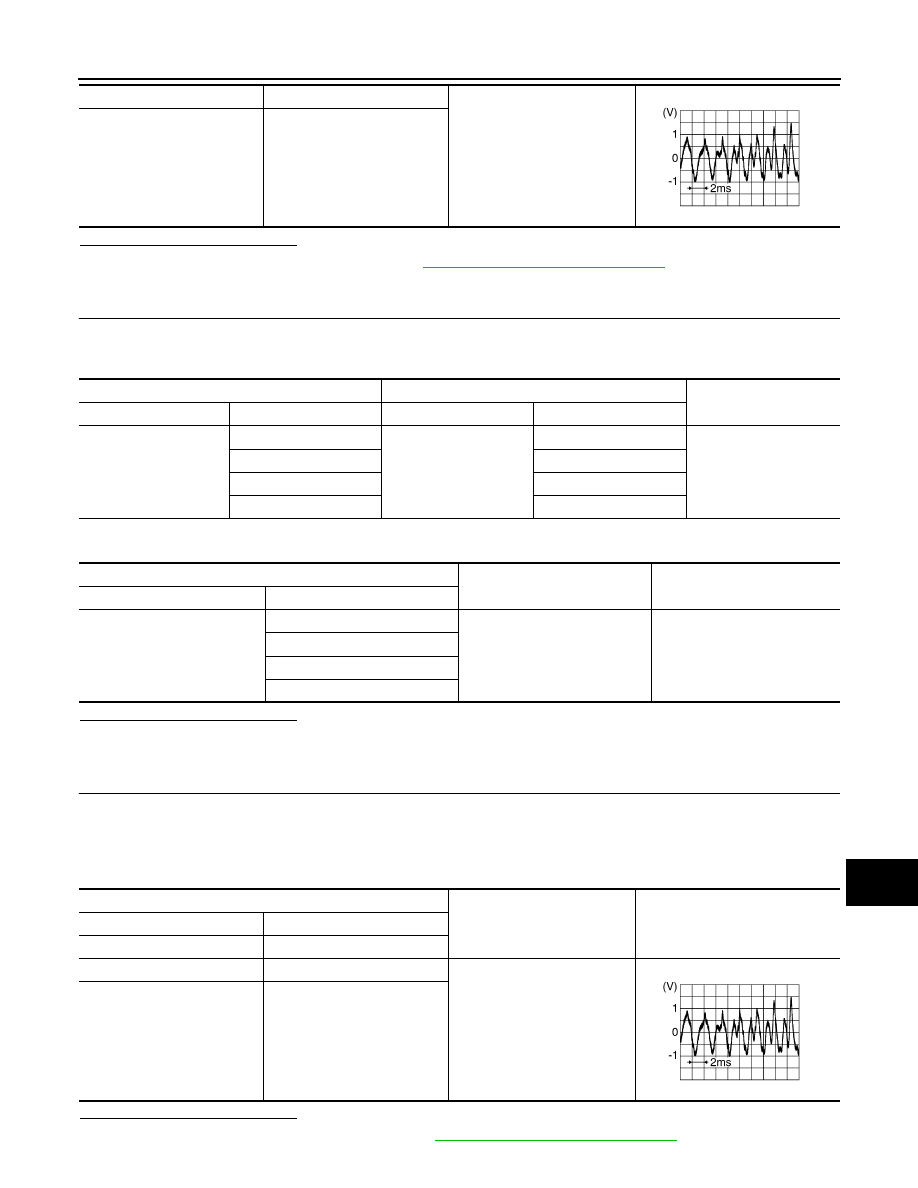

AV-457

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace front door speaker. Refer to

AV-490, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK PRE-AMP SIGNAL CIRCUIT CONTINUITY

1. Disconnect AV control unit connector M100 and BOSE speaker amp. connector B27.

2. Check continuity between AV control unit connector M100 and BOSE speaker amp. connector B27.

3. Check continuity between AV control unit connector M100 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK PRE-AMP SIGNAL

1. Connect AV control unit connector M100 and BOSE speaker amp. connector B27.

2. Turn power switch to ACC.

3. Push AV control unit POWER switch.

4. Check signal between the terminals of AV control unit connector M100.

Is the inspection result normal?

YES

>> Replace BOSE speaker amp. Refer to

AV-501, "Removal and Installation"

.

9

17

Audio signal output

10

11

SKIB3609E

AV control unit

BOSE speaker amp.

Continuity

Connector

Terminal

Connector

Terminal

M100

2

B27

38

Yes

3

30

11

29

12

37

AV control unit

Ground

Continuity

Connector

Terminal

M100

2

No

3

11

12

AV control unit connector M100

Condition

Reference value

(+)

(

−)

Terminal

Terminal

2

3

Audio signal output

11

12

SKIB3609E

AV-458

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

NO

>> Replace AV control unit. Refer to

AV-488, "Removal and Installation"

.
