TM-34

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

COMPONENT PARTS

Parking Actuator Relay A

INFOID:0000000010119545

Parking actuator relay A is turned ON by the electric shift control module when the power switch is turned ON

and supplies power to motor coil A located in the parking actuator.

Electric Shift Selector

INFOID:0000000010119546

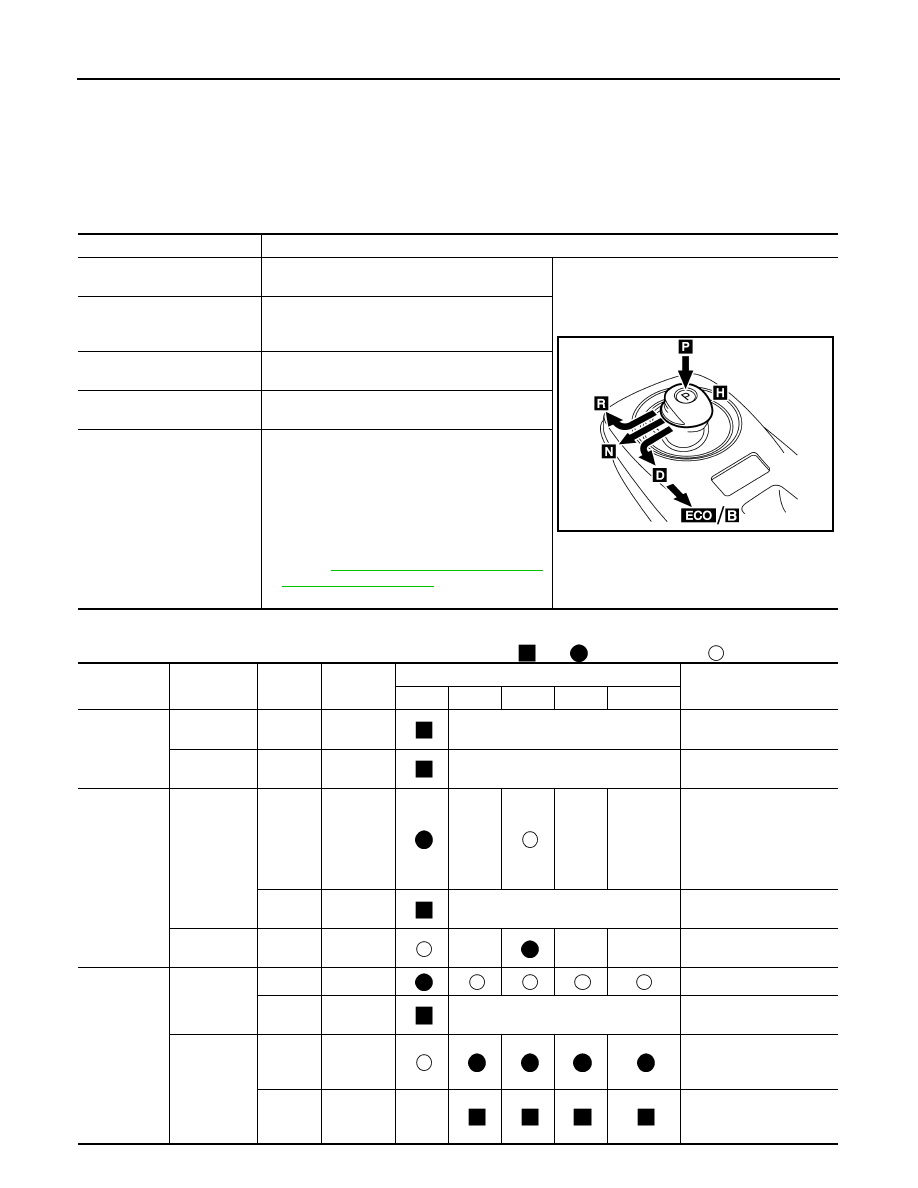

The electric shift selector consists of the selector lever, electric shift sensor, P position switch and others.

OPERATIONAL CONDITIONS FOR SHIFT

: Hold

: Current shift position

: Be able to shift here

Shift position

Operation/Function

H

(Home position)

The selector lever automatically moves back to
the home position after it is operated.

P

(P position switch)

Completely stop the vehicle and push the P posi-
tion switch on the top of the selector lever while
depressing the brake pedal.

R

While depressing the brake pedal, slide the selec-
tor lever forward along the gate.

N

While depressing the brake pedal, slide the selec-
tor lever to the left and hold it for approx. 1 second.

D/ECO or B

• While depressing the brake pedal, slide the se-

lector lever backward along the gate.

• If the selector lever is slid backward again while

driving in the D position, the vehicle switches to
ECO mode or B position.

• To switch from ECO mode or B position to the D

position driving, slide the selector lever back-
ward again.

• Refer to

EVC-50, "ECO MODE/B MODE SYS-

TEM : System Description"

 for ECO mode and

B position details.

JSDIA4246ZZ

POWER SW

Operation

Vehicle

speed

Stop lamp

switch

Shift position

Remarks

P

R

N

D

ECO/B

OFF/ACC

Selector le-
ver

P position
SW

ON
(Not driving)

Selector le-
ver

ON

• Shifted to N position

even when shifted to R
or D position

• Shift position warning

buzzer: Two short
beeps

OFF

Shift position warning
buzzer: Two short beeps

P position
SW

READY

Selector le-
ver

ON

*

OFF

Shift position warning
buzzer: Two short beeps

P position
SW

5 km/h

(3 MPH)

or less

5 km/h

(3 MPH)

or more

Shift position warning
buzzer: Two short beeps

COMPONENT PARTS

TM-35

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: Direct shifting to the ECO mode or B position from the P position is not possible.

Electric Shift Sensor

INFOID:0000000010119547

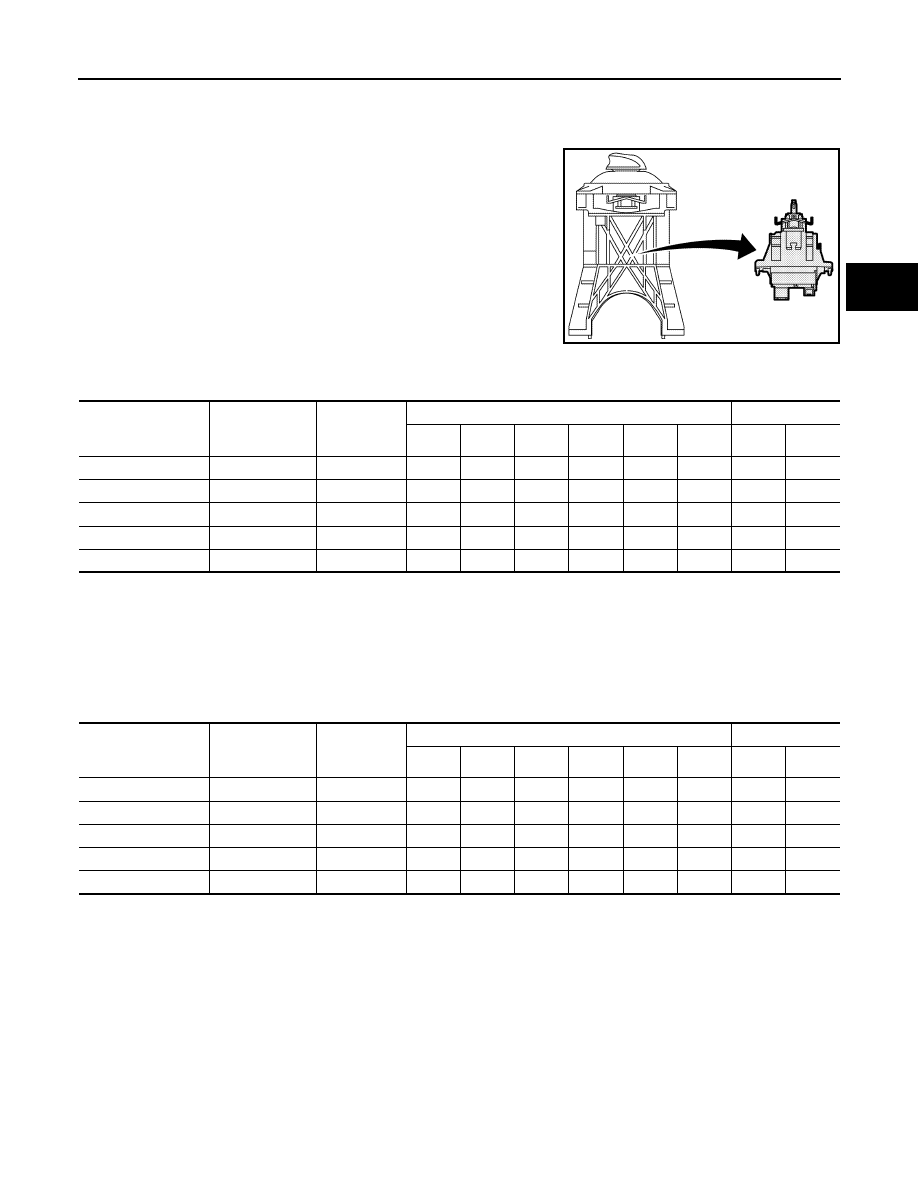

• The electric shift sensor integrates 6 non-contact sensors (Hall IC)

and transmits ON/OFF signals to the electric shift control module.

• The electric shift control module determines the shift position from the combination of the ON/OFF signals.

P Position Switch

INFOID:0000000010119548

• The P position switch allows direct one-touch switching to the P position from any position while the vehicle

is stopped.

• The P position switch does not have a function to cancel the P position.

• The P position switch transmits the ON/OFF signals of 2 contact switches to the electric shift control module.

Selector Indicator

INFOID:0000000010119549

The selector indicator is located in the finisher area and the lamp for the currently selected shift position illumi-

nates.

Electric Shift Warning Lamp

INFOID:0000000010119550

DESIGN/PURPOSE

JSDIA2935ZZ

Electric shift control

module recognition

position

Selector lever

position

P position

SW

Electric shift sensor

P position SW

No.  1

No.  2

No.  3

No.  4

No.  5

No.  6

No.  1

No.  2

H

H

No push

OFF

OFF

ON

OFF

OFF

ON

OFF

ON

P

H

Push

OFF

OFF

ON

OFF

OFF

ON

ON

OFF

R

R

No push

ON

ON

OFF

OFF

OFF

OFF

OFF

ON

N

N

No push

OFF

ON

ON

ON

OFF

OFF

OFF

ON

D

D

No push

OFF

OFF

OFF

ON

ON

OFF

OFF

ON

Electric shift control

module recognition

position

Selector lever

position

P position

SW

Electric shift sensor

P position SW

No.  1

No.  2

No.  3

No.  4

No.  5

No.  6

No.  1

No.  2

H

H

No push

OFF

OFF

ON

OFF

OFF

ON

OFF

ON

P

H

Push

OFF

OFF

ON

OFF

OFF

ON

ON

OFF

R

R

No push

ON

ON

OFF

OFF

OFF

OFF

OFF

ON

N

N

No push

OFF

ON

ON

ON

OFF

OFF

OFF

ON

D

D

No push

OFF

OFF

OFF

ON

ON

OFF

OFF

ON

TM-36

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

COMPONENT PARTS

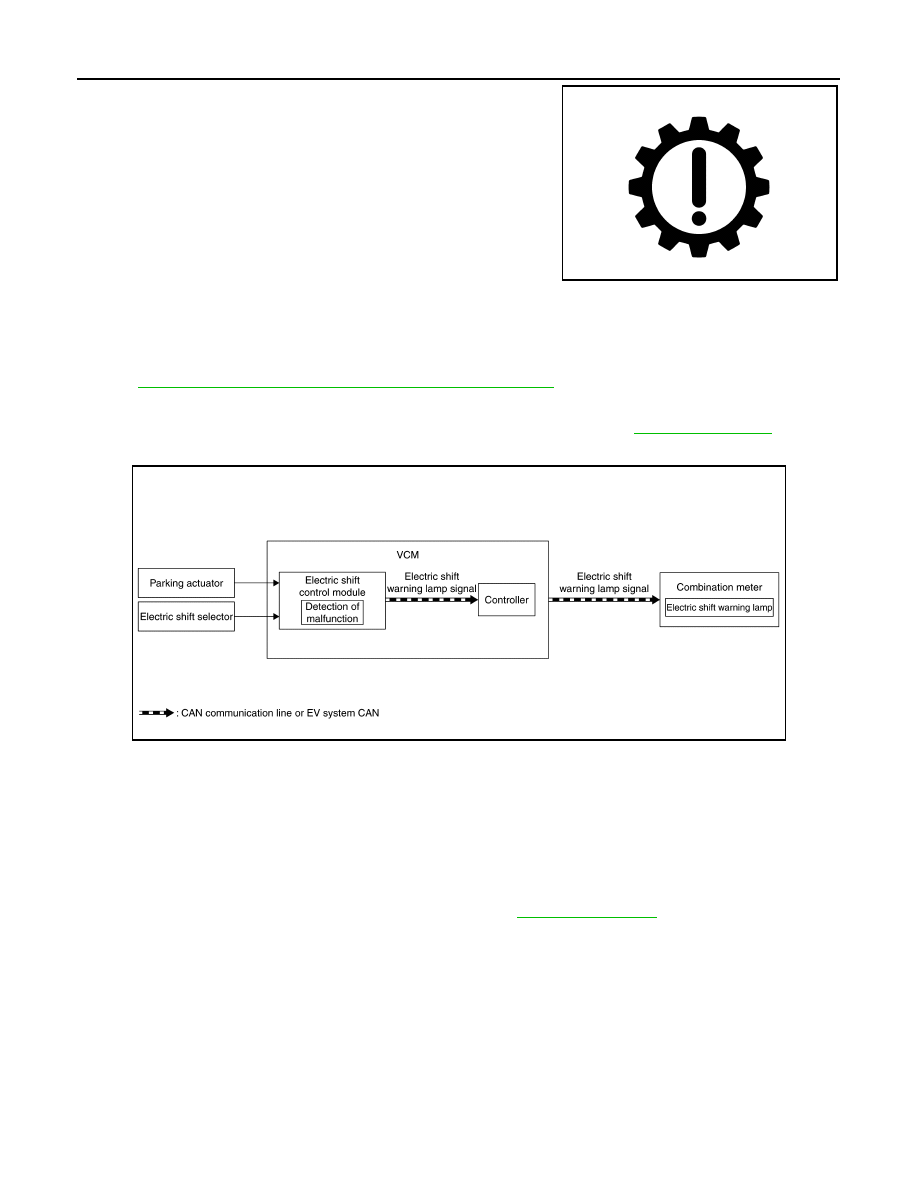

The electric shift warning lamp warns the driver of a malfunction in

the electric shift system.

BULB CHECK

For 2 seconds after the ignition switch is turned ON.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Applicable

Refer to

MWI-31, "MASTER WARNING LAMP : System Description"

 for details of master warning lamp.

OPERATION AT COMBNATION METER CNA COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

SYSTEM DIAGRAM

SIGNAL PATH

• The electric shift control module transmits an electric shift warning lamp signal to the controller of VCM

when detecting a malfunction in the electric shift system.

• VCM transmits that signal to combination meter.

• The combination meter turns ON the electric shift warning lamp when receiving an electric shift warning

lamp signal.

LIGHTING CONDITION

• A malfunction is detected in the electric shift system.

• For the relationship between warning lamp and DTC, refer to

TM-50, "DTC Index"

.

SHUTOFF CONDITION

Erase DTC

Electric Shift Warning Message

INFOID:0000000010119551

DESIGN/PURPOSE

Electric Shift Warning A

JSDIA3878ZZ

JSDIA4226GB

COMPONENT PARTS

TM-37

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

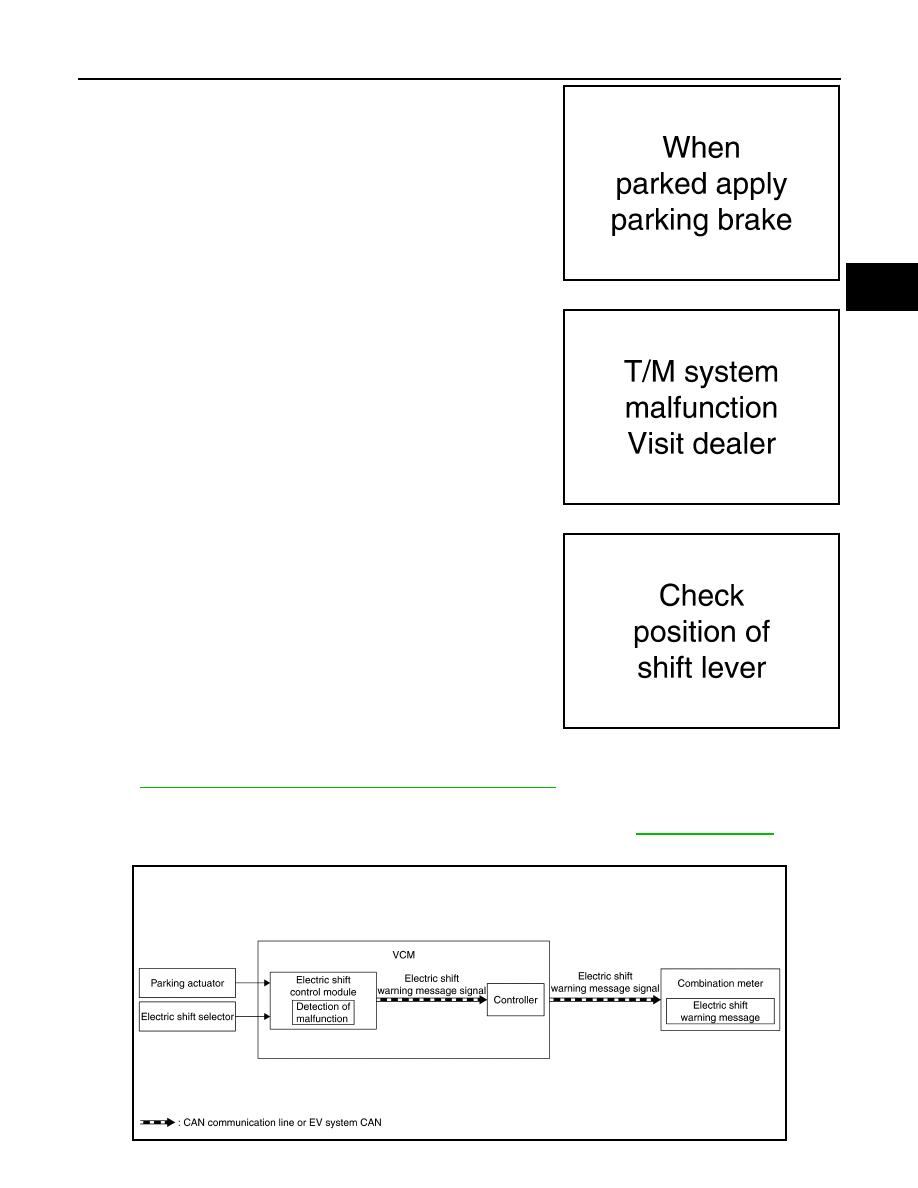

This message warns the driver that electric shift system is not nor-

mal.

Electric Shift Warning B

This message warns the driver that electric shift system is not nor-

mal.

Shift Position Warning

This message informs the driver that the selector lever is in between

positions.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Applicable

Refer to

MWI-31, "MASTER WARNING LAMP : System Description"

 for details of master warning lamp.

OPERATION AT COMBNATION METER CNA COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

SYSTEM DIAGRAM

JSDIA4224ZZ

JSDIA4225ZZ

JSDIA4223ZZ

JSDIA4227GB
