DIAGNOSIS SENSOR UNIT

SRC-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

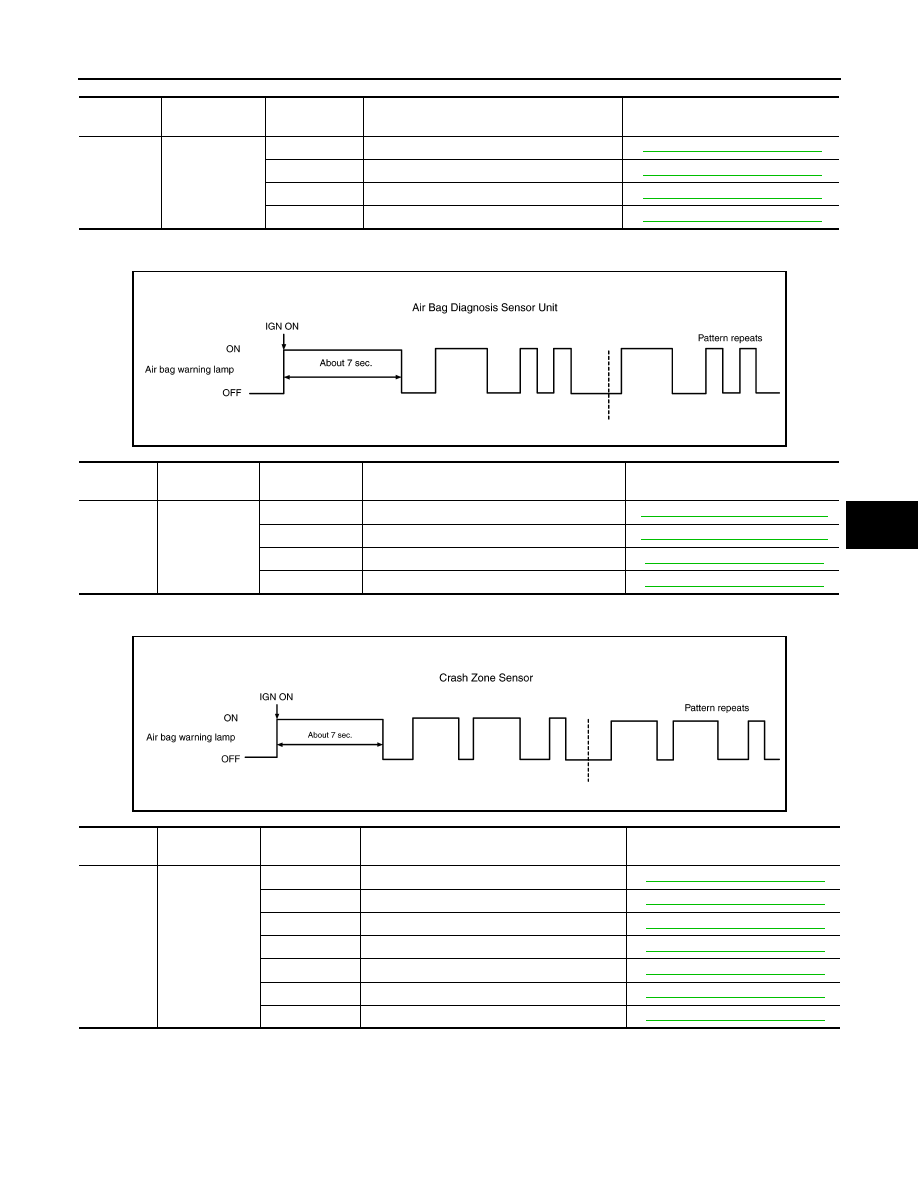

Air bag subsystem

Sensor subsystem

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

3

1.5

1

Front LH side air bag module

SRC-56, "Diagnosis Procedure"

2

Front RH side air bag module

SRC-65, "Diagnosis Procedure"

3

LH side curtain air bag module

SRC-59, "Diagnosis Procedure"

4

RH side curtain air bag module

SRC-62, "Diagnosis Procedure"

AWHIA0432GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

1

3

1

Collision detection

SRC-103, "Diagnosis Procedure"

2

Air bag diagnosis sensor unit

SRC-105, "Diagnosis Procedure"

3

Passenger air bag OFF indicator

SRC-86, "Diagnosis Procedure"

4

Occupant classification system

SRC-83, "Diagnosis Procedure"

AWHIA0433GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

2

3

1

Crash zone sensor

SRC-74, "Diagnosis Procedure"

2

Front side air bag satellite sensor LH

SRC-68, "Diagnosis Procedure"

3

Front side air bag satellite sensor RH

SRC-77, "Diagnosis Procedure"

6

Front door satellite sensor LH

SRC-71, "Diagnosis Procedure"

7

Front door satellite sensor RH

SRC-80, "Diagnosis Procedure"

8

Seat belt buckle switch LH

SRC-89, "Diagnosis Procedure"

9

Seat belt buckle switch RH

SRC-92, "Diagnosis Procedure"

SRC-22

< WIRING DIAGRAM >

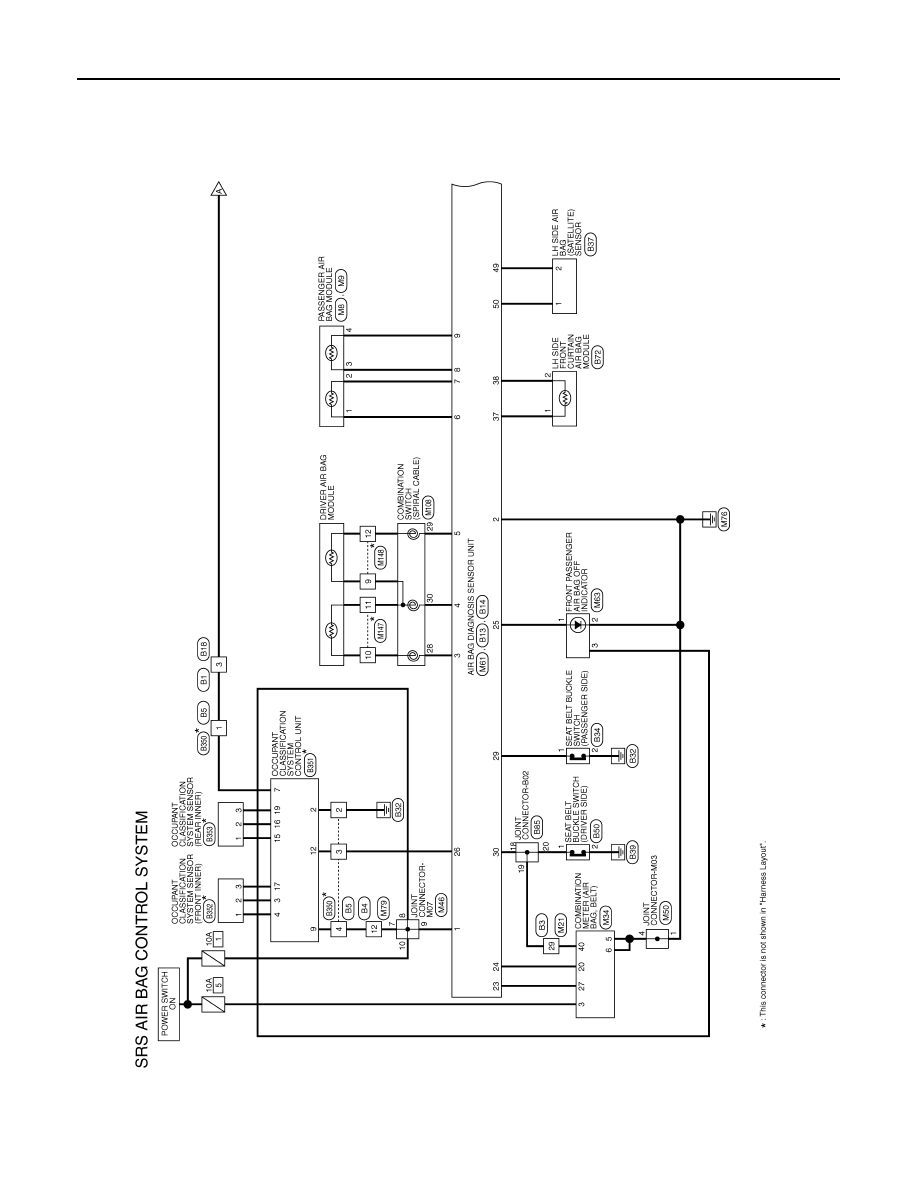

SRS AIR BAG SYSTEM

WIRING DIAGRAM

SRS AIR BAG SYSTEM

Wiring Diagram

INFOID:0000000010122787

AAHWA0087GB

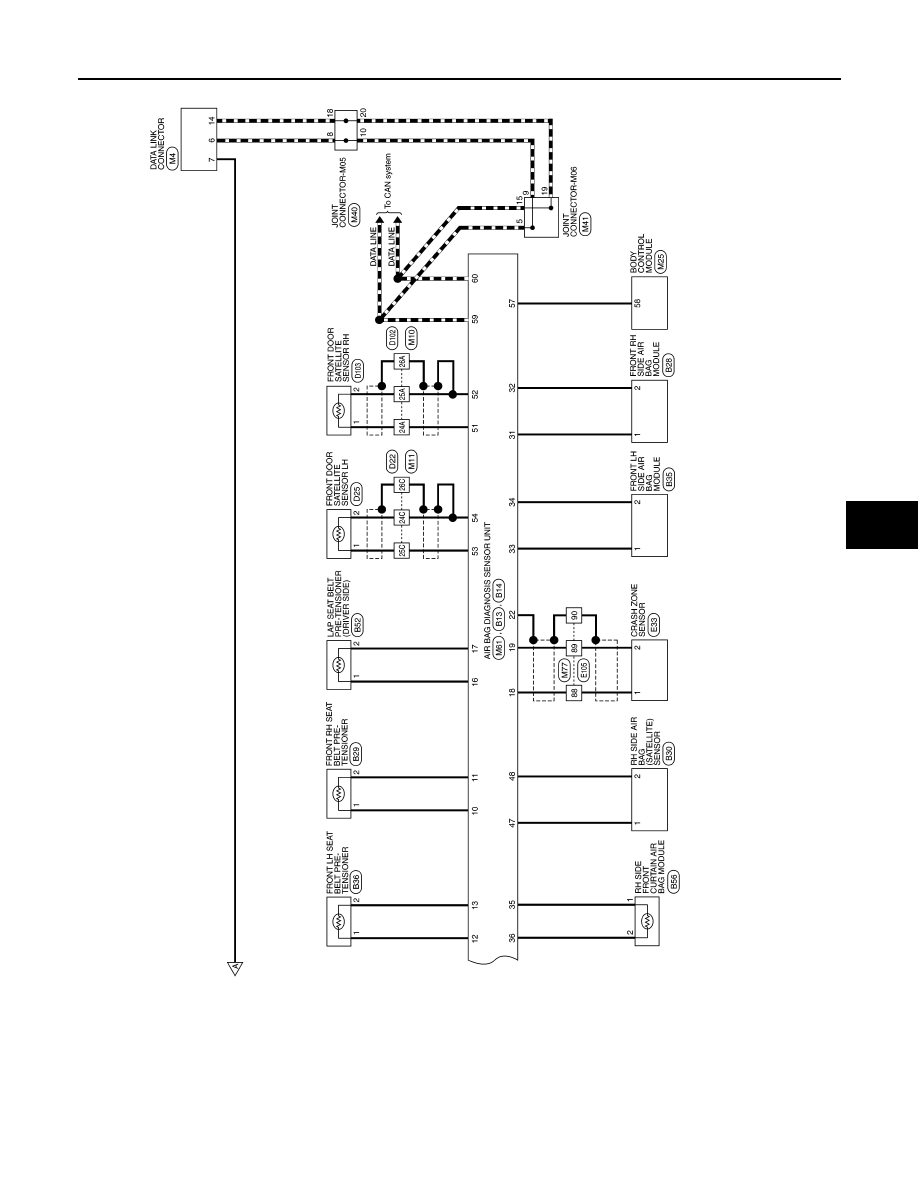

SRS AIR BAG SYSTEM

SRC-23

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

AAHWA0088GB

SRC-24

< WIRING DIAGRAM >

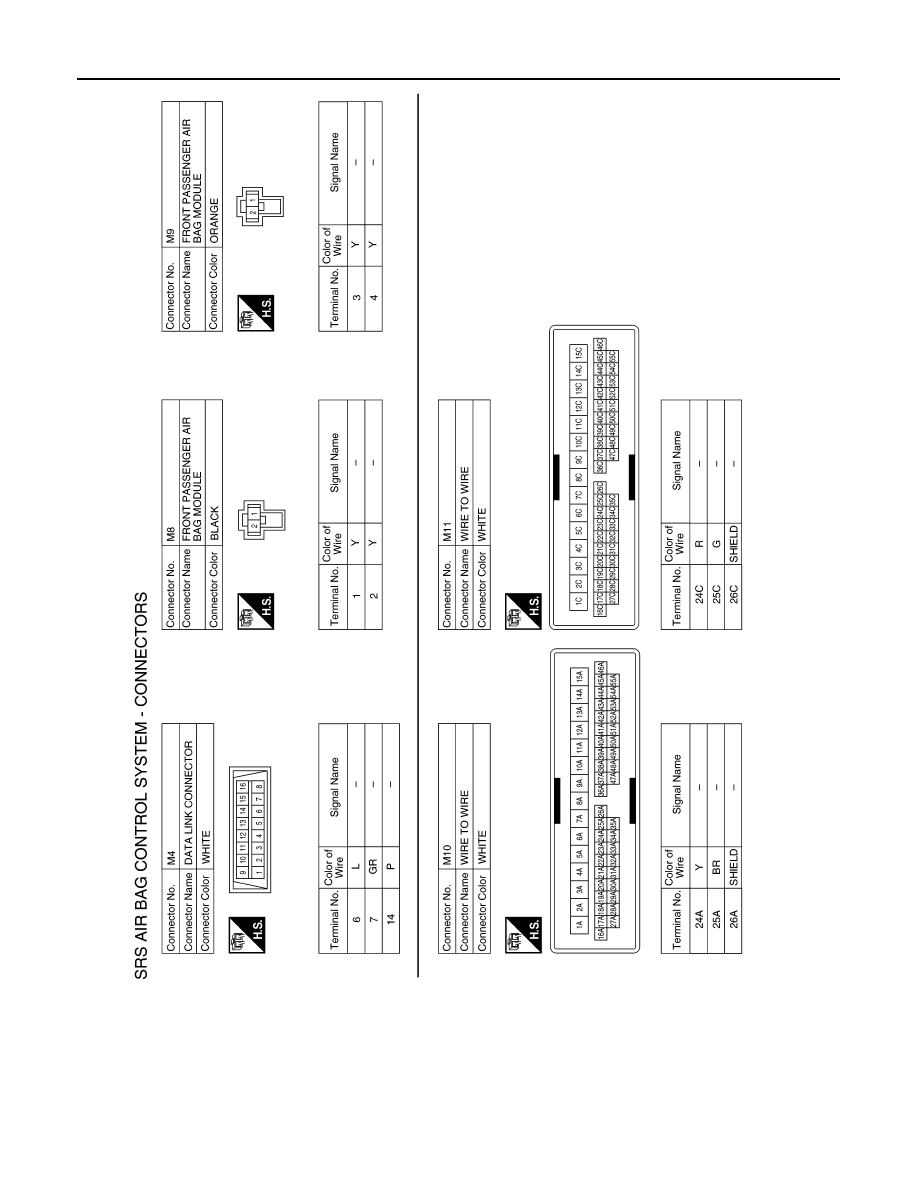

SRS AIR BAG SYSTEM

AAHIA0276GB
