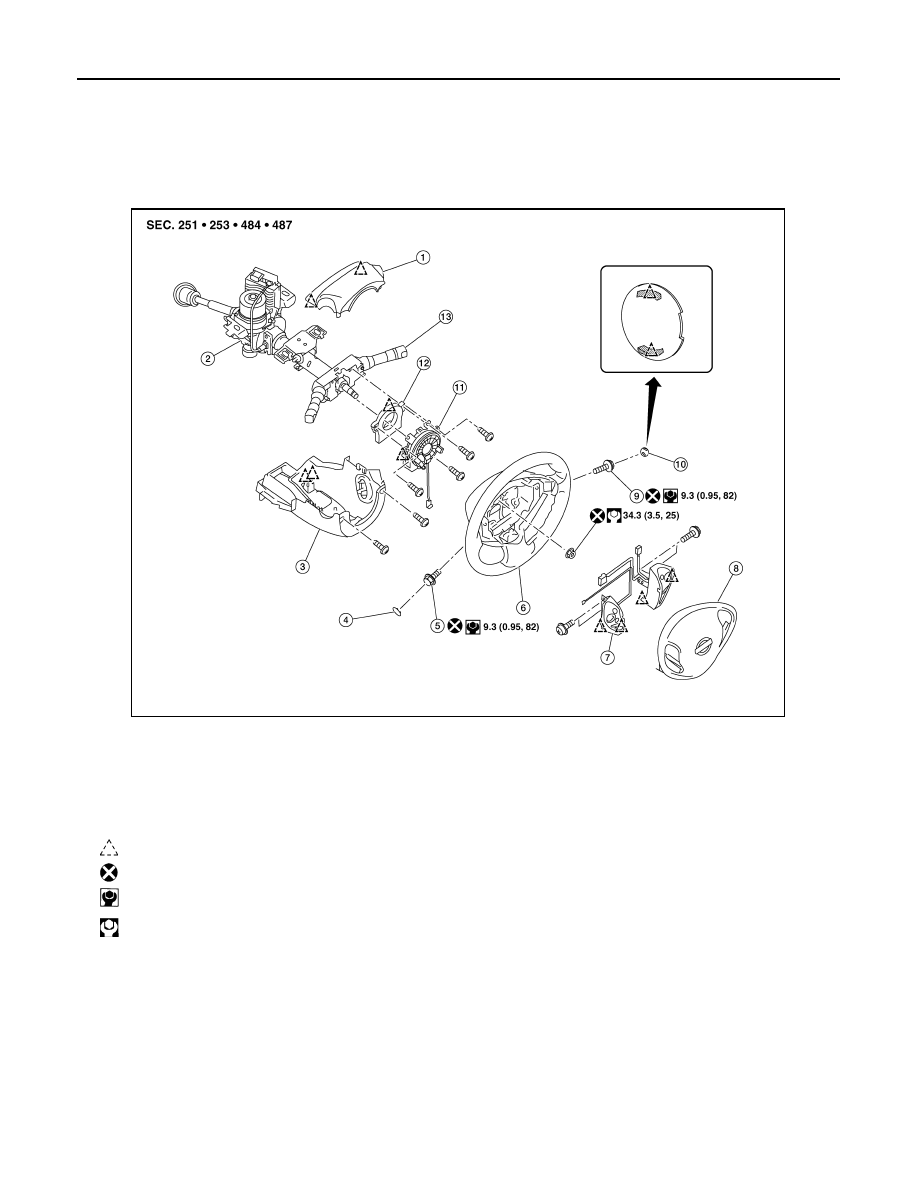

COLLISION DIAGNOSIS SR-17 < BASIC INSPECTION > C D E F G I J K L M A B SR N O P FOR SIDE AND ROLLOVER COLLISION: When SRS is not activated in a collision CAUTION: Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles. WORK PROCEDURE 1. Before performing any of the following steps, ensure that all vehicle body and structural repairs have been completed. 2. Check the SRS components and the related parts using the following table. - If the front seat back assembly is damaged, the front seat back assembly must be replaced. - If the door finisher assembly is damaged, the door finisher assembly and door-mounted curtain air bag module must be replaced. 3. Perform self-diagnosis using CONSULT and “AIR BAG” warning lamp. Refer to SRC-11, "On Board Diagnosis Function" for details. Make sure entire SRS operates prop- erly. 4. After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to SRC-11, "On Board Diagnosis Function" SRS INSPECTION (FOR SIDE AND ROLLOVER COLLISION) Occupant classification system 1. Remove passenger seat assembly. 2. Check control unit case for dents, cracks of deformities. 3. Check connectors for damage and terminals for deformities. 4. Check seat frame and cushion pan for dents or deformities. 5. If no damage is found, reinstall seat with new fasteners. 6. If damaged — REPLACE seat cushion assembly with new fasteners. 7. Perform zero point reset function after front passenger seat is installed in the vehicle and all SRC-37, "ZERO POINT RESET : Special Repair . Pop-up roll bar assemblies If the pop-up roll bar has deployed: Part Inspection Part Inspection Side curtain air bag module LH If the side curtain air bag LH has NOT deployed: Check for visible signs of damage (dents, tears, deformation) of the center pillar on the colli- 2. If damaged - Remove the side curtain air bag module LH. 3. Check for visible signs of damage (tears etc.) of the side curtain air bag module LH. 4. Check harness and connectors for damage, and terminals for deformities. 5. If no damage is found, reinstall the side curtain air bag module LH with new fasteners. 6. If damaged — REPLACE the side curtain air bag module LH with new fasteners. Side curtain air bag module RH If the side curtain air bag RH has NOT deployed: Check for visible signs of damage (dents, tears, deformation) of the center pillar on the colli- 2. If damaged - Remove the side curtain air bag module RH. 3. Check for visible signs of damage (tears etc.) of the side curtain air bag module RH. 4. Check harness and connectors for damage, and terminals for deformities. 5. If no damage is found, reinstall the side curtain air bag module RH with new fasteners. 6. If damaged — REPLACE the side curtain air bag module RH with new fasteners. Front side air bag module LH If the front LH side air bag has NOT deployed: Check for visible signs of damage (dents, tears, deformation) of the seat back on the collision 2. Check harness and connectors for damage, and terminals for deformities. 3. If damaged — REPLACE the front seatback assembly LH. Front side air bag module RH If the front side air bag RH has NOT deployed: Check for visible signs of damage (dents, tears, deformation) of the seat back on the collision 2. Check harness and connectors for damage, and terminals for deformities. 3. If damaged — REPLACE the front seatback assembly RH. |
