SYSTEM DESCRIPTION

COMPONENT PARTS

HEATED SEAT SYSTEM

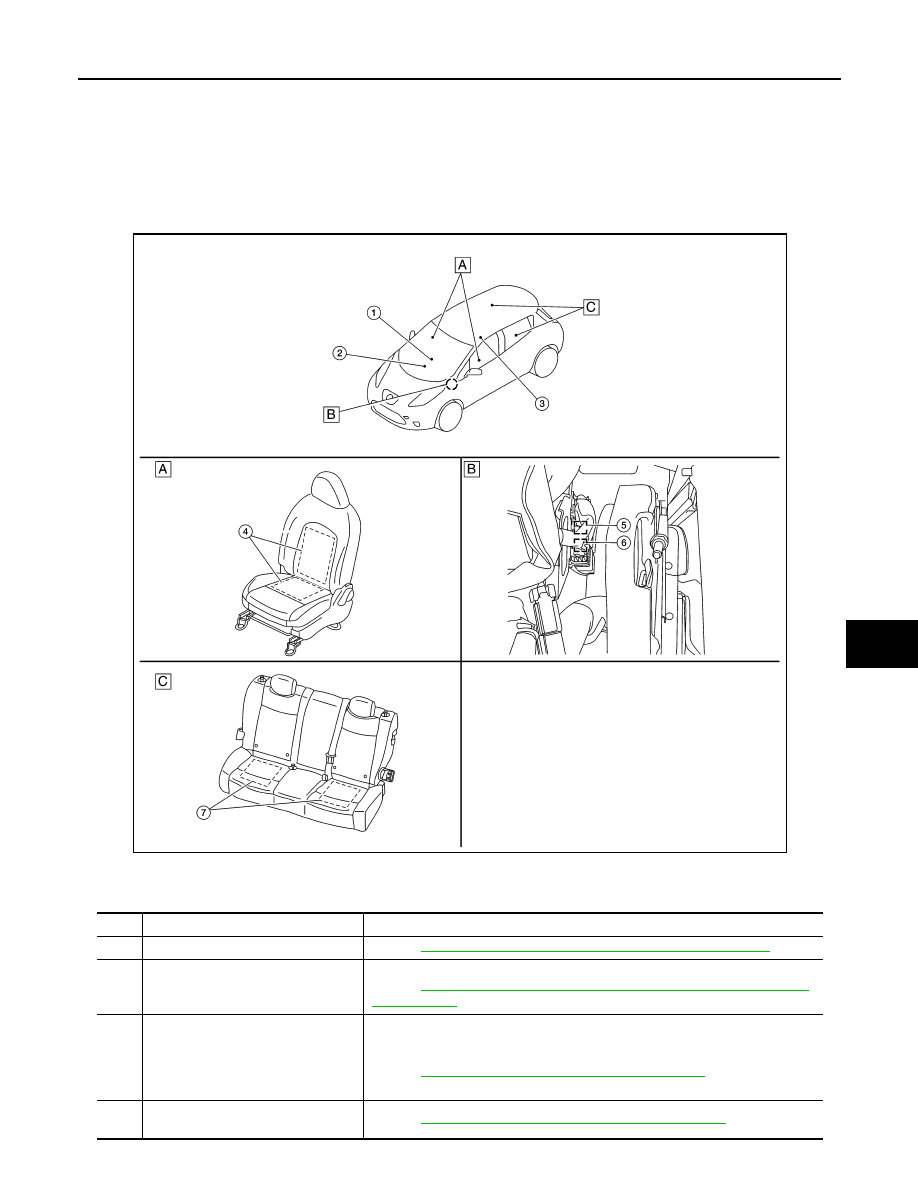

HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000010122947

A.

Inside of front seat

B.

Behind LH side of instrument panel

C.

Inside of rear seat

No.

Component

Function

1.

Front heated seat switch (LH/RH)

Refer to

SE-12, "HEATED SEAT SYSTEM : Front Heated Seat Switch"

.

2.

A/C auto amp.

A/C auto amp. controls heated seat relay and rear heated seat relay.
Refer to

HAC-19, "AUTOMATIC AIR CONDITIONING SYSTEM : Component

Parts Location"

 for detailed installation location.

3.

Rear heated seat switch

Rear heated seat switch changes ON/OFF operation and HIGH/LOW operation,
and supplies power source to rear heated seat. It is integrated into front passen-
ger’s seatback.
Refer to

SE-30, "SEATBACK : Disassembly and Assembly"

 for detailed installa-

tion location.

4.

Front seat heater (Driver side and
passenger side)

Refer to

SE-12, "HEATED SEAT SYSTEM : Front Seat Heater"

.

ALJIA1208ZZ

SE-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

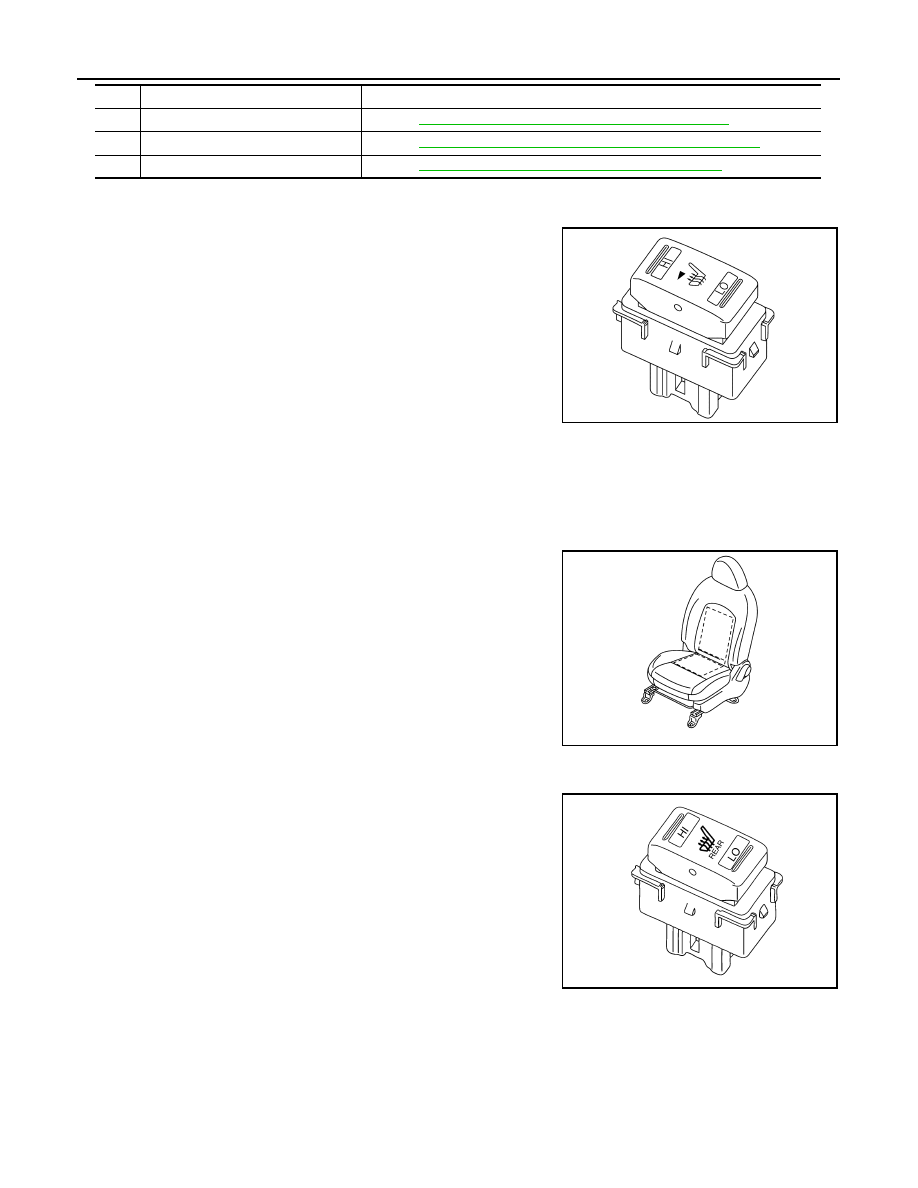

HEATED SEAT SYSTEM : Front Heated Seat Switch

INFOID:0000000010122948

Front heated seat switch changes ON/OFF operation and HIGH/

LOW operation, and supplies power source to front heated seats.

HEATED SEAT SYSTEM : Heated Seat Relay

INFOID:0000000010122949

Heated seat relay is controlled by A/C auto amp. and supplies power source to front heated seats and rear

heated seat relay.

HEATED SEAT SYSTEM : Front Seat Heater

INFOID:0000000010122950

Front seat heater is located inside of front heated seat cushion and

seat back, and operates with power source provided via front heated

seat switch.

HEATED SEAT SYSTEM : Rear Heated Seat Switch

INFOID:0000000010122951

Rear heated seat switch changes ON/OFF operation and HIGH/

LOW operation, and supplies power source to rear heated seats.

HEATED SEAT SYSTEM : Rear Heated Seat Relay

INFOID:0000000010122952

Rear heated seat relay is turned ON when front heated seat relay is turned ON, and supplies power source to

rear heated seat.

5.

Heated seat relay

Refer to

SE-12, "HEATED SEAT SYSTEM : Heated Seat Relay"

.

6.

Rear heated seat relay

Refer to

SE-12, "HEATED SEAT SYSTEM : Rear Heated Seat Relay"

.

7.

Rear seat heater (LH/RH)

Refer to

SE-13, "HEATED SEAT SYSTEM : Rear Seat Heater"

.

No.

Component

Function

JMJIA7060ZZ

JMJIA7061ZZ

ALJIA1209ZZ

COMPONENT PARTS

SE-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

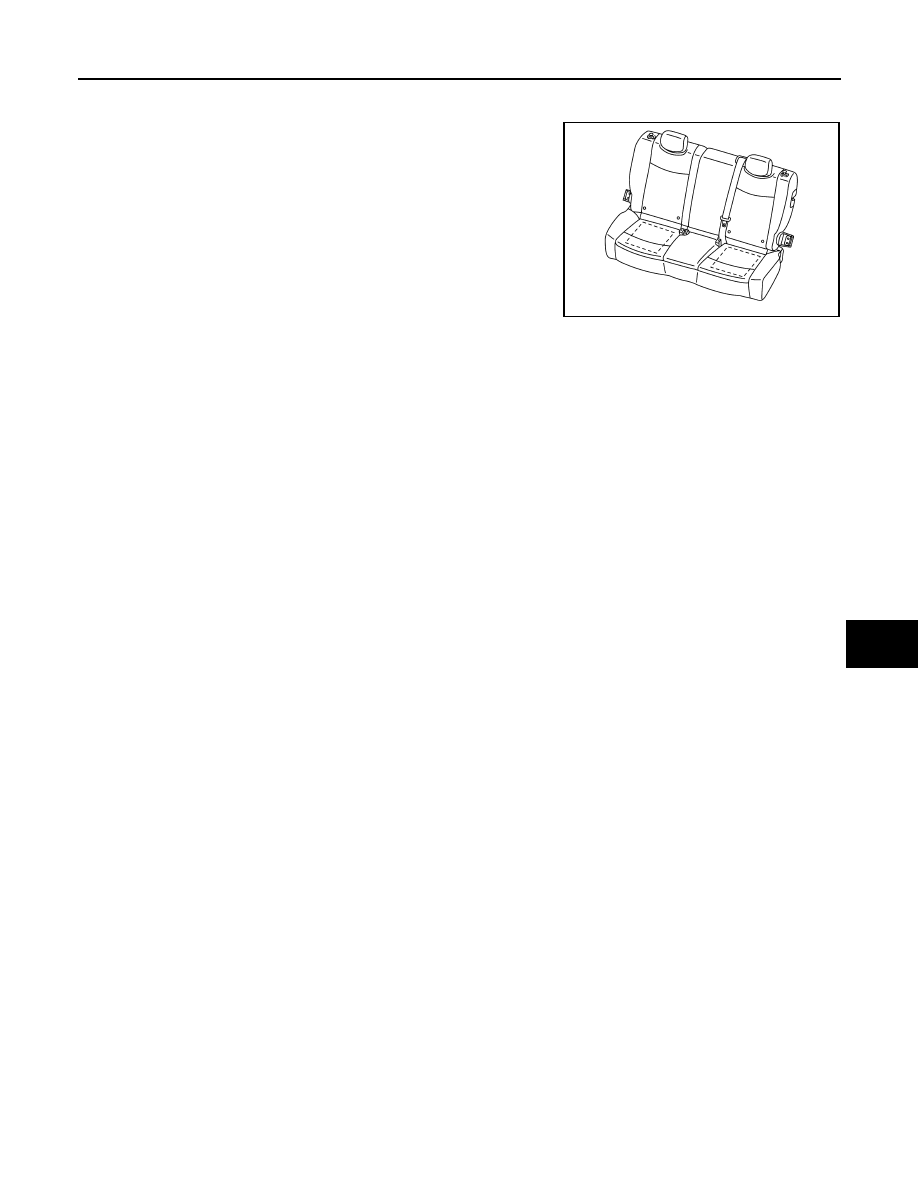

HEATED SEAT SYSTEM : Rear Seat Heater

INFOID:0000000010122953

Rear seat heater is located inside of rear heated seat cushion, and

operates with power source provided via rear heated seat switch.

JMJIA7062ZZ

SE-14

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

HEATED SEAT SYSTEM
HEATED SEAT SYSTEM : System Description

INFOID:0000000010122954

• Heated seat system (Driver side, passenger side and rear seats) consists of heated seat relay, heated seat

switch, seat heater and A/C auto amp.

• Heated seat relay and rear heated seat relay are turned ON by A/C auto amp. to provide power source to

the heated seat system when any of the following conditions is met.

- The vehicle is set to READY.

- The timer A/C control is operating. Refer to

HAC-38, "AUTOMATIC AIR CONDITIONING SYSTEM : A/C-

Heater Timer (Climate Ctrl. Timer)"

.

- The remote A/C control is operating. Refer to

HAC-39, "AUTOMATIC AIR CONDITIONING SYSTEM :

Remote Climate Control"

.

• Heated seat switch changes ON/OFF operation and HIGH/LOW mode of heated seat system.

• Heated seat switch has HIGH/LOW indicators which indicates the system operation condition.
