PG-32

< WIRING DIAGRAM >

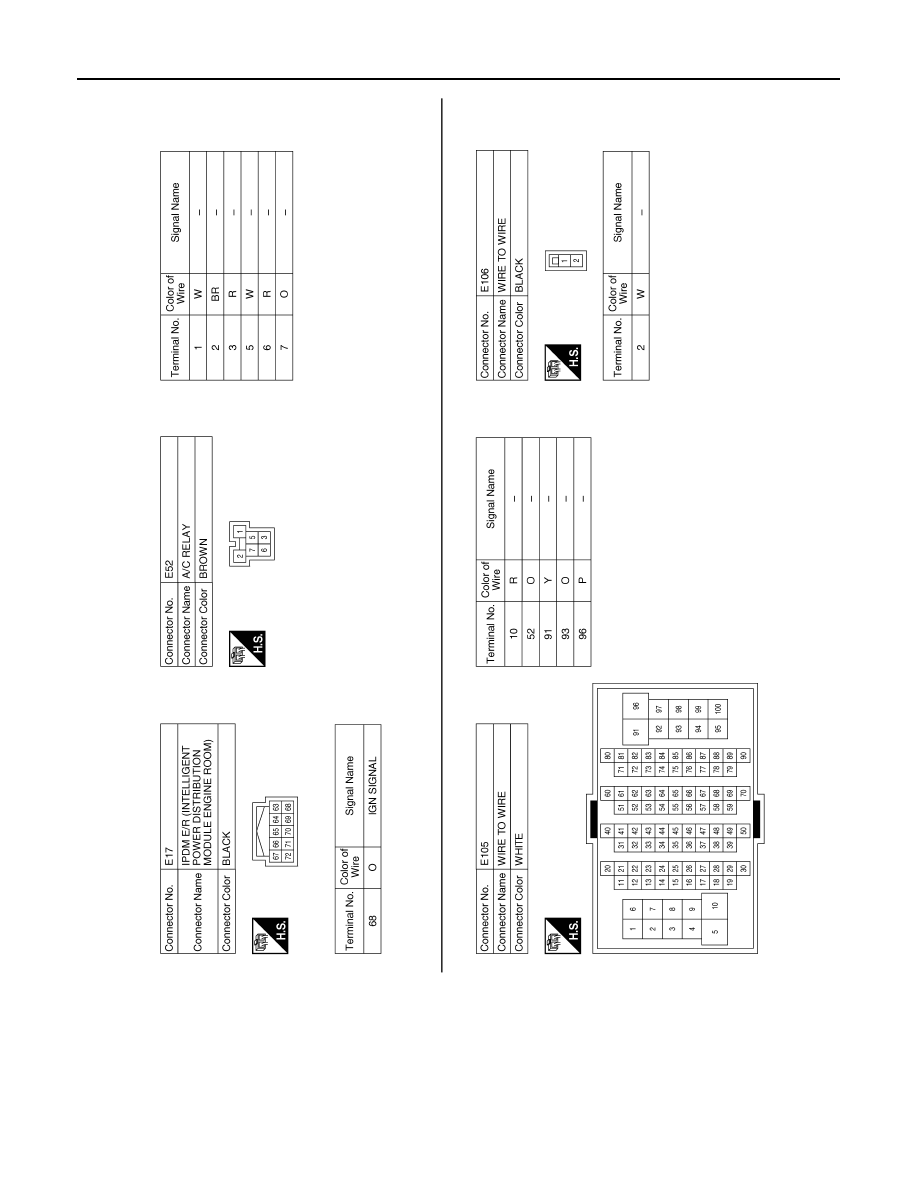

POWER SUPPLY ROUTING CIRCUIT

AAMIA2328GB

PG

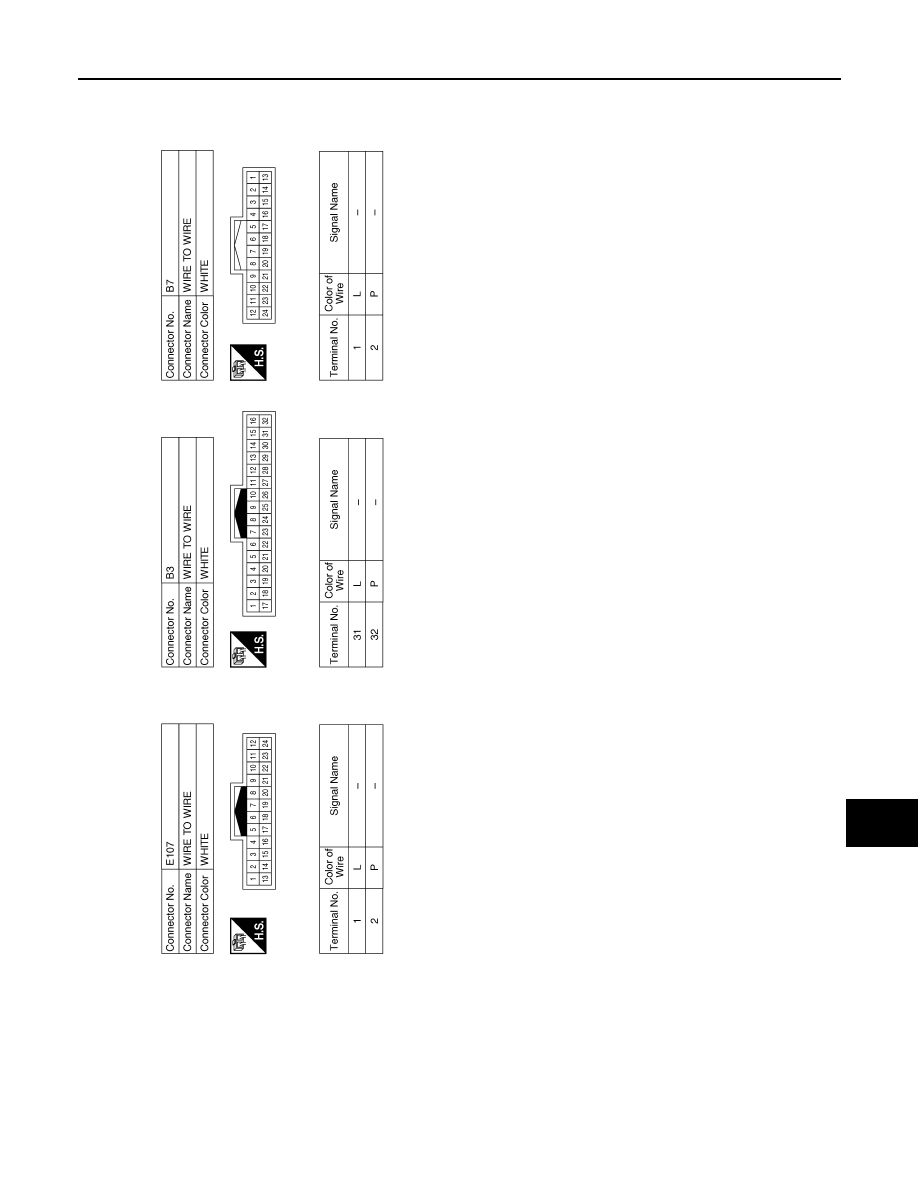

POWER SUPPLY ROUTING CIRCUIT

PG-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2329GB

PG-34

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

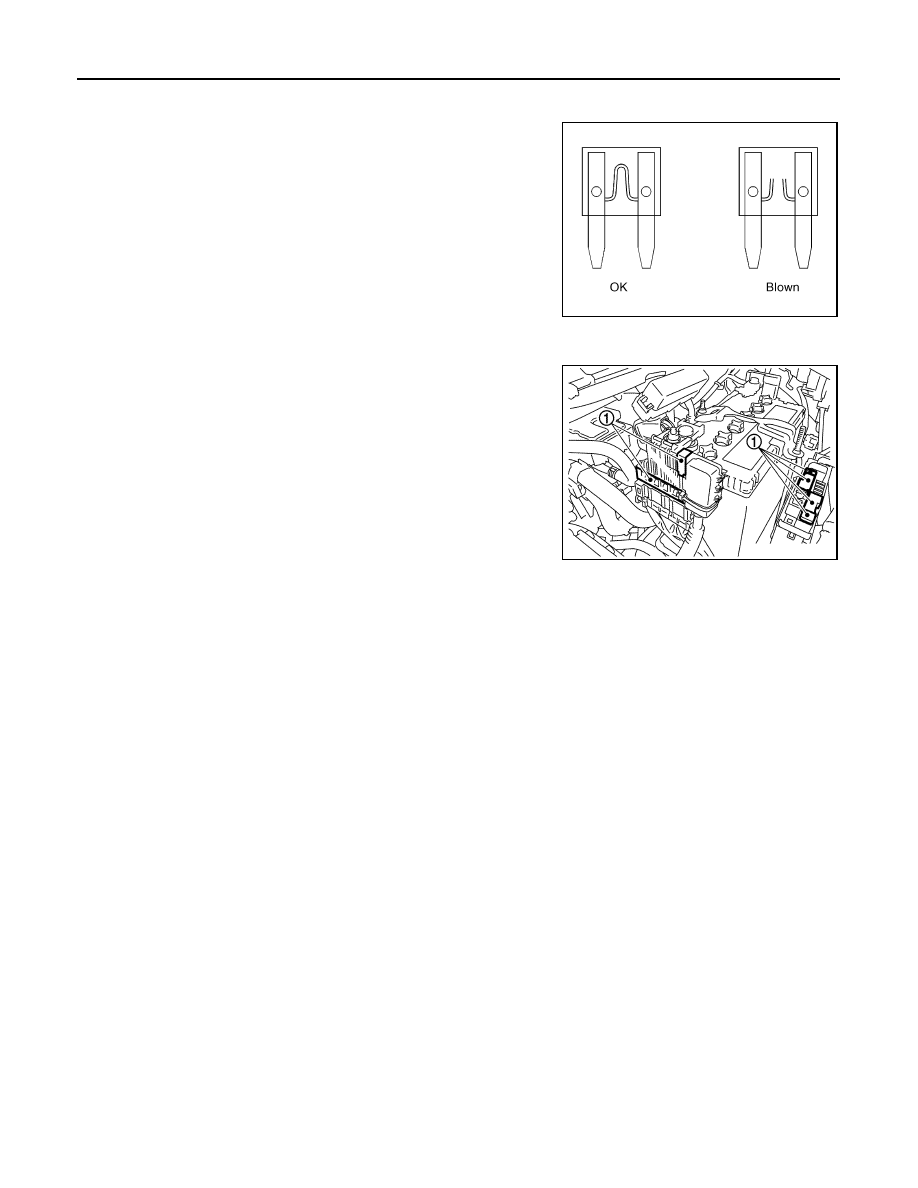

Fuse

INFOID:0000000010586659

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

Fusible Link

INFOID:0000000010586660

A melted fusible link can be detected either by visual inspection or by

feeling with finger tip. If its condition is questionable, use circuit

tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit

(power supply or large current carrying circuit) is shorted. In

such a case, carefully check and eliminate cause of malfunc-

tion.

• Never wrap outside of fusible link with vinyl tape. Important:

Never let fusible link touch any other wiring harness, vinyl or

rubber parts.

CEL083

1

: Fusible link

JSMIA0532ZZ

PG

GROUND

PG-35

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

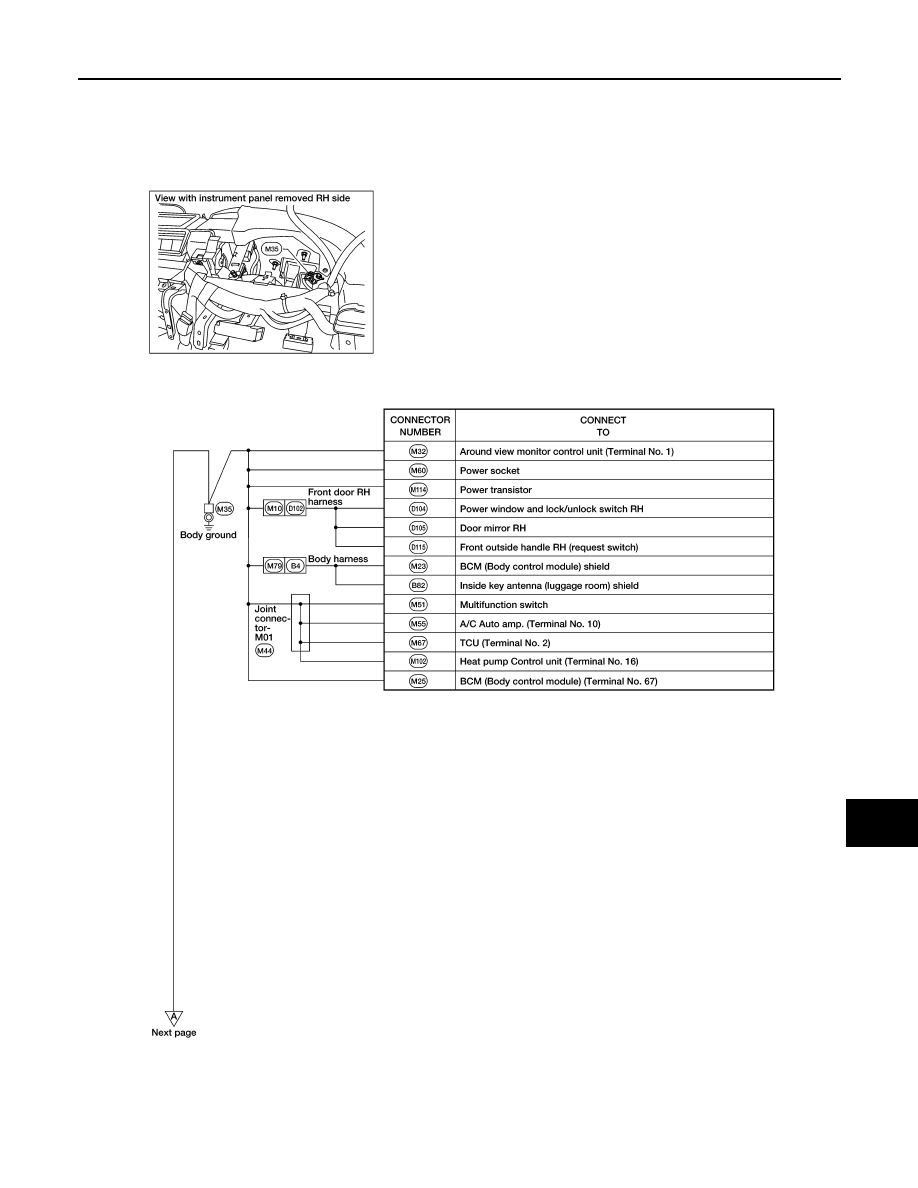

GROUND

Ground Distribution

INFOID:0000000010586661

MAIN HARNESS

AAMIA2461GB
