AV

INSPECTION AND ADJUSTMENT

AV-279

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

>> GO TO 3.

3.

CHECK THE UPDATED SOFTWARE VERSION OF THE AV CONTROL UNIT

1. Set the power switch on ACC after a lapse of 15 seconds or more after the power switch is turned OFF.
2. With AUDIO OFF, press “MAP” switch three times, “ ”switch twice, and press “MAP” switch once to start

the On Board Diagnosis Function.

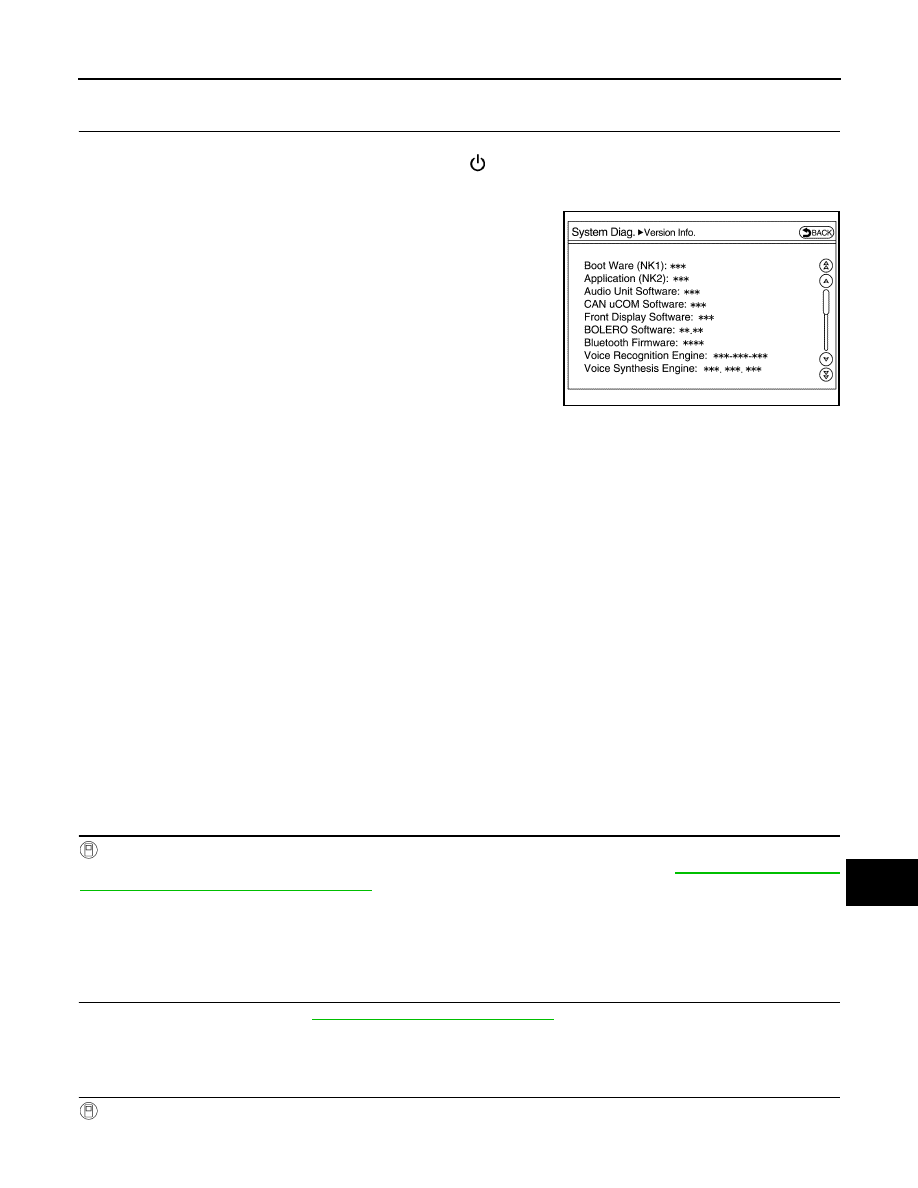

3. Select “Version Information” in Confirmation/Adjustment mode.

4. Check version information to see that the Boot ware and the

application version are updated.

>> End of program.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Description

INFOID:0000000010122544

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before

replacement.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” or “Manual Configuration”

with CONSULT.

• Complete the procedure of “After Replace ECU” or “Manual Configuration” in order.

• If you set incorrect “After Replace ECU” or “Manual Configuration”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Procedure

INFOID:0000000010122545

1.

SAVING VEHICLE SPECIFICATION

-CONSULT Configuration

Perform “Before Replace ECU” to save or print current vehicle specification. Refer to

AV-280, "CONFIGURA-

TION (AV CONTROL UNIT) : Description"

.

NOTE:

If “Before Replace ECU” can not be used, use the “Manual Configuration”.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-318, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

-CONSULT Configuration

JSNIA3981ZZ

AV-280

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

INSPECTION AND ADJUSTMENT

Perform “After Replace ECU” or “Manual Configuration” to write vehicle specification. Refer to

AV-280, "CON-

FIGURATION (AV CONTROL UNIT) : Work Procedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> Work End.

CONFIGURATION (AV CONTROL UNIT)
CONFIGURATION (AV CONTROL UNIT) : Description

INFOID:0000000010122546

• Since vehicle specifications are not included in the AV control unit after replacement, it is required to write

vehicle specifications with CONSULT.

• Configuration has three functions as follows.

CONFIGURATION (AV CONTROL UNIT) : Work Procedure

INFOID:0000000010122547

1.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Write vehicle specification into AV control unit.

To write vehicle specification stored in CONSULT into the AV control unit>>GO TO 2.

To write vehicle specification into the AV control unit by hand>>GO TO 3.

2.

WRITE STORED DATA

CONSULT Configuration

Select “After Replace ECU” in “Read/Write Configuration.” Write data stored in CONSULT with the “Before

Replace ECU” function into the AV control unit.

>> GO TO 4.

3.

MANUALLY WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Manual Configuration.” Refer to the Configuration List to write vehicle specification into the AV con-

trol unit.  Refer to

AV-281, "CONFIGURATION (AV CONTROL UNIT) : Configuration List"

.

NOTE:

If selection items are not displayed on the CONSULT screen, touch “NEXT.”

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> Work End.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

AV

INSPECTION AND ADJUSTMENT

AV-281

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000010122548

CAUTION:

Check vehicle specifications before servicing.

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT
PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000010558326

Adjust the center position of the predictive course line of the rear view monitor if it is shifted.

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure

INFOID:0000000010558327

1.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

MANUAL SETTING ITEM

Items

Setting value

STEERING

LHD

RHD

SOUND SYSTEM

BASE

BOSE

AV-282

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000010122549

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on board multi-

plex communication line with high data communication speed and excellent error detection ability. A modern

vehicle is equipped with many ECMs, and each control unit shares information and links with other control

units during operation (not independent). In CAN communication, 2 control units are connected with 2 commu-

nication lines (CAN H-line and CAN L-line) allowing a high rate of information transmission with less wiring.

Each control unit transmits/receives data but selectively reads required data only.

Refer to

LAN-37, "CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart"

 for details of the

communication signal.

DTC Logic

INFOID:0000000010122550

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010122551

1.

PERFORM SELF-DIAGNOSIS

1. Turn the power switch ON and hold it for 2 seconds or more.

2. Check the self-diagnosis result of “multi-AV”.
Is CAN communication system displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Procedure"

.

NO

>> Refer to

GI-53, "Intermittent Incident"

.

DTC

Display contents of CON-

SULT

Malfunction detection condition

Probable malfunction location

U1000

CAN COMM CIRC [U1000]

When the AV control unit cannot communicate for 2 sec-
onds or more.

CAN communication system
