Nissan Leaf. Manual - part 66

AV

NAVIGATION WITHOUT BOSE

AV-255

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

NAVIGATION WITHOUT BOSE

Wiring Diagram

INFOID:0000000010122538

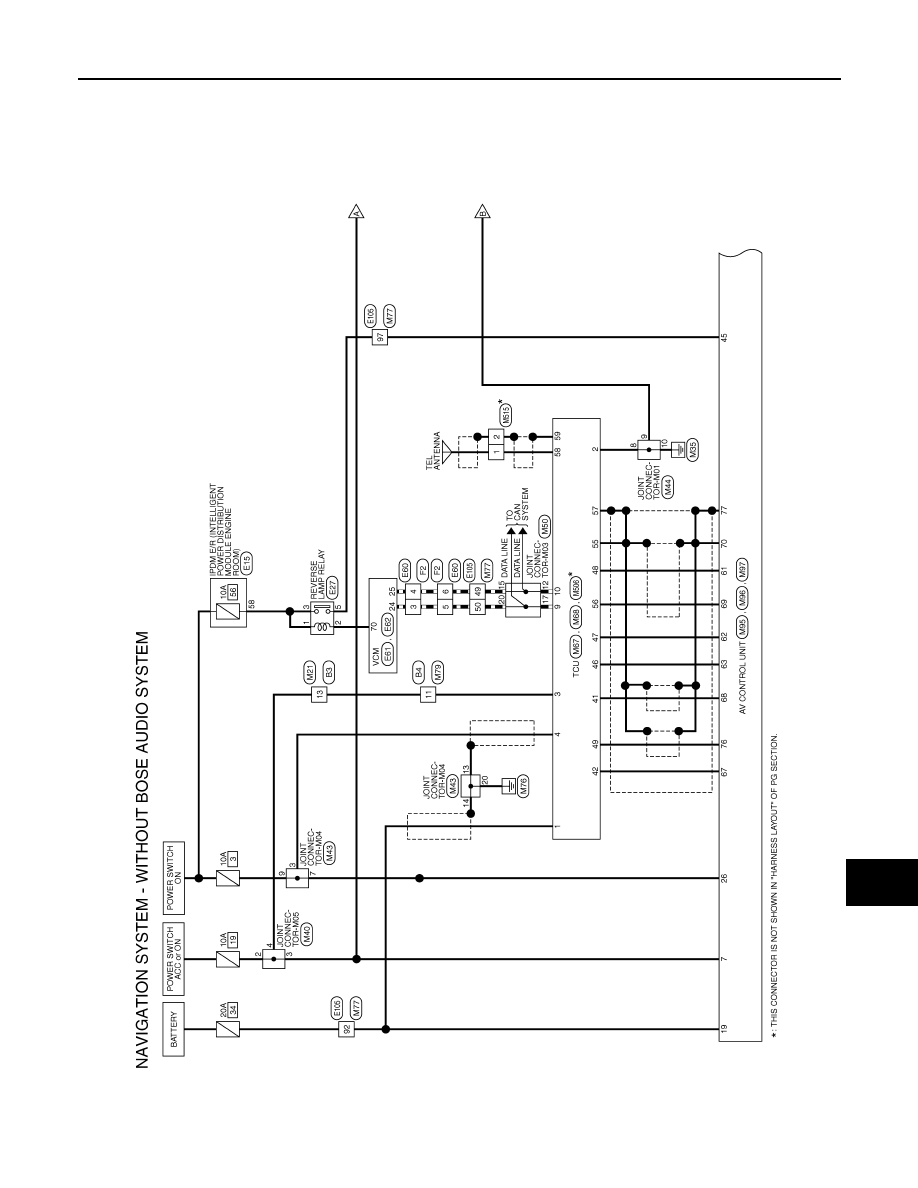

AANWA1072GB

AV-256

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

NAVIGATION WITHOUT BOSE

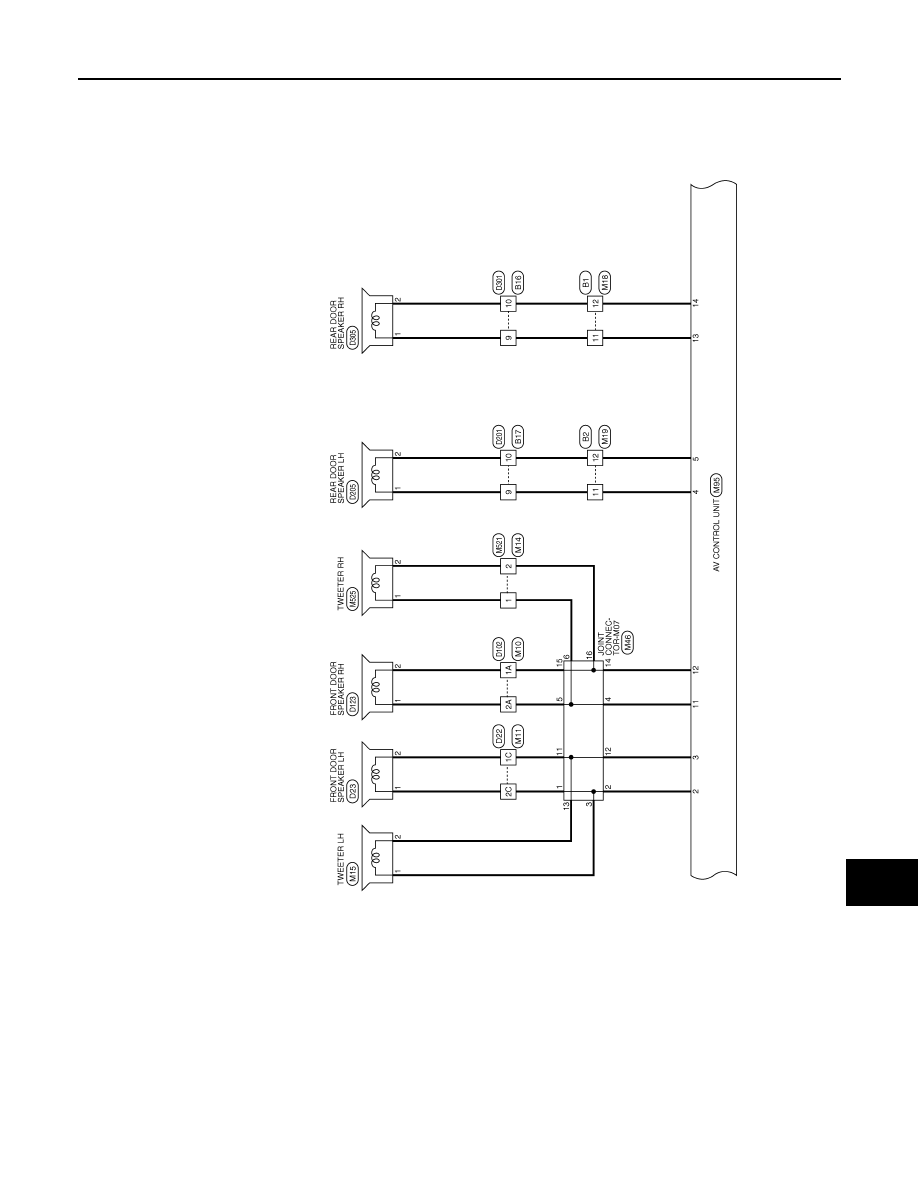

AANWA1073GB

AV

NAVIGATION WITHOUT BOSE

AV-257

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

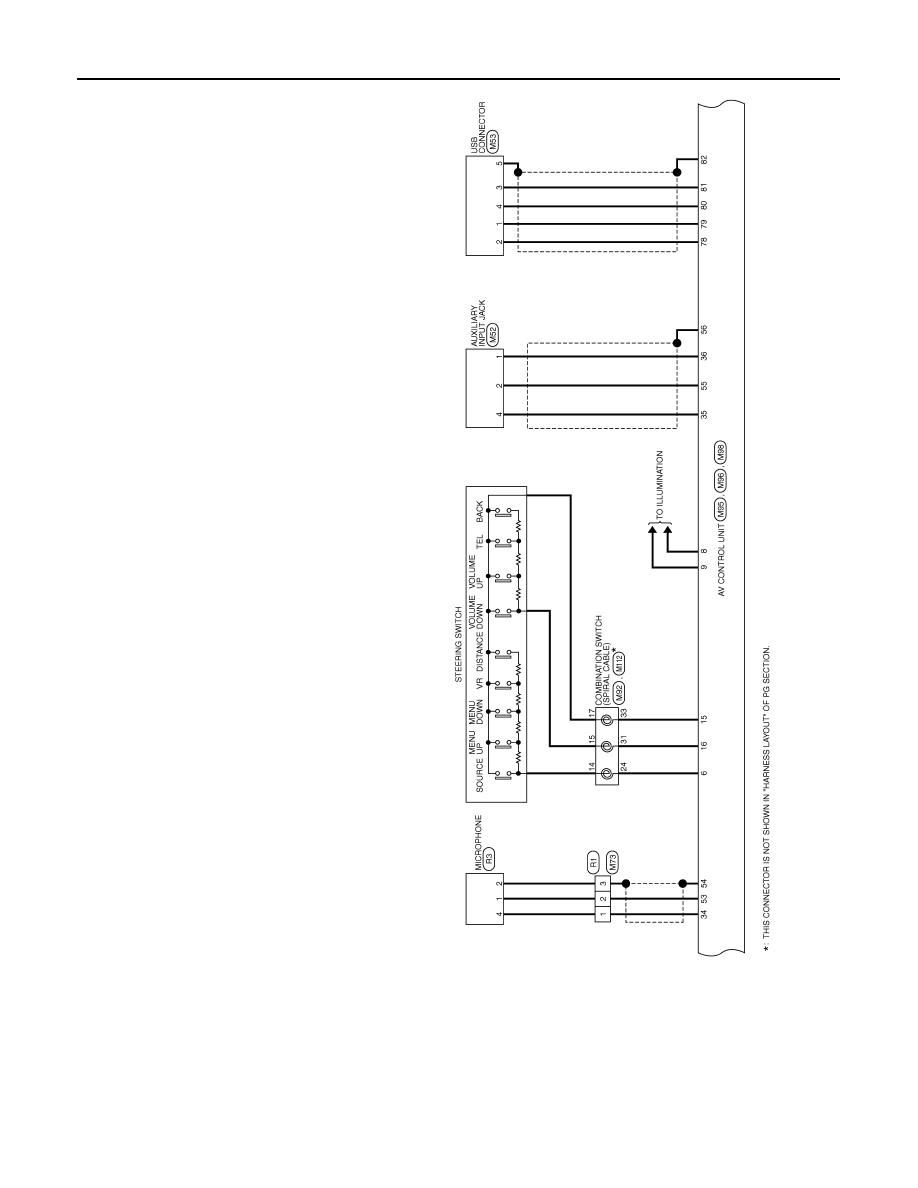

AANWA1074GB

AV-258

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

NAVIGATION WITHOUT BOSE

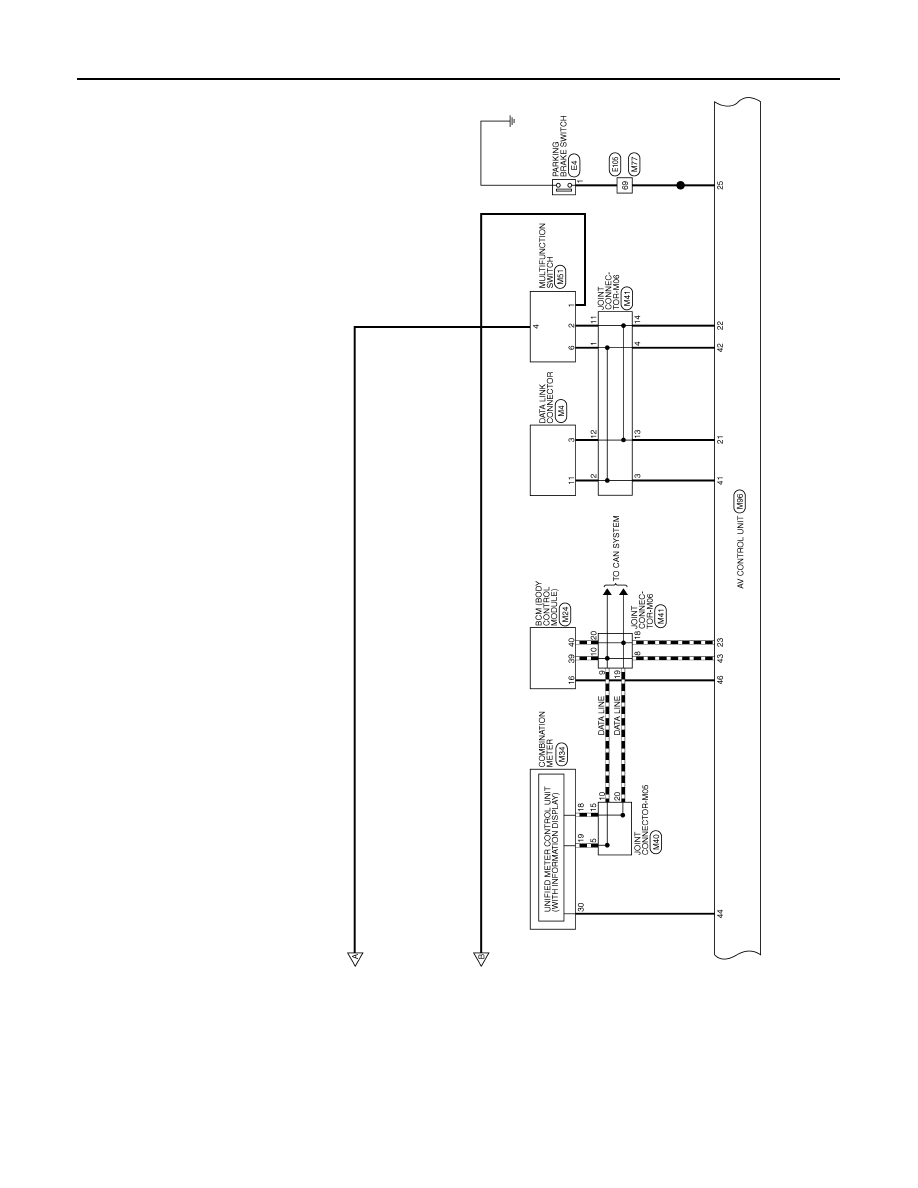

AANWA1075GB
