DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-111

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DATA MONITOR

CONFIGURATION

Refer to

AV-146, "CONFIGURATION (AV CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-14, "CAN Diagnostic Support Monitor"

.

Monitor Item [Unit]

Description

VHCL SPD SIG [On/Off]

Indicates vehicle speed signal received from combination meter on CAN communication
line.

PKB SIG [On/Off]

Indicates condition of park brake signal.

ILLUM SIG [On/Off]

Indicates condition of illumination signal for the A/C and AV switch assembly.

IGN SIG [On/Off]

Indicates condition of power signal.

REV SIG [On/Off]

Indicates condition of reverse signal received from BCM.

AV-112

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONSULT Function

INFOID:0000000010558328

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the around view monitor control unit.

ECU IDENTIFICATION

The part number of around view monitor control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-123, "DTC Index"

.

DATA MONITOR

WORK SUPPORT

Direct Diagnostic Mode

Description

Ecu Identification

The around view monitor control unit part number is displayed.

Self Diagnostic Result

The around view monitor control unit self diagnostic results are displayed.

Data Monitor

The around view monitor control unit input/output data is displayed in real time.

Work support

The settings for around view monitor control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing around view monitor control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

ST ANGLE SENSOR SIGNAL [On/Off] Indicates condition of steering angle sensor signal.

REVERSE SIGNAL [On/Off]

Indicates selector lever position.

VEHICLE SPEED SIGNAL [mph/km/h] Indicates condition of vehicle speed signal.

CAMERA SWITCH SIGNAL [On/Off]

Indicates condition of camera switch signal.

CAMERA OFF SIGNAL [On/Off]

Indicates condition of camera OFF signal.

ST ANGLE SENSOR TYPE [Absolute] Indicates steering angle sensor type.

ST GEAR RATIO TYPE [Type O]

Indicates steering gear ratio type.

STEERING POSITION [LHD/RHD]

Indicates LH or RH drive type.

REAR CAMERA IMAGE SIGNAL [OK/
NG]

Indicates condition of camera image signal.

F-CAMERA IMAGE SIGNAL [OK/NG]

Indicates condition of camera image signal.

DR-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

PA-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

Support Item

Setting

Description

NON-VIEWABLE AREA REMINDER

ON/OFF setting of non-viewable area can be performed.

PREDICTIVE COURSE LINE DIS-
PLAY

ON/OFF setting of predictive course line display can be performed.

INITIALIZE CAMERA IMAGE
CALIBRATION

Factory image calibration restoration can be performed.

STEERING ANGLE SENSOR
ADJUSTMENT

Steering angle sensor neutral position adjustment can be performed.

AV

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

AV-113

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Calibrating Camera Image (front camera, pass-side camera, dr-side camera, and rear camera)

Perform the calibration of camera image caused by the incorrect

mounting position of each camera, etc. Always perform calibration

after performing the following work.

• When each camera or each camera mount (e.g. front grille, door

mirror, and others) is removed

• When replacing the around view monitor control unit

Refer to

AV-148, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

 for the calibration procedure.

Initialize Camera Image Calibration

The calibration can be initialized to NISSAN factory shipment condition.

Select Language of Warning Message

No need to be selected because it can change the language on setting of Navi by customer.

Predictive Course Line Display

ON/OFF setting of predictive course line can be performed.

Steering Angle Sensor Adjustment

Steering angle sensor neutral position can be adjusted and registered.

CAUTION:

CALIBRATING CAMERA IMAGE
(FRONT CAMERA)

STATUS

Performs calibration of front camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(PASS-SIDE CAMERA)

STATUS

Performs calibration of passenger side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(DR-SIDE CAMERA)

STATUS

Performs calibration of driver side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(REAR CAMERA)

STATUS

Performs calibration of rear camera.

AXIS X

AXIS Y

ROTATE

FINE TUNING OF BIRDS-EYE VIEW

STATUS

Confirmation and adjustment of difference between each camera can be per-
formed.

SELECT

AXIS X

AXIS Y

ROTATE

Support Item

Setting

Description

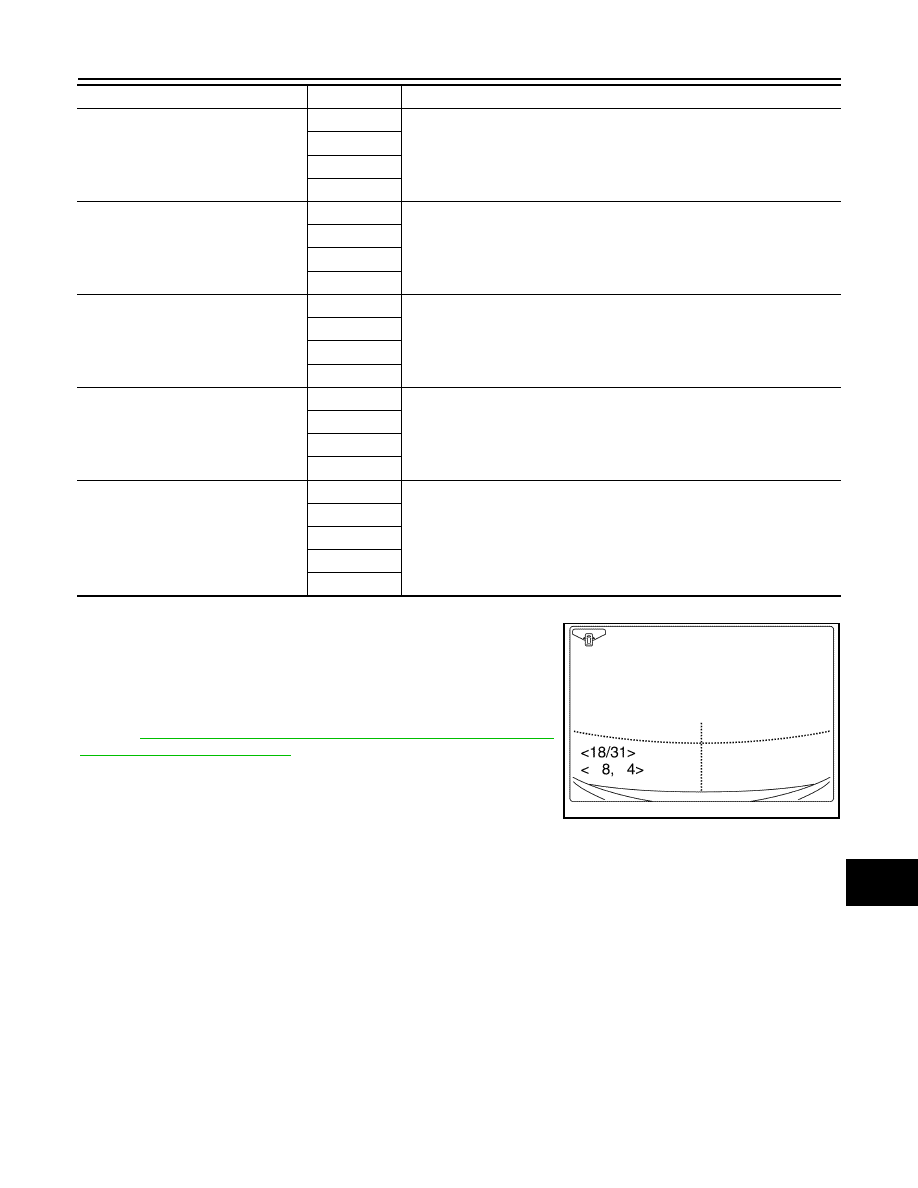

JSNIA4212ZZ

Adjustment range
Rotating direction

: 31 patterns (16 on the center)

Upper/lower direction

: (

−22) – (+22)

Left/right direction

: (

−22) – (+22)

AV-114

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

Adjust the steering angle sensor neutral position on the ABS actuator control unit side.

Non-Viewable Area Reminder

ON/OFF setting of the non-viewable area reminder can be performed.

CONFIGURATION

Refer to

AV-147, "CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-14, "CAN Diagnostic Support Monitor"

.
