CAMERA IMAGE SIGNAL CIRCUIT

AV-55

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4.

CHECK CAMERA IMAGE SIGNAL CIRCUIT CONTINUITY

1. Turn power switch OFF.

2. Disconnect audio unit connector M84 and rear view camera connector.

3. Check continuity between audio unit connector M84 and rear view camera connector D556.

4. Check continuity between audio unit connector M84 and ground.

Is inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK CAMERA GROUND CIRCUIT CONTINUITY

Check continuity between audio unit connector M84 and rear view camera connector D556.

Is inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness or connectors.

6.

CHECK CAMERA IMAGE SIGNAL

1. Connect audio unit connector M84 and rear view camera connector.

2. Turn power switch ON.

3. Shift the selector lever to “R”.

4. Check signal between audio unit connector M84 and ground.

Is inspection result normal?

YES

>> Replace audio unit. Refer to

AV-69, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-77, "Removal and Installation"

.

Audio unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

M84

35

D556

3

Yes

Audio unit

Ground

Continuity

Connector

Terminal

M84

35

No

Audio unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

M84

33

D556

2

Yes

Audio unit

Ground

Condition

Reference value

(+)

(

−)

Connector

Terminal

M84

35

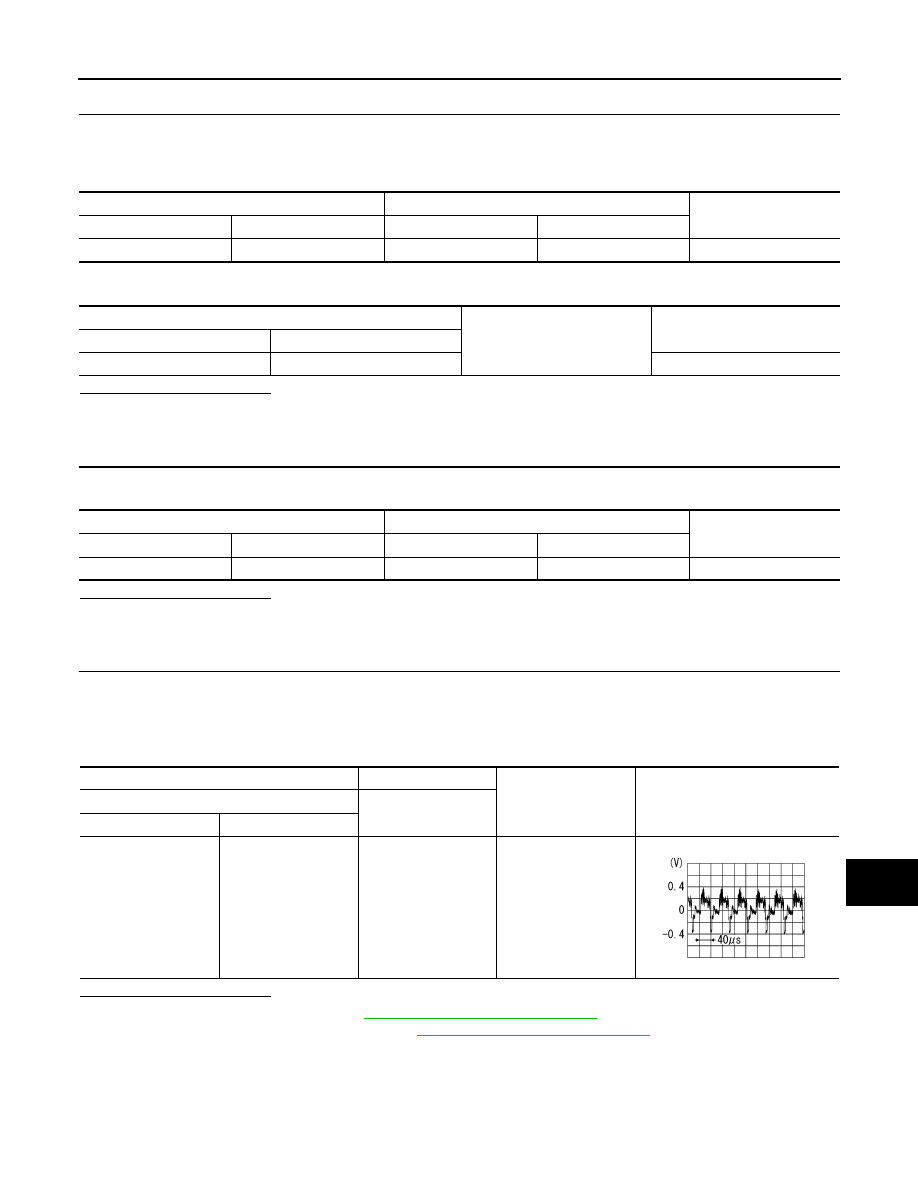

Camera image dis-

played.

SKIB2251J

AV-56

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

BLUETOOTH® VOICE SIGNAL CIRCUIT

BLUETOOTH® VOICE SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000010122482

Regarding Wiring Diagram information, refer to

AV-33, "Wiring Diagram"

.

1.

CHECK BLUETOOTH

®

 VOICE SIGNAL CIRCUIT CONTINUITY

1. Turn power switch OFF.
2. Disconnect audio unit connector M84 and Bluetooth

®

 control unit connector B9.

3. Check continuity between audio unit connector M84 and Bluetooth

®

 control unit connector B9.

4. Check continuity between audio unit connector M84 and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK BLUETOOTH

®

 VOICE SIGNAL GROUND CIRCUIT CONTINUITY

Check continuity between audio unit connector M84 and Bluetooth

®

 control unit connector B9.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK BLUETOOTH

®

 VOICE SIGNAL

1. Connect audio unit connector M84 and Bluetooth

®

 control unit connector B9.

2. Turn power switch to ACC.
3. Press

switch.

4. Check signal between the terminals of audio unit connector M84.

Audio unit

Bluetooth

®

 control unit

Continuity

Connector

Terminal

Connector

Terminal

M84

25

B9

9

Yes

Audio unit

Ground

Continuity

Connector

Terminal

M84

25

No

Audio unit

Bluetooth

®

 control unit

Continuity

Connector

Terminal

Connector

Terminal

M84

24

B9

10

Yes

AV

BLUETOOTH® VOICE SIGNAL CIRCUIT

AV-57

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace Bluetooth

®

 control unit. Refer to

AV-73, "Removal and Installation"

.

NO

>> Replace audio unit. Refer to

AV-69, "Removal and Installation"

.

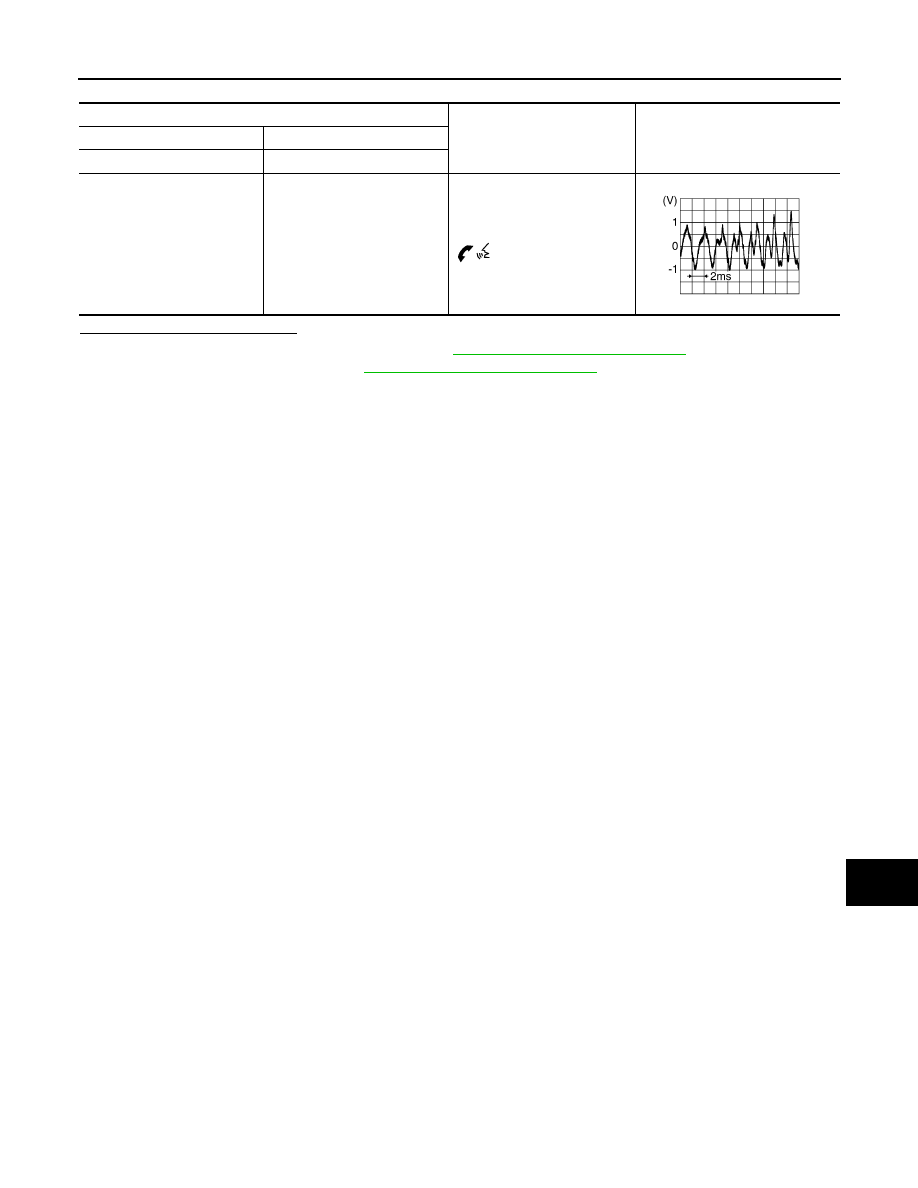

Audio unit connector M84

Condition

Reference value

(+)

(

−)

Terminal

Terminal

25

24

During voice guide output with

 switch pressed.

SKIB3609E

AV-58

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

BLUETOOTH® CONTROL SIGNAL CIRCUIT

BLUETOOTH® CONTROL SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000010122483

Regarding Wiring Diagram information, refer to

AV-33, "Wiring Diagram"

.

1.

CHECK CONTROL SIGNAL CIRCUIT CONTINUITY

1. Turn power switch OFF.
2. Disconnect Bluetooth

®

 control unit connector B9.

3. Check continuity between Bluetooth

®

 control unit connector B9 and ground.

Is the inspection result normal?

YES

>> Replace Bluetooth

®

 control unit. Refer to

AV-73, "Removal and Installation"

.

NO

>> Repair or replace harness or connectors.

Bluetooth

®

 control unit

Ground

Continuity

Connector

Terminals

B9

24

Yes

27
