Nissan Leaf. Manual - part 13

AV

AUDIO W/O NAVI (EXCEPT MEXICO)

AV-43

< WIRING DIAGRAM >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA2859GB

AV-44

< WIRING DIAGRAM >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

AUDIO W/O NAVI (EXCEPT MEXICO)

AANIA2860GB

AV

AUDIO W/O NAVI (EXCEPT MEXICO)

AV-45

< WIRING DIAGRAM >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA2861GB

AV-46

< BASIC INSPECTION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010122476

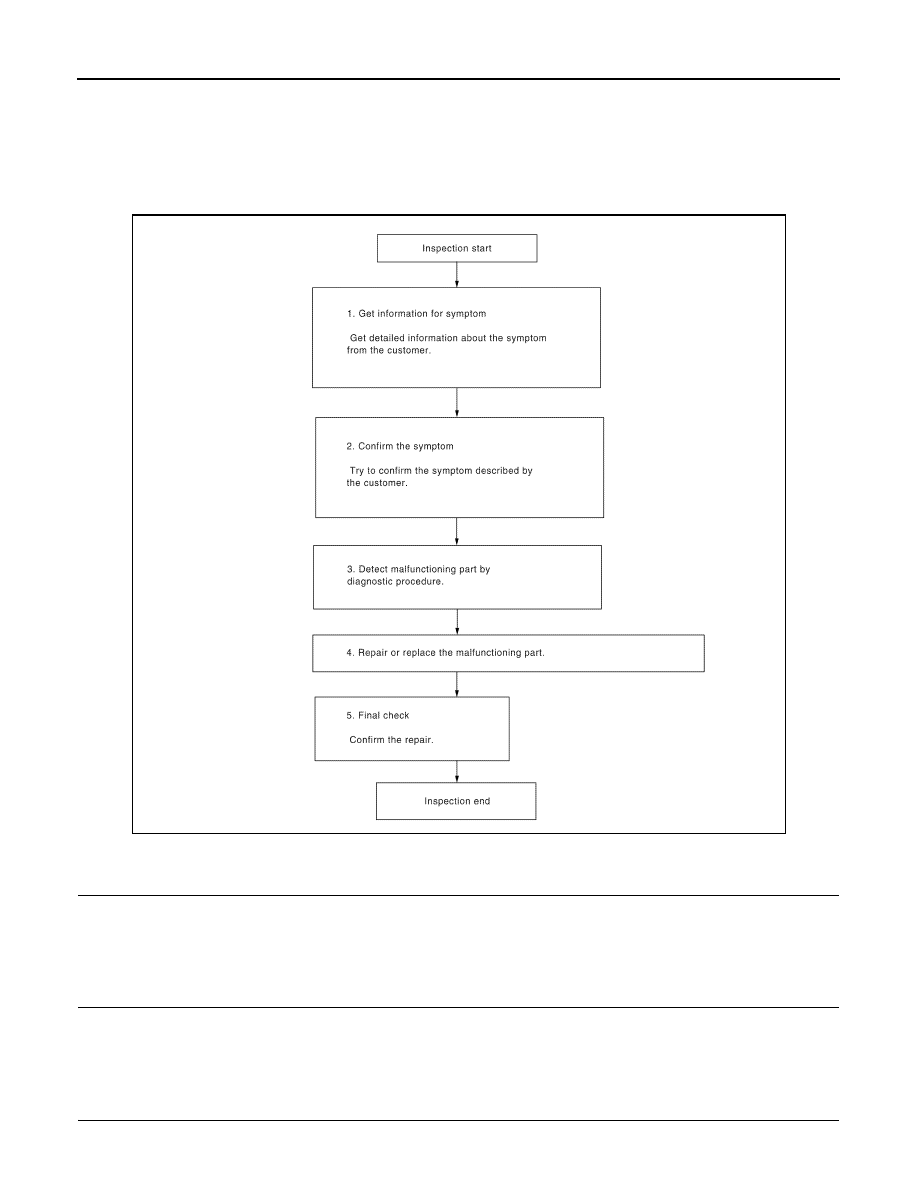

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB
