BLUETOOTH® CONTROL UNIT

Reference Value

INFOID:0000000010122474

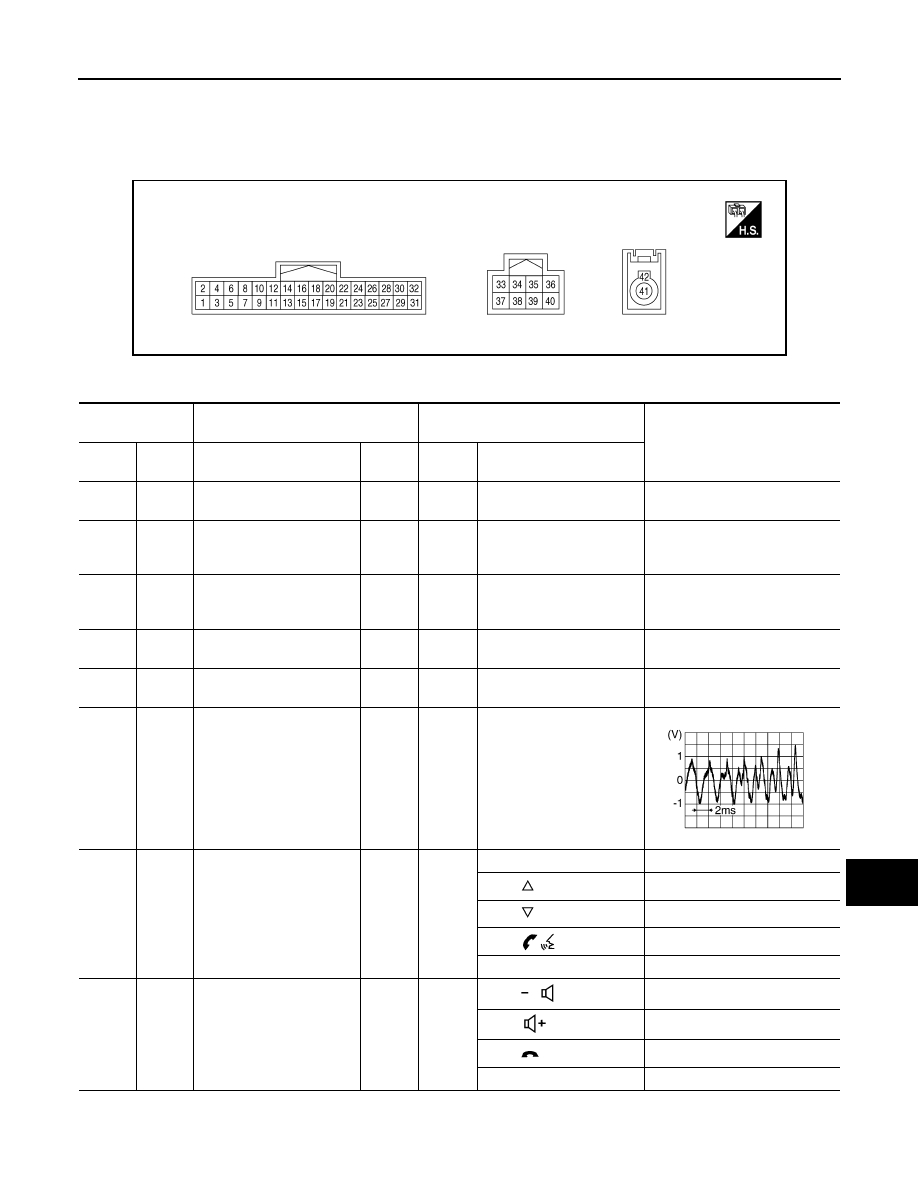

TERMINAL LAYOUT

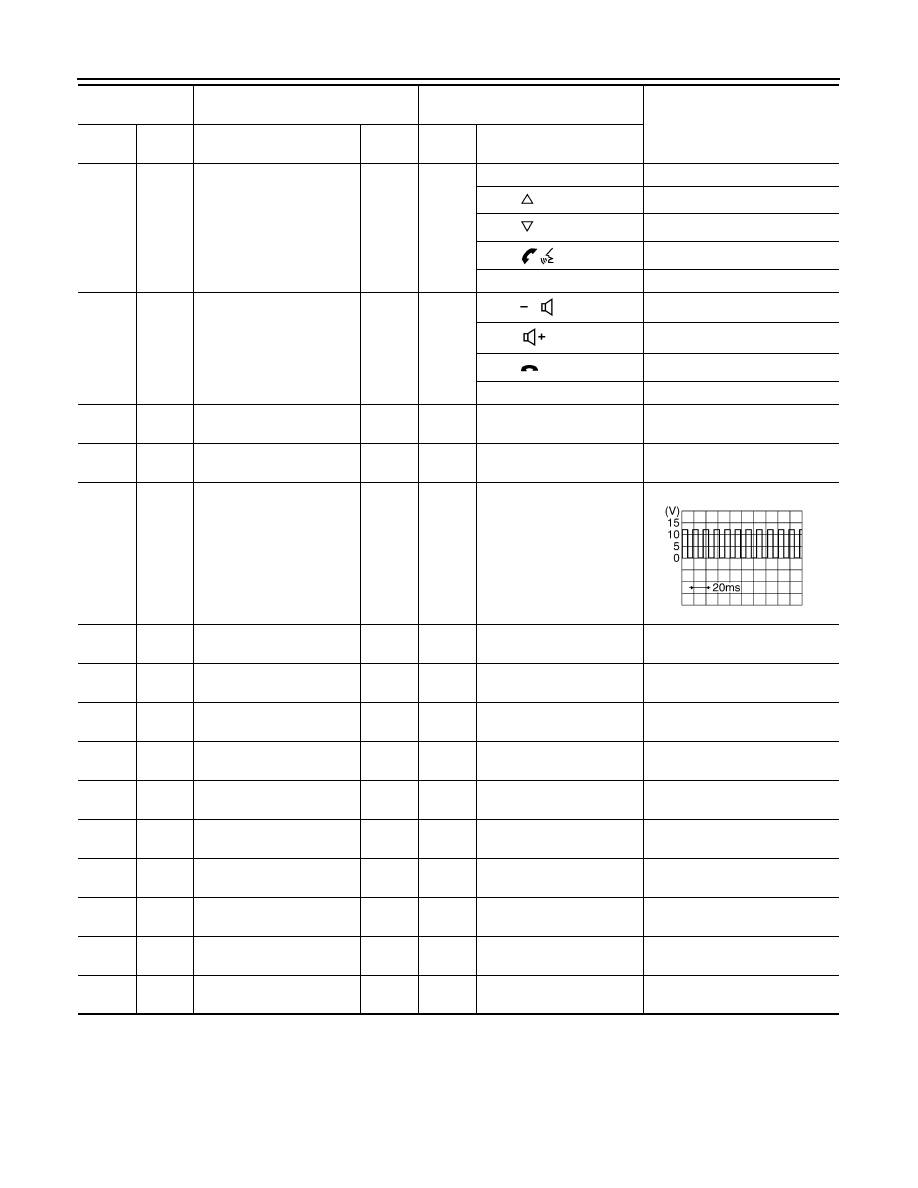

PHYSICAL VALUES

AWNIA3467ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Power
switch

Operation

1

 (BR)

Ground Battery power supply

Input

–

–

Battery voltage

2

(P)

Ground ACC power supply

Input

ACC

or

ON

–

Battery voltage

3

(G)

Ground  Power signal

Input

ON

or

START

–

Battery voltage

4

(B)

Ground Ground

–

ON

–

0V

7

 (L)

8

(Shield)

MIC in signal

Input

–

–

–

9

(R)

10

(L)

Audio out

Output

ACC

or

ON

Bluetooth

®

 control unit

sends audio signal

12

(R)

14

(B)

LAD IN 1

Input

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

13

(W)

14

(B)

LAD IN 2

Input

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

SKIB3609E

AV-32

< ECU DIAGNOSIS INFORMATION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

BLUETOOTH® CONTROL UNIT

17

(LG)

19

(GR)

LAD OUT 1

Output

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

18

(V)

19

(GR)

LAD OUT 2

Output

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

24

(B)

Ground CONT5 Ground

–

ON

–

0V

27

(B)

Ground CONT6 Ground

–

ON

–

0V

28

 (SB)

Ground

Vehicle speed signal (8-
pulse)

Input

ON

When vehicle speed is ap-

prox. 40 km/h (25 MPH)

29

(P)

Ground Microphone power

Output

ON

–

5V

33

(R)

–

AV communication (H)

–

–

–

—

34

(Shield)

–

AV communication shield

–

–

–

—

35

(SB)

–

AV communication jumper
(H)

–

–

–

—

36

(LG)

–

AV communication jumper
(L)

–

–

–

—

37

(G)

–

AV communication (L)

–

–

–

—

39

(SB)

–

AV communication (H)

–

–

–

—

40

(LG)

–

AV communication (L)

–

–

–

—

41

(B)

–

Bluetooth

®

 antenna

–

–

–

—

42

(Shield)

–

Bluetooth

®

 antenna shield

–

–

–

—

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Power
switch

Operation

PKIA1935E

AV

AUDIO W/O NAVI (EXCEPT MEXICO)

AV-33

< WIRING DIAGRAM >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

AUDIO W/O NAVI (EXCEPT MEXICO)

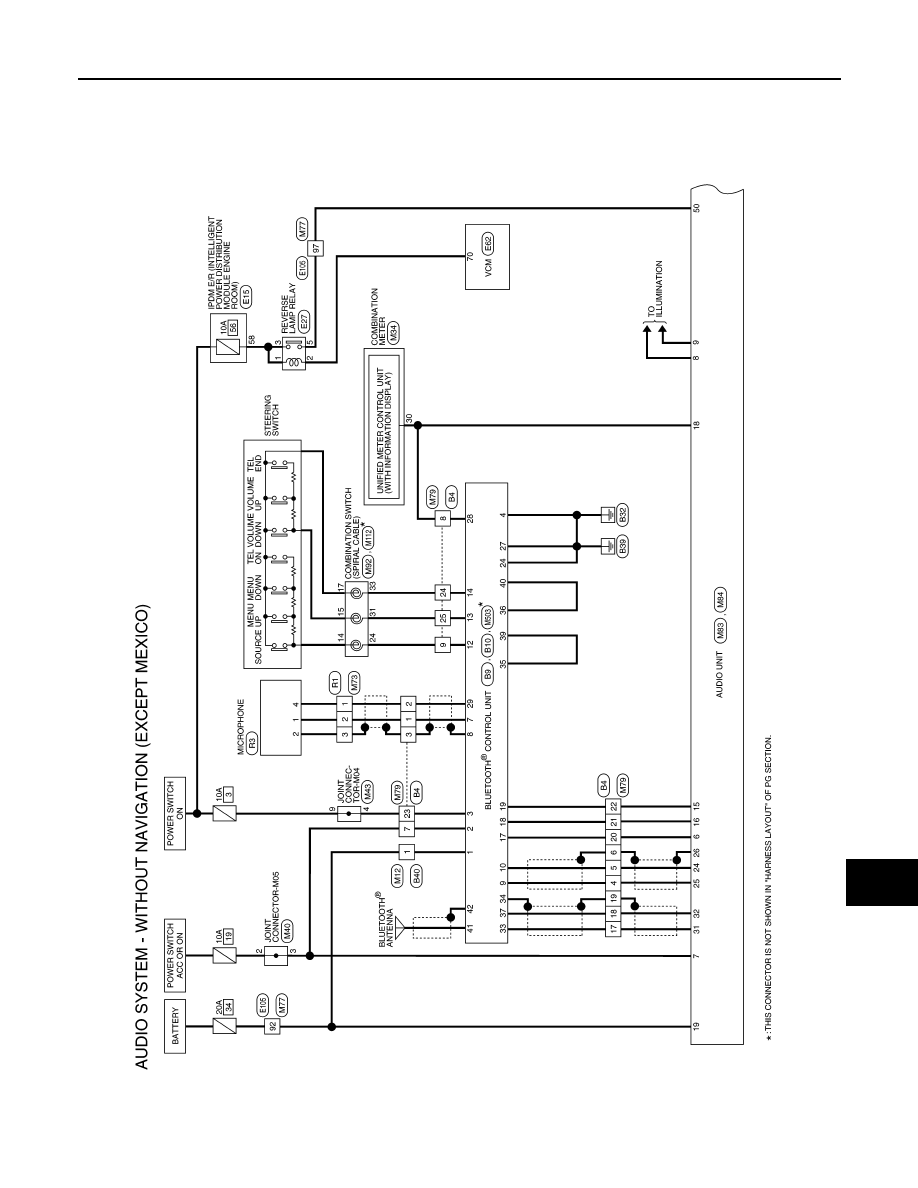

Wiring Diagram

INFOID:0000000010122475

AANWA1101GB

AV-34

< WIRING DIAGRAM >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

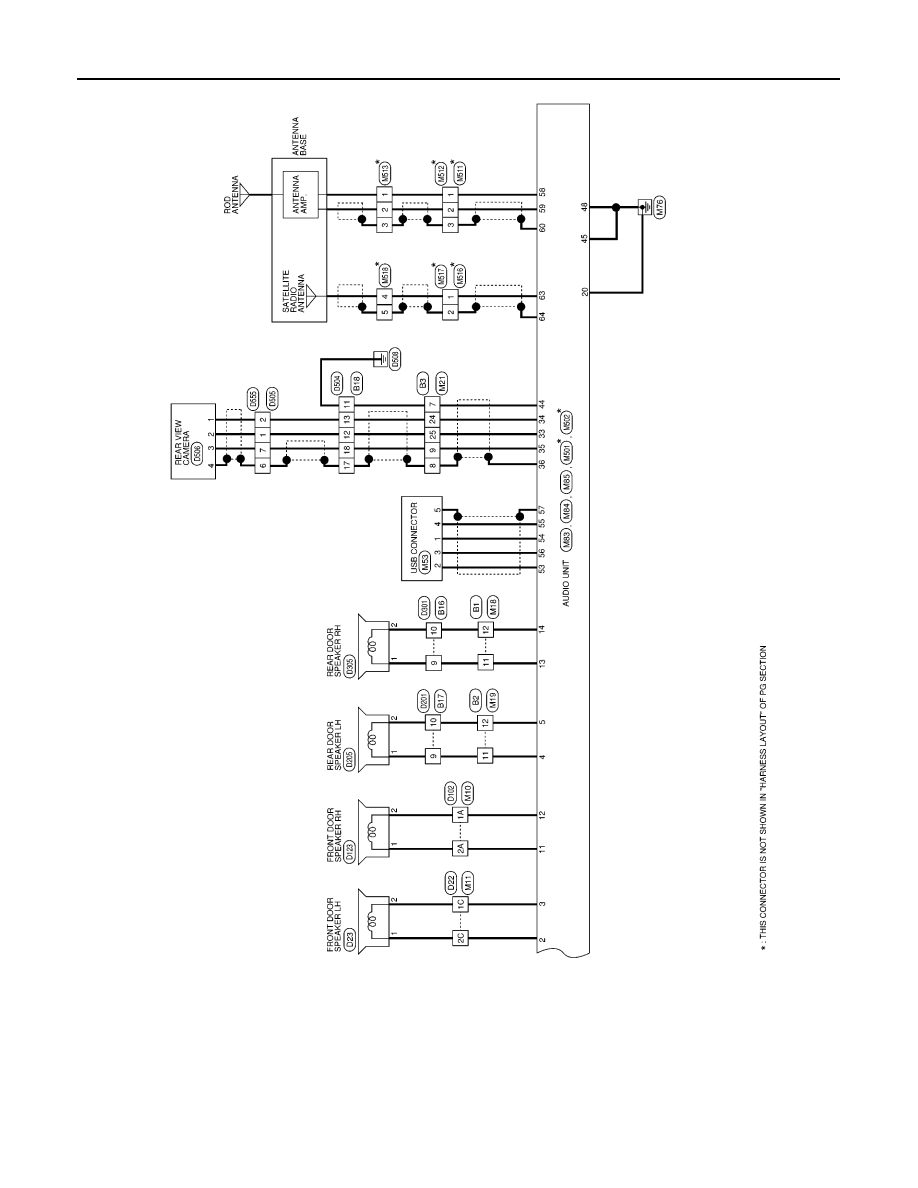

AUDIO W/O NAVI (EXCEPT MEXICO)

AANWA1102GB
