SYSTEM DESCRIPTION

COMPONENT PARTS

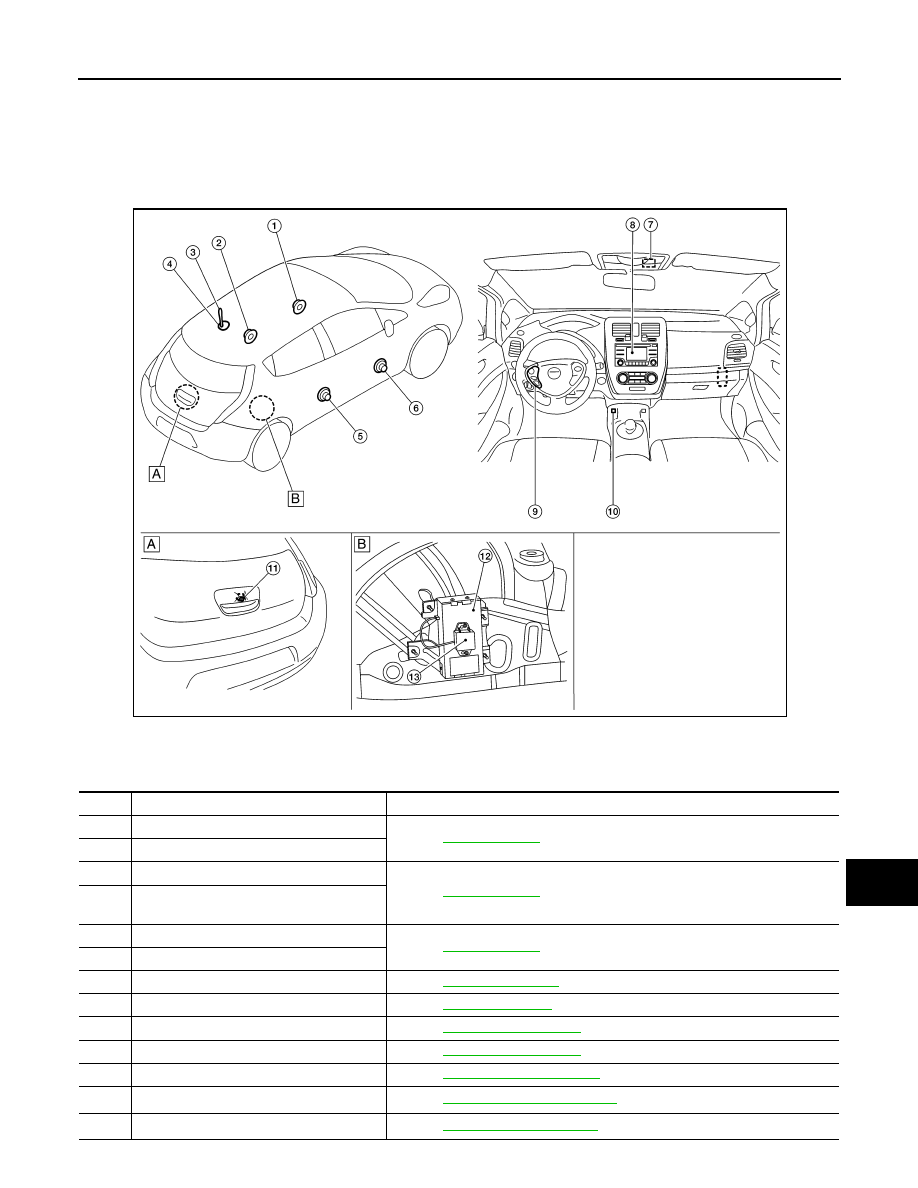

Component Parts Location

INFOID:0000000010122458

AWNIA3015ZZ

A.

Center of back door

B.

Luggage side lower finisher (RH) re-
moved

No.

Component

Function

1.

Front door speaker LH

Refer to

AV-16, "Speaker"

.

2.

Rear door speaker LH

3.

Rod antenna

Refer to

AV-18, "Antenna"

.

4.

Antenna base (antenna amp. and satellite
radio antenna)

5.

Rear door speaker RH

Refer to

AV-16, "Speaker"

.

6.

Front door speaker RH

7.

Microphone

Refer to

AV-17, "Microphone"

.

8.

Audio unit

Refer to

AV-16, "Audio Unit"

.

9.

Steering switch

Refer to

AV-17, "Steering Switch"

.

10.

USB connector

Refer to

AV-17, "USB Connector"

11.

Rear view camera

Refer to

AV-18, "Rear View Camera"

.

12.

Bluetooth

®

 Control Unit

Refer to

AV-16, "Bluetooth Control Unit"

.

13.

Bluetooth

®

 antenna

Refer to

AV-17, "Bluetooth Antenna"

.

AV-16

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

COMPONENT PARTS

Audio Unit

INFOID:0000000010122459

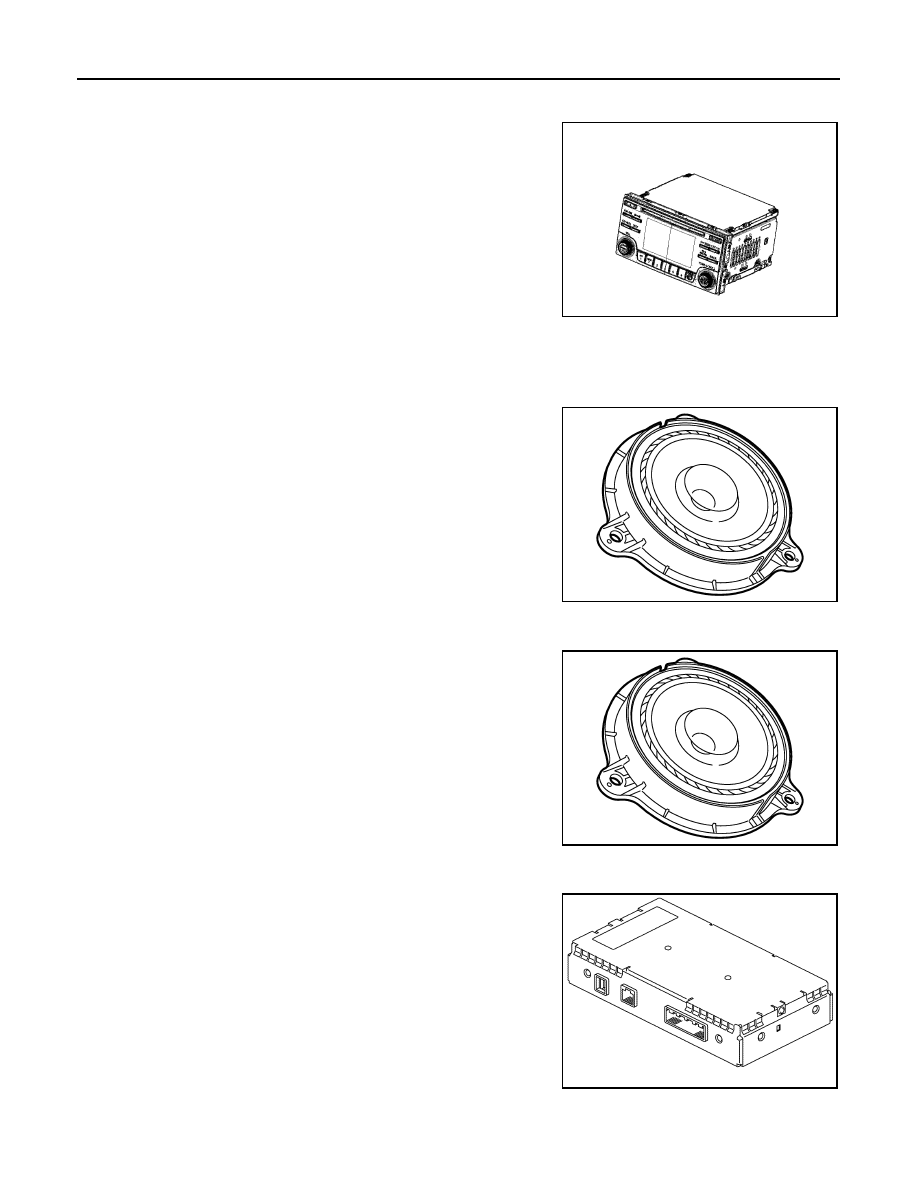

• AM/FM electronic tuner radio, satellite radio tuner, CD drive, auxil-

iary input jack, and camera controller are integrated into the audio

unit.

• The display can show audio status and rear view monitor images.
• Music files stored in iPod

®

/USB memory can be played by using

the separate USB connector.

• Audio played back by external audio equipment is output from the

vehicle speakers via the auxiliary input jack.

Speaker

INFOID:0000000010122460

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in.) speakers are installed in the bottom of the front doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in.) speakers are installed in the bottom of the rear doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

Bluetooth Control Unit

INFOID:0000000010122461

• Inputs the Bluetooth

®

 voice signal from Bluetooth

®

 antenna and

outputs it to the audio unit

• Connected to the audio unit via AV communication and controlled

by the audio unit.

JSNIA4722ZZ

JPNIA1454ZZ

JPNIA1454ZZ

JSNIA4236ZZ

AV

COMPONENT PARTS

AV-17

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Bluetooth Antenna

INFOID:0000000010122462

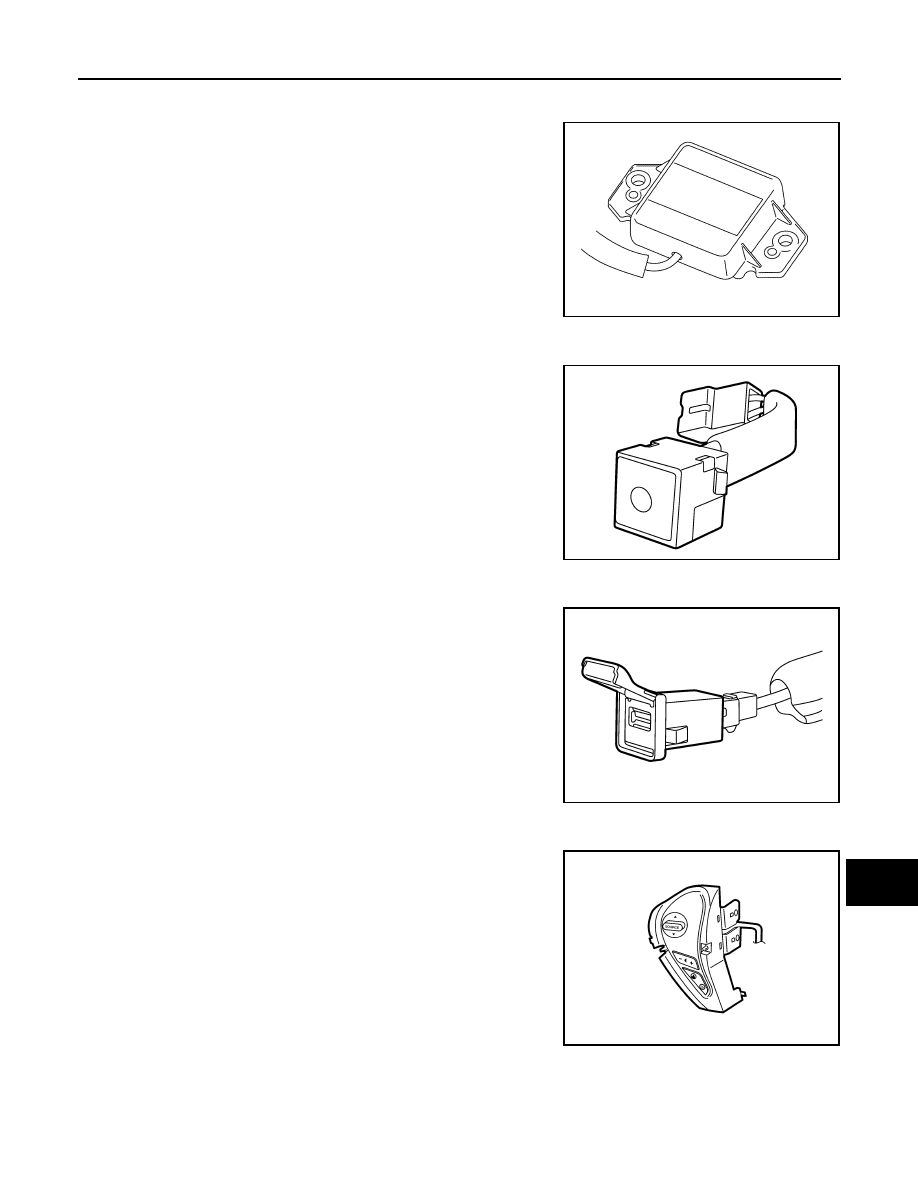

Receives the Bluetooth

®

 voice signal from cellular phone and out-

puts it to the Bluetooth

®

 control unit.

Microphone

INFOID:0000000010122463

• The microphone is installed on the left side of the map lamp

assembly.

• Power is supplied to the microphone from the Bluetooth

®

 control

unit. Sound signals are transmitted to the Bluetooth

®

 control unit

during hands-free phone communication.

USB Connector

INFOID:0000000010122464

• The USB connector is installed in the console.
• An iPod

®

 or USB memory stick can be connected to the audio unit.

Steering Switch

INFOID:0000000010122465

• Operations for audio and hands-free phone are possible.
• The steering switch is connected to the Bluetooth

®

 control unit.

Operation signals are transmitted to the audio unit via the Blue-
tooth

®

 control unit.

JSNIA4237ZZ

JPNIA1448ZZ

JPNIA1447ZZ

AWNIA3466ZZ

AV-18

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

COMPONENT PARTS

Rear View Camera

INFOID:0000000010122466

• The rear view camera is installed in the back door finisher.

• Power for the camera is supplied from the audio unit, and the

image signal at the rear of the vehicle is sent back to the audio

unit.

Antenna

INFOID:0000000010122467

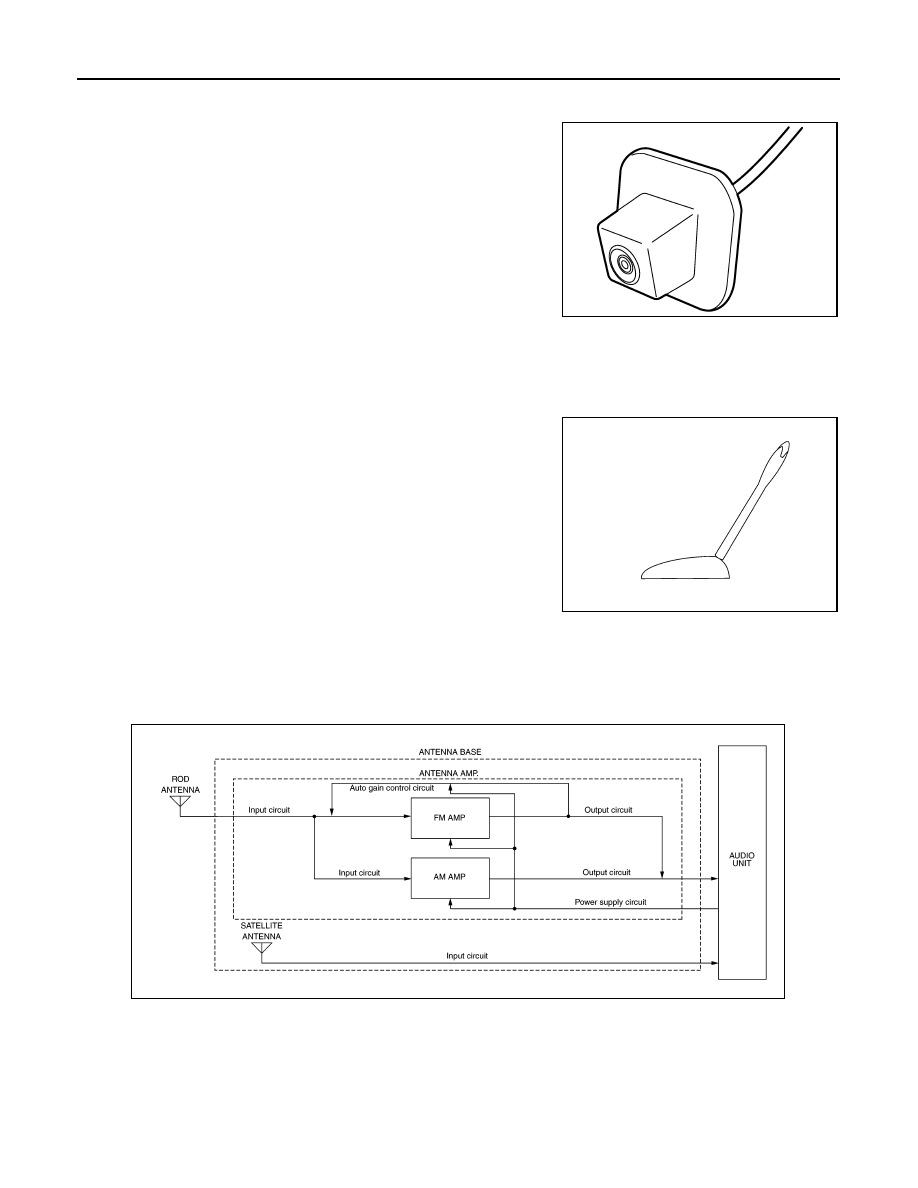

RADIO ANTENNA

Rod Antenna

A rod antenna is installed in the rear center of the roof.

Antenna Base

• An antenna amp. is built into the antenna base.

• Power for the antenna amp. is supplied from the audio unit.

• The radio signals received by the rod antenna are input to the antenna amp. and sent to the audio unit.

• A satellite radio antenna is built into the antenna base.

• Satellite radio signals received by the antenna are sent to the audio unit.

JPNIA1452ZZ

ALNIA1616ZZ

AWNIA3133GB
