ACCELERATOR CONTROL SYSTEM

ACC-5

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

ACC

N

O

P

• Check that the accelerator pedal moves smoothly within the whole

operation range when it is fully depressed and released.

: Front

• Check the accelerator pedal height.

• Check that the accelerator pedal returns to the fully released position.

• For the electrical inspection of accelerator pedal position sensor. Refer to

EVC-213, "Component Inspection

(Accelerator Pedal Position Sensor)"

.

CAUTION:

• Whenever the harness connector of the accelerator pedal position sensor has been disconnected,

perform "Accelerator Pedal Released Position Learning". Refer to

EVC-133, "Work Procedure"

.

• The accelerator pedal should operate smoothly without catching when the pedal operating force is

released. The pedal should return smoothly to the fully raised position. The spring should be free

from damage.

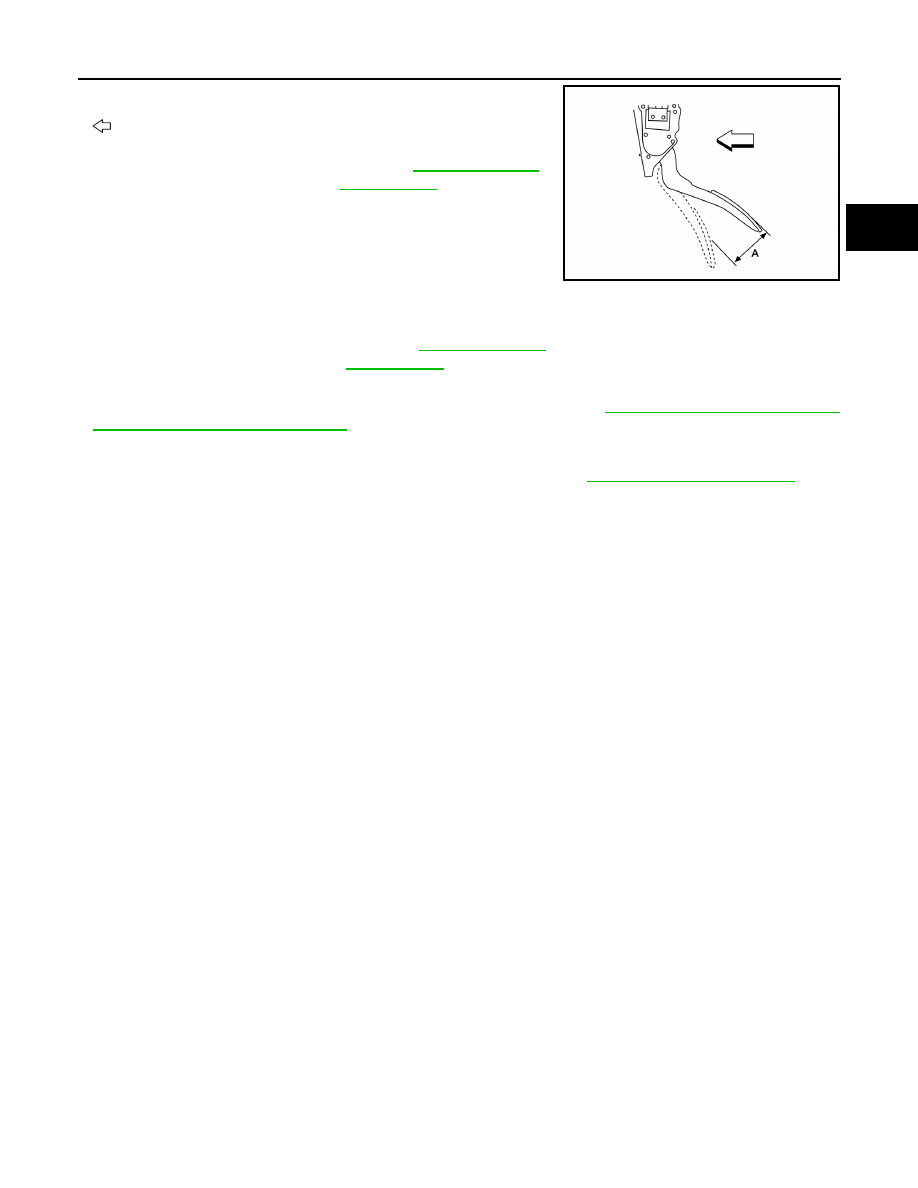

Accelerator pedal stroke
(A)

: Refer to

ACC-6, "Acceler-

ator Control"

ALBIA0798ZZ

Accelerator pedal height

: Refer to

ACC-6, "Acceler-

ator Control"

ACC-6

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Accelerator Control

INFOID:0000000010121555

Unit: mm (in)

: Front

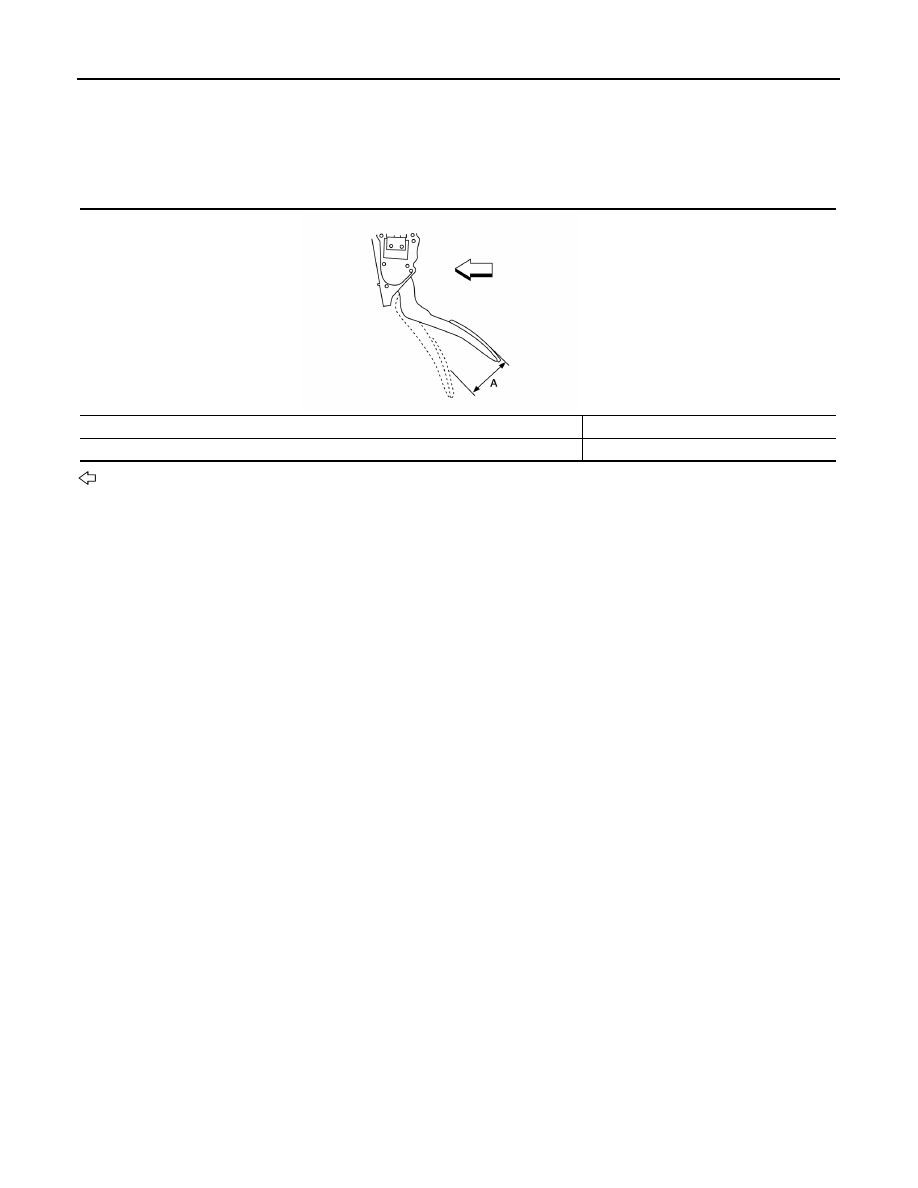

Accelerator pedal stroke (A)

    49.8 - 52.6 (1.96 - 2.07)

Accelerator pedal height

    124.9 +10, -0 (4.92 +0.4, -0)

ALBIA0798ZZ

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

AUDIO W/O NAVI (EXCEPT MEXICO)

PRECAUTION ..............................................

11

PRECAUTIONS ..................................................

11

Precaution for Technicians Using Medical Electric

....

11

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

11

Precaution for Trouble Diagnosis ............................

12

Precaution for Harness Repair ................................

12

Precaution for Removing 12V Battery .....................

12

PREPARATION ...........................................

14

PREPARATION ..................................................

14

Commercial Service Tool  ........................................

14

SYSTEM DESCRIPTION  .............................

15

COMPONENT PARTS  .......................................

15

Component Parts Location ......................................

15

Audio Unit ................................................................

16

Speaker ...................................................................

16

Bluetooth Control Unit  .............................................

16

Bluetooth Antenna ...................................................

17

Microphone .............................................................

17

USB Connector  .......................................................

17

Steering Switch  .......................................................

17

Rear View Camera ..................................................

18

Antenna ...................................................................

18

SYSTEM .............................................................

19

AUDIO UNIT  ..............................................................

19

AUDIO UNIT : System Description  .........................

19

DIAGNOSIS SYSTEM (AUDIO UNIT) ................

22

Description ..............................................................

22

On Board Diagnosis Function  .................................

22

DIAGNOSIS SYSTEM (BLUETOOTH® CON-
TROL UNIT)  ......................................................

27

Diagnosis Description ..............................................

27

Work Flow ................................................................

27

ECU DIAGNOSIS INFORMATION ..............

28

AUDIO UNIT ......................................................

28

Reference Value ......................................................

28

BLUETOOTH® CONTROL UNIT ......................

31

Reference Value ......................................................

31

WIRING DIAGRAM ......................................

33

AUDIO W/O NAVI (EXCEPT MEXICO)  ............

33

Wiring Diagram ........................................................

33

BASIC INSPECTION  ...................................

46

DIAGNOSIS AND REPAIR WORKFLOW  ........

46

Work Flow ................................................................

46

DTC/CIRCUIT DIAGNOSIS  .........................

48

POWER SUPPLY AND GROUND CIRCUIT  ....

48

AUDIO UNIT ...............................................................

48

AUDIO UNIT : Diagnosis Procedure  .......................

48

BLUETOOTH® CONTROL UNIT  ..............................

48

BLUETOOTH® CONTROL UNIT : Diagnosis Pro-
cedure ......................................................................

48

FRONT DOOR SPEAKER  ................................

50

Diagnosis Procedure  ...............................................

50

REAR DOOR SPEAKER  ..................................

52

Diagnosis Procedure  ...............................................

52

CAMERA IMAGE SIGNAL CIRCUIT  ................

54

Diagnosis Procedure  ...............................................

54

BLUETOOTH® VOICE SIGNAL CIRCUIT  .......

56

AV-2

Diagnosis Procedure  ..............................................

56

BLUETOOTH® CONTROL SIGNAL CIRCUIT ...

58

Diagnosis Procedure  ..............................................

58

MICROPHONE SIGNAL CIRCUIT  ....................

59

Diagnosis Procedure  ..............................................

59

STEERING SWITCH ..........................................

61

Diagnosis Procedure  ..............................................

61

USB CONNECTOR ............................................

63

Diagnosis Procedure  ..............................................

63

SYMPTOM DIAGNOSIS  .............................

64

AUDIO SYSTEM  ................................................

64

Symptom Table  ......................................................

64

NORMAL OPERATING CONDITION  ................

67

Description ..............................................................

67

REMOVAL AND INSTALLATION ...............

69

AUDIO UNIT  ......................................................

69

Removal and Installation  ........................................

69

FRONT DOOR SPEAKER .................................

70

Removal and Installation  ........................................

70

REAR DOOR SPEAKER ...................................

71

Removal and Installation  ........................................

71

MICROPHONE ...................................................

72

Removal and Installation  ........................................

72

BLUETOOTH CONTROL UNIT .........................

73

Removal and Installation  ........................................

73

ANTENNA BASE ...............................................

74

Removal and Installation  ........................................

74

STEERING SWITCH ..........................................

75

Exploded View ........................................................

75

Removal and Installation  ........................................

75

USB CONNECTOR ............................................

76

Removal and Installation  ........................................

76

REAR VIEW CAMERA  ......................................

77

Removal and Installation  ........................................

77

AUDIO W/O NAVI (FOR MEXICO)

PRECAUTION .............................................

78

PRECAUTIONS  .................................................

78

Precaution for Technicians Using Medical Electric ...

78

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................
.

78

Precaution for Trouble Diagnosis  ...........................

79

Precaution for Harness Repair  ...............................

79

Precaution for Removing 12V Battery  ....................

79

Cautions in Removing AV Control Unit (Models
with AV Control Unit) ...............................................

80

PREPARATION ..........................................

81

PREPARATION .................................................

81

Commercial Service Tool ........................................

81

SYSTEM DESCRIPTION  ...........................

82

COMPONENT PARTS .......................................

82

Component Parts Location  .....................................

82

AV Control Unit  .......................................................

83

Speaker ...................................................................

84

Radio Antenna and Antenna Feeder  ......................

85

Steering Switch  .......................................................

87

Multifunction Switch  ................................................

87

USB Connector  .......................................................

87

Microphone .............................................................

87

Auxiliary Input Jack  .................................................

88

Around View Monitor Control Unit ...........................

88

Rear View Camera ..................................................

88

Side Camera  ...........................................................

88

Front Camera ..........................................................

89

Steering Angle Sensor  ............................................

89

SYSTEM ............................................................

90

MULTI AV SYSTEM  ..................................................

90

MULTI AV SYSTEM : System Diagram  ..................

90

MULTI AV SYSTEM : System Description ..............

90

MULTI AV SYSTEM : Fail-safe ...............................

97

OPERATION ......................................................

99

Switch name and Function ......................................

99

HANDLING PRECAUTION ..............................

101

Display ..................................................................

101

Audio .....................................................................

101

iPod® ....................................................................

101

USB Connection  ...................................................

102

Hands-Free Phone ................................................

102

SD Card  ................................................................

102

DIAGNOSIS SYSTEM (AV CONTROL UNIT) ..

103

Diagnosis Description  ...........................................

103

On Board Diagnosis Function  ...............................

103

CONSULT Function  ..............................................

110

DIAGNOSIS SYSTEM (AROUND VIEW MON-
ITOR CONTROL UNIT)  ....................................

112

CONSULT Function  ..............................................

112

ECU DIAGNOSIS INFORMATION ............

115

AV CONTROL UNIT  .........................................

115

Reference Value  ...................................................

115

Fail-safe ................................................................

118

DTC Index .............................................................

119

AROUND VIEW MONITOR CONTROL UNIT ..

121

Reference Value  ...................................................

121















Content   ..  1  2  3   ..
