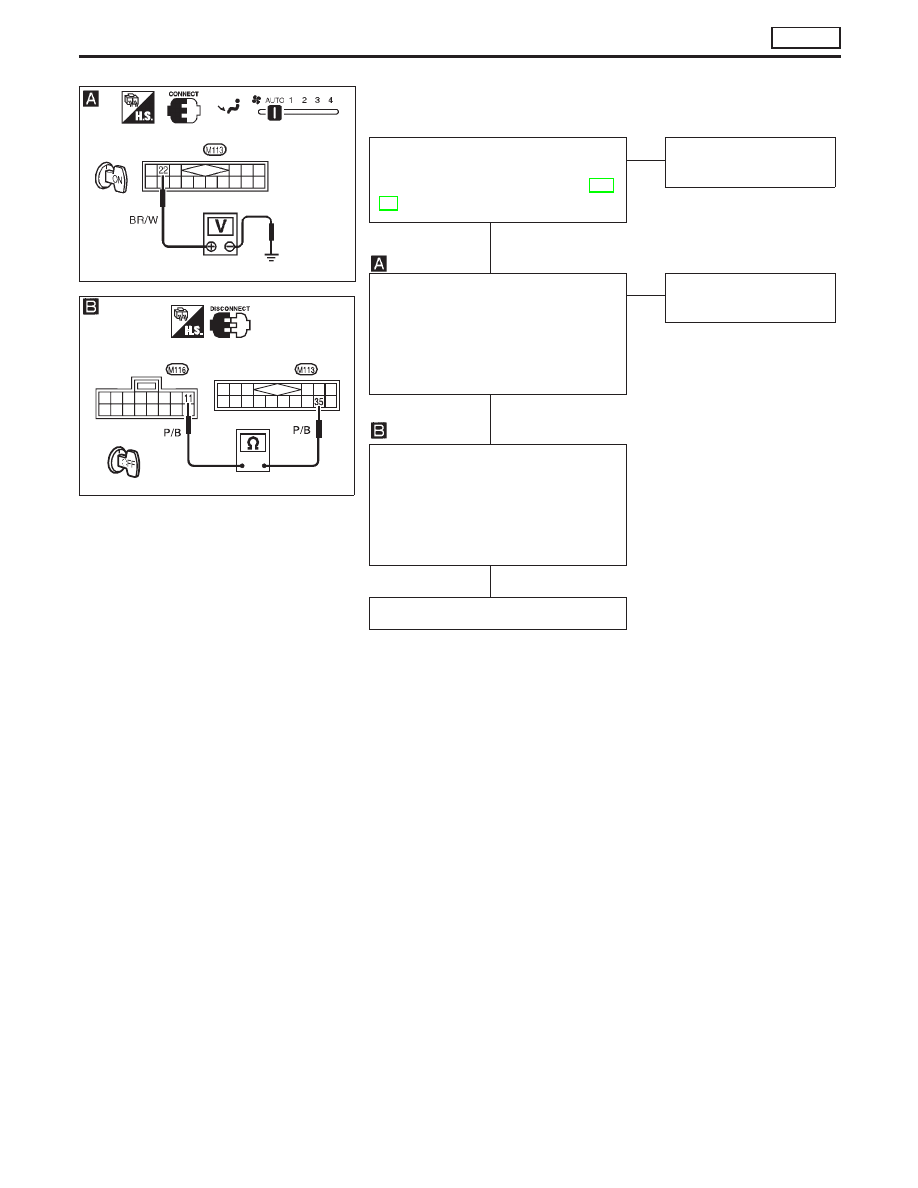

Diagnostic Procedure 5

SYMPTOM: Starting fan speed control does not operate.

CHECK THERMAL TRANSMITTER
CIRCUIT.
Go to Diagnostic Procedure 14. (HA-
77)

OK

E

NG

Replace engine thermal
transmitter.

CHECK A/C CONTROL PANEL
OPERATION
Do approx.

12V

exist between A/C

control panel harness terminal

p

22

and

body ground when water temp. is
below 56°C (133°F)?

NG

E

NG

Replace A/C control
panel

Note

Disconnect auto amp. and A/C control
panel harness connector.
Check circuit continuity between auto
amp. harness terminal No.

p

11

and

A/C control panel harness terminal No.

p

35

.

OK

Replace auto amp.

Note:
If the result is NG or No after checking circuit continuity, repair harness or
connector.

NHA451

A/C control panel
connector

YHA259

Auto amp.
connector

A/C control panel
connector

H

H

H

TROUBLE DIAGNOSES

AUTO

HA-65

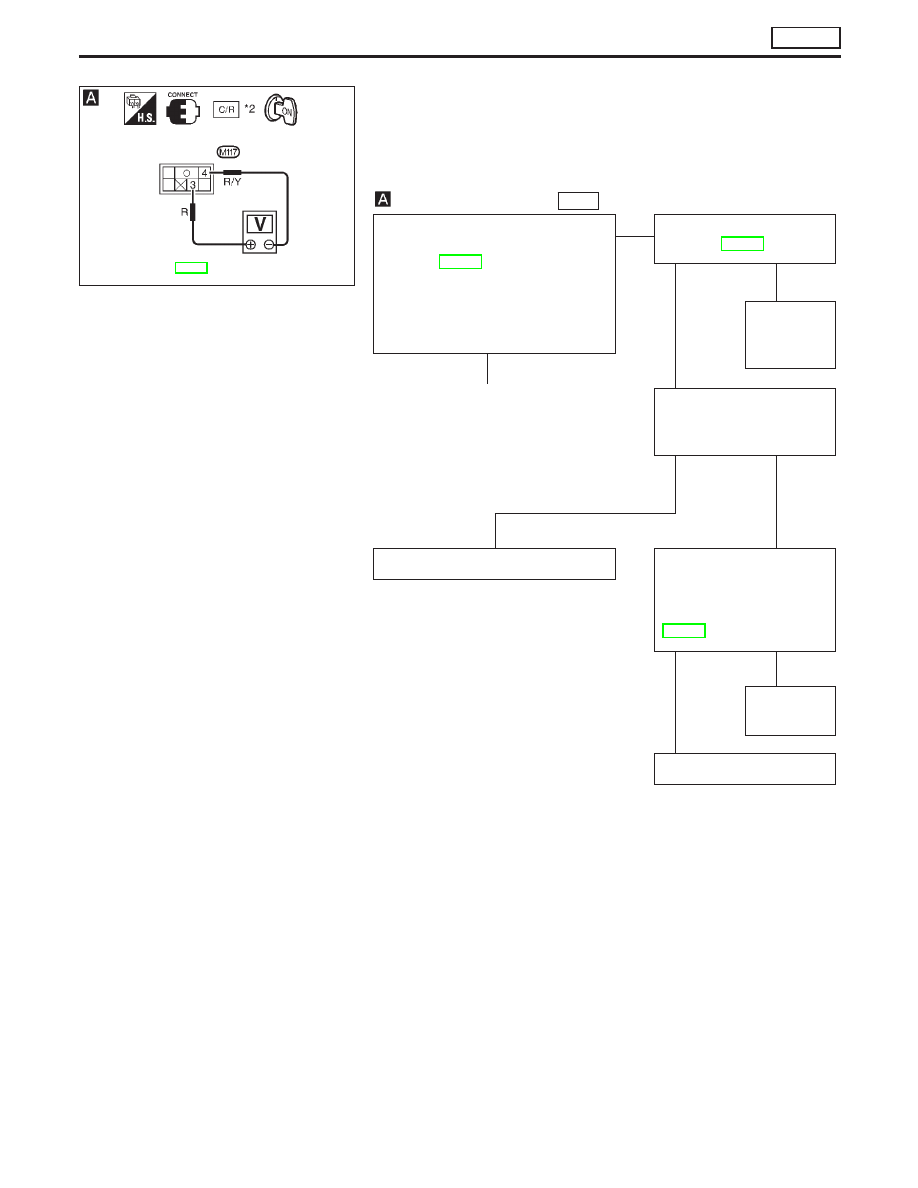

Diagnostic Procedure 6

SYMPTOM: There is too much difference between setting

temp. on PTC and in-vehicle temperature.

Perform PRELIMINARY CHECK 2 before referring to the
following flow chart.

C/R

*2

CHECK PBR.
Connect checking resistor.
(Refer to HA-30.)
Do approx.

5 volts

exist between air

mix door motor harness terminal No.

p

4

and

p

3

when PTC is set at

25°C (77°F)?

OK

E

NG

CHECK PTC.
(Refer to HA-84.)

OK

NG

Replace
A/C control
panel.

p

A

(Go to next page.)

CHECK PBR.
Refer to Inspection of Sen-
sor.

OK

NG

Replace auto amp.

CHECK AIR MIX DOOR
MECHANISM.
Refer to Control Linkage
Adjustment. (Refer to
HA-83.)

OK

NG

Repair or
adjust.

Replace AIR MIX MOTOR.

RHA963G

Air mix door motor con-
nector

Checking resistor
Refer to pageHA-30.

H

H

H

H

H

H

H

TROUBLE DIAGNOSES

AUTO

HA-66

p

A

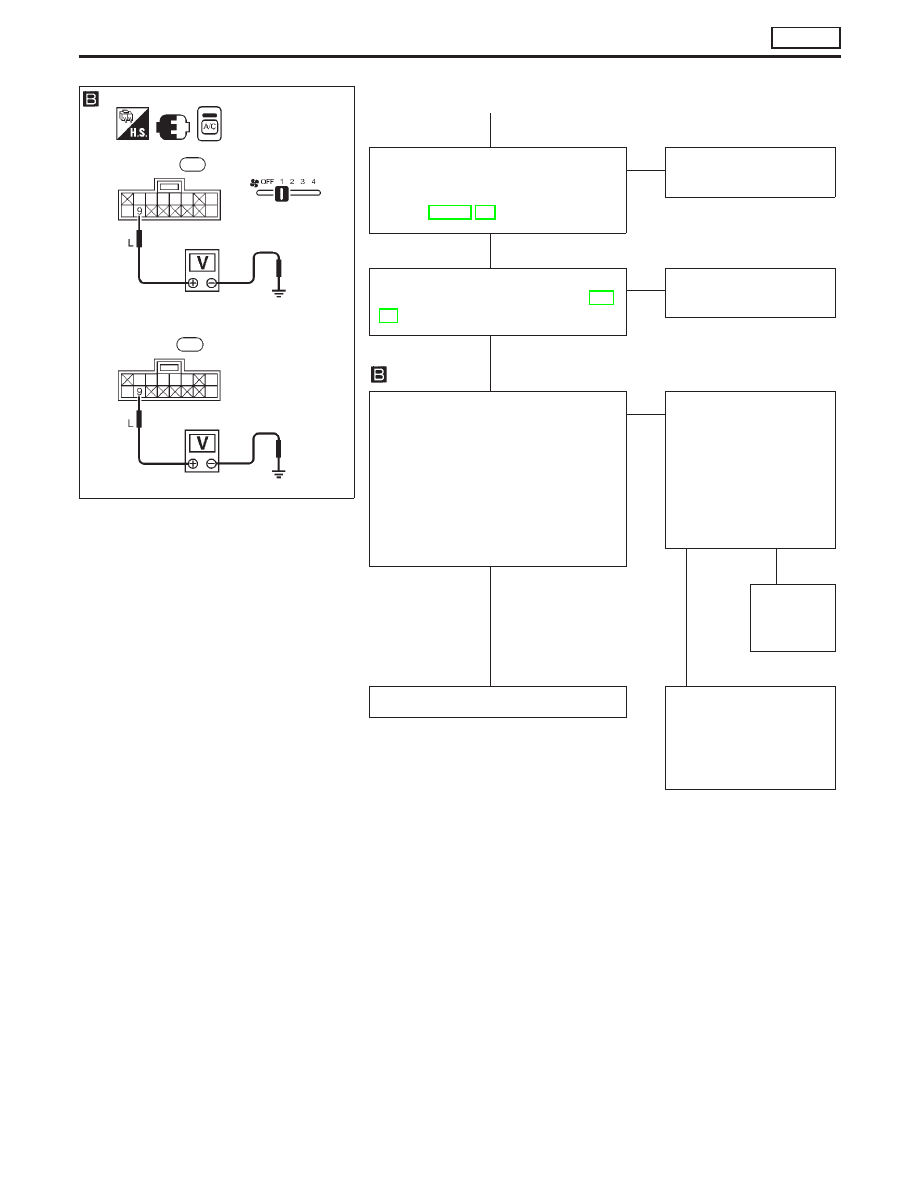

CHECK IN-VEHICLE SENSOR AND
AMBIENT SENSOR.
(Refer to Control System Input Compo-
nents.) (HA-85, 86)

OK

E

NG

Replace in-vehicle sen-
sor or ambient sensor.

CHECK SUNLOAD SENSOR.
Go to Diagnostic Procedure 13. (HA-
76)

OK

E

NG

Replace sunload sensor
or auto amp.

CHECK AUTO AMP. OPERATION.
Do approx.

0.5 volts

exist between

auto amp. harness terminal No.

p

9

and body ground when A/C switch
is ON?
Do approx. 0 volts exist between
auto amp. harness terminal No.

p

9

and body ground when A/C switch
is OFF?

OK

E

NG

CHECK A/C CONTROL
PANEL OPERATION.
Do approx.

0.5 volts

exist between A/C con-
trol panel connector ter-
minal No.

p

29

and body

ground when A/C switch
is ON?

OK

NG

Replace
A/C con-
trol panel

Replace auto amp.

Note

Check circuit continuity
between A/C control
panel harness terminal

p

29

and Auto amp. har-

ness terminal

p

9

Note:
If the result is NG or No after checking circuit continuity, repair harness or
connector.

RHA037H

CONNECT

Auto amp.
connector

M421

Auto amp.
connector M421

H

H

H

H

H

H

H

TROUBLE DIAGNOSES

AUTO

Diagnostic Procedure 6 (Cont’d)

HA-67

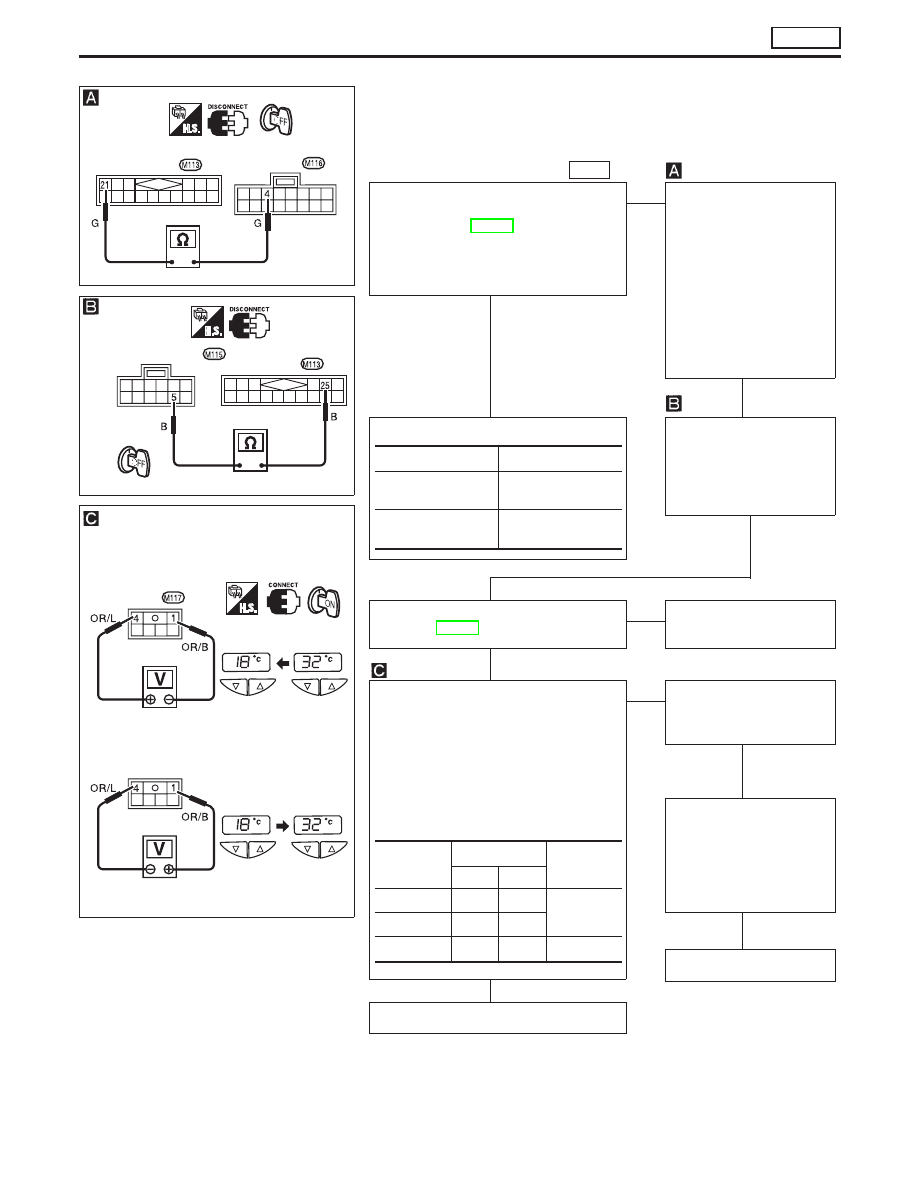

Diagnostic Procedure 7

SYMPTOM: Air mix door motor does not operate normally.

Perform PRELIMINARY CHECK 2 before referring to the
following flow chart.

C/R

*2

Note

CHECK AUTO AMP. AND PTC.
Connect checking resistor.
(Refer to page HA-30.)
Does air outlet temperature change
when you move PTC from 20°C (68°F)
to 30°C (86°F)?

OK

E

NG

CHECK PTC CIRCUIT
BETWEEN PTC AND
AUTO AMP.
Disconnect control panel
and auto amp. harness
connectors.
Check circuit continuity
between control panel
harness terminal No.

p

21

and auto amp. har-

ness terminal No.

p

4

.

OK

CHECK SENSOR CIRCUIT.

Note

Check circuit continuity
between control panel
harness terminal No.

p

25

and auto amp. har-

ness terminal No.

p

5

.

OK

CHECK PTC.
(Refer to HA-84.)

OK

E

NG

Replace A/C control
panel.

CHECK FOR OUTPUT OF AUTO
AMP.
Connect checking resistor.
Do approx. 10.5 volts exist between air
mix door motor harness terminals No.

p

4

and

p

1

when you move PTC

from 18°C (64°F) to 32°C (90°F) or
when you move PTC from 32°C (90°F)
to 18°C (64°F)?

OK

E

NG

Disconnect auto amp.
and air mix door motor
harness connectors.

Note

Check circuit continuity
between auto amp. har-
ness terminal No.

p

12

(

p

13

) and air mix door

motor harness terminal
No.

p

1

(

p

4

).

OK

Replace auto amp.

Replace air mix door motor.

Note:
If the result is NG or No after checking circuit continuity, repair harness or
connector.

How to repair

Ambient sensor
circuit

Go to Diagnostic

Procedure 11.

In-vehicle sensor
circuit

Go to Diagnostic

Procedure 12.

Air mix door

operation

Terminal No.

Voltage

p

1

p

4

Cold

,

Hot

!

@

Approx.

10.5V

Hot

,

Cold

@

!

Stop

0V

YHA262

Control panel
connector

Auto amp.
connector

YHA263

Auto amp.
connector

Control panel
connector

NHA303

Air mix door motor
connector

H

H

H

H

H

H

H

TROUBLE DIAGNOSES

AUTO

HA-68
