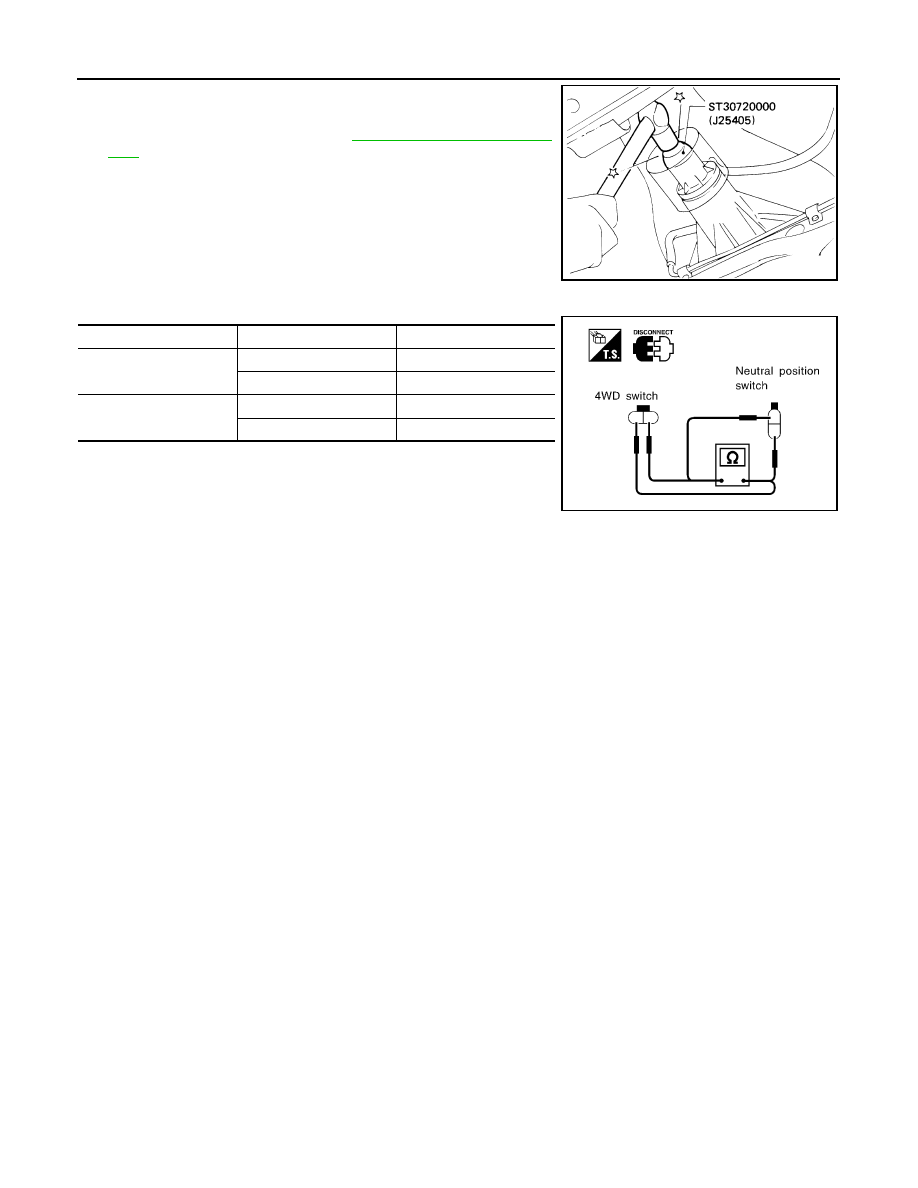

TF-10

ON-VEHICLE SERVICE

3.

Install rear oil seal using Tool, as shown.

●

Before installing apply multi-purpose grease to seal lip.

4.

Install rear propeller shaft. Refer to

PR-8, "Removal and Installa-

tion"

 .

Position Switch Check

EDS0011C

SMT494A

Switch

Gear Position

Continuity

4WD Switch

4WD

Yes

Except 4WD

No

Neutral Position Switch

Neutral

No

Except Neutral

Yes

SMT790CA

REMOVAL AND INSTALLATION

TF-11

C

E

F

G

H

I

J

K

L

M

A

B

TF

REMOVAL AND INSTALLATION

PFP:00000

Removal

EDS0011D

1.

Drain fluid from transfer. Refer to

MA-38, "Changing Transfer Fluid"

 .

2.

Drain fluid from transmission. Refer to

MA-36, "Changing M/T Oil"

  or

MA-38, "Changing A/T Fluid"

 .

3.

Remove front and rear propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

●

Insert plug into rear oil seal after removing propeller shaft.

CAUTION:

Be careful not to damage spline, sleeve yoke and rear oil seal, when removing propeller shaft.

4.

Remove torsion bar spring. Refer to

FSU-17, "TORSION BAR SPRING"

 .

5.

Remove second crossmember.

6.

Remove exhaust front and rear tubes. Refer to

EX-3, "EXHAUST SYSTEM"

 .

7.

Disconnect vehicle speed sensor, transfer neutral position switch and 4WD switch harness connectors.

8.

Remove air breather hose.

9.

Remove transfer control lever from transfer outer shift lever.

10. Separate transfer from transmission.

WARNING:

Support transfer while removing it.

Installation

EDS0011E

1.

Installation is in the reverse order of removal, noting the following:

a.

Apply sealant to mating surface to transmission. (M/T model
only)

●

Use Genuine Anaerobic Liquid Gasket or equivalent.
Refer to

GI-42, "RECOMMENDED CHEMICAL PRODUCTS

AND SEALANTS"

 .

b.

Tighten bolts securing transfer.

M/T MODEL

A/T MODEL

c.

Adjust the torsion bars for the correct vehicle height. Refer to

FSU-18, "Installation and Adjustment"

 .

d.

When installing transfer control lever, refer to

TF-12, "Transfer Gear Control"

 .

ATF007

SMT495A

Bolt No.

Tightening torque

N·m (kg-m, ft-lb)

Length "

"

mm (in)

1

31 - 42 (3.2 - 4.3, 23 - 31)

60 (2.36)

2

31 - 42 (3.2 - 4.3, 23 - 31)

45 (1.77)

Bolt No.

Tightening torque

N·m (kg-m, ft-lb)

Length "

"

mm (in)

1

31 - 42 (3.2 - 4.3, 23 - 31)

45 (1.77)

2

31 - 42 (3.2 - 4.3, 23 - 31)

45 (1.77)

WTF004

TF-12

OVERHAUL

OVERHAUL

PFP:00000

Transfer Gear Control

EDS0011F

ATF022

OVERHAUL

TF-13

C

E

F

G

H

I

J

K

L

M

A

B

TF

Case Components

EDS0011G

WDIA0021E
