Nissan Frontier D22. Manual - part 907





SC-36

CHARGING SYSTEM

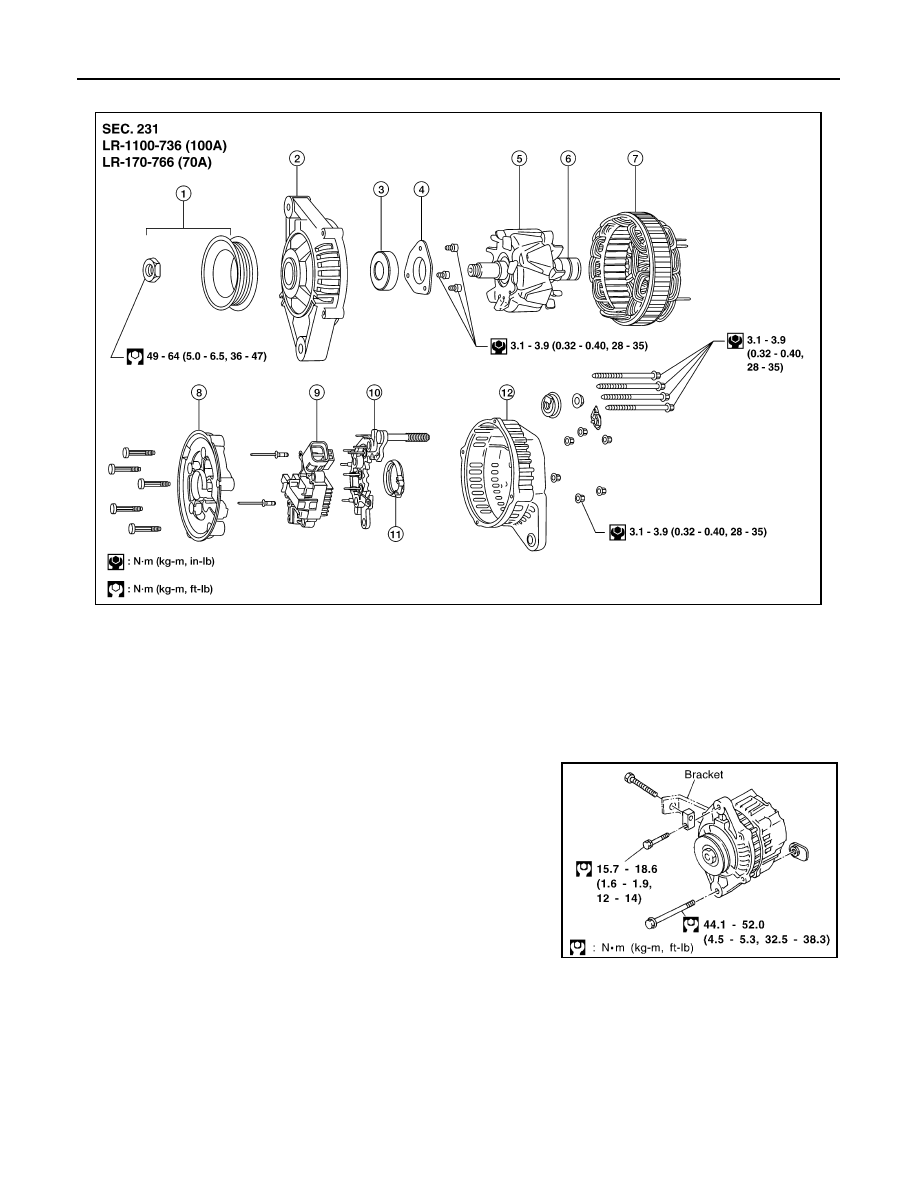

Construction

EKS006UY

Removal and Installation

EKS006UZ

KA24DE MODELS
Removal

1.

Remove engine undercover.

2.

Remove RH side splash shield.

3.

Disconnect harness connectors.

4.

Loosen adjustment bolt and remove belt.

5.

Remove two generator bolts and generator.

Installation

To install, reverse the removal procedure.

1.

Pulley assembly

2.

Front cover

3.

Front bearing

4.

Retainer

5.

Rotor

6.

Slip ring

7.

Stator

8.

Fan guide

9.

IC regulator assembly

10. Diode assembly

11. Packing

12. Rear cover

WKIA1652E

AEL676B

CHARGING SYSTEM

SC-37

C

D

E

F

G

H

I

J

L

M

A

B

SC

VG33E AND VG33ER MODELS
Removal

1.

Disconnect harness connectors.

2.

Remove engine undercover.

3.

Loosen adjustment bolt and remove belt.

4.

Remove three generator bolts and generator.

Installation

To install, reverse the removal procedure.

ASC012

SC-38

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Battery

EKS006V0

Starter

EKS006V1

Generator

EKS006V2

Applied area

USA

Canada

Type

55D23R

65D26R

Capacity

V-AH

12-60

12-65

Cold cranking current

A

(For reference value)

356

413

Engine

KA24DE

VG33E and VG33ER

Type

M000T87381ZC

M000T87481ZC

MITSUBISHI make

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11.0V

Current

Less than 90A

Revolution

More than 2,500 rpm

Minimum diameter of commutator

28.8 mm (1.134 in)

Minimum length of brush

7.0 mm (0.276 in)

Brush spring tension

5.8 - 21.6 N (0.59 - 2.20 kg, 1.30 - 4.86 lb)

Clearance of bearing metal and armature shaft

Less than 0.2 mm (0.008 in)

Clearance between pinion front edge and pinion
stopper

0.5 - 2.0 mm (0.02 - 0.079 in)

Type

LR-1100-736

LR-170-766

Nominal rating

12V - 100A

12V - 70A

Ground polarity

Negative

Negative

Minimum revolution under no-load (When
13.5 volts are applied)

Less than 1,000

Less than 1,000

Hot output current (When 13.5 volts are
applied)

More than 24A/1,300 rpm
More than 71A/2,500 rpm
More than 98A/5,000 rpm

More than 17A/1,300 rpm
More than 54A/2,500 rpm
More than 72A/5,000 rpm

Regulated output voltage

14.1 - 14.7V

14.1 - 14.7V

Minimum length of brush

6.0 mm (0.236 in)

6.0 mm (0.236 in)

Brush spring pressure

1.000 - 2.452 N (102 - 250 g, 3.60 - 8.82

oz)

1.000 - 2.452 N (102 - 250 g, 3.60 - 8.82

oz)

Slip ring minimum outer diameter

26.0 mm (1.024 in)

26.0 mm (1.024 in)

Rotor (Field coil) resistance

2.7

Ω

2.6

Ω
