RSU-6

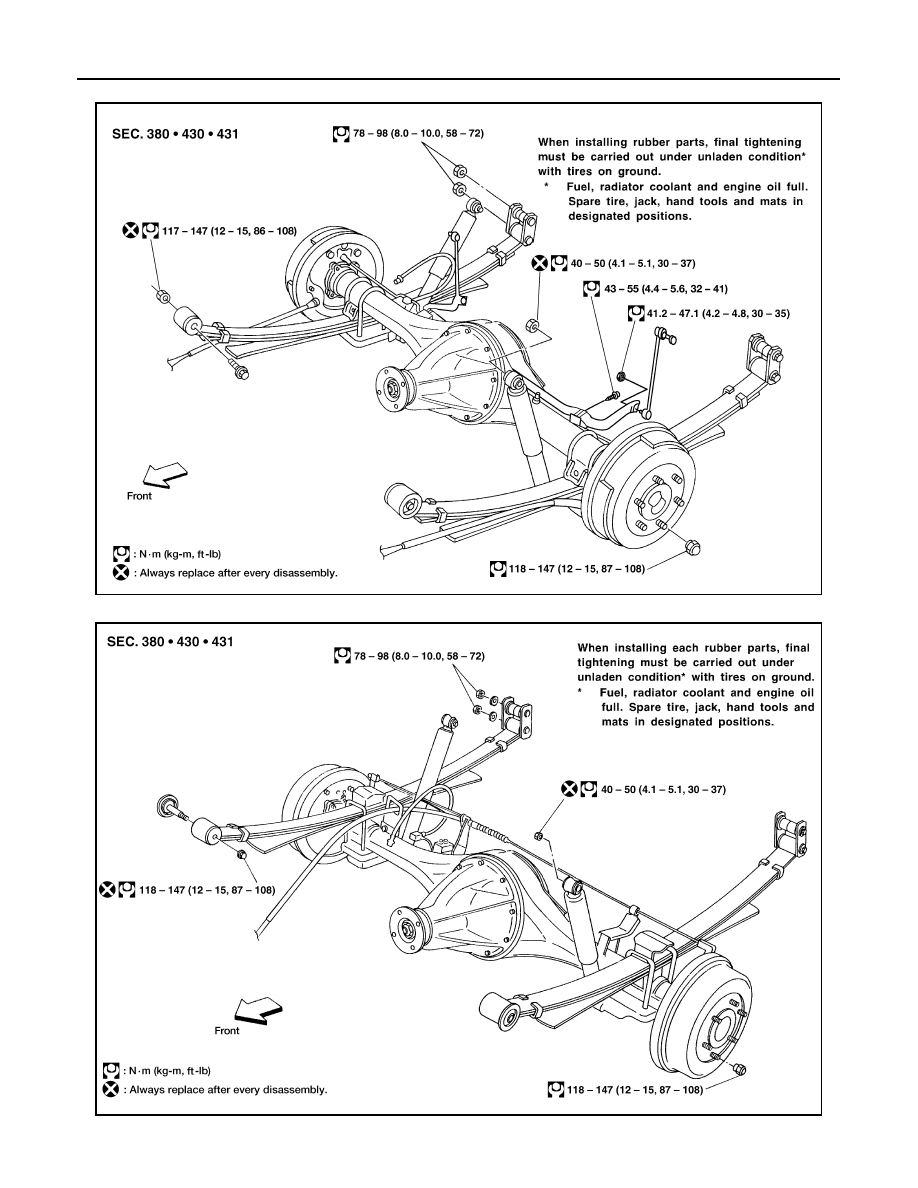

REAR SUSPENSION ASSEMBLY

2WD VG33E AND VG33ER MODEL

4WD MODEL

LEIA0021E

LEIA0022E

ON-VEHICLE SERVICE

RSU-7

C

D

F

G

H

I

J

K

L

M

A

B

RSU

ON-VEHICLE SERVICE

PFP:00000

Component

EES000XF

Rear Suspension

CAUTION:

When installing the rubber components, the final tightening of the nuts and bolts must be done with
the vehicle in an unladen condition (the fuel, engine coolant, and engine oil at full; the spare tire, jack,
hand tools and mats in their designated positions) with the tires on the ground.

NOTE:
The early production rear spring clip U-bolt is a fine thread with a washer and nut. The late production rear
spring clip U-bolt is a coarse thread with a self-locking flange nut, a new flange nut must be used for installa-
tion.

Rear Suspension Parts

EES000XG

Check the rear suspension parts for any excessive play, cracks, wear, and other damage.

WEIA0024E

1.

Bumper

2.

Rear spring shackle

3.

Rear spring plate

4.

Rear spring bushing

5.

Rear leaf spring

6.

Shock absorber

7.

Rear spring pad

8.

Rear spring front bolt

9.

Rear spring bushing

10. Rear spring clip U-bolt

11.

Shock absorber (right side)

12. Shock absorber (left side)

13. Nut (and washer if equipped)

RSU-8

ON-VEHICLE SERVICE

Shake each rear wheel to check for any excessive play as
shown.

Tighten all of the nuts and bolts to the specified torque.
Refer to

RSU-7, "Component"

 .

CAUTION:

When installing the rubber components, the final tightening
of the nuts and bolts must be done with the vehicle in an
unladen condition (the fuel, engine coolant, and engine oil
at full; the spare tire, jack, hand tools and mats in their des-
ignated positions) with the tires on the ground.

Check the shock absorber for oil leakage and other damage as
shown.

Check the shock absorber bushings for excessive wear and other damage.

SMA525A

ASU031

SRA734

SHOCK ABSORBER

RSU-9

C

D

F

G

H

I

J

K

L

M

A

B

RSU

SHOCK ABSORBER

PFP:56210

Removal and Installation

EES000XH

1.

Remove shock absorber by disconnecting upper and lower end.

2.

 Install in the reverse order of removal.

Inspection

EES000XI

If oil leakage, cracks and deformation occurs, replace shock absorber assembly.

If rubber bushings are cracked and deformed, replace rubber bushings.

Refer to

FSU-5, "Components"
