PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

PFP:37000

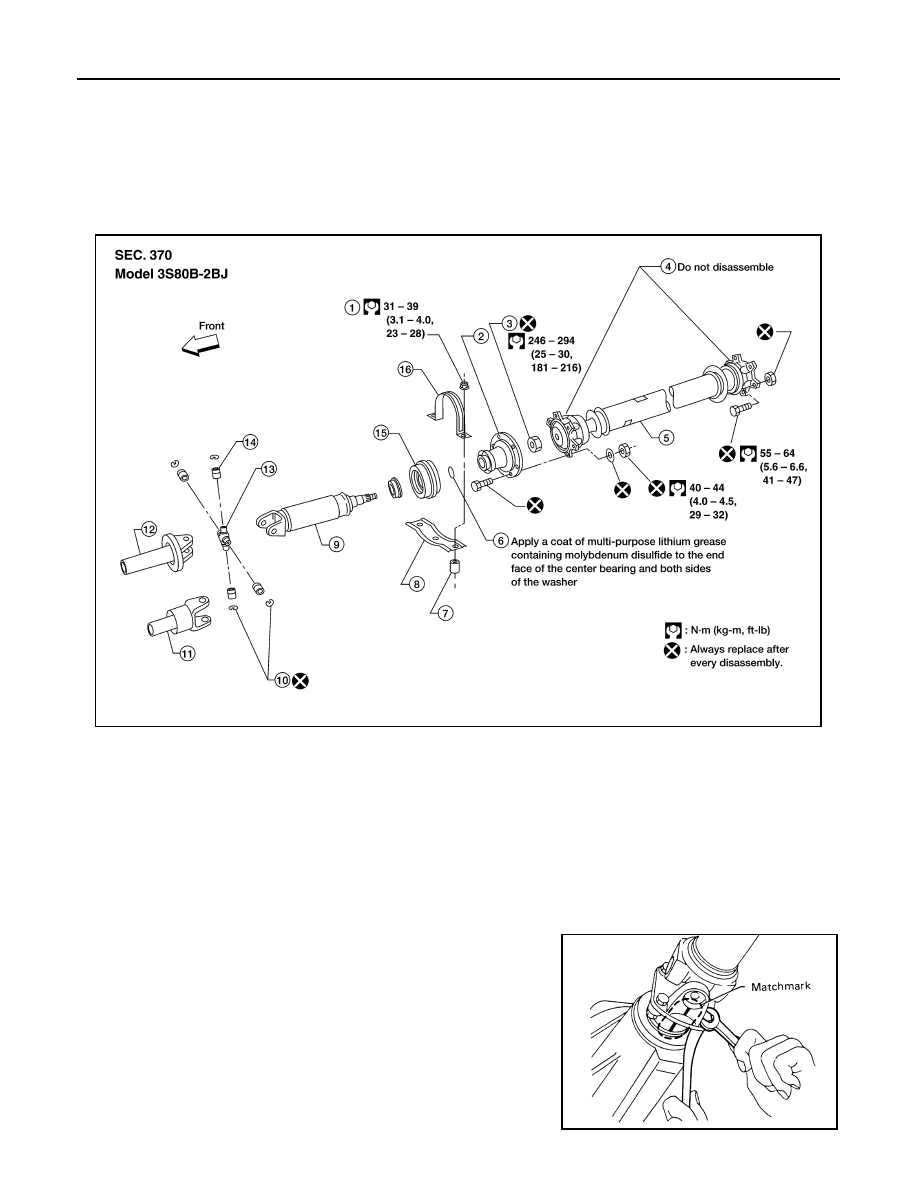

Components

EDS00123

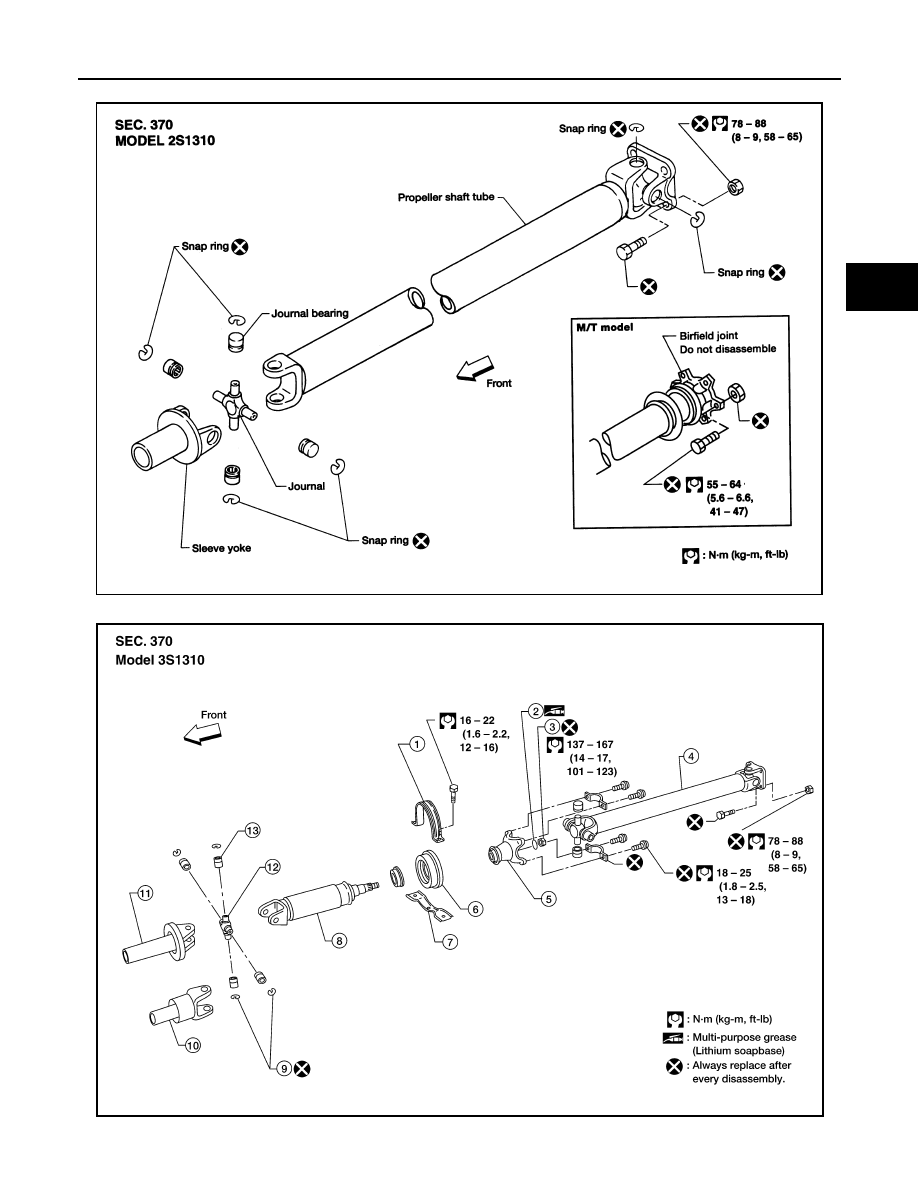

FRONT PROPELLER SHAFT

WPD016

PROPELLER SHAFT ASSEMBLY

PR-7

C

E

F

G

H

I

J

K

L

M

A

B

PR

REAR PROPELLER SHAFT

WPD005

LDIA0023E

PR-8

PROPELLER SHAFT ASSEMBLY

Removal and Installation

EDS00124

1.

Put match marks on flanges and separate propeller shaft from
final drive.

1.

Center bearing upper mounting
bracket

2.

Washer

3.

Lock nut

4.

Propeller shaft 2nd tube

5.

Companion flange

6.

Center bearing assembly

7.

Center bearing lower mounting
bracket

8.

Propeller shaft 1st tube

9.

Snap ring

10

Sleeve yoke (A/T)

11.

Sleeve yoke (M/T)

12. Journal

13. Journal bearing

1.

Lock nut

2.

Companion flange

3.

Lock nut

4.

Birfield joint

5.

Propeller shaft second tube

6.

Washer

7.

Spacer

8.

Center bearing lower mounting
bracket

9.

Propeller shaft first tube

10

Snap ring

11.

Sleeve yoke (A/T)

12. Sleeve yoke (M/T)

13. Journal

14. Journal bearing

15. Center bearing assembly

16. Center bearing upper mounting

bracket

LDIA0024E

SPD103

PROPELLER SHAFT ASSEMBLY

PR-9

C

E

F

G

H

I

J

K

L

M

A

B

PR

2.

Remove propeller shaft.
Insert plug into rear oil seal after removing rear propeller
shaft.

Inspection

EDS00125

●

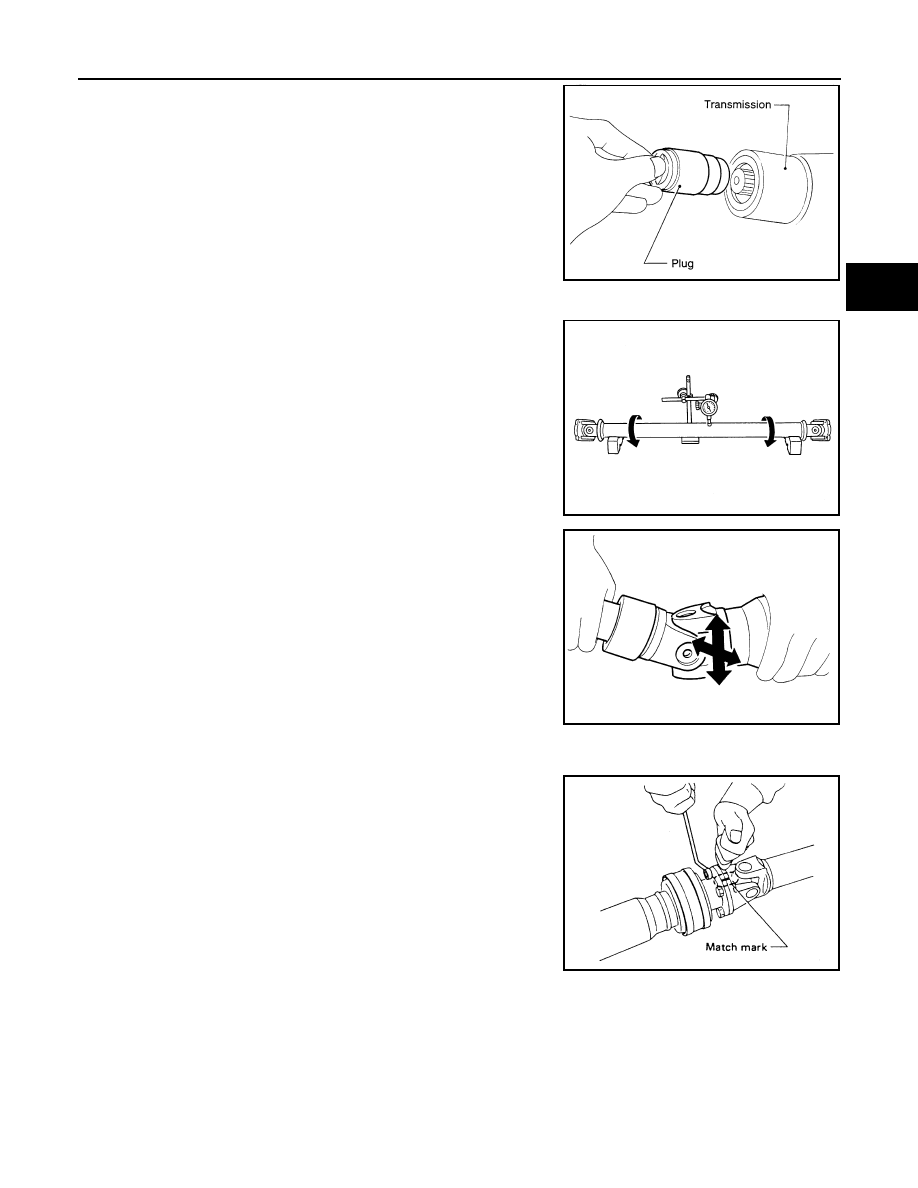

Inspect propeller shaft runout. If runout exceeds specifications,
replace propeller shaft assembly.

●

If the play exceeds specifications, replace propeller shaft
assembly.

Disassembly

EDS00126

CENTER BEARING

1.

Put match marks on flanges, and separate 2nd tube from 1st
tube.

SPD359

Runout limit

: 0.6 mm (0.024 in)

SPD106

Journal axial
play

: 0.02 mm (0.0008 in) or less

SPD874

SPD109
