PG-60

HARNESS LAYOUT

 VSSMTR

AT

 Vehicle Speed Sensor Meter

 WARN

DI

 Warning Lamps

 WINDOW

GW

 Power Window

 WIPER

WW

 Front Wiper and Washer

SUPER MULTIPLE JUNCTION (SMJ)

PG-61

C

D

E

F

G

H

I

J

L

M

A

B

PG

SUPER MULTIPLE JUNCTION (SMJ)

PFP:84341

Installation

EKS006YE

Securely fit and lock SMJ connectors. Tighten harness bracket bolt
to the specified torque.

: 3 - 5 N·m (0.3 - 0.5 kg-m,
26 - 43 in-lb)

LKIA0126E

PG-62

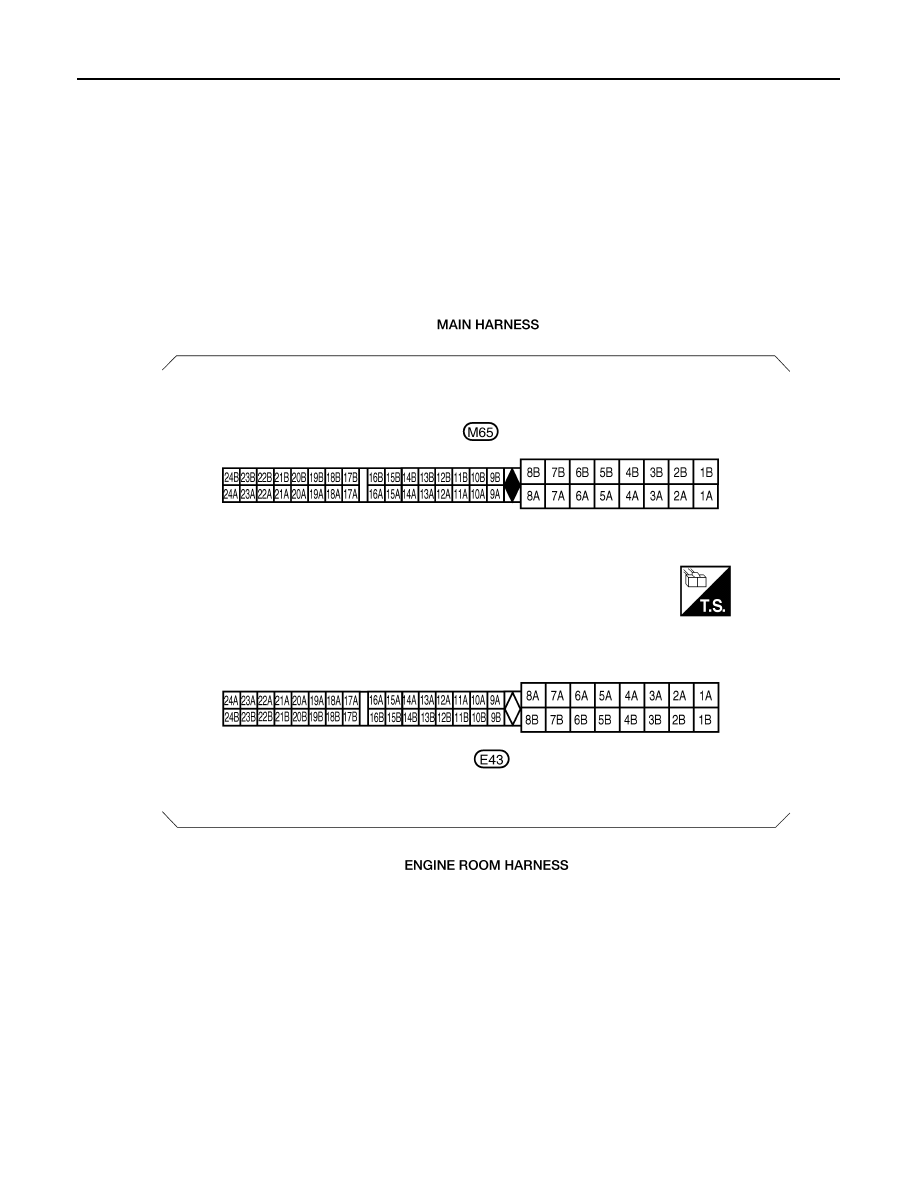

SUPER MULTIPLE JUNCTION (SMJ)

Terminal Arrangement

EKS006YF

AEL646B

FUSE BLOCK — JUNCTION BOX (J/B)

PG-63

C

D

E

F

G

H

I

J

L

M

A

B

PG

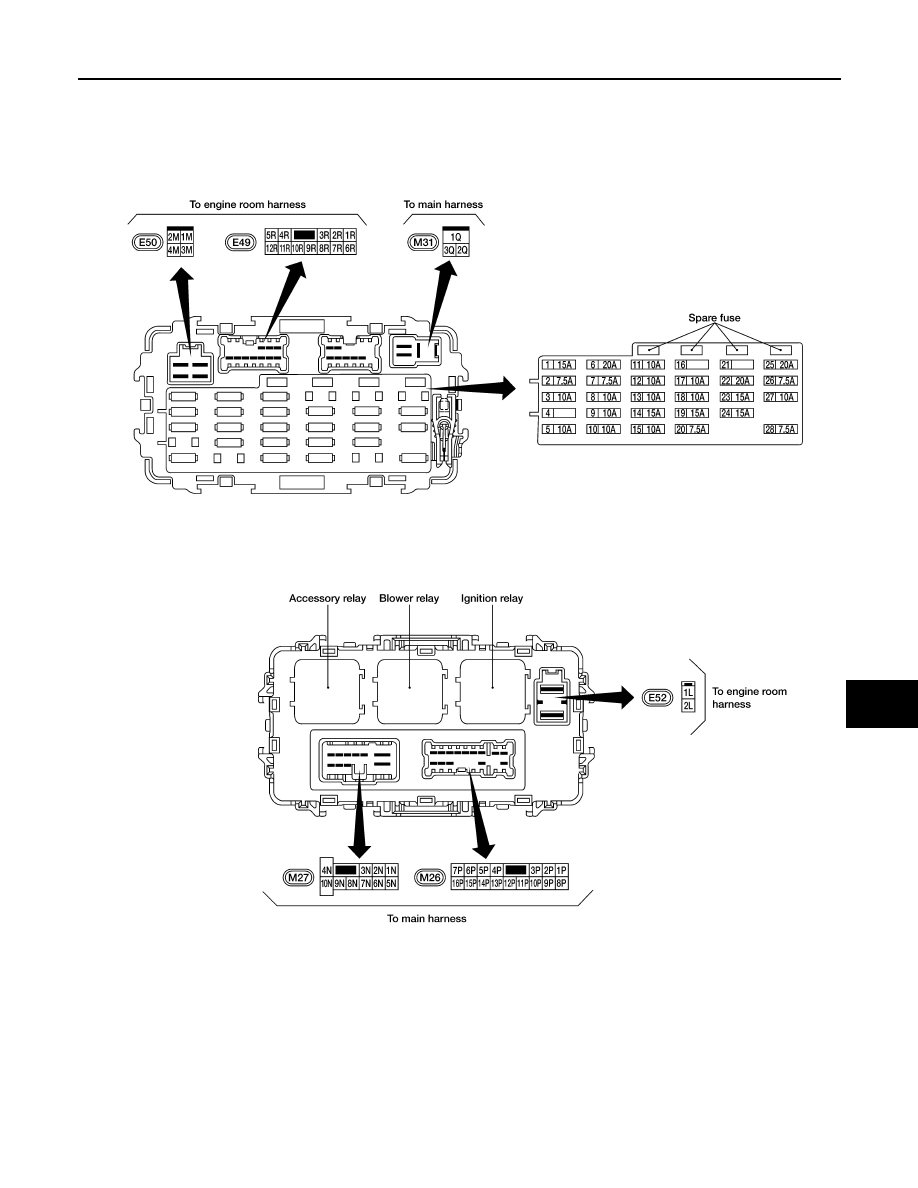

FUSE BLOCK — JUNCTION BOX (J/B)

PFP:24350

Terminal Arrangement

EKS006YG

WEL913A
