PG-4

HARNESS CONNECTOR

HARNESS CONNECTOR

PFP:24010

Description

EKS006XP

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

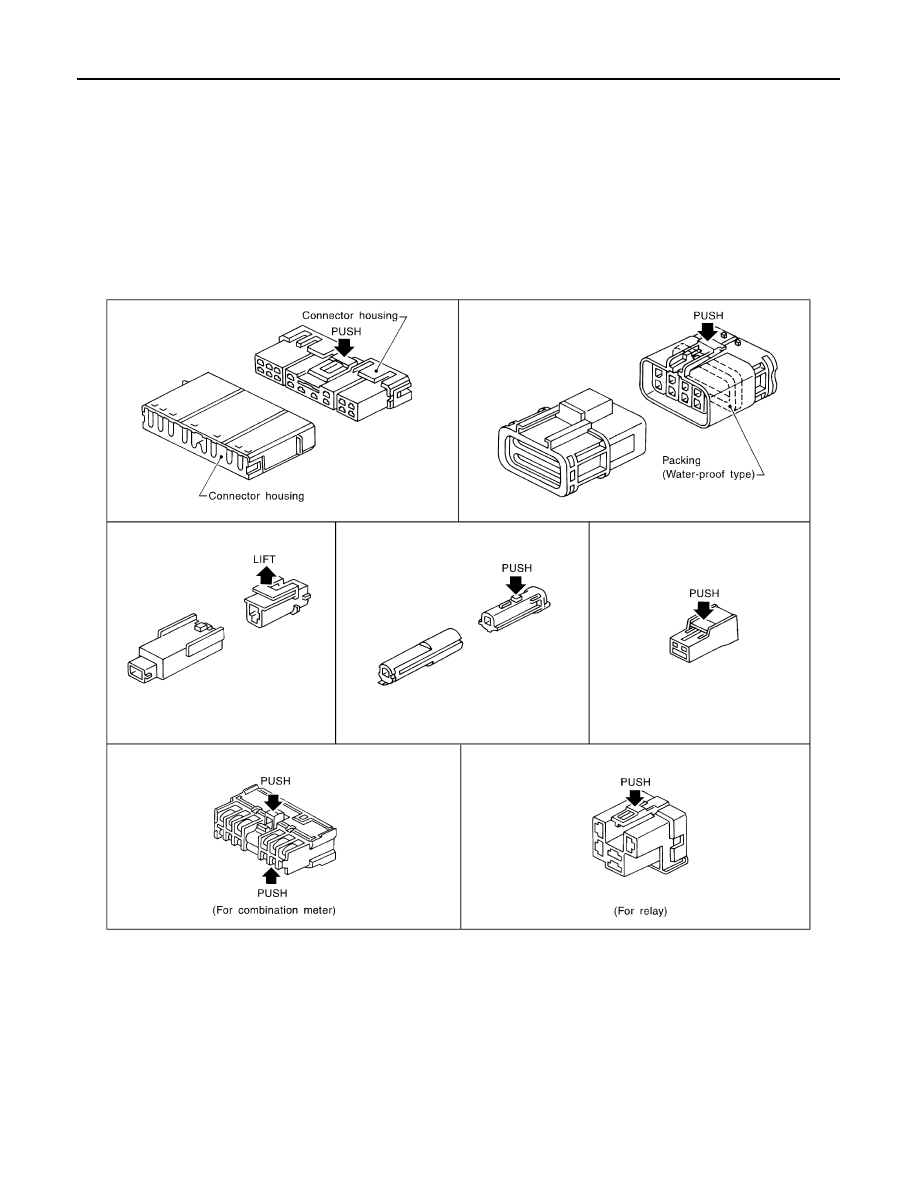

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.
[Example]

SEL769DA

HARNESS CONNECTOR

PG-5

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

●

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

●

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

●

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.

CAUTION:

●

Do not pull the harness or wires when disconnecting the connector.

●

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

AEL299C

PG-6

HARNESS CONNECTOR

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

●

SRS direct-connect type harness connectors are used on certain SRS components such as air bag mod-
ules and seat belt pre-tensioners.

●

Always pull up to release black locking tab prior to removing connector from SRS component.

●

Always push down to lock black locking tab after installing connector to SRS component. When locked,
the black locking tab is level with the connector housing.

CAUTION:

●

Do not pull the harness or wires when removing connectors
from SRS components.

WHIA0103E

STANDARDIZED RELAY

PG-7

C

D

E

F

G

H

I

J

L

M

A

B

PG

STANDARDIZED RELAY

PFP:25230

Description

EKS006XQ

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

SEL882H

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break
