How to Perform Trouble Diagnoses for Quick and Accurate Repair

EJS00202

WORK FLOW

SYMPTOM TABLE

*1:

MTC-30

*2:

MTC-22

LHA244

Symptom

Reference page

●

Blower motor does not rotate.

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
BLOWER MOTOR”.

MTC-37

●

Mode door does not change positions.

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
MODE DOOR”.

MTC-32

●

Intake door position does not change.

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
INTAKE DOOR”.

MTC-34

●

Magnet clutch does not engage when A/C switch and
fan switch are ON.

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
MAGNET CLUTCH ”.

MTC-42

●

Insufficient cooling

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
INSUFFICIENT COOLING”.

MTC-49

●

Insufficient heating

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
INSUFFICIENT HEATING”.

MTC-57

●

Noise

●

Go to “TROUBLE DIAGNOSIS PROCEDURE FOR
NOISE”.

MTC-59

TROUBLE DIAGNOSIS

MTC-23

C

D

E

F

G

H

I

K

L

M

A

B

MTC

Component Location

EJS00203

ENGINE COMPARTMENT
KA24DE Models

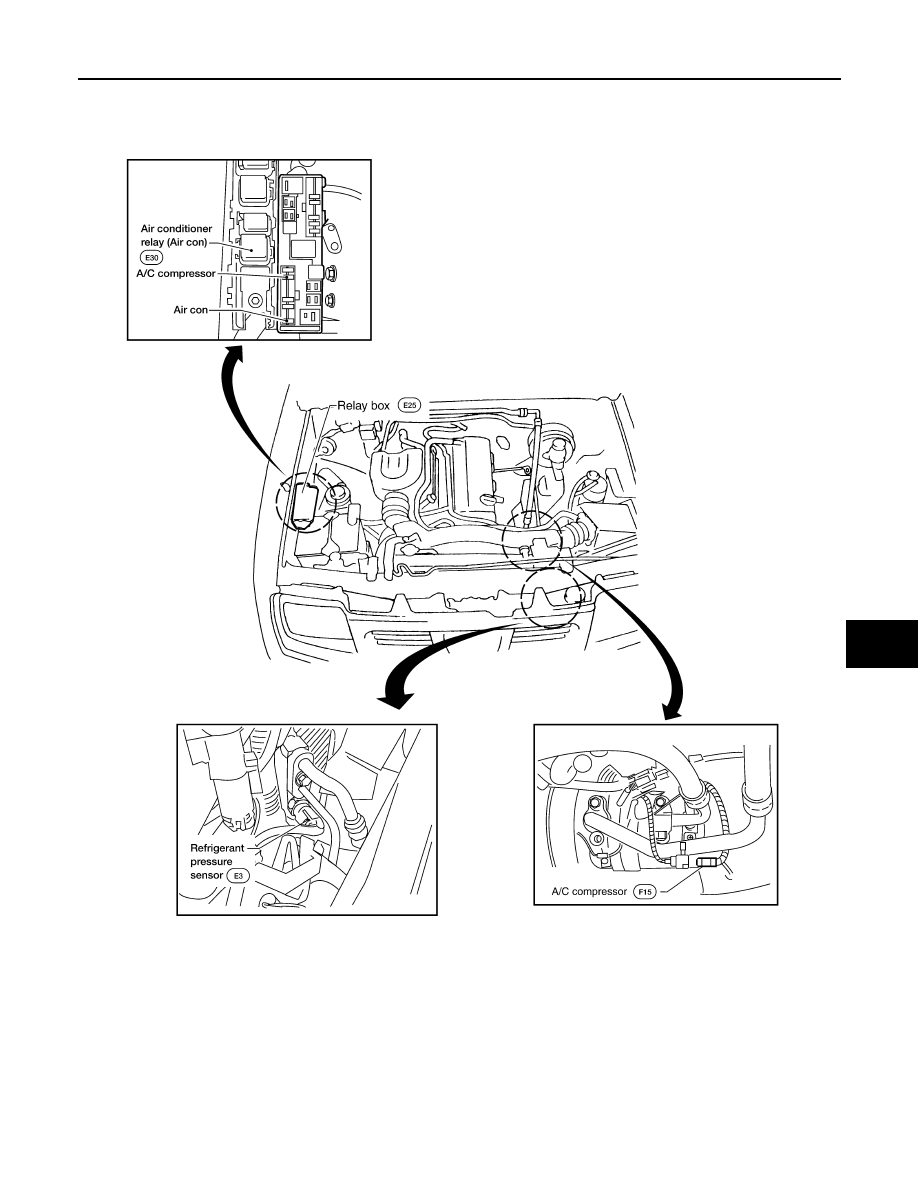

WJIA0674E

MTC-24

TROUBLE DIAGNOSIS

VG33E Models

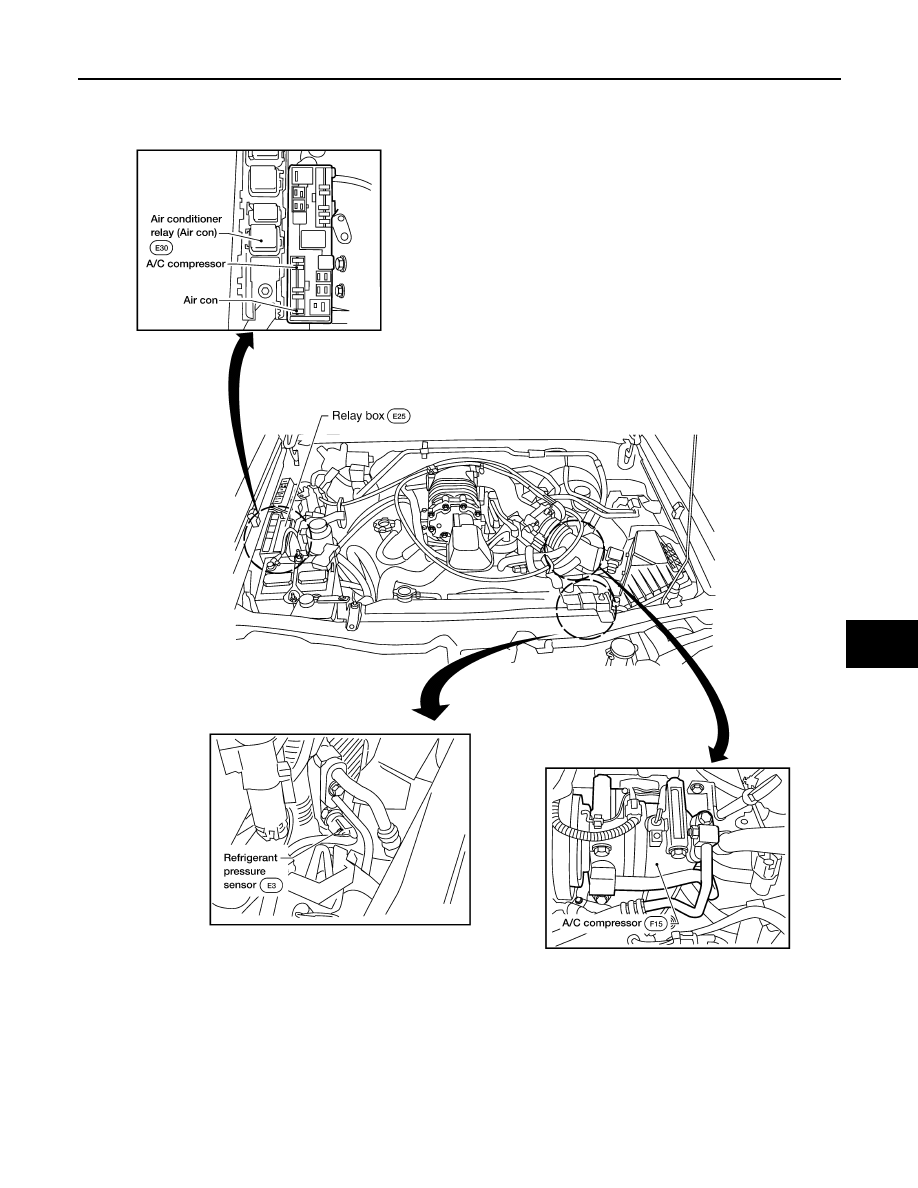

WJIA0675E

TROUBLE DIAGNOSIS

MTC-25

C

D

E

F

G

H

I

K

L

M

A

B

MTC

VG33ER Models

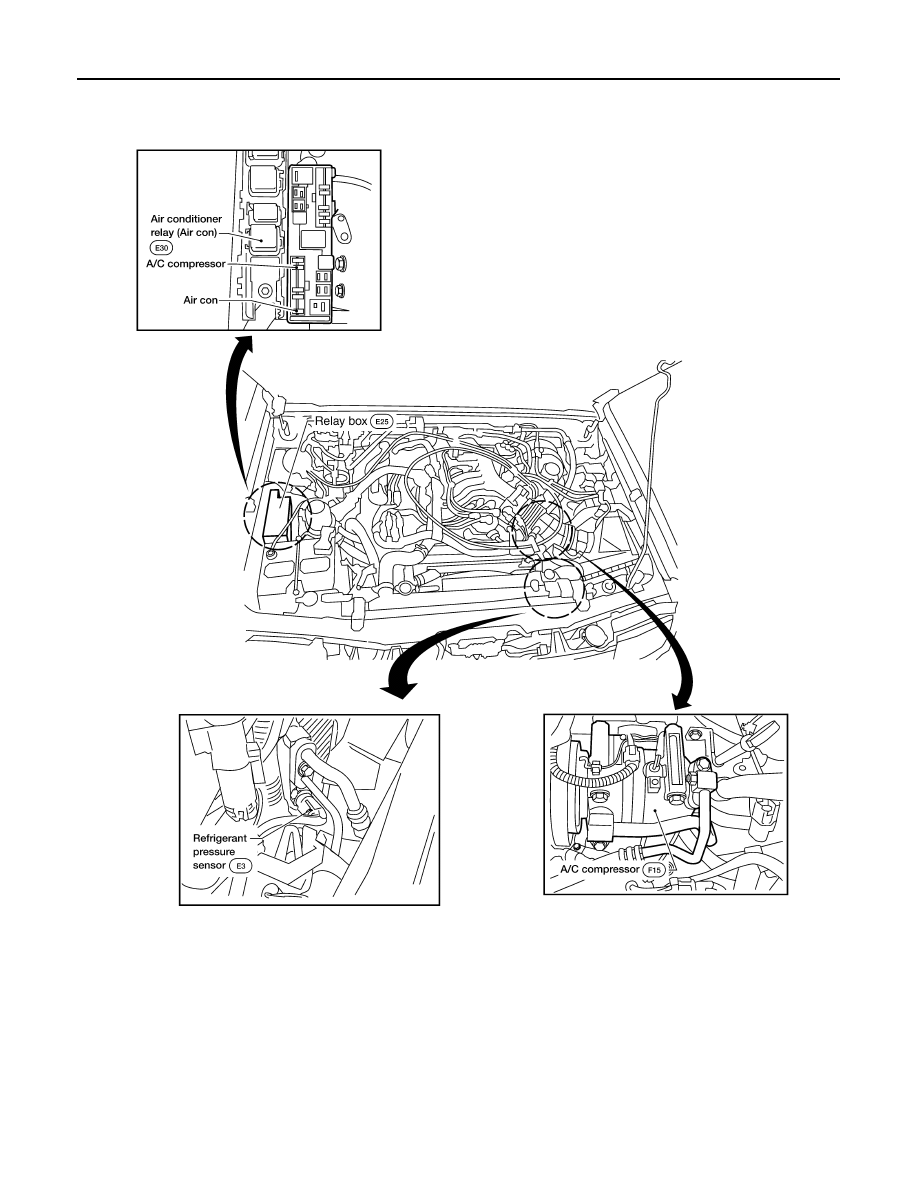

WJIA0676E
