MTC-10

PRECAUTIONS

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to an
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder's top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electronic scale or of quality recycle/recharge equipment.

THERMOMETER AND HYGROMETER

An etched stem-type thermometer and a hygrometer can be used to
check the air conditioning system performance. A hygrometer is
used because the air conditioning performance depends on the
humidity.

Wiring Diagrams and Trouble Diagnosis

EJS001ZT

When you read wiring diagrams, refer to the following:

●

Refer to

GI-13, "How to Read Wiring Diagrams"

 .

●

Refer to

PG-9, "POWER SUPPLY ROUTING"

  .

When you perform trouble diagnosis, refer to the following:

●

Refer to

GI-9, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

 .

●

Refer to

GI-25, "How to Perform Efficient Diagnosis for an Electrical Incident"

 .

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

AHA274

PREPARATION

MTC-11

C

D

E

F

G

H

I

K

L

M

A

B

MTC

PREPARATION

PFP:00002

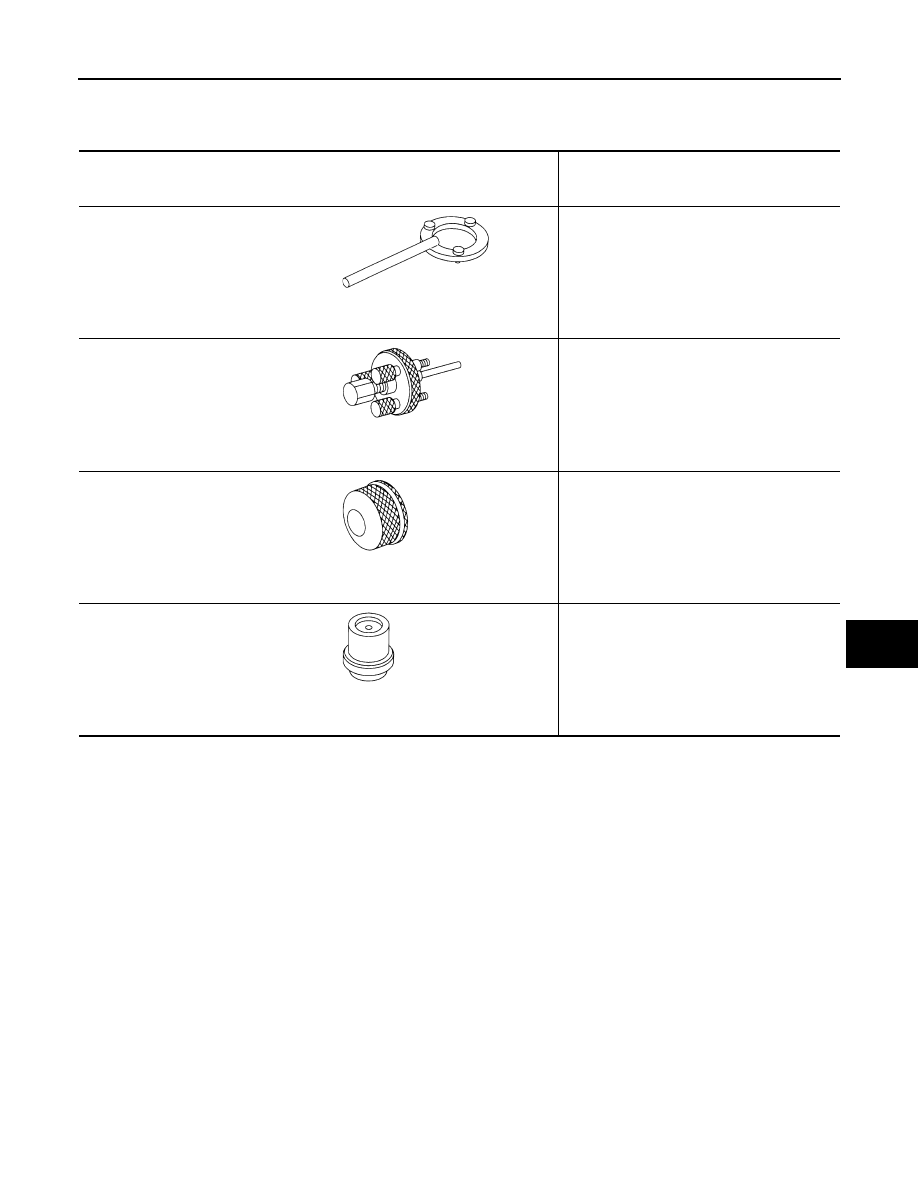

Special Service Tools

EJS001ZU

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV99231260
(J-38874)
Clutch disc wrench

Removing shaft nut and clutch disc

KV99232340
(J-38874)
Clutch disc puller

Removing clutch disc

KV99234330
(J-39024)
Pulley installer

Installing pulley

KV99233130
(J-39023)
Pulley puller

Removing pulley

NT204

NT206

NT207

NT208

MTC-12

PREPARATION

HFC-134a (R-134a) Service Tools and Equipment

EJS001ZV

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used or refrigerant/lubricant contamination will
occur and compressor failure will result.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(

—

)

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

●

large container 1/2

″-16 ACME

KLH00-PAGS0
(

—

)

Genuine NISSAN A/C System Lubri-
cant Type R

Type: Poly alkaline glycol oil (PAG),
type R
Application: HFC-134a (R-134a)
vane rotary compressors (NISSAN
only)
Lubricity: 40 m

 (1.4 US fl oz, 1.4

Imp fl oz)

—

(J-39500-NI)
Recovery/Recycling
Recharging equipment (ACR2000)

Function: Refrigerant Recovery and
Recycling and Recharging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:

●

DC 12 V (Cigarette lighter)

Function: Checks for refrigerant
leaks.

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220) UV lamp and UV safety
glasses
(J-41459) Refrigerant dye injector
(J-41447) qty. 24
R-134a refrigerant dye
(J-43872) Refrigerant dye cleaner

Power supply:
DC 12V (Battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

SHA437F

PREPARATION

MTC-13

C

D

E

F

G

H

I

K

L

M

A

B

MTC

(J-42220)
Fluorescent dye leak detector

Power supply: DC 12V (Battery ter-
minal)
For checking refrigerant leak when
fluorescent dye is installed in A/C
system.
Includes: UV lamp and UV safety
glasses

(J-41447)
HFC 134a (R134a) Fluorescent Leak
Detection Dye (Box of 24, 1/4 ounce
bottles)

Application: For R-134a PAG oil
Container: 1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identifi-
cation labels for affixing to vehicle
after charging system with dye.)

(J-41459)
HFC 134a (R134a) Dye Injector
Use with J-41447, 1/4 ounce bottle

For injecting 1/4 ounce of Fluores-
cent Leak Detection Dye into A/C
system.

(J-43872)
Dye cleaner

For cleaning dye spills.

(J-39183)
Manifold gauge set (with hoses and
couplers)

Identification:

●

The gauge face indicates R-
134a.

Fitting size: Thread size

●

1/2

″-16 ACME

Service hoses

●

(J-39500-72B)
High side hose

●

(J-39500-72R)
Low side hose

●

(J-39500-72Y)
Utility hose

Hose color:

●

Low hose: Blue with black stripe

●

High hose: Red with black stripe

●

Utility hose: Yellow with black
stripe or green with black stripe

Hose fitting to gauge:

●

1/2

″-16 ACME

Service couplers

●

High side coupler
(J-39500-20A)

●

Low side coupler
(J-39500-24A)

Hose fitting to service hose:

●

M14 x 1.5 fitting is optional or per-
manently attached.

Tool number
(Kent-Moore No.)
Tool name

Description

LHA177

SHA439F

SHA440F

SHA441F

RJIA0196E

S-NT201

S-NT202
