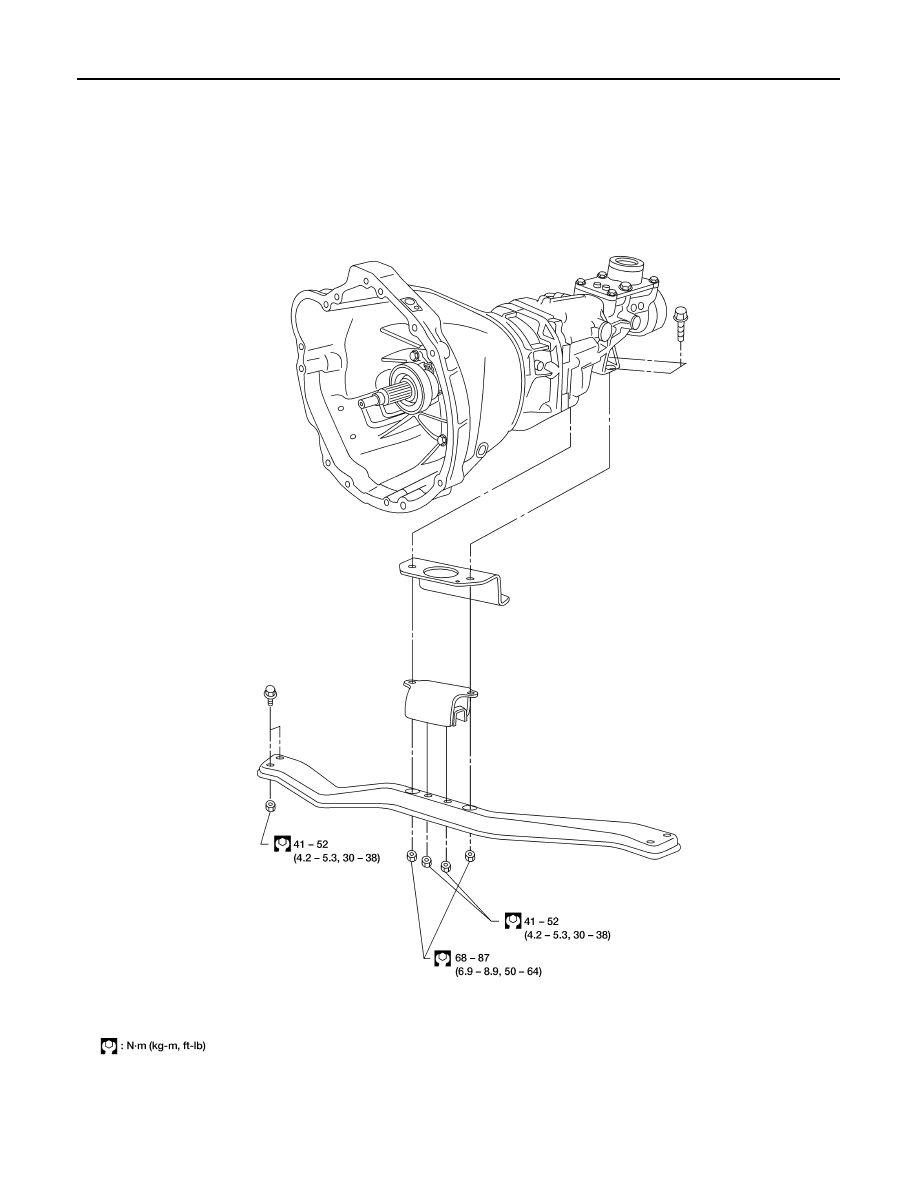

TRANSMISSION ASSEMBLY

TRANSMISSION ASSEMBLY

PFP:32010

Removal and Installation

ECS007HF

REMOVAL

CAUTION:

Before separating the transmission from the engine, remove the crankshaft position sensor (OBD)
from the transmission. Be careful not to damage sensor edge or ring gear teeth.

WMT030

TRANSMISSION ASSEMBLY

MT-11

[FS5W71C]

D

E

F

G

H

I

J

K

L

M

A

B

MT

NOTE:
To prevent oil spills, drain transmission oil before removing transmission or insert plug into rear oil
seal after removing propeller shaft.

●

Be careful not to damage spline, sleeve yoke, and rear oil seal when removing propeller shaft.

1.

Remove battery negative terminal.

2.

Remove the crankshaft position sensor (OBD) from transmission upper side.

3.

Remove the clutch operating cylinder from transmission. Refer to

CL-9, "OPERATING CYLINDER"

 .

4.

Disconnect the vehicle speed sensor, back-up switch, and park/neutral position (PNP) switch harness
connectors.

5.

Remove the starter motor. Refer to

SC-25, "Removal"

 .

6.

Disconnect the exhaust hanger. Refer to

EX-3, "Removal and Installation"

 .

7.

Remove the propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

8.

Remove the shift lever.

9.

Support the engine by placing a jack under the oil pan.

●

Do not place jack under oil pan drain plug.

10. Remove the transmission crossmember.

11. Separate the transmission from the engine.

WARNING:

Support manual transmission while removing it.

INSTALLATION

1.

Tighten transmission bolts.

*: With nut

2.

Installation is in the reverse order of removal.

SMT099A

Bolt No.

Tightening torque N·m (kg-m, ft-lb)

 mm (in)

1

40 - 49 (4.0 - 5.0, 29 - 36)

65 (2.56)

2

40 - 49 (4.0 - 5.0, 29 - 36)

58 (2.28)

3*

16 - 21 (1.6 - 2.2, 12 - 15)

25 (0.98)

4

16 - 21 (1.6 - 2.2, 12 - 15)

16 (0.63)

AMT190

MT-12

[FS5W71C]

TRANSMISSION ASSEMBLY

Overhaul

ECS007HG

CASE COMPONENTS

WCIA0177E

TRANSMISSION ASSEMBLY

MT-13

[FS5W71C]

D

E

F

G

H

I

J

K

L

M

A

B

MT

1.

Park/neutral position (PNP) switch

2.

Clip

3.

Dust cover

4.

Oil Seal

5.

Reverse check sleeve bolt

6.

O-ring

7.

Vehicle speed sensor

8.

Rear extension bolts

9.

Rear extension

10. Bearing retainer

11.

Bearing

12. Adapter plate

13. Filler plug

14. Drain plug

15. Gasket

16. Front cover

17. Ball pin

18. Washer

19. Front cover bolt

20. Transmission case

21. Air breather

22. Back-up lamp switch
