LT-38

INTERIOR ROOM LAMP

WKWA0650E

INTERIOR ROOM LAMP

LT-39

C

D

E

F

G

H

I

J

L

M

A

B

LT

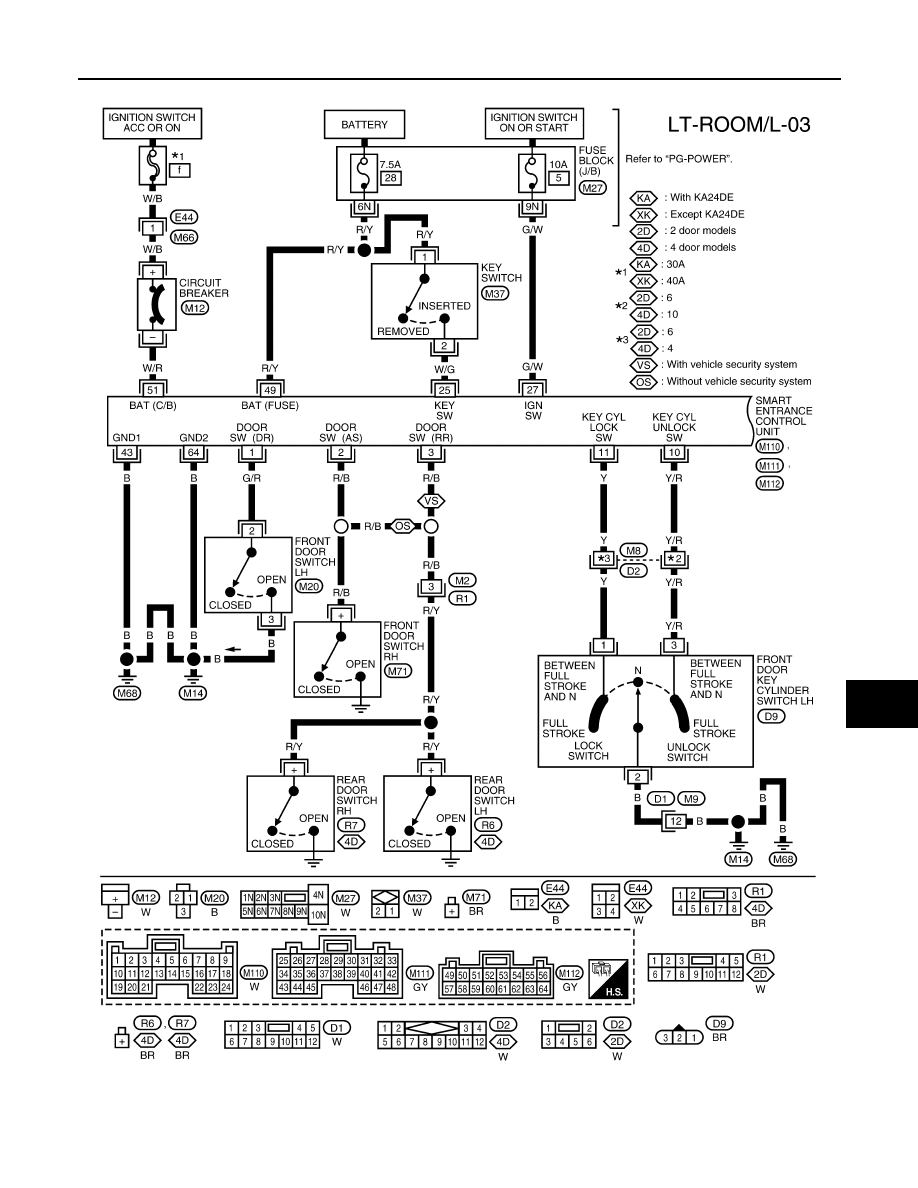

MODELS WITH POWER DOOR LOCKS

WKWA0380E

LT-40

INTERIOR ROOM LAMP

WKWA0651E

INTERIOR ROOM LAMP

LT-41

C

D

E

F

G

H

I

J

L

M

A

B

LT

Trouble Diagnosis

EKS006W0

SYMPTOM: Room lamp does not turn on or off properly.

1.

CHECK ROOM LAMP FUSE

Check 7.5A fuse [No. 26 (without power door locks), 28 (with power door locks), located in fuse block (J/B)].

OK or NG

OK

>> GO TO 2.

NG

>> Replace fuse and check harness for short between fuse and room lamp.

2.

CHECK ROOM LAMP SWITCH SIGNALS

1.

Close all doors, turn ON room lamp switch.

2.

Turn off room lamp switch.

OK or NG

OK

>> GO TO 3.

NG

>> Check the following.

●

Room lamp switch

●

Room lamp switch ground circuit

●

Harness for open or short between room lamp switch and smart entrance control unit (models
with power door locks)

3.

CHECK ROOM LAMP POWER SUPPLY

Check voltage between room lamp connector R4 terminal + (R/G) and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check harness for open between fuse and room lamp.

4.

CHECK INTERIOR ROOM LAMP BULB

Check interior room lamp bulb.
OK or NG

OK

>>

●

For models without power door locks, inspection end.

●

For models with power door locks, GO TO 5.

NG

>> Replace bulb.

Room lamps should turn on.

Room lamps should turn off.
